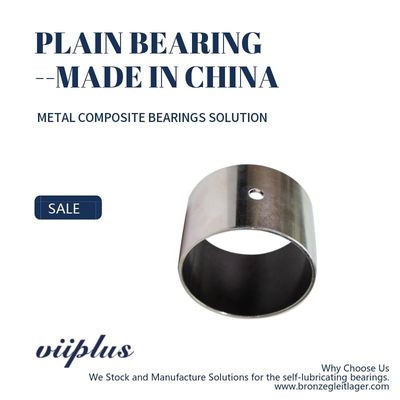

Metric Standard Size Available Cylindrical Bearing Composite Bushing
| Place of Origin | Composite plain cylindrical bushings manufacturer |
|---|---|
| Brand Name | VIIPLUS BUSHINGS SUPPLIER |
| Certification | ISO 3547 DIN 1494 Assembly Standard Tolerance |
| Model Number | similar Composite Bushing: SF-1 PAP PAF PAS P10 P20 SF-2 POM BUSHINGS |
| Minimum Order Quantity | 1000 Piece/Pieces |
| Price | $0.05 - $1.00 / Pieces |
| Packaging Details | Packaging: Export carton; Wooden case ; Wood pallet. |
| Delivery Time | 2-3 weeks |
| Payment Terms | TT in advance,Western Union, MoneyGram |
| Supply Ability | Special Customized Lubricating Bushings Manufacturing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Characteristic | Composite Bushing | Size | Standard Size Available |
|---|---|---|---|
| Dimensions And Tolerances | According To ISO 3547 Specifications | Feature | Tin-plated Steel /, Lead-free; DIN1494 / ISO3547 |
| Bushings | Self-lubricating Bushings,Metal-Polymer Anti-Friction Plain Bearings | AVAILABILITY | Cylindrical Bushes Flanged Bushes Thrust Washers Flanged Washers Sliding Plates |
| Metal-Polymer Composite Self-lubricating Bushing Material | Steel Back + Porous Bronze Sinter + | Application | Agricultural Equipment, Construction Equipment, Food And Beverage, Material Handling Equipment, Forming Machines， Office Equipment, Medical And Scientific Equipment, Packaging Equipment, Hydraulic Cylinders, Pumps And Motors, Textile Machinery, Valves, Etc |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self Lubricating Bronze POM Bushing, Metal Polymer Bushings | POM BUSH | Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | oil impregnated brass sleeve bearing,flanged plain bearing |
||
Product Description
When it comes to cylindrical bearing bushings, having metric standard sizes available is crucial for a wide range of applications. Composite bushings, specifically those made of metal polymer composite (MPC) materials, offer several advantages for cylindrical bearing applications.
Metric standard size cylindrical bearing composite bushings are designed to fit into standard metric-sized bearing housings and shafts. This ensures compatibility and ease of installation in various machinery and equipment.
MPC composite bushings offer several key benefits:
High load capacity: MPC materials are reinforced with metal compounds, providing excellent strength and durability to handle heavy loads and torques.
Low friction: The combination of metal and polymer compounds results in a low-friction material, reducing wear and energy loss.
Self-lubricating: MPC bushings do not require external lubrication, making them maintenance-free and reducing the risk of contamination or leakage.
Chemical resistance: MPC bushings are resistant to chemicals and harsh environments, making them suitable for demanding applications.
Metric standard size cylindrical bearing composite bushings are available in various diameters, lengths, and wall thicknesses to meet specific application requirements. They can be easily installed into existing bearing housings using standard tools and techniques.
Overall, metric standard size cylindrical bearing composite bushings provide an effective solution for various machinery and equipment, offering high load capacity, low friction, and chemical resistance while requiring minimal maintenance.
Metric Standard Size Available Cylindrical Bearing Composite Bushing
Metric Standard Size Available Cylindrical Bearings - Composite Bushing.Made in China Manufacture of slide bearing,bronze bushing,solid cast bronze bearing,oilless bushing,wrapped bronze bushing,bimetal bushing, bushing,etc.Bronze Bushing Bearing,WB FB Bronze Bushing, Bush,Composite Bushing: SF-1 PAP PAF PAS P10 P20 SF-2 POM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wrapped composite dry sliding bearing |
- Bronze /
- Maintentance-free
Properties
- Excellent sliding and wear behaviour, for all types of movement, high load capacity, good corrosion resistance, non-magnetic
Materials
- Support Material Bronze or steel
- Intermediate layer Sintered bronze
- Sliding layer
Material Properties
- Specific load capacity static≤ 200 [N/mm2]
- Specific load capacity dynamic≤ 140 [N/mm2] at slow sliding speed
- Sliding speed≤ 2.5 [m/s]
- Friction value ***0.02 [µ] to 0.25 [µ]
- Temperature strain– 200 [°C] to + 280 [°C]
- Max. PV-value1.8 [N/mm² x m/s]
Tolerance Details
- Housing ØH7
- Bushing inner-Ø after mountingH9
- Shaft tolerancef7 to h8
Maintenance
- is a dry sliding bearing with a sliding layer. Lubrication is therefore not necessary, but basically possible!
Range Of Application
- Machine and plant construction, textile processing and agricultural maschines, automotive industry
Caption
Special dimensions are only available on request.*If you like to use lubrication nonetheless, please remember to lubricate the sliding bearing regularly
