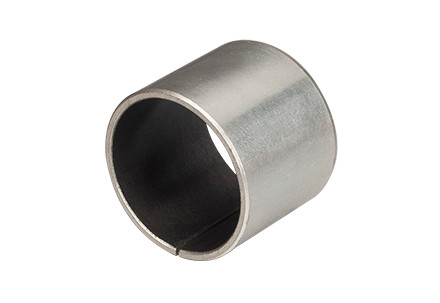

Composite dry sliding bearings, specifically the journal bearing type with coiled steel backing and (Polytetrafluoroethylene) bushing, are a reliable and efficient solution for various applications requiring low-friction, wear-resistant bearing surfaces. These bearings offer several advantages over traditional lubricated bearings, making them a popular choice in industries such as automotive, aerospace, and heavy machinery.

The coiled steel backing provides excellent structural support and stability for the bushing. This combination of materials ensures that the bearing can withstand high loads and pressures while maintaining its dimensional stability. The coiled steel also helps dissipate heat generated during operation, reducing the risk of thermal expansion and damage to the bearing.

The bushing is a key component of this type of bearing. is a synthetic fluoropolymer with excellent wear resistance, low friction coefficients, and good chemical stability. These properties make it an ideal material for bearings that require smooth, reliable operation over extended periods of time. The bushing is precision-fitted into the coiled steel backing, creating a uniform and smooth bearing surface.

Composite dry sliding bearings with coiled steel backing and bushing are often used in applications where traditional lubricated bearings are not feasible or desirable. For example, they are commonly found in high-temperature environments where lubricants may degrade or evaporate, as well as in cleanroom environments where lubricants can contaminate sensitive equipment. Additionally, these bearings require no maintenance or relubrication, reducing downtime and operational costs.

In summary, composite dry sliding bearings with coiled steel backing and bushing offer a reliable and efficient solution for applications requiring low-friction, wear-resistant bearing surfaces. Their excellent performance and durability make them a popular choice in a wide range of industries.

Polymer Plain Bearing

Plain Bearings,Sleeve bearings,Flanged sleeve bearings & Thrust bearings made to order from china.For Shaft Diameter,Length,Dynamic Radial Load Capacity,ID,For Housing ID,OD,Maximum Temperature,Find a sleeve bushings.VIIPLUS plain bearings is the complete source for your Sleeve Bushing & Self -Lubricating Bearings products. Order online for stock size and custom sizes.With no moving parts, plain bearings are the simplest type of bearing. Compared to ball and roller bearings, they generally handle higher temperatures and perform better in dirty environments.

Sliding bearings offer the following key design features • Inch and metric sizes with final as-plated dimensions. sleeve split bushing with Corrosion Resistance available with stainless steel and/or cadmium plated alloy steels on all exposed surfaces except bore and seals. VIIPLUS also offers other corrosion resistant plated materials, which include zinc nickel plated alloy steels and Stainless Steel • High load capacities in a compact, lightweight design.Inert polytetrafluoroethelene () —PFFE — Customized Standard on most sizes. Extended inner rings eliminate the need for spacers. Bearings lubricant

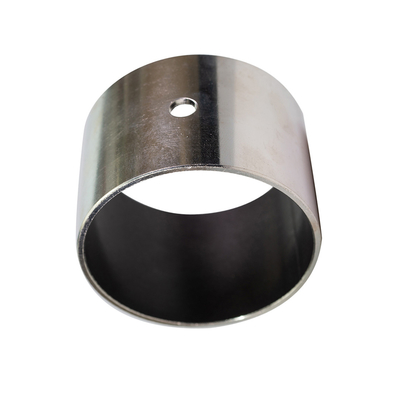

Journal Bearing Type—Coiled Steel Backing Bushings

Self-Lubricating Bearing Flanged Bushings
Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.

Journal bearings, split seam steel backing, zinc plated bearing works excellent in any pivot or linkage application. For construction and farm equipment, this product is typically used in kingpins, rock shafts,differentials, hinges, pedals and many other pivot points.

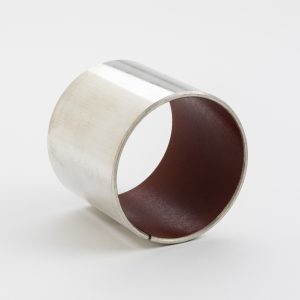

Machinery Repair bronze bushes Wrapped composite dry sliding bearing steel / special RED bushes, lead-free | VSB-40

Technische Daten

• Wrapped composite dry sliding bearing
• Tin-plated steel
• Maintentance-free
• Suited for oil lubrication

Properties

• Excellent sliding and wear behaviour, especially for lubrication, for all types of movement, medium sliding speed and load capacity, good chemical resistance

Materials

• Support materialSteel tin-plated
• Intermediate layerSintered bronze
• Sliding layer

Material Properties

• Specific load capacity static≤ 250 [N/mm2]
• Specific load capacity dynamic≤ 140 [N/mm2] at slow sliding speed
• Sliding speed≤ 2.0 [m/s] (≤ 5 [m/s] oil lubricated)
• Friction value ***0.02. [µ] to 0.20 [µ] (≤ 0.05 [µ] oil lubricated)
• Temperature strain– 195 [°C] to + 280 [°C]
• Max. PV-value3.8 [N/mm² x m/s] (≤ 60 [N/mm² x m/s] oil lubricated

Tolerance Details

• Housing ØH7
• Bushing inner-Ø after mountingH9
• Shaft tolerancef7 to h8

Maintenance

• s a dry sliding bearing with a sliding layer. Lubrication is therefore not necessary. But it is suitable for lubricated applications (such as hydraulic oil lubrication).

Range Of Application

• Machine and plant construction, textile processing and agricultural maschines, hydraulic pumps, automotive industry

CAPTION

Special dimensions are only available on request
