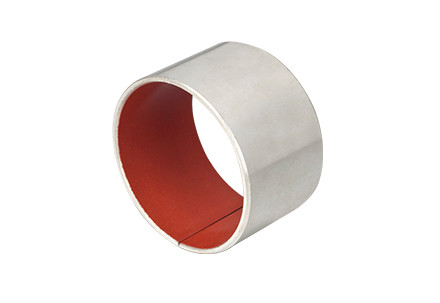

Orange METAL-POLYMER BEARINGS For Pump | Self Lubricating Sleeve Bearings Tin / Copper Plating

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze + Yellow POM Plating Tin Or Copper
Type Wrapped Bushes, Thrust Washer Lubricating Boundary Lubricating
Customized Based On Drawing Or Sample Color Black,red,yellow,blue,orange POM Bushes
Application Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc. Boundary Lubrication Lead-free
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

plain bearing

Leave a Message
Product Description

Orange metal-polymer bearings, specifically designed for pumps, are self-lubricating sleeve bearings that incorporate tin or copper plating to enhance their durability and performance. These bearings offer exceptional wear resistance, low friction, and superior chemical stability, making them ideal for use in pumps and other rotating machinery.

The combination of (Polytetrafluoroethylene) and metal plating provides a unique material solution that offers the best of both worlds. is renowned for its low coefficient of friction and excellent lubricity, while the metal plating adds strength, durability, and corrosion resistance.

The tin or copper plating on the sleeve bearing surface creates a smooth and hardwearing surface that resists wear and abrasion. This ensures that the bearing maintains its performance over extended periods of operation, even under high loads and speeds.

The self-lubricating properties of the Orange metal-polymer bearings eliminate the need for external lubricants. This not only reduces maintenance requirements but also eliminates the risk of contamination from lubricants, which can be problematic in pump applications.

Overall, Orange metal-polymer bearings with tin/copper plating are an excellent choice for pumps and other rotating machinery. They offer superior performance, durability, and reliability, ensuring smooth and efficient operation of your equipment.



Boundary Lubricating Bearings plunger pump Yellow Red POM Bushes lead-free | VSB-20 orange



Structure Characteristics



Modified PEEK with self lubricating additives for applications where chemicals where chemicals may be utilized.Excellent wear in both wet or dry applications. Available with a bronze substrate for use as chemical pump or valve bushings. Extra thick liner allows for slight modifications for shaft misalignment.



The structure of this prelubricated bearing consists of spherical powdered bronze sintered onto a steel backing and Orange color impregnated into the surface.


Metal-polymer marginal lubricating composite materials consist of metal backing sintered porous bronze with POM or PEEK polymer as working layer. Steel backing provides exceptionally high load carrying capacity, excellent heat dissipation. Sintered bronze powder provides thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture.And the POM or PEEK polymer layer provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.





Detailed information



Boundary lubrication lead-free bearing is improved on the basis of VSB-20. It has the same performance as the VSB-20, but the surface does not contain lead, and the field of use can be extended to areas with environmental requirements.



Steel + Bronze Powder + POM






METAL-POLYMER BEARINGS

Characteristics



VSB-20 Boundary lubrication bearing High Quality  POM Bush China Manufacturer
· marginally lubricated bushings for grease or oil lubricated applications
· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
· Optimum performance under relatively high loads and low speeds
· Suitable for linear, oscillating and rotating movements
· Wide range of parts available from stock

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.






Strusture



1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.


2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.





	Polymer Plain Bearings

Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back







Structure And Composition



Metal-Polymer Composite Bushing Material

Steel Back +Porous Bronze Sinter +

POM with Lubrication Indents





Maximum load bearing pressure

70N/mm²

Coefficient of frictionμ

0.05~0.25

Temperature range

-40℃~130℃

Allowable maximum PV value

22N/mm²·m/s

Maximum sliding speed

2.5m/s





Availability


Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs


Typical Applications



At present, the product has been applied to the occasion of imported textile equipment, the swing parts of plunger pump, the position of the car joystick, the medium speed and grease lubrication.
