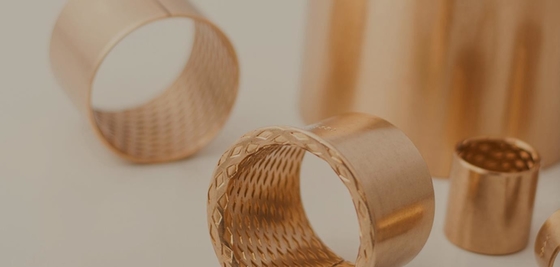

    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

Low - Maintenance Bronze Sleeve Bushings For Field Crop Sprayers Steering Kingpin

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bronze POM Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Port Shangai,or Ningbo
Quality OEM Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Sample Available Application Crop Sprayer Steering Kingpin Bushing
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

flanged plain bearing

Leave a Message
Product Description

Low-maintenance bronze sleeve bushings designed for field crop sprayers' steering kingpin are a reliable and durable solution for agricultural machinery. These bushings are specifically engineered to withstand the rigors of outdoor environments and frequent use, ensuring smooth and efficient steering operation. The bronze material offers excellent wear resistance and corrosion resistance, extending the lifespan of the bushings and reducing the need for frequent maintenance. Additionally, the sleeve design provides a secure fit and minimizes friction, further enhancing performance and reliability. Overall, these low-maintenance bronze sleeve bushings are an ideal choice for field crop sprayers' steering kingpin, enabling efficient and reliable steering performance in agricultural applications.



OEM MAFACTURER Plain bearings - lubrication holes, grooves and pockets - dimensions, types, designation and their application to bearing bushes.



Crop sprayer steering kingpin | Metal-Polymer Plain Bearings & Sleeve Bushes

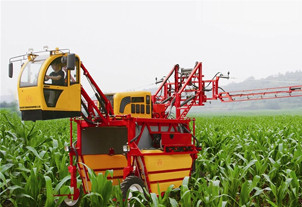

Applications require self-propelled and trailing crop sprayers to apply controlled doses of dry, liquid herbicides, pesticides and fertilizers to crops.In order to improve the maneuverability, the self-propelled crop sprayer has four wheel direction and driving function
In addition to being equipped with a separate double leg and air spring suspension, each wheel is steered through a kingpin assembly with antifriction sliding bearings.

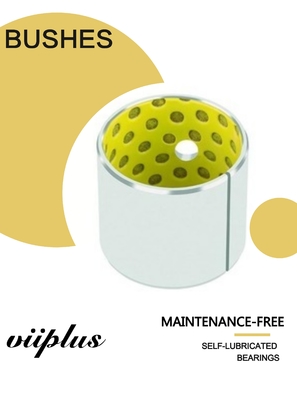

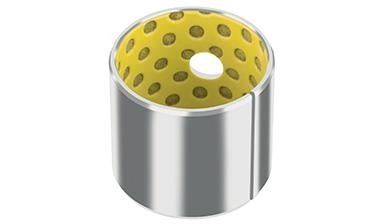

Metal-Polymer Plain Bearings is used steel-backing as its structure, sintered porous bronze as its interlayer, surface inlaid the modified POM. Suitable for marginally lubricated and dry operation on the conditions of lubrication indents grease. It has been widely applied to metallurgical machinery, Mine machinery, water conservancy machinery, vapor locomotive, building machinery, agriculture machinery, steel rolling industry etc.



Product Name
POM Bushing
Material
Carbon steel + Sintered copper powder + POM
Technology
Sintering - Wrapped-Drilling
Load Capacity
Static load 250N/mm2 ; Dynamic load 140N/mm2
Surface Treatment
Tin Plating, Copper Plating
Advantage
POM High intensity, Oil holes can be refuelled
Friction Coefficient
Grease lubrication 2.8N/mm2·m/s

Application
Metallurgical machinery-Mine machinery-Water conervancy machinery-
Construction machinery-Farm machinery-Motor vechicles
Working Temperature
-40 ~ +130 Degree celsius



Agricultural bearing solutions


In this high-load, low-speed application, the best performance is achieved by mounting the POM with a porous bronze sintered intermediate layer and a pinched acetal sliding layer.

Agricultur	Polymer Plain Bearingsal bearings - advantages



Benefits of using POM grease lubricated sliding bearings are:





The reduced surface layer is used as a grease reservoir to extend the lubrication interval
The best maintenance and distribution of lubricant on the bearing sliding layer can reduce friction and wear and prolong the service life
Central lubrication hole, convenient for re-lubrication of the bearing discharge pollutants



Technical Data



Max. load

Static

250N/mm2

Dynamic

140N/mm2



Rotaing oscillating

60N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient Dry

0.03~0.20

Lubrication

>2m/s

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1
