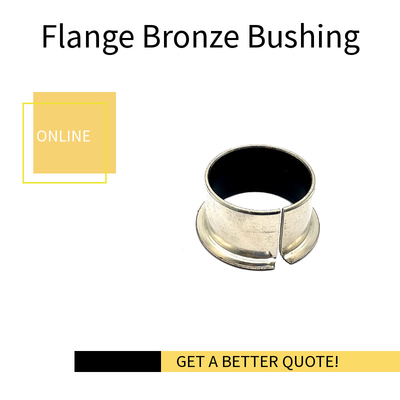

Fast direct delivery service for quality products, sliding bushing diametre gap size large inventory of bushings and bearings offering customers direct delivery service. Low prices flanged bronze bushings online from bronzegleitlager.com DIN 1494 ISO 3547

Rod guidance for pneumatic and hydraulic cylinders, These  Bush Bearings are widely used in the Machinery Industry. (Inside Diameter x Outside Diameter x Length).

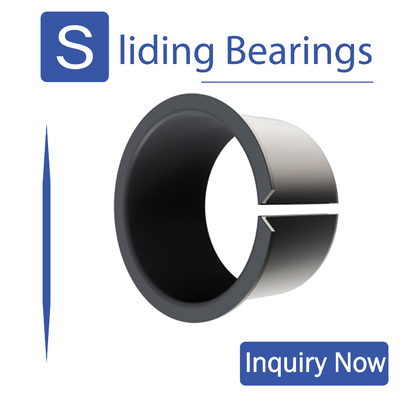

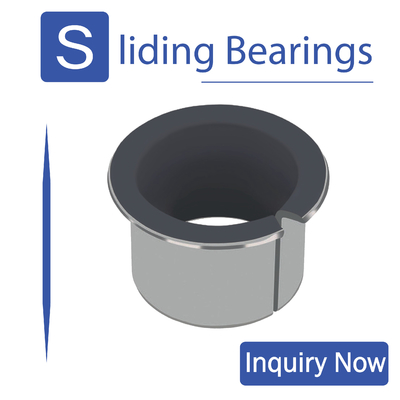

Metric FTH Series Flanged Dryslide Bushing Same type, same product parameters, half price

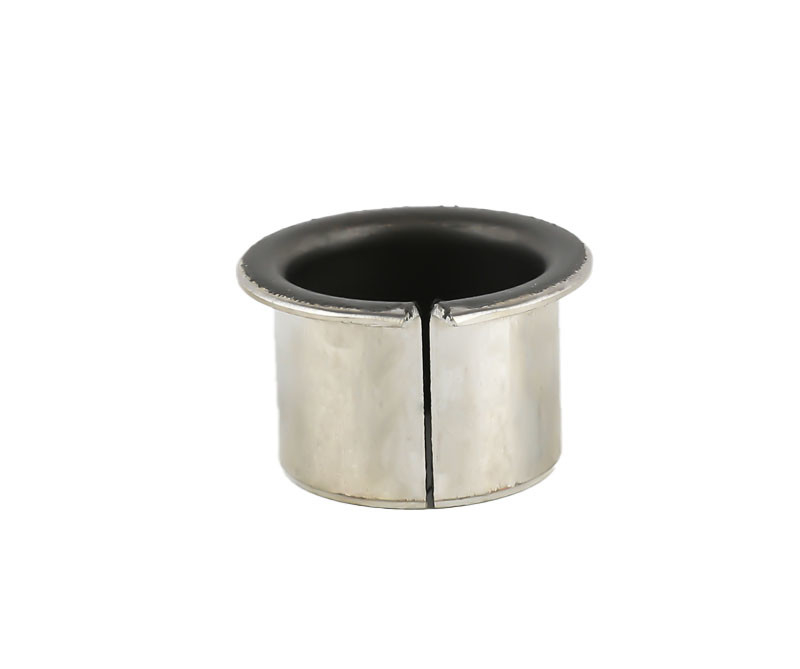

Stainless steel corrosion resistant bearings, stainless steel as a matrix, the middle of the sintering corrosion resistant alloy powder, the surface of the rolling based low friction materials, after the rolling molding of a very effective corrosion resistant materials.It has the characteristics of oil resistance, acid resistance, alkali resistance, seawater resistance and wear resistance. The material on the surface does not contain lead.

In food and beverage machinery, chemical medium ph flow of the pump valve, pharmaceutical machinery, printing and dyeing machinery, chemical machinery, Marine industry corrosion resistance sliding parts are most suitable for use.

Bushing Feature

Our metal-backed (polytetrafluoroethylene) -based metal bushing materials have a common structure consisting of a steel beam connected to a porous bronze sintered layer. This bronze sintered layer is impregnated and covered with the filled socket lining. The steel beam provides mechanical strength, while the bronze sintered layer creates a strong mechanical bond between the beam and the socket liner. This construction promotes dimensional stability and improves thermal conductivity. These linings offer exceptionally low friction.

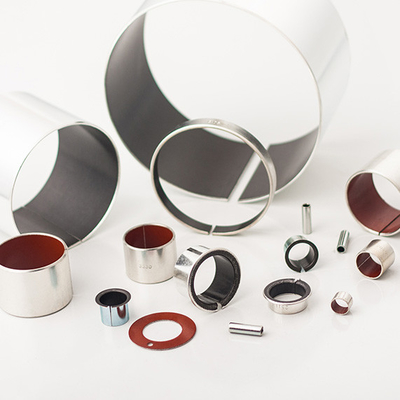

Straight Bushings, Flanged Bushings, Washers and Strip - Metric

Metric FTH Series Flanged Dryslide Bushing Same type Stainless steel corrosion-resistant oil-free composite bearing

Bushing Material Structure

1. The / Pb mixture 0.01 ~ 0.03 mm as a sliding layer, provides an excellent initial transfer film, which effectively coats the contact surface of the bearing assembly, forming a homogeneous oxide solid lubricant film .
2. Porous bronze 0.2 ~ 0.3 mm, provides max. the thermal conductivity away from the bearing surface, also serves as a reservoir for the lead- mixture.

3. The base of 0.7 ~ 2.3mm mild steel provides fundamental structural support and provides exceptional load-bearing capacity and excellent heat dissipation.
4. Tinning 0.005mm or copper plating 0.008mm provides good corrosion resistance.

Bushing Characteristics

· Good wear and friction performance over a wide range of oil-free loads, speeds and temperature
· Also work well with lubrication
· Maintenance free, long life

Metric FTH Series Flanged Dryslide Bushing Same type Poly tetra fluoroethylene()

Metric FTH Series Flanged Dryslide Bushing Same type It is a polymer made of tetrafluoroethylene as monomer.White waxy, translucent, good heat and cold resistance, can be used in -180 ~ 260 C for a long time.This material has the characteristics of anti - acid, anti - alkali, anti - various organic solvents, almost insoluble in all solvents.At the same time, has the characteristics of high temperature resistance, its coefficient of friction is very low, so it can be used for lubrication, but also become easy to clean the ideal coating of the inner layer of the water pipe;Toxic, human carcinogen.

Bushing Properties

Availability

· Standard cylindrical bushing, flanged bush, thrust washers and strips are available.

· Lead free type is also available

· All special designs are produced according to your requirement

Bushing Application

du bushings are widely used in hoists, hydraulics and valves, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, construction machinery, material handling equipment, packaging equipment, automotive industry, scientific equipment, dryers, office equipment, etc.

self - lubricating oil - free bearing bearing of the molding process

Steel Bronze With Bushing - Metric
