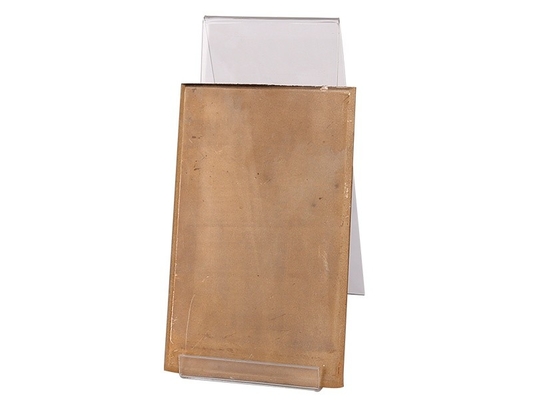

3 Layers Composite Bronze Backed Bushing Material Strips Sheet

3 Layers Composite Bronze Backed Bushing Material Strips Sheet

Brand Name: viiplus
Model Number: Self-lubricating bearing
MOQ: negotiable
Price: According to product specifications
Payment Terms: T/T
Supply Ability: production capacity can be supplied in large quantities
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001
Features:
Maintenance
Material:
Bronze+Sintered Bronze+
Size:
Composite Bushing Metric Size
Type:
Composite Bushing Material Strips Sheet
Benefit:
High Quality, Factory Price
Finishing:
With / Lead Mixture
Service:
Customization; OEM Service
Sample:
Available / Free
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Self Lubricating Bronze POM Bushing, Metal Polymer Bushings
POM DX BUSH:
Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
wooden cases wooden pallet packing
Supply Ability:
production capacity can be supplied in large quantities
Highlight:

Composite Bronze Backed Sheet

,

3 Layers Bushing Material Sheet

Product Description

3-Layer Composite Bronze-Backed Bushing Material Strip Sheets are specifically designed to provide enhanced durability, wear resistance, and conductivity in a wide range of industrial applications. These strips sheets consist of three distinct layers:

Bronze Backing Layer: The bronze backing layer serves as the foundation of the composite material, providing excellent strength and corrosion resistance. Bronze is a copper-based alloy with a range of added metals that improve its properties, making it ideal for bearing applications.

Intermediate Layer: The intermediate layer, often made of a polymer or other synthetic material, provides cushioning and vibration damping. This layer helps to reduce noise, improve wear resistance, and enhance the overall performance of the bushing.

Surface Layer: The surface layer is typically made of a hard-wearing material such as steel or sintered metal. This layer comes into direct contact with the rotating shaft or other moving parts, ensuring smooth operation and minimal wear. The surface layer is also often treated with lubricants or coatings to further reduce friction and extend the life of the bushing.

The combination of these three layers results in a bushing material that is both strong and flexible, able to withstand heavy loads and frequent movement while maintaining a smooth and reliable operation. The bronze backing layer provides the necessary strength and corrosion resistance, while the intermediate and surface layers work tog to optimize wear resistance, vibration damping, and overall performance.

3-Layer Composite Bronze-Backed Bushing Material Strip Sheets are available in a variety of sizes, thicknesses, and material compositions to meet the specific requirements of different applications. Wh you're looking for a high-strength, corrosion-resistant bushing for use in harsh environments or a lightweight, low-friction option for high-speed applications, these composite bushings are sure to meet your needs.



Self-lubricating Composite Du-B Bronze bushings material to manufactuer your bushings.



Tell us about your application



composite bushing material strips or sheets. . -lead overlay



The composite bushing is the higher performance self-lubricating bearing material available anywhere. It offers a combination of properties and capabilities unmatched by any other self-lubricating bearing material and, consequently, has the broadest application range



Composite 3 layer bushing bearings combine the advantages of many conventionally lubricated, metallic plain bearings—particularly high load capacity and dimensional rigidity—with the design freedoms of self-lubricating materials, including the ability to operate successfully well beyond the scope of conventional lubricants.

The high-performance self-lubricating bearing bushing material

1. Bronze Backing
This bronze backing gives bushing its exceptionally high load carrying capacity; thin, compact design; excellent heat dissipation; and dimensional and structural rigidity.

2. Porous bronze inner structure This comprises a nominal 0.010 inch (0.25 mm) thick layer of carefully sized bearing quality bronze powder which is sintered onto the steel backing. This porous structure is impregnated with a homogeneous mixture of (polytetrafluoroethylene) and lead. In addition to providing maximum thermal conductivity away from the bearing surface, this unique bronze inner structure also serves as a reservoir for the -lead mixture


The Material shall consist of 3 layers, a bronze backing strip, and a sintered interlocking porous matrix, impregnated and overlaid with / lead mixture

3 Layers Composite Bronze Backed Bushing Material Strips Sheet 0

Characteristics



Characteristics
Bronze Backing Material: CuSn 6 Composition by mass
Sn   5 to 7.50 %
P 0.35 %
Pb 0.10 %
Fe 0.10 %
Zn + Ni 0.50 %
Others 0.30 %
Reminder Cu
Thickness hardness HB - ISO 6506 (All Parts)   (2.1`0.15) 80 to 160 mm
Bronze Internalayer Material: CuSn 10 Composition by mass
Sn   10 to 12 %
Pb 1.00 %
P   0.25 to 0.4 %
Si 0.17 %
Fe 0.15 %
Ni 0.15 %
Others .50
Saturation with -Pb thickness   25


Sintered Bronze Composite Material - maintenance-free



This low friction overlay, approximately 0.001 inch (0.025 mm) thick, provides an excellent initial transfer film which effectively coats the mating surface of the bearing assembly, forming an oxide type solid lubricant film. As this film is depleted, the relative motion of the mating surface continues to draw material from the porous bronze layer. When conditions are severe, the feed of lubrication is increased. The peaks of porous bronze coming in contact with the mating surface generate localized heat and, due to the high thermal expansion rate of the , force additional lubricant to the bearing surface. The relative motion of the mating parts wipes the lubricant over the interface, continuously restoring the low friction surface fill



Plain & Self-Lubricating Bearings(Bushing Material: Sintered Bronze with )





3 Layers Composite Bronze Backed Bushing Material Strips Sheet 13 Layers Composite Bronze Backed Bushing Material Strips Sheet 23 Layers Composite Bronze Backed Bushing Material Strips Sheet 33 Layers Composite Bronze Backed Bushing Material Strips Sheet 4

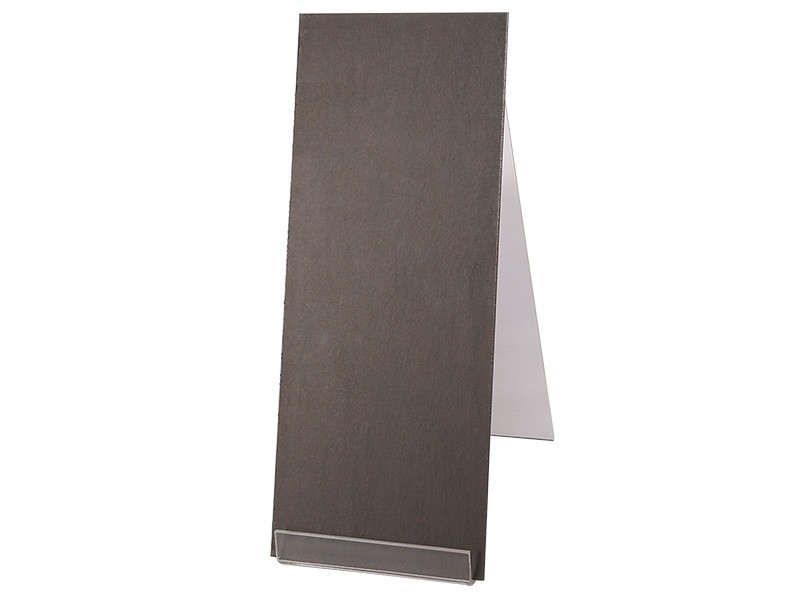

Bronze backed with bronze powder dry bushing material layer



  • Sliding layer + Lead

  • Porous Bronze Sinter

  • Bronze Backing


3 Layers Composite Bronze Backed Bushing Material Strips Sheet 5
