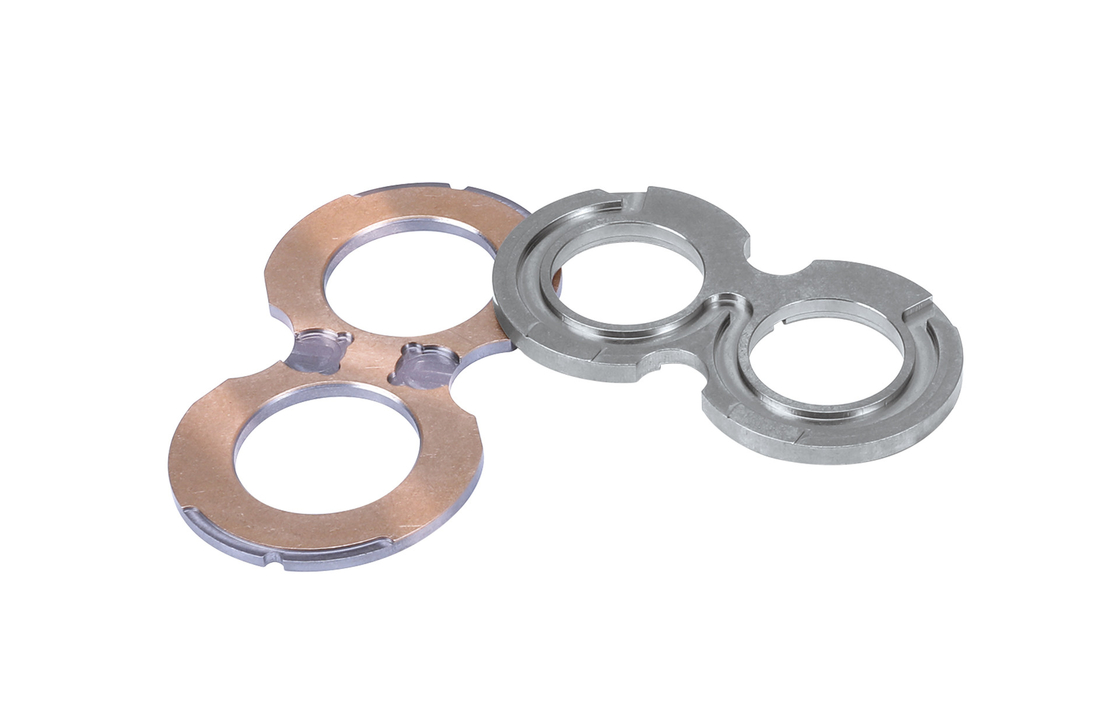

Hydraulic Parts Gear Pump Bimetal Thrust Plate CNC Milling
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Hydraulic parts for Gear Pump |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | Bi-metal thrust plate for gear pump |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Hydraulic Parts For Gear Pump | Material | Bi-metal Thrust Plate For Gear Pump |
|---|---|---|---|
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self Lubricating Bronze POM Bushing, Metal Polymer Bushings | POM DX BUSH | Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | Hydraulic Parts Bimetal Thrust Plate,Gear Pump Bimetal Thrust Plate,CNC Milling Bimetal Thrust Plate |
||
Product Description
The hydraulic gear pump's bimetal thrust plate is a crucial component, fabricated with precision using CNC milling techniques. This thrust plate, made from a combination of two metals, offers superior strength, durability, and wear resistance.
The bimetal construction combines the beneficial properties of two different metals, creating a thrust plate that is both tough and resilient. This unique combination ensures the thrust plate can withstand the high loads and pressures encountered in hydraulic gear pumps, maintaining stable and reliable performance over time.
CNC milling is employed to achieve precise dimensions and tolerances, ensuring a perfect fit within the gear pump. The milling process also creates a smooth and uniform surface finish, reducing friction and wear, further enhancing the thrust plate's performance.
The result is a hydraulic gear pump thrust plate that is not only robust but also highly efficient. It can handle the demands of continuous operation in a variety of industrial applications, from heavy machinery to automotive systems.
In summary, the precision CNC milling of the bimetal thrust plate for hydraulic gear pumps ensures optimal performance, durability, and reliability, making it a valuable addition to any hydraulic system.
Hydraulic Parts For Gear Pump Bi-Metal Thrust Plate
Bi-metal thrust plate for gear pump
Hydraulic parts for Gear Pump
Product Name Bi-metal thrust plate for gear pump
Raw Materials Support layer: steel plate, Face layer: bronze powder
Feature
1. Thickness of bronze layer: 0.50-0.8mm
2. Thickness: 2.0-12 mm
3. Flatness: 0.015 mm
4. Parallelism: 0.015 mm
5. Higher presicion in geometric
Application Gear pump,Oil pump, Crescent gear pump, Double gear pump, Plunger pump, Multi-way valve
Processing Material: raw material bronze powder and steel plate——Spread powder—Sintering tog——Stamping——Machining——Checking——Packing——Shipping
Manufacturability
1. Auto Press: 50T, 100T, 140T
2. Hydraulic Press: 100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. Heat treatment: Carbonitriding quenching and high frequency quenching in-house
5. Pedrail ultrasonic cleaner line and auto deburring
6. In-house tooling making: EDM, wire cutting machine
7. Strength in machining: Machine center, CNC milling, CNE lathe, Two end lapper etc.
Measuring devices
1. Carbon selfur determinator
2. Metallurgic microscope
3. Hydraulic universal material tester
4. Hardness testers
5. Pneumatic measuring instrument
6. Measuring projector
7. Gear testing instrument
8. Electrical profilometer
9. CMM
