Fox Bushing Cylindrical Bushings, Tin Or Copper Plated RoHS

Fox Bushing Cylindrical Bushings, Tin Or Copper Plated RoHS

Brand Name: VIIPLUS
Model Number: PLASTIC PLAIN BUSHINGS
MOQ: negotiable
Price: Negotiable
Payment Terms: T/T
Supply Ability: Special Customized Lubricating Bushings Manufacturing
Detail Information
Place of Origin:
Composite plain cylindrical bushings manufacturer
Certification:
ISO 3547 DIN 1494 Assembly Standard Tolerance
Features::
Can Be Used In Strong Acid And Alkaline
Type:
Sleeve
Other Type:
Flange ,Washer, Stripe
Lubrication:
Self Lubrication,
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Self Lubricating Bronze POM Bushing, Metal Polymer Bushings
POM BUSH:
Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
Special Customized Lubricating Bushings Manufacturing
Highlight:

oil impregnated brass sleeve bearing

,

flanged plain bearing

Product Description

Fox  Bushing Cylindrical Bushings, Tin or Copper Plated, RoHS Compliant, are precision-engineered components that provide superior performance in a wide range of applications. These bushings are made of polytetrafluoroethylene (), a material known for its excellent lubricity, low friction coefficient, and chemical resistance.

The tin or copper plating on the bushings further enhances their durability and wear resistance. The plating also helps protect the material from abrasion and corrosion, extending the bushings' lifespan.

Moreover, these bushings are RoHS compliant, ensuring that they meet the environmental standards for the restriction of hazardous substances in electrical and electronic equipment. This makes them a safe and reliable choice for various industries.

The cylindrical design of the bushings allows for a precise and snug fit in their respective applications. They are commonly used in bearings, slides, guides, and other mechanical components where smooth and reliable operation is crucial.

The Fox  Bushing Cylindrical Bushings, Tin or Copper Plated, RoHS Compliant, are suitable for a wide range of applications, including but not limited to:

Automotive and aerospace industries: These bushings are ideal for precision components in vehicles and aircraft that require low friction and smooth operation.

Machine tools and industrial equipment: Their excellent wear resistance and lubricity make them suitable for use in machine tools, conveyors, and other industrial equipment.

Chemical processing and medical industries: The chemical resistance of ensures that these bushings can handle harsh environments and chemicals, making them suitable for use in chemical processing plants and medical equipment.

In summary, Fox  Bushing Cylindrical Bushings, Tin or Copper Plated, RoHS Compliant, offer a combination of superior performance, durability, and environmental compliance that makes them an excellent choice for various demanding applications.



Self Lubricating Plain Bearing, Fox  bushing replacement!

Cylindrical bushings

Buy Fox  Bush and get the best deals at the lowest prices on www.bronzegleitlager.com!

Great Savings & Free Delivery / Collection on many items.

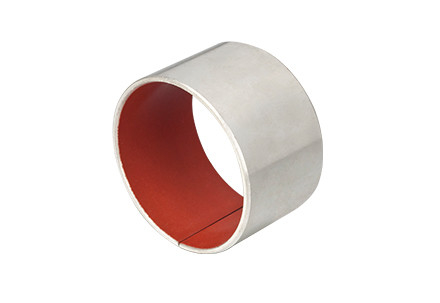

Steel Red Cylindrical Bushes Tin Or Copper Plated Flanged & Thrust Washers
the Sliding bushings consists of a specially developed surface sliding layer
and is particularly suited to applications with high PV ratings, such as
transmission oil pumps. The sleeve bushing RED bearing is particularly suitable for linear or axial movements. This type of bearing is particularly wear-resistant and can retain lubricant well, even if it has a long service life. It also simultaneously protects the mating surfaces from wear and tear. This type of bearing is generally used as a piston ring in shock absorbers for cars and motorcycles and for various hydraulic cylinders, hydraulic motors, and pneumatic components.



Steel Red Sleeve Bushes consists of a steel backing and a porous bronze intermediate layer and overlaid with red modified . This product has a low friction coefficient, good wear resistance, and self-lubrication. The steel back was plated with tin, zinc or copper to increase the corrosion protection. This product is RoHS compliant and is widely applied in printing, textile, tobacco, fitness and shock absorber
machines, etc.



BUSHING & BEARINGS TYPE



  • Cylindrical Bushes
  • Flanged Bushes
  • Thrust Washers
  • Sliding Plate



Normal  Metric  Bushings



Fox  Bushing  Cylindrical Bushings, Tin Or Copper Plated RoHS 0



Material
Stainless Steel Base+Bronze Powder +
Typical Application
the corrosion resistant part in dyeing machinery and ocean industry, etc.
Max Static Load
250N/mm²
Max Dynamic Load
140N/mm²
Max Oscoillation Load
60N/mm²
Max Line Speed
Dry 2.5m/s, Oil > 5m/s
PV Value Limit
Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s
Friction Coefficient
Dry 0.08~0.20, Oil 0.02~0.12
Mating Axis
Hardness >220, Roughness 0.4~1.25
Working Temperature
-200~+280℃
Thermal Conductivity
40W/mk
Coefficient Of Linear Expansion
11×10-6/K





What is composite bearing?



Composite dry sliding bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow.


Where to use composite bearing?



  • Because of their good sliding properties and compact design, these plain bearings are particularly suitable for bearing arrangements where:
  • Maintenance-free operation is a prerequisite
  • There is a risk of lubricant starvation
  • Lubricants cannot be used or are forbidden
  • Space is limited.



Why choose composite bearing?



  • Maintenance-free operation
  • No lubrication required ( composite)
  • Initial lubrication required (POM composite)
  • Minimum wall thickness, minimum space requirements
  • Accommodation of heavy loads
  • Wide range of temperatures
  • Good sliding properties
  • Virtually no stick-slip
  • High wear resistance
  • Less sensitive to edge loading (POM composite)
  • No machining required.
