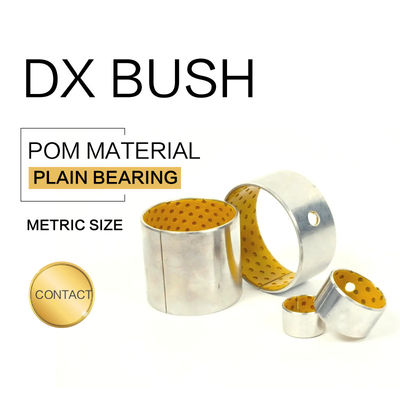

Dx Pom Polymer Plain Bearings With Oil Groove

Place of Origin CHINA
Brand Name viiplus Self-lubricating composite bearing
Certification RHOS
Model Number High performance pom oil-free self-lubricating bearings
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 works day
Payment Terms L/C, T/T, Western Union
Supply Ability L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL STEEL+POM FEATURE No Oil, Self-lubricating
Supply Ability Have Standing Stock Style DX The Same Style
Country Of Origin China The Product Price Can Discuss
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

pom pom bush

,

No oil pom bushes

Leave a Message
Product Description

China Pom Metal-Polymer Bushings Dx Bushes Manufacturers - Select High Quality Dx Bushes Products In Good Price From Us, China Bush Suppliers. Quality Bushings. Inch, Metric And Custom Sizes. Made In China. Highlights: Quick Quote Available, Iso 9001 Certified Company, Customer Service Available.

Dx Bushes Blue Color Pom Sliding Bushing. Size: Various Sizes; Material: Carbon Steel+Bronze Powder+Pom; Pom Color: Yellow,Black,Blue,Red.

DX POM PLAIN BEARINGS



An extensive inventory of bronze bushings offering customers direct delivery service. Fast direct delivery service for quality products. POM wrapped acetal bearings are comparable with PM DX, PCM M, EGB E40, EGB E50 en PAP P20.

DX POM bushings were developed for lubricated applications and consist of three layers: a steel mantle and a sintered bronze layer impregnated and covered with a polyacetal (POM) bearing material.



POM Metal-Polymer Plain Bearings Grease Lubricated - DX - Oil or grease lubricated bearings - Metric & Imperial Sizes



Standard DX bush Components available from stock



  • Metal-Polymer Composite Bushing Material

  • Steel Back + Porous Bronze Sinter +
    POM with Lubrication Indents



• DX provides maintenance free operation • DX has a high pv capability • DX exhibits low wear rate • Seizure resistant • Suitable for temperatures from -40 to +120 °C • High static and dynamic load capacity • Good frictional properties • No water absorption and therefore dimensionally stable • Compact and light • Suitable for rotating, oscillating, reciprocating and sliding movements • DX bearings are prefinished and require no machining after assembly



These DX Bush Bearings are widely used in the Machinery Industry

(Inside Diameter x Outside Diameter x Length)



self-lubricating bearings

  • Lightly lubricated DX bushings for grease or oil lubricated applications
  • Standard parts contain grease marks in the slip layer; single sliding layer available on request
  • Optimal performance under relatively high loads and low speeds
  • Suitable for linear, oscillating and rotary movements
  • Wide range of parts available from stock

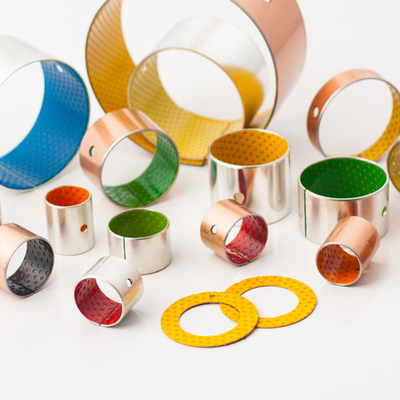

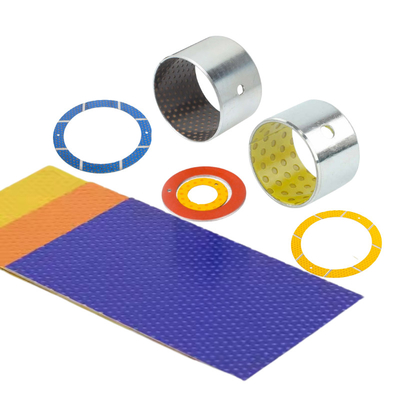

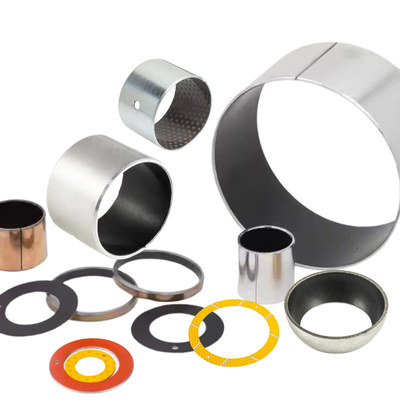

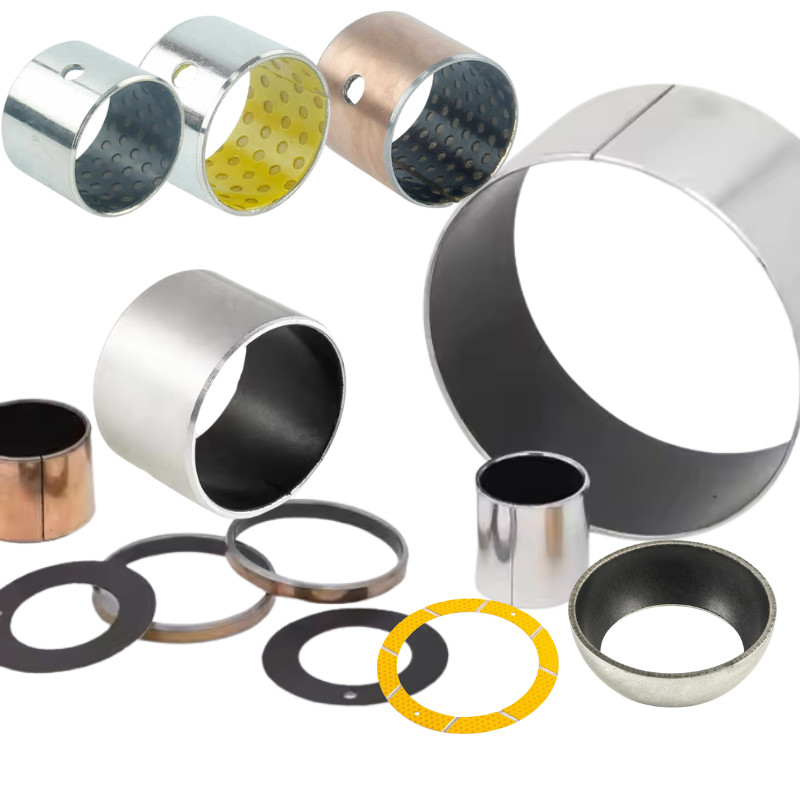

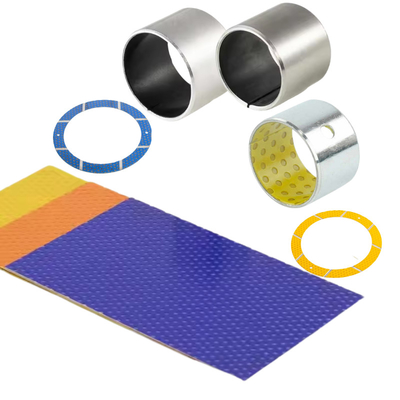

Bearing forms available in standard dimensions

  • Cylindrical bushes
  • Flanged bushes
  • Thrust washers

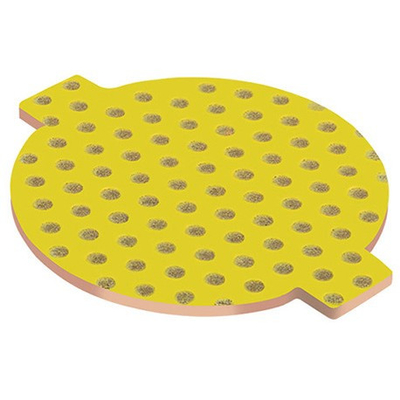

  • Sliding plates
Bearing forms made to order: cylindrical bushes with non-standard lengths and wall thickness, flanged bearings, hexagonal and square bores, liner on outer diameter, customized bearing designs

POM Composite Bearing, Replacement DX Bush Bearing | Self-lubricating Composite Bushings



POM composite bushings are referred to as prelubricated because their material is designed to operate with marginal lubrication. These bushing type effectively fills the gap between fully lubricated and dry sliding bushings.We offer a wide range of straight POM composite bushings. The advantages of these sleeves are:

  • • maintenance-free operation
  • • very good frictional properties
  • • high load capacity
  • • high sliding speed
  • • low working clearance


Metal-Polymer Composite Material



POM Composite Bearing Benefits

• Marginally lubricated bearing material for grease or oil lubricated
applications
• Standard parts contain grease indents in the sliding layer; plain
sliding layer available by request
• Optimum performance under relatively high loads and low speeds
• Suitable for linear, oscillating and rotating movements
• Wide range of parts available from stock



POM Bearing Metal-polymer bearing lubricated with grease



Pom Composite bushing Characteristics



Pom Composite lubricated bushing can be used for grease or oil lubrication applications, or in an oil-free environment

The standard parts contain grooves in the sliding layer of the contact parts, which can store grease or friction debris.



Smooth sliding layer can be designed and provided upon request

Composite bearing sleeve has the best performance under relatively high load and low speed, and the highest relative life

Composite bearings are used in environments of linear, oscillating and rotational motion

All kinds of bearing parts are available from stock



Grease lubricated pad block          Grease lubricated slider           Grease lubricated bearing





A brief introduction to polyformaldehyde (POM) materials



1. With high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
4. Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.

8. with their own lubrication, good wear to hold;

9. Excellent dime



Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C



Self-lubricating oil-free composite bearing structure composition



Dx Pom Polymer Plain Bearings With Oil Groove 5                                                                Dx Pom Polymer Plain Bearings With Oil Groove 6





Wrapper Bronze Bearing characteristics





Performance indicators Date
Maximum load Static load 250N/mm²
Dynamic load 150N/mm²
Maximum linear velocity V Grease lubrication 2.5m/s
High PV value Grease lubrication 2.8N/mm²・m/s
Coefficient of friction Grease lubrication 0.05~0.25
The use of temperature
-40℃~+130℃
Coefficient of thermal conductivity 4W/m・K
Coefficient of thermal expansion 12×10-6/K



Logistics and transportation equipment applications



The noise of traditional bearing, short maintenance cycle and service life, and high maintenance cost limit the normal operation time of equipment, especially transportation equipment and field operation equipment. The application of VIiPlUS POM BUSHING self-lubricating bearing can not only solve these problems, but also improve the comfort level of equipment operation.For example, the use of lubricating oil or one-time painting can solve the process maintenance and high shutdown costs, while avoiding environmental pollution.Reliable, light and excellent bearing solutions Pom Composite Bushing,Pom Bushings,Pom Sleeve Bushing



bushing application        bushing application       bushing application     bushing application



Pom Composite Bushing are widely used in logistics applications



he railway, The inter-city rail, shipbuilding, space, Forklift truckT



Viiplus provides the railway and other rail transport industry with gear boxes, motor suspension system and POM BUSHING components.



Today, viiplus light and maintenance-free bearings are used by all major commercial and military aircraft manufacturers and tier 1 suppliers for fixed and rotary wing aircraft. Our bearing solutions are used in a wide range of aeronautical applications, from the landing gear, to flight control and engines, to a variety of customized applications in the passenger and aerospace seats sector.
Our aircraft bearing solutions are used in a variety of aerospace applications from landing gear, flight control and engines to passenger seats, as well as in a wide variety of customizations for the aerospace industry







bronze bearing quality





Technical parameters of self-lubricating bearings





shaft housing ID OD Wall thickness Oil hole L 0
-0.40
h8 H7 d D T h- 10 12 15 20 25 30
10 0
-0.022
12 +0.018
0
10 12 0.980
0.955
4 1010 1012 1015 1020
12 0
-0.027
14 " 12 14 " " 1210 1212 1215 1220 1225
14 " 16 " 14 16 " "     1415 1420 1425
15 " 17 " 15 17 " " 1510 1512 1515   1525
16 " 18 " 16 18 " "     1615 1620 1625
18 " 20 +0.021
0
18 20 " "     1815 1820 1825
20 0
-0.033
23 " 20 23 1.475
1.445
"     2015 2020 2025 2030
22 " 25 " 22 25 " 6     2215 2220 2225 2230
24 " 27 " 24 27 " "     2415 2420 2425 2430
25 " 28 " 25 28 " "     2515 2520 2525 2530
28 " 32 +0.025
0
28 32 1.970
1.935
"       2820 2825 2830
30 " 34 " 30 34 "         3020   3030
32 0
-0.039
36 " 32 36 " "       3220   3230
35 " 39 " 35 39 " "       3520   3530
36 " 40 " 36 40 " "
37 " 41 " 37 41 " "       3720
40 " 44 " 40 44 " 8       4020   4030
45 " 50 " 45 50 2.460
2.415
"       4520   4530
50 " 55 +0.030
0
50 55 " "
55 0
-0.046
60 " 55 60 " "       5520
60 " 65 " 60 65 " "



You can customize various POM oil-free self-lubricating bearings from us, and design related drawings



pom bushing design



Here you can choose the bearing size of the type part, more sizes you can refer to PDF.
