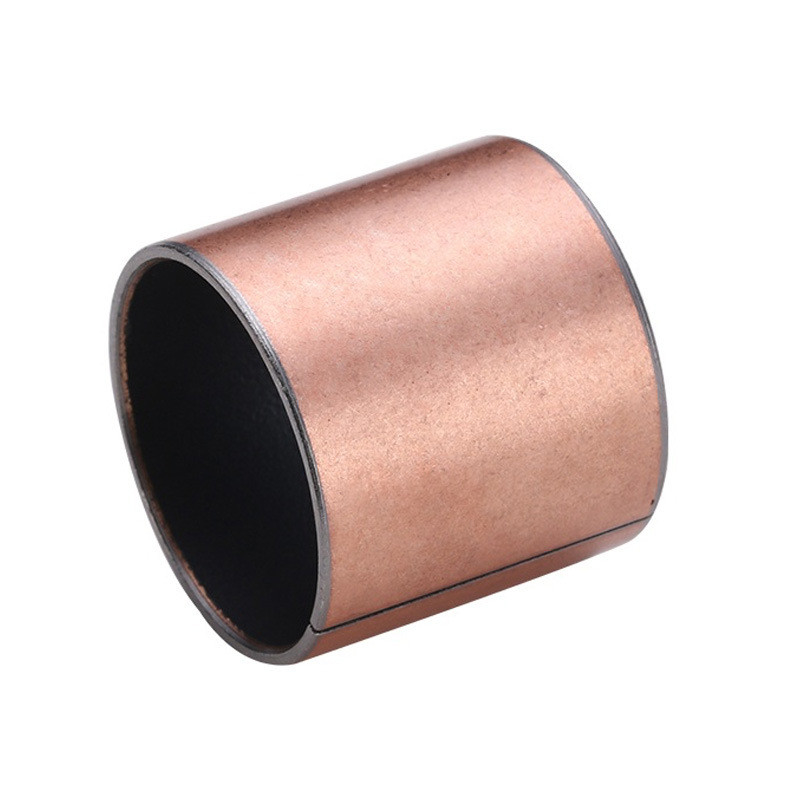

Flange Copper Cylindrical Polymer Plain Bearings Tin Plating
|Place of Origin||CHINA|
|Model Number||Self-lubricating bearing|
|Minimum Order Quantity||negotiable|
|Price||According to product specifications|
|Packaging Details||Paper packing, or wooden packing|
|Payment Terms||L/C, T/T|
|Supply Ability||production capacity can be supplied in large quantities|
|Features||Maintenance||Material||DU-B Bronze Backing Sleeve Bushing|
|Size||Metric Size & Customized Size||Type||Cylindrical Bushes - Metric Size|
|Benefit||High Quality, Factory Price||Finishing||Tin Plating|
|Service||Customization & OEM Service||Sample||Available / Free|
|Bearing Bushing Factory Price||Tiffany@viiplus.com||Self-lubricating Bearing Bushing Manufacturer||Https://www.viiplus.com/|
|High Light||Self Lubricating Bronze POM Bushing, Metal Polymer Bushings||POM DX BUSH||Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...|
|Bush Bearings Manufacturers Suppliers Exporters||Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/|
Cylindrical Polymer Plain Bearings,
Tin Plating Plain Bearings,
Flange Polymer Plain Bearings

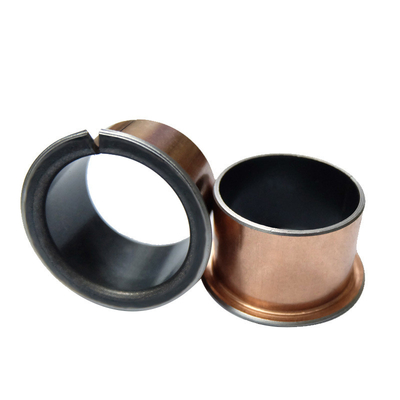

Flange Bush Bearing Copper Cylindrical Tin Plating,
BUSHINGS-BUSHING 80X85X80 DU-B (267513000) PARTS OF CONCRETE PUMPS
Self-lubricating Composite Bronze bushings, bronze backing sleeve bushing, Cylindrical Bushes - Metric Size
Bush Bearing Copper Cylindrical Bearings
bronze backing bushing, bronze PTFE bush,PTFE coated bronze bushing,oilless bronze bearing.
Plain Sliding Bearings, Self Lubricated Wrapped Bushes
China Bronze Bearing & Bushing, Find details about China Bronze Bearing, Bushing from Bearing & Bushing
Combine the unique versatility of PTFE material with the flexibility of manufacturing. Contact Us Today. Saves You Time & Money In Research, Design & Production Costs. Free Design Assistance. Quality Bushings & Bearings. Custom Self-lubricating Bearing Solutions.
Bushings, or plain bearings, operate with sliding motion between the moving surfaces. Bushings are selected based on the rotating speed and the applied load. Most bushings do not require additional lubrication to operate.
Self-lubricating PTFE bronze composite bushings consist of a PTFE layer sintered on a brown strip. These bushings are corrosion resistant and suitable for high temperature applications that can be made without the use of oil requiring long duty cycles.
This type of self-lubricating bearing is used in the radial or axial direction, especially in the steel and cement industries. Self-lubricating PTFE-bronze composite bushings can be used in panels as bridge supports, since the thick sliding layer on the inner surface can withstand loads of up to 140 N / mm².
Sintered Bronze PTFE Composite Material - maintenance-free
Plain & Self-Lubricating Bearings(Bushing Material:Sintered Bronze with PTFE)
Bronze backed with bronze powder PTFE dry bushing materail layer
Sliding layer PTFE+ Lead
Porous Bronze Sinter
1. PTFE / Pb 0.01 ~ 0.03mm mixture, provides an excellent initial transfer film, which effectively covers the contact surface of the socket assembly, forming an oxide type solid lubricant film.
2. sintered bronze powder 0.20-0.35mm, provides max. thermal conductivity away from the bushing surface, also serves as a reservoir for the PTFE-lead mixture.
3. Bronze bracket, gives exceptionally high load capacity, excellent heat dissipation. Have very good corrosion resistance.
Bronze+Sintered bronze+PTFE material
- Metal-Polymer Composite Material
- Bronze Back + Porous Bronze Sinter + PTFE + Lead
|Support meterail||bronze tin-plated0.7-2.3mm|
|Intermediate layer||Sintered bronze0.2-0.3mm|
Bronze Backed PTFE Bushing Technical Date
|Temperature Range||-195°C +300°C|
|Sliding Speed Limit||5 m/s|
|Friction Coefficient||0.03 - 0.18|
|Limit Value (Dry)||4.3 N/mm² × m/s|
|Limit Value (Oil)||50 N/mm² × m/s|
Metal-Polymer Bronze Backed PTFE Plain Bearing Du-B Bushing Characteristics
DU-B Composite Plain Bearing Dry type composite plain bearings are mainly used in bearing assemblies where heavy loads have to be carried and where rotational or oscillatory movements are relatively slow.
- Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
- Suitable for lubricated applications
- Suitable for linear, oscillating and rotating movements
- Bronze back offers improved corrosion resistance in humid/saline environments
Self-lubricating Bearing forms available in standard dimensions
- Cylindrical bushes
- Flanged bushes
- Sliding plates
- Thrust washer
Self-lubricating Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.
025550008 95*90*60 DU-B
222484006 65*60*40 DU-B
066586005 130*91*2 Thrust Washer
WAI 100236 245*240*30
WAI 100237 100*95*60
B175022 105*100*50 DU-B
|Process fluid lubricated||Fair|
Plain Bearing Properties
|Maximum load, p||Static||N/mm2||140|
|Coefficient of linear thermal expansion||Parallel to the surface||10-6/K||18|
|Normal to the surface|
|Maximum sliding speed, U||m/s||2.5|
|Maximum pU factor||N/mm2 x m/s||1.8|
|Coefficient of friction||0.02 - 0.25 *|
|Maximum sliding speed, U||m/s||5|
|Maximum pU factor||N/mm2 x m/s||5|
|Coefficient of friction||0.02 - 0.12|
|Shaft surface roughness, Ra||Dry||µm||0.3 - 0.5|
|Lubricated||µm||≤ 0.05 - 0.4 *|
|Shaft surface hardness||Unhardened acceptable, improved bearing life > 200 HB|
* Depending on operating conditions
This type of bearing is used radially or axially, particularly in the steel and cement industries.
Industrial: aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines - metal, plastic and rubber; office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic equipment cylinders, pumps and motors, railways and tramways, textile machines, valves, etc.
Other: marine and offshore equipment, other applications in water or in outdoor environments
Bronze Backed PTFE Bushing Typical Applications
It can meet the demanding criteria of long life and trouble-free performance with or without lubricant, especially for high chemical resistance requirements.
The Bronze Backed PTFE bushing is widely used in steel metallurgy in applications such as roller groove bushings of later casting machines, concrete injection pumps and screw conveyors for concrete. They can also be made of steel housings or be transformed into flanged bushings that can move in both radial and axial directions.
The Bronze Backed PTFE bushing is particularly suitable for high temperature environments where no oil is efficient and the machine must operate under consecutive long term conditions.
Bronze Backed, Bronze With PTFE Material - Metric
Straight Bushings, Flanged Bushings, Washers and Strip - Metric
