Oil Free CuAl10Fe5Ni5 Flange Bronze Bushing Self Lubrication

Place of Origin	gleitlagerbuchsen china
Brand Name	VIIPLUS Sleeve & Bearing
Certification	FIBRO Standard
Model Number	C86300 BRONZE BUSHINGS
Minimum Order Quantity	Standard Size Bushing No Minimum Order Quantity
Price	Bushings High Quality Price Ratio B2B
Packaging Details	Export carton; Wooden case ; Wood pallet.
Delivery Time	2~4 Weeks
Payment Terms	T/T, L/C, Western Union,
Supply Ability	bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	CuAl10Ni5Fe5 Bronze With Solid Lubricant	Model Number	Flange Oil Free Bushing
Feature	Self Lubrication, Maintenance Free	Lubrication	Graphite
Application	Working Temp: Max 400°C	Type	Oil Free Bearings
Get A Better Quote	Tiffany@viiplus.com	Self-lubricating Bearing Bushing Manufacturer	Https://www.viiplus.com/
High Light	Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing	Gleitalger	A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters	Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight	Self Lubrication Graphite Bushing , Oil Free Flange Bronze Bushing , CuAl10Fe5Ni5 Flange Bronze Bushing

Leave a Message

Product Description

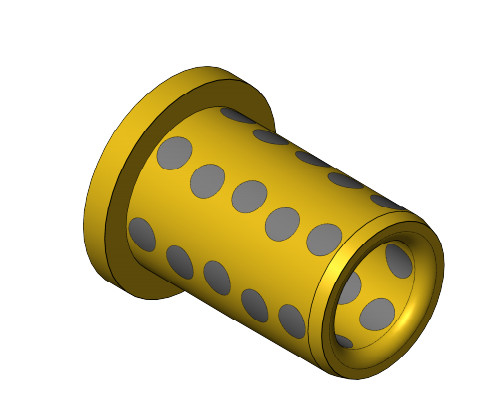

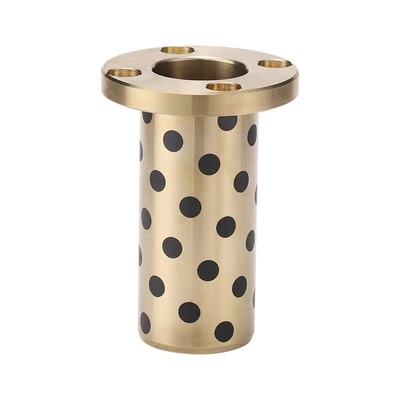

The Oil-Free CuAl10Fe5Ni5 Flange Bronze Bushing with Self-Lubrication is a high-performance bearing solution designed for industrial applications that require smooth and reliable rotation without the need for external lubrication.

Constructed from CuAl10Fe5Ni5 bronze, this bushing offers excellent durability, wear resistance, and corrosion resistance. The addition of iron and nickel to the bronze alloy further enhances its mechanical properties, making it suitable for use in demanding environments.

The self-lubricating feature of this bushing is achieved through the use of a special coating or material that reduces friction and wear. This coating ensures smooth rotation even under high loads and speeds, without the need for regular lubrication or maintenance.

The flanged design of the bushing provides additional stability and support, ensuring a secure fit within the application. This design also facilitates easy installation and removal, making maintenance and replacements quick and straightforward.

Wh used in machinery, pumps, motors, or other industrial equipment, the Oil-Free CuAl10Fe5Ni5 Flange Bronze Bushing with Self-Lubrication offers a robust and reliable solution for ensuring smooth operation and reduced wear. Its high-quality materials, precision engineering, and self-lubricating properties make it a trusted choice for industrial applications that demand the best in performance and durability.

Oil-Free FlangeBushing Material: CuAl10Fe5Ni5

Choose from our selection of flanged bushings in a wide range of styles and sizes. In stock and ready to ship.

Oil-Free Flange Graphite Bushing Material: CuAl10Fe5Ni5 Working Temp: Max 400°C

BOCCOLA 8X12X16X2X20 IN CuAl10Ni5Fe5

CuAl10Fe5Ni5 belongs to German standard aluminum-nickel bronze, implementation standard: DIN EN 1982-2016

Symbol:CuAl10Fe5Ni5-C

Number:CC333G

Category:EN Casting Copper Alloy

Type:

Next:CuAl10Ni3Fe2-C

Chemical Composition mass/%
Cu	Sn	Al	Fe	Mn	Ni	Pb	Si	P	Zn
76.0-83.0	0.1	8.5-10.5	4.0-5.5	3	4.0-6.0	0.03	0.1	-	0.5

Mechanical properties
Tensile strength Mpa(Min)	Yield strength MPa(Min)	Elongation %	Brinell hardness(HB)
650	280	13	150

Note:

1,In Chemical Composition, Single values represent maximums.

2, Mechanical performance of hardness value is only for reference

cual10fe5ni5 chemical composition

CuAl10Fe5Ni5 belongs to German standard aluminum-nickel bronze, implementation standard: DIN EN 1982-2016

CuAl10Fe5Ni5 is used in bearing, pawl, worm gear, machine parts, spur gear, heavy bin worm gear, pump parts, landing gear parts, valve mechanism, valve guide, valve seat, bearing steel industry, high strength clamps, bushings, valves, gears.

brass bushing, tin bronze bushing, national standard tin bronze bearing, has a wealth of production experience, has many years of production experience, manufacturers direct sales, good technology, reasonable price, high quality and low price.

Graphite Plugged Products are a complete line self lubricated products that excel whenever standard lubrication is impractical, including heavy load, high temperature applications. They are manufactured from a variety of copper alloys including Aluminum Bronze (CDA 954), Bearing Bronze (CDA 932) and Manganese Bronze (CDA 863).

Available as Graphite Plugged Bearings, Washers and Self Lubricated Wear plates.

C86300 Manganese Bronze Cast Graphite Bushings are a high-strength, non-heat-treatable copper alloy designed for use in applications requiring a good combination of outstanding wear characteristics and high load carrying capacity at high loads and low speeds.

Flange Solid Bronze Metallic Self-lubricating Bearings
Copper Cast Bronze Bearings / Flanged Bronze Bearings
Cast Bronze Bearing with Graphite Plugs

C86300* Manganese Bronze Flange Bushings
C93200* Leaded Tin BronzeSleeve Bushings
C95400* Aluminum Bronze Bushings Material

Commonly used copper alloy materials are classified as follows:
	GB	ASTM
	QSn6.5-0.1	C51900
	QSn6.5-0.4	C52100
	QSn7-0.2
	QSn8-0.3
	QSn6-6-3	C83600
	QSn5-5-5	C93200
		C54400
	ZCuSn10Pb1	C90700
	CuSn12	C52400
	QAl9-4	C95400
	QAl10-3-1.5	C61900
	QAl10-4-4	C95800
	CuAl10Fe3
	ZCuAl9Fe4Ni4Mn2
	ZCuPb10Sn10	C93700
	ZCuPb15Sn8	C93800
	ZCuZn25Al6Mn3Fe3	C86300

Typical Applications

Gleitlagerbuchsen

Structure Characteristics and Applications

VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

Characteristics

with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available

VSB-50 Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

Strusture

VSB-50 Solid Lubricant Sliding Bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Technical Data

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

Chemical Compositions

Product NO.	Chemical Compositions
VSB-50	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
VSB-50	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
