Self Lubricating Multilayer Bushing Straddle Bearing Sintered Bronze

  • Self Lubricating Multilayer Bushing Straddle Bearing Sintered Bronze
  • Self Lubricating Multilayer Bushing Straddle Bearing Sintered Bronze
  • Self Lubricating Multilayer Bushing Straddle Bearing Sintered Bronze
Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Self-Lubricating Multilayer Bushing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-20 work days
Payment Terms T/T
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Product Details
Item Straddle Bearing Type Self-Lubricating Multilayer Bushing
Layer Multi-layer Bearings，multi-layer Bushing Surface Hardness 650-750 HV
Max Carbon Depth 0,6 Mm Get A Better Quote Tiffany@viiplus.com
Get A Better Quote Tiffany@viiplus.com Get A Better Quote Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Self Lubricating Straddle Bearing

,

Sintered Bronze Straddle Bearing

,

Multilayer Straddle Bearing
Leave a Message
Product Description

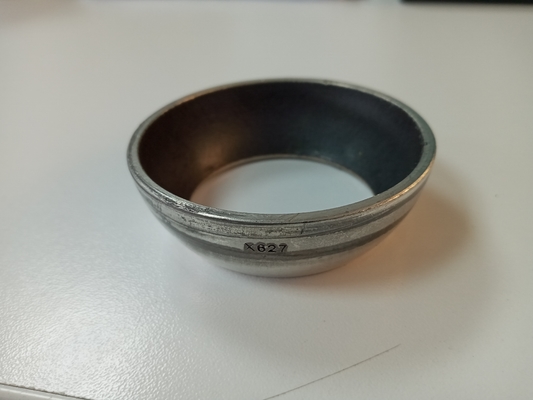

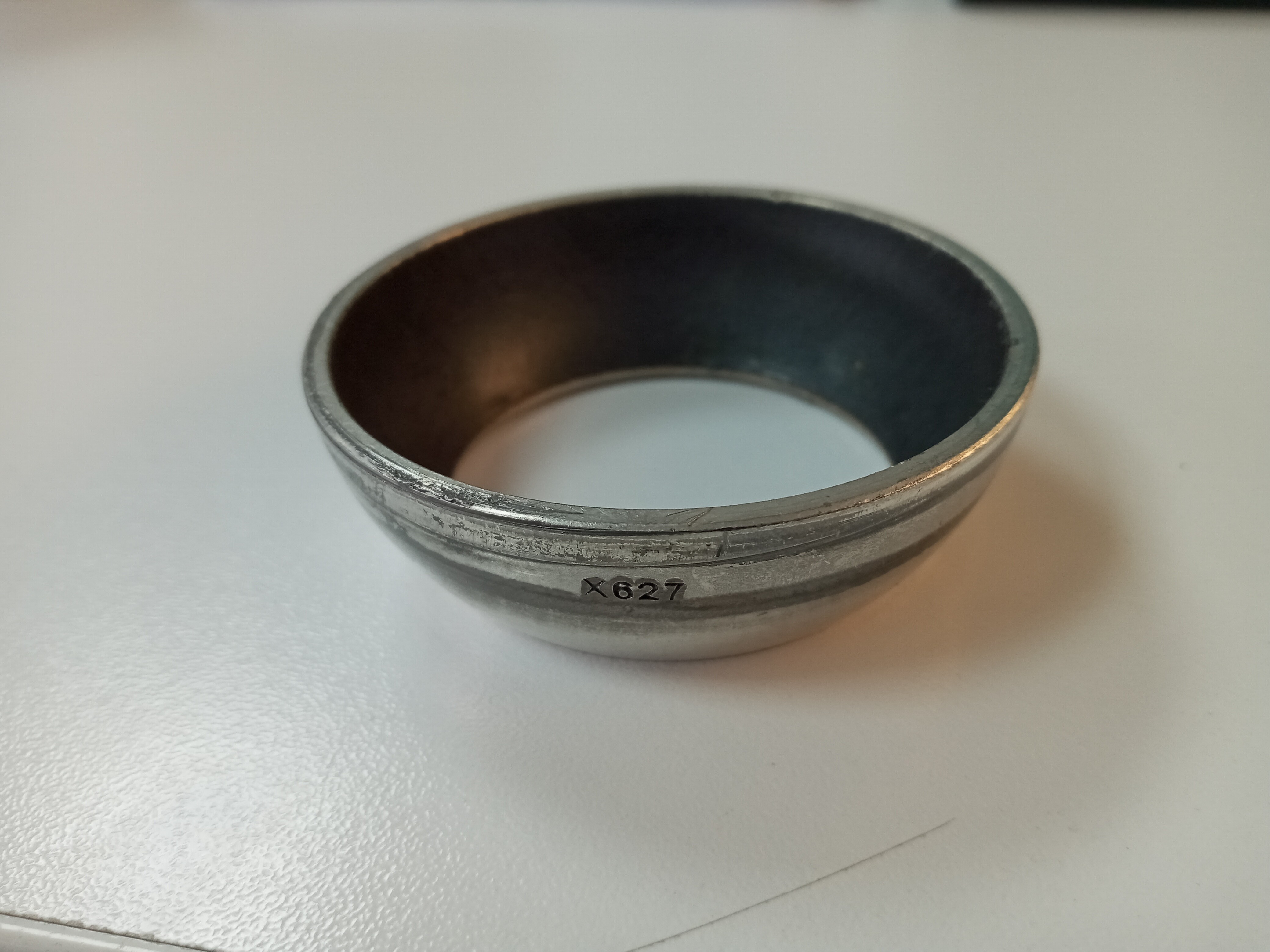

Self-lubricating multilayer bushing Straddle Bearing S60 MULTILAYER BUSHING PTFE coated Multi-Layer Bushings/Straight

Multi-Layer-OILES-bearing

Composite plain bearing - self-lubricating / multilayer

Special manufacturing, Multi-Layer Bushings/Flanged Bushing Washer lubricating multilayer bearing

Structure Characteristics and Applications. MULTILAYER BUSHING is backed with copper-plated steel with porous bronze sintered on the steel and polymers (PTFE) embedded...
Upon request, we can offer inch-sizes, special lengths, bearings acc. to drawing and various PTFE-layers for different areas of use as well as different backings in bronze or stainless steel etc.

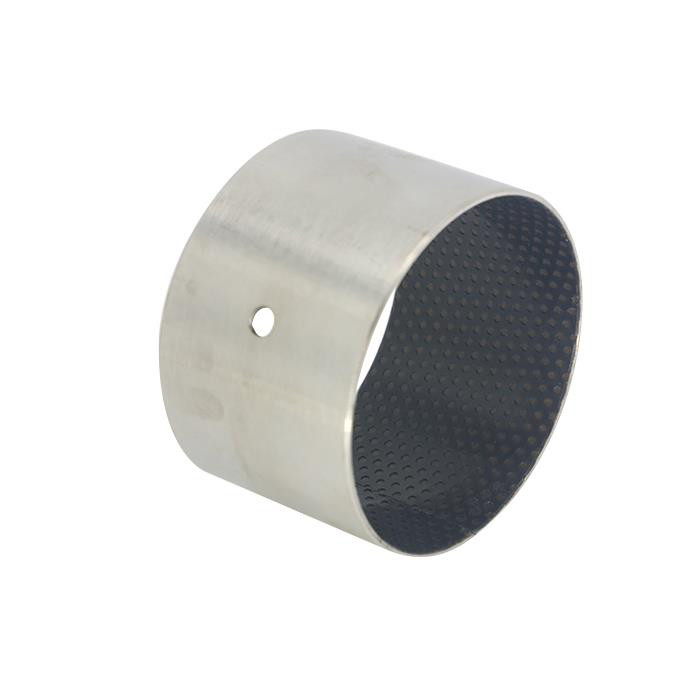

is a self-lubricating multi-layer bearing consisting of tin-coated steel, a middle layer of sintered bronze and an inner layer, sliding surface, of PTFE? The bearing is mainly suitable for rotating and oscillating movements and applications with frequent starts and stops. The friction value is very low which enables BM bearings to be used without lubrication. The bearings can also be used in oil or water since the bearings are highly corrosion resistant.

MULTILAYER BUSHING

Multi-layer Bearings

multi-layer bushing

straddle bearing

LAYER BUSHING:

 2,5 MM THICKNESS CARBON STEEL, CEMENTATION PROCESS:

SURFACE HARDNESS: 650-750 HV

HARDNESS DEPTH£HT/550 HV: 0,2-0,3 MM

MAX CARBON DEPTH: 0,6 MM

MIDDLE LAYER: SINTERED BRONZE, THICKNESS MM

DINNER LAYER: PTFE COATED, THICKNESS: 10-30 MICRONS

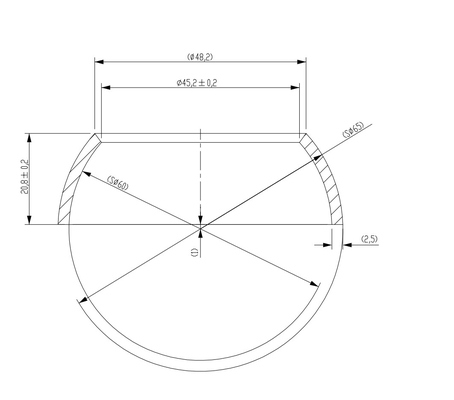

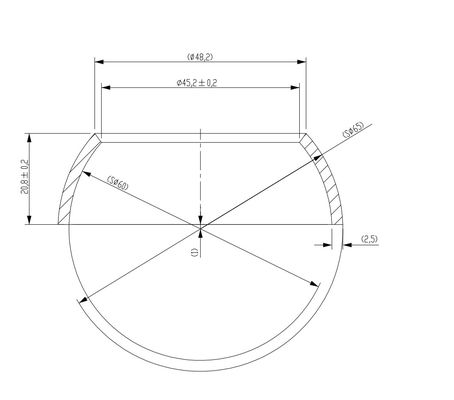

DRAWING MAY ONLY



TECHNICAL DATA
Material: Steel frame/sintered bronze/PTFE sliding layer
Standard: Multilayer bearings
Sliding layer (thickness): 0.01-0.03mm
Tensile strength Rm: -
Yield strength Rp 0.2: -
Elongation in % A10: -
Hardness: -
Friction coeff: 0.03-0.20µ
Thermal conductivity: 40W/m·K
Temperature range: -200°C/280°C
Max. load static: 140N/mm²
Max. load, dynamic: 60N/mm²
Max. sliding speed (w.lubr.): w/o lubr. 2.5m/s – With lubr. 5m/s
Pv-value, Mpa x m/s, kont / int: 3.6/5


Counter material
Recommended shaft hardness: >165HB
Rec. shaft surface roughness (Ra) 0.4
Recommended tolerance: f7-h8
House: H7





straddle bearing
