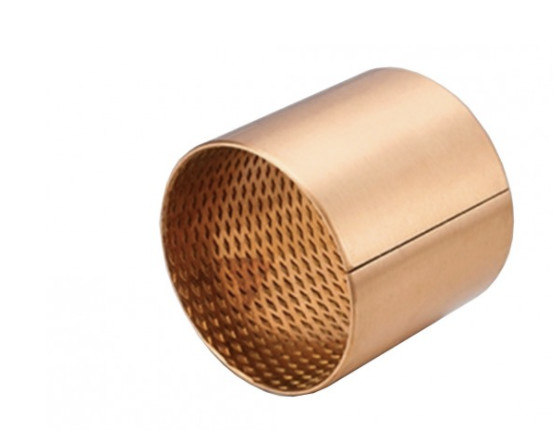

Metallic Marginal Lubricated Bronze Sleeve Bearings CuSn5Pb5Zn5

Place of Origin china
Brand Name viiplus.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number cast bronze bushing
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price Contact us
Packaging Details Standard package, Pallet or container, As per customized specifications
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Product Details
Meterial CuZn25AI5Mn4Fe3, CuSn5Pb5Zn5 , CuAl10Ni5Fe5, CuSn12 Certification ISO9001 /TS16949
Types Cast Bronze Bushing Application Impact Load And Dusty Environment
Parts Bushings Thrust Washers Strips Categories Plain Bearings
High Light

Marginal Lubricated Bronze Sleeve Bearings

,

CuSn5Pb5Zn5 Lubricated Bronze Sleeve Bearings

,

CuSn12 Lubricated Bronze Sleeve Bearings

Leave a Message
Product Description

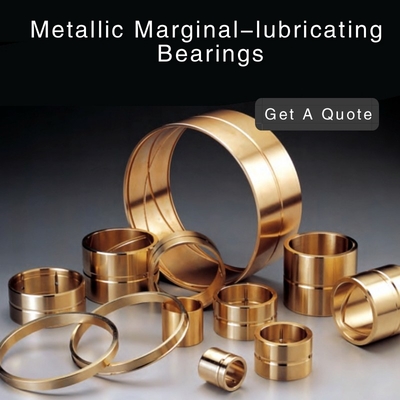

Cast Bronze Alloy,Metallic Marginal-Lubricating Bearings

Cast bronze alloy,Metallic marginal-lubricating bearings CSB600



Features



The cast bronze alloy is a high strength material with good impact resistance, corrosion resistance and wear resistance features under the middle to high load working conditions. High precision machining provides good tolerance matching with the counterparts. Oil grooves, oil deposits could be designed according to the different application conditions. Dimensions of the bearings could be customized for a better match to the customers' existing counterparts.





Structure:



The cast bronze alloy tuned bearing provides a perfect self-lubricating solution both from technical and economic aspects. The material has a high load performance and good corrosion resistance feature. Various alloys are available depending on different application requirements.

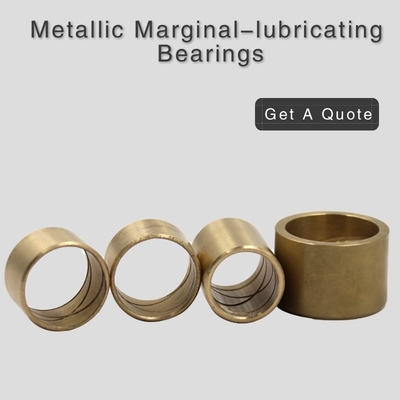

Metallic marginal-lubricating bearings

Benefits

cast bronze alloy bushing do not begin as a powder, so they are able to maintain a finer grain structure and therefore a higher degree of strength. In general, cast bronze alloy bushing are also stronger, more durable, and more reliable under compressive force. This combination of properties makes cast bushings an ideal choice for applications involving heavier loads. A sintered bronze bushing of comparable size would simply be unable to withstand the same forces as a cast one.



Tech Data



Type 600 600S5 600W1 600W3 600S1 600S2 600S3
Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
Density 7.8 8.9 7.8 8.9
HB Hardness ≥210 ≥250 ≥210 ≥230 ≥70 ≥150 ≥75
Tensile Strength MPa ≥750 ≥800 ≥755 ≥755 ≥250 ≥500 ≥270
Yield Strength MPa ≥450 ≥450 ≥400 ≥400 ≥90 ≥260 ≥150
Elongation % ≥12 ≥8 ≥12 ≥12 ≥13 ≥10 ≥5
Thermal Expansion Coefficient 1.9x10*%/°C 1.8x10*9/°C 1.6x10^*/°C 1.8x10*/°C
Max. Operation Temp. -40~+250°C -40~+400°C
Max. load MPa 50 75 75 100 50
Max. speed m/s Dry 0.5 0.1 0.5 0.1 0.5
Lubricated 1 0.25 1 0.25 2.5
Max. PV (N/mm2*m/s) Dry 1.65 1
Lubricated 3.25 1.65



As friction-reducing components, it is essential that bushings are constructed from wear-resistant materials that provide good sliding properties. While bushings can be fabricated from a variety of plastics and metals, bronze provides several distinct advantages over alternative options in heavy-load applications. As an inherently moldable and easy-to-machine material, bronze is well-suited for achieving a range of bushing designs.

The bronze alloy used in cast bronze alloy bushing undergoes a continuous or centrifugal casting process, giving the metal a finer grain structure and improved mechanical properties. The bronze alloy cast bar is then cut and processed into the finished bushing using a computer numerical control (CNC) lathe or other precision machining method. Cast bronze bushings exhibit excellent structural strength, durability, and resistance to compressive forces, making them well-suited for harsh, high-wear applications. They can also withstand high temperatures without losing their strength.



Typical Applications



The typical applications of this material include the port machinery,construction engineering machinery, plastic injection machinery, axles and material handling machinery. It has a high load capacity and good corrosion resistance feature.



port machinery

construction engineering machinery



In addition to standard sleeve (plain) bronze bushings/bearings, contact us for:



  • Machined to print bronze bushings & bronze bearings

  • Precision finished bronze bushings & bronze

  • Grease or oil grooved bronze bushings & bronze

  • Graphite-filled grooved bronze bushings & bronze

  • Graphite-filled plug type bronze bushings & bronze

  • Special alloy bronze bushings & bronze
