AlSn20Cu1 Marginal Lubricating Metal Sleeve Bearing CSB-J20

Place of Origin china
Brand Name viiplus.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number bimetal
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price Contact us
Packaging Details Standard package, Pallet or container, As per customized specifications
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial AlSn20Cu1 Certification ISO9001 /TS16949
Types BIMETAL BEARING Application Impact Load And Dusty Environment
Parts Bushings Thrust Washers Strips Categories Plain Bearings
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

AlSn20Cu1 Metal Sleeve Bearing

,

Marginal Lubricating Metal Sleeve Bearing

Leave a Message
Product Description

The AlSn20Cu1 Marginal Lubricating Metal Sleeve Bearing CSB-J20 is a precision-engineered bearing designed to excel in applications where lubrication is challenging or limited. This bearing features a metal sleeve made of the AlSn20Cu1 alloy, which offers exceptional strength, corrosion resistance, and wear resistance.

The marginal lubricating design of the CSB-J20 bearing ensures smooth and reliable operation even in conditions where external lubrication is not always feasible. The AlSn20Cu1 alloy, with its inherent lubricating properties, provides a low-friction surface that reduces wear and extends the bearing's lifespan.

The CSB-J20 bearing is well-suited for use in various industries, including machinery, automotive, and aerospace, where its ability to self-lubricate and withstand high loads and temperatures is highly valued. Its robust construction and precision manufacturing ensure reliable performance even under the most demanding operating conditions.

Wh it's in high-speed rotating equipment or heavy-duty industrial machinery, the AlSn20Cu1 Marginal Lubricating Metal Sleeve Bearing CSB-J20 offers a robust and long-lasting solution for lubrication-challenged applications.

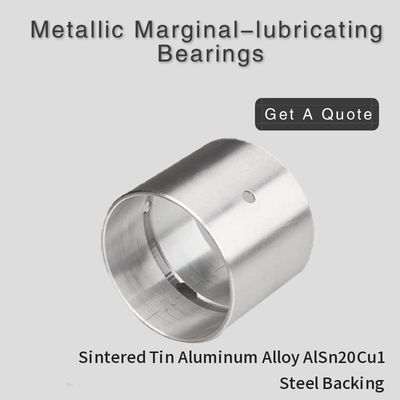

Steel Backing,AlSn20Cu1,Metallic marginal-lubricating bearings CSB-J20



Viiplus Metallic marginal-lubricating bearings Online Bearing Bushing Solutions.



AlSn20Cu Bimetal Bearings is backed with high quality low carbon steel with Aluminum-Tin alloy (AlSn20Cu) sintered on its surface. To effectively decrease abrasion, AlSn20Cu Bimetal Bearings' alloy surface can be machined with oil grooves for easier oil storage. When necessary, an erosion protection coating can be plated on the steel back. In common application, AlSn20Cu Bimetal Bearings is used to make wrapped bushes, thrust washer and bushes on connecting rod level of gas engine, etc.



Features



The material has good oil corrosion resistance feature. It is smooth and has outstanding embeddability and antiseizure performance. The working surface is not needed to be coated. It is suitable to be used to mate with soft shaft. The OD of the bearing is machined to a high precision grade and ID is machinable after assembling. This material is conformed to the ROHS regulation 2000/53/EC.



Sintered Tin Aluminum Alloy AlSn20Cu1

Tech. Data



Tensile Strength >150Mpa
Yield Point >90Mpa
Max. Load 50Mpa
Coefficient of thermal expansion 24*10-6*K-1
Thermal conductivity 50W(m*K)-1
Alloy Hardness HB 30-50



Alloy Code & Corresponding International Code



Alloy Code Cu Pb Fe Ni Al Si Mn Ti other
AlSn20Cu 0.7-1.3 17.5-22.5 ≤ 0.7 ≤ 0.1 rest ≤ 0.7 ≤ 0.7 ≤ 0.2 ≤ 0.5



Physical & Mechanical Properties



Maximum Operating Temperature Tmax 150 °C
Maximum Load Pmax 150 °C
Tensile Strength 100 N/mm2
Maximum Sliding Speed V-oil lubricated 200 N/mm2
Maximum PV Factor-oil lubricated 25 m/s
Coefficient of friction f-oil lubricated 6 N/mm2 * m/s
Maximum Sliding Speed V-greased 0.08-0.17



Usage Range



dry poor
oil lubricated good
grease lubricated good
water lubricated poor
process fluid lubricated poor



Structure:



  1. Sintered Tin Aluminum Alloy AlSn20Cu1, thickness 0.2-0.5mm, provides good self lubricating feature of the bearing

  2. Steel Backing, provides the mechanical strength of the bearing.



Typical Applications



The material has good corrosion resistance and the max. load could be 50Mpa. It is suitable for the applications of middle to low load motors, crankshaft of air compressors and so on.





Types of Oil Grooves for bimetal bushings



bimetal bearing
