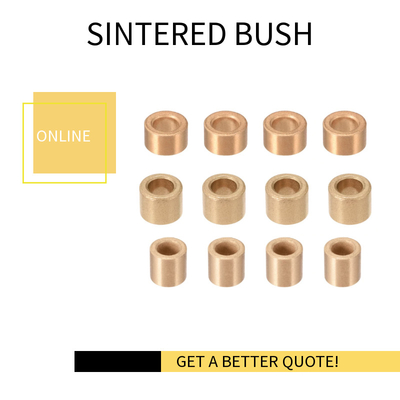

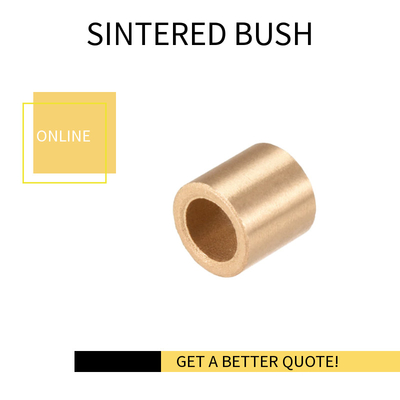

6mm 8mm ID Sleeve Sintered Bronze Bearing Bushings

Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number Copper Sleeve Bearing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability 5000000 Piece/Pieces One week
Product Details
Features Sintered Bronze Bearing Bushings Item Self-Lubricating Bearing
Application Printing Machinery Tools, Home Improvement, Computer & Office, Tools, Automobiles & Motorcycles Technical Powder Metallurgy Parts
Bushing Material: Sintered Bronze Size From 6mm 8mm ID
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
High Light

Sintered Bronze Bearing Bushings

,

8mm ID Bronze Bearing Bushings

Leave a Message
Product Description

Best value Sintered Bush – Great deals on Sintered Bush from www.bronzegleitlager.com



Self-Lubricating Bearing 6mm 8mm ID Sleeve Sintered Bronze Bearing Bushings,sintered plain bearings are made of powder-metallurgical tin bronze, which has a large working temperature range from -80 degrees Celsius to 120 degrees Celsius.



Oil-impregnated bushings. - Direct from China



Oil-impregnated bushings



  • As good frictional property as high sliding velocity, Oiled Bearing Sleeves have a small friction coefficient of about 0.12-0.18.
  • Oil impregnation enables very high sliding velocity and makes them suitable for rotating applications.
  • Uxcell sintered bronze bushings are most suitable for applications with rotating movements and where self-lubricating properties of the material are a prerequisite.



Sleeve Sintered Bronze Bearing Bushings for Printing Machinery Tools





  • Dry Self-lubricating
  • Good load capacity
  • Easy to assembly
  • Minimum overall dimensions
  • Standard items widely available
  • Special items on demand
  • Wide range of operating temperature
  • Minimized wear and good service life





Element Cu Sn Other
Min Rest 8% 2%
Max Rest 10.5% 2%







Maximum Specific Load Static 10 N/mm2
Maximum Specific Load Dynamic 5 N/mm2
Maximum Sliding Speed 10 m/s (1970 fpm)
Friction Factor 0,08 ÷ 0,12
Service Temperature Minimum -5°C (+23°F)
Service Temperature Maximum +90°C (+194°F)
Shaft Roughness (Suggested) ≤0,2 Ra
Shaft Hardness (Suggested) >350 Hb
Density Min. 5,6 g/cm3
Density Max. 6,0 g/cm3
Porosity Min. 22,5 % Vpor/Vtot
Porosity Max. 27,5 % Vpor/Vtot
Hardness Min. 30 HB



Oil-impregnated, ready for installation, self-lubricating, maintenance-free.





  Sintered bronzes Sintered iron Graphite bronze Graphite bronze water lubricated
pv (N/mm2 · m/s)
continuous run
Service life 10.000 h
1.6 1.6 0.4 0.3
p. max. (N/mm2)
Continuous run
Peripheral speed
approx. 0.17 m/s
10.0 9.5 2.5 2.5
p.max (N/mm²)
Static load
0.1% deformation
50.0 50.0 40.0 40.0
v.max (m/s)
Continuous run
5.0 5.0 0.25 2.5



Lubrication



Most sintered bronze bearings are filled with oil. When storing and installing sintered bronze bearings, do not allow them to come into contact with absorbent materials that can draw oil from the bearings. No additional lubrication is required under normal conditions.



Main advantages of sintered bronze bearings



  • Self-lubricating
  • Maintenance-free
  • High sliding velocities
  • Low friction coefficient
  • Low-noise running



Powder metallurgy process



1. First, the metal, in this case, bronze or bronze alloy, is transformed into powder. This can be achieved by a number of methods, including crushing, chemical decomposition and the most common atomization.
2. The metallic powder is then poured into a mold or mold cavity and compacted under great pressure in order to adhere the particles. This occurs at room temperature.
3. The metal part is then inserted into an oven where extreme heat melts the metal particles to form a rigid, porous and highly resistant component. This part of the process is called sintering.



The resulting porosity of sintered parts makes powdered metal products especially useful in lubrication applications and, as a result, bearings and wear plates are often made of sintered bronze. Powdered metal offers strength and flexibility. In addition, they offer an economical production process that includes oil impregnation or permanent lubrication.



Sintered Bronze Self-Lubricated Bearings Size Sheet

Sintered Bush Size



06-08-08
06-10-08
08-10-08
08-12-14
10-14-14
12-15-18
12-16-30
14-17-22
20-25-40
20-28-28



8-14-8/18-3
8-14-14/18-3
10-14-10/18-3
10-14-14/18-3
10-14-20/18-3
10-16-10/20-3
12-16-12/20-2
12-16-16/20-2
12-16-25/20-2
12-18-12/22-3
12-18-18/22-3
12-18-25/22-3
15-20-12/24-2,5
15-20-17,5/24-2,5
15-20-30/24-2,5
15-22-15/28-3
15-22-22/28-3
15-22-30/28-3
16-22-16/28-3,5
16-22-22/28-3,5
16-22-30/28-3,5
18-25-18/32-4
20-28-16/35-4
25-30-16/40-4
25-32-25/40-5
25-32-32/40-5
25-32-40/40-5
30-35-30/40-3
30-35-40/40-3
30-40-30/50-5
30-40-42/50-5
30-40-55/50-5
35-45-50/55-5
40-50-40/60-6
40-50-50/60-6
40-50-60/60-6
45-55-45/65-6
50-60-50/70-6
