CuZn25A16Fe3Mn4 C86300 Graphite Bronze Bushing Slider Washer Material

Place of Origin gleitlagerbuchsen china
Brand Name Viiplus CuZn25A16Fe3Mn3 Material products
Certification ISO 4379 1993
Model Number Self lubricating bearing slider washer
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 work day
Payment Terms MoneyGram, Western Union, T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CuZn25A16Fe3Mn4(C86300)(G-CuZn25Al5) Optional Structure Flange, Straight, Washer, Slider
Application Field Fireplace Door, Oven Raceway, Rubber Machinery, Light Machinery, Machine Tool Industry And Other Low - Load, High - Temperature, Medium - Speed Occasions Product Features High Cost Performance, Self-lubrication Maintenance Free, Reduce Costs
Type Sleeve, Flange, Washer, Plate Lubrication Graphite
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze plain bearing

,

graphite plugged bronze bushings

Leave a Message
Product Description

CuZn25Al6Fe3Mn4, also known as C86300, is a type of graphite bronze alloy that is commonly used as a material for bushing slider washers and other sliding components. This alloy offers a unique combination of properties that make it suitable for a wide range of applications.
The addition of graphite particles in CuZn25Al6Fe3Mn4 bronze provides excellent self-lubricating properties. Graphite is a natural lubricant that reduces friction and wear between sliding surfaces. This allows the bushing slider washers made from this alloy to operate smoothly and efficiently, even under high loads and speeds.
In addition to its self-lubricating properties, CuZn25Al6Fe3Mn4 bronze also possesses high strength and good corrosion resistance. The alloy's copper-zinc base provides good ductility and toughness, while the addition of aluminum, iron, and manganese improves its mechanical properties and corrosion resistance. This makes the alloy suitable for use in harsh environments and demanding applications.
CuZn25Al6Fe3Mn4 bronze bushing slider washers are often used in mechanical systems that require smooth and reliable sliding motion. They are commonly found in automotive transmissions, industrial machinery, and other applications where precise alignment and smooth operation are critical.
The alloy's machinability is also a key advantage, as it can be easily cut and shaped to meet specific application requirements. This allows manufacturers to produce precision-fitted bushing slider washers that ensure optimal performance and reliability.
In summary, CuZn25Al6Fe3Mn4 C86300 graphite bronze is an excellent material choice for bushing slider washers and other sliding components. Its self-lubricating properties, high strength, good corrosion resistance, and machinability make it suitable for a wide range of applications where smooth and reliable sliding motion is essential.


Oilless Thrust Washers | Solid Lubricant Washers - Select, configure, order



  • Maintenance free bronze oilless bushing, bronze with solid lubricant

  • Washer, self-lubricating

  • Oilless Slide Plate



We Produce The Oilless Bushings According To Your Requirements. Contact Us Now!



Cost performance graphite self-lubricating bearing, long life, strong and durable



CuZn25A16Fe3Mn3 self-lubricating bearing is assembled from CuZn25A16Fe3Mn3 copper matrix + graphite +, which is widely suitable for high temperature, high load, low speed, medium load and other occasions.



Chemical composition of materials





CuZn25A16Fe3Mn3(GB/T 1176-1987)=G-CuZn25Al5(DIN)=C86300(ASTM) Chemical composition quality/%
Chemical composition quality/%
CuSnAlFeMnNiPbSiPZn
60-660.25.0-7.52.0-4.02.5-5.010.2___




Mechanical properties of materials





Tensile strength(Mpa)Yield strength(Mpa)

Ductility%

Hardness (HB)
78542414225



CuZn25A16Fe3Mn3 substrate made of solid lubrication oil-free bearings (hereinafter referred to as solid embellish bearing), is to use CuZn25A16Fe3Mn3 Gao Ligao strength as matrix, and embedded radial arranged orderly cylindrical polymer filler for friction materials (such as graphite, molybdenum disulfide, , oil lubricant), its superiority lies in its made of copper alloy and non-metallic antifriction material has the respective complementary advantages, not only has high bearing capacity, and break through the boundaries of generally depends on the oil film bearing grease lubrication, achieve no oil lubrication, the embedded solid lubrication easy lubrication film formation,It improves the friction and wear performance greatly and is stable, reliable and cost-effective.

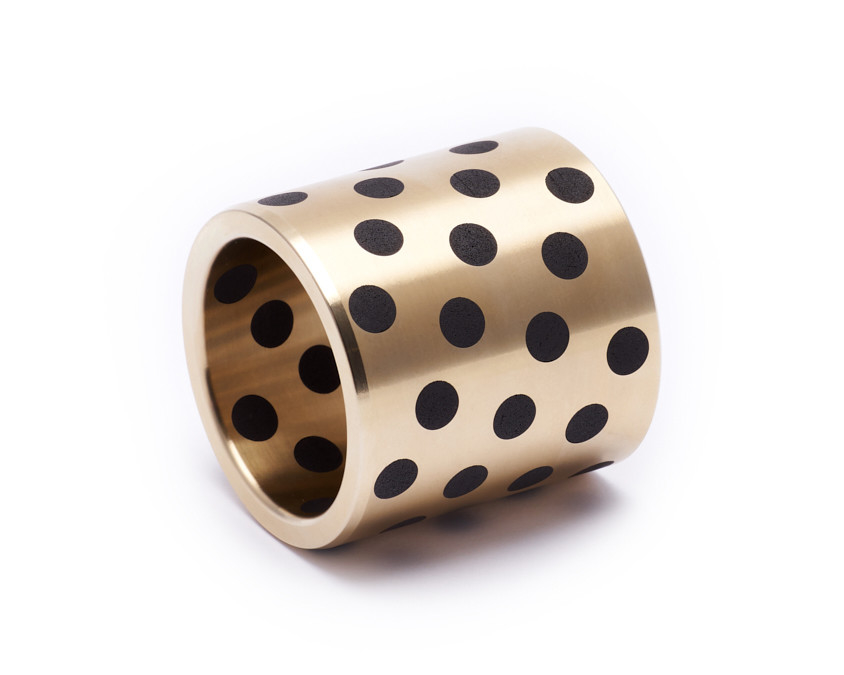

CuZn25A16Fe3Mn3(C86300 graphite self-lubricating sleeve) graphite self-lubricating sleeve composition



CuZn25A16Fe3Mn3 graphite self-lubricating sleeve composition    CuZn25A16Fe3Mn3 graphite self-lubricating bearing lubrication principle


Using graphite in turns into granular features combined with filler materials such as , forming a layer of oil film on metal surface and the mixture of particles, reducing the bearing sleeve in contact with the components of reducing friction, from CuZn25A16Fe3Mn4 materials with good tensile strength, elongation, and thermal conductivity, so the bearings used in high temperature, high load, etc., etc of low speed and heavy loading.


CuZn25A16Fe3Mn4(C86300 Bearing) Bearing performance parameters



Substrate materialCuZn25A16Fe3Mn3Maximum service temperature ℃

Ultimate dynamic load N/mm²


100
The coefficient of frictionu<0.16Maximum sliding speed m/sdry/0.4
Basic hardness HB210~270oil/0.5



Let's have a general idea of his production process


C86300 graphite bearing production process



So the structures that you can choose are


Optional type of graphite self - lubricating bearing Flange graphite self - lubricating bearing Self lubricating sliderSelf lubricating washer
cad Drawing design CuZn25A16Fe3Mn3 material graphite self-lubricating product schematic diagram



You need to know more about the products you can choose


The following PDF is about the product information of CuZn25A16Fe3Mn3 (C86300) in our company. You can choose different product types or raw materials, or you can customize the size and arrangement of graphite. In general, our company produces products according to ISO 4379 standard.
Graphite self-lubricating bearing.pdf


Where can be applied to CuZn25A16Fe3Mn3 (C86300 ) graphite self-lubricating bearings and related products?


Metal self-lubricating bearings can be used for dry friction, high temperature, high pressure, corrosive environment, moisture and chemicals, and are widely used in automobile production lines, water conservancy projects, reservoir gates, injection molding machines, continuous casting machines, metallurgical machinery, mining machinery, turbine generators, hydraulic generators and other fields.



Dam field C86300 material product application        Application of C86300 graphite self-lubricating products in the field of production equipment      Application of C86300 graphite self-lubricating products in incineration equipment industry



Advantages of our self-lubricating products



1. It can be used for a long time without maintenance;

2. Designed for high static load and dynamic load;

3. It has a very low and stable friction factor and no "sticking" phenomenon;

4. Dust resistance, corrosion resistance, impact resistance and edge load resistance;

5. Metal substrates have good shock absorption capacity;

6. Can be used in a wide range of temperatures;

7. Suitable for reciprocating, rotating and swinging, and other starting frequent and difficult to form oil film occasions.
