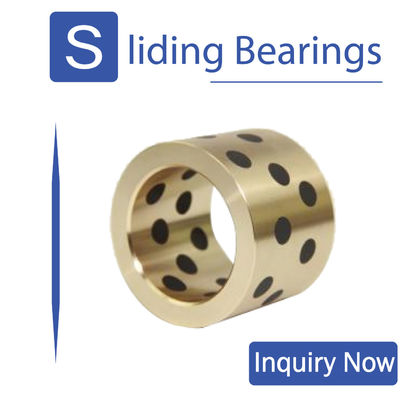

Straight Cylinder Maintenance Free Bronze Gleitlager Self Lubricating Friction Coefficient Low

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Graphite Bronze self-lubricating bearing
Certification ISO/9001 DIN 1494, ISO 4379 STANDARD BUSHING
Model Number self-lubricating bearing
Minimum Order Quantity negotiable
Price negotiable
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 7-25 work days
Payment Terms MoneyGram, Western Union, T/T
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Coppery CuSn6Zn6Pb3 Feature Suitable For Heavy Load Applications,Excellent Corrosion And Chemical Resistance.
Lubrication Graphite,Self-lubricating,oil Groove, Oil Hole, Non - Standard Size Customized Areas Of Use Hardware And Steel Fabrication, Stamping Dies, Tooling Components For The Automotive Industry, Sheet Pressing Etc.
Shapes & Type #500-serie, BWG, BWG-F, OILLESS Bushings, JDB-serie Size Custom-made
Get A Better Quote Tiffany@viiplus.com Get A Better Quote Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze plain bearing


graphite plugged bronze bushings

Leave a Message
Product Description

Construction Equipment oilless bushings Parts, We Have Been Serving Companies For Many Years! High Quality. Excellent Bronze Bushing Service. Discover what makes construction equipment bronze bushings parts the best choice to keep your machines running effectively.

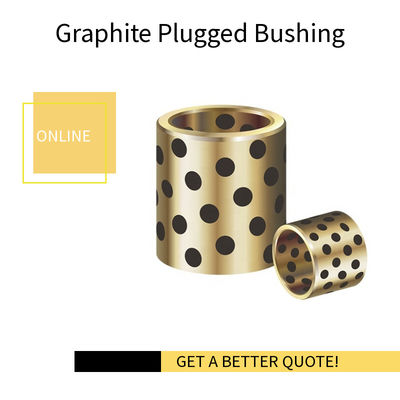

Graphite Plugged Bushing - Oilless Bushes Manufacturers & Suppliers


High Quality Graphite Lubricants for Extreme Performance & Demanding Applications.

Bronze gleitlager graphite plugged bushings

Bronze graphite self - lubricating bearing


Bronze inlaid bearing is a solid lubrication product with CuSnZn6Pb3 bronze as the substrate and graphite and MoS2 as solid lubricants.Because the density of CuSnZn6Pb3 bronze is higher than that of high force brass, it is very wear-resistant in the case of high temperature and low load.At present, the product has been used in the fireplace door, oven raceway, rubber machinery, light industry machinery, machine tool industry and other low load, high temperature, medium speed occasions.

oilless bushing, graphite plugged bushing

CuSn6Zn6Pb3 Material composition



Sn(%) Zn(%) Pb(%) Cu(%) Other magazines(%)
5~7 5~7% ≦1.5 rest ≤0.5


CuSn6Zn6Pb3 Material performance


Substrate material CuSn6Zn6Pb3 Maximum operating temperature ℃ 350
Ultimate dynamic load N/mm² 60
The coefficient of friction u <0.15 Maximum sliding speed m/s 2
Basic hardness HB 80~100


State distribution of graphite self - lubricated bearings



Graphite self - lubricating bearing oil film distribution                             Graphite self - lubricating bearing composition







Material features:



can be used for a long time without maintenance;

designed for high static load and dynamic load;

it has a very low and stable friction coefficient and no "adhesion" phenomenon;

dust resistance, corrosion resistance, impact resistance and edge load resistance;

the metal substrate has good shock-absorbing capacity;

can be used in a wide range of temperatures;

suitable for reciprocating, rotating and oscillating situations where startup is frequent

and oil film is difficult to form; very low wear rate, long service life.


The substrate of the VSB solid self - lubricating bearing shall be determined according to the working conditions of the bearing itself.More commonly used materials are colliers brass, tin bronze, cast iron, etc.The embedded solid lubricating materials are mainly graphite and additives. Different additives are suitable for different working conditions.According to the working conditions of the bearing itself, the combination of different metal substrates and embedded solid lubricants can ensure that the bearing can meet the special needs of various working conditions such as temperature, load, movement and medium, and ensure stable and reliable operation.


Characteristics of VSB solid self - lubricating bearings


1.The design is flexible, simple, convenient

wide range of use: oil supply system in the mechanical design is a piece of labor.Time-consuming, the use of solid lubrication bearings in the design does not need to consider the refueling device, fuel device saving.At the same time, for all kinds of special occasions, the solid lubrication bearings can be designed into a variety of shapes to meet the needs of various special occasions, the use of solid lubrication bearings, can greatly reduce mechanical maintenance, oil and other costs.

2. Oil-free can be used:

Due to the linear expansion coefficient of solid lubricant is greater than the metal matrix, so when the solid lubricated bearing, when we started running on the oil film will shift to a grinding and realize self-lubrication, so solid lubrication bearings can be used in the place where is hard to go and can't go or grease, even in the case of low speed and high load, also can have good lubrication effect.

3. Low use cost

The traditional mechanical design, in a certain operating time, want to often come on maintenance, check the oil, the oil supply device was clear, the body itself and the surrounding environment pollution caused by regular gas, result in an increase in maintenance costs, realize self-lubrication, not only can realize the environment clean and tidy, and greatly reduce the cost of the use of lubricating oil.

4. High load and low speed.Can play superior performance:

The solid lubricated bearing is made of centrifugal cast high strength brass as the substrate, which plays the role of bearing load.Self-lubricating, so it combines their advantages.Even in the case of high load, low speed can still play superior performance.

5, reciprocating motion

shaking motion, starting and stopping frequently and other places where the formation of oil film is difficult, can play superior wear resistance:

The arrangement principle of solid lubrication bearing lubricant is to ensure that there is a lubricant effect on each part of the grinding part in the process of operation, so the arrangement of lubricant must be determined according to the direction of movement of the grinding part.

6. Superior drug resistance and corrosion resistance;

The lubricant of solid lubricated bearing is made of wear-resisting materials such as graphite and PTEE with special formula, it has stable molecular structure, metal matrix can be selected according to different metals with different drug resistance and corrosion resistance, so the solid lubricated bearing has superior drug resistance and corrosion resistance.

7. The product cost is more competitive. Compared with similar products, the product has a long working life and requires little maintenance.


Alloy material


 GB1776-87 ZCuZn25
ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 Steel+ ZCuSn6Zn6Pb3 HT250 GCr15
 ISO1338 GCuZn25
GCuSn6Zn6Pb3 GCuAl10Fe3 - Steel+ CuSn6Zn6Pb3
- B1
 DIN G-CuZn25
GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 Steel+ CuSn6Zn6Pb3Ni - 100Cr6
 ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100
(BS) HTB2 LG2 AB1 PB4 LG2 - -


Graphite self - lubricating bearings used in the field


Self - lubricating bearings in automotive field Graphite self - lubricating bearings for construction equipment Industrial graphite self - lubricating bearings
