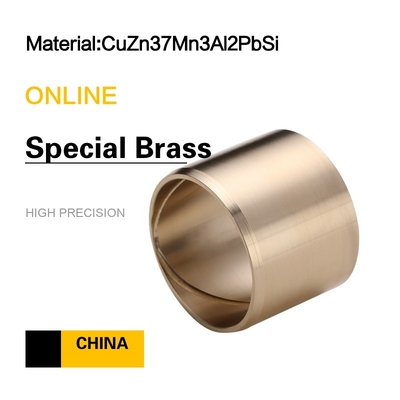

Special Brass CuZn37Mn3Al2PbSi EN Wrought Copper Alloy Bushings

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification CW713R
Model Number Brass CuZn37Mn3Al2PbSi
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS
Product Details
Bearings Material Special Brass Material Copper Alloy
Size Customized Size Quality High Quality
Online CNC Machining Service Price Low Cost, On Time, To Spec
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
High Light

wrapped bronze bushings

,

oil embedded sleeve bearing

Leave a Message
Product Description

Special Brass CuZn37Mn3Al2PbSi EN Wrought Copper Alloy Bushings & Bearing Made to order from china



VIIPLUS CHINA can not only manufacture copper alloy bearing and bushings flange according to China's standard, but also can produce it as the related standards of the ASTM(UNS,SAE), EU and JIS, etc.What's more,we can also manufacture the copper alloy bearing material according to the special requirements and drawings of customers



While VIIPLUS is recognized as the supplier in pipe handling self-lubricating bearing manufacturing equipment, our sliding bearing bushing product range includes equipment for a wide variety of customers.



Bronze bushing bearing guide

- Control the quality and price: one- stop service from casting of raw material to finished products, control the quality and cost from all links strictly.

- Advanced testing equipments: Spectrometer imported from Germany - guarantee the components; Universal testing machine - test tensile strength, elongation and yield strength; Brinell hardness tester - test hardness.

- Customization: we can provide customized product services according to drawing and material requirements.

Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

57.0-59.0

<0.4

1.3-2.3

<1.0

1.5-3.0

<1.0

0.2-0.8

0.3-1.3

-

Rem

Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

540-780

290-560

25-5

140-200

Explanation:Bronze Sleeve Bushings is based on the copper alloy. It offers technically and economically favorable bearings solutions. It is of high load capability, low weight and good corrosion resistance. Bronze Sleeve Bushings can offer different types of bronze alloys according to the required life time, service etc. The tolerance is much tighter than wrapped bronze bushes. We can use different copper alloy material as per customer's requirements.

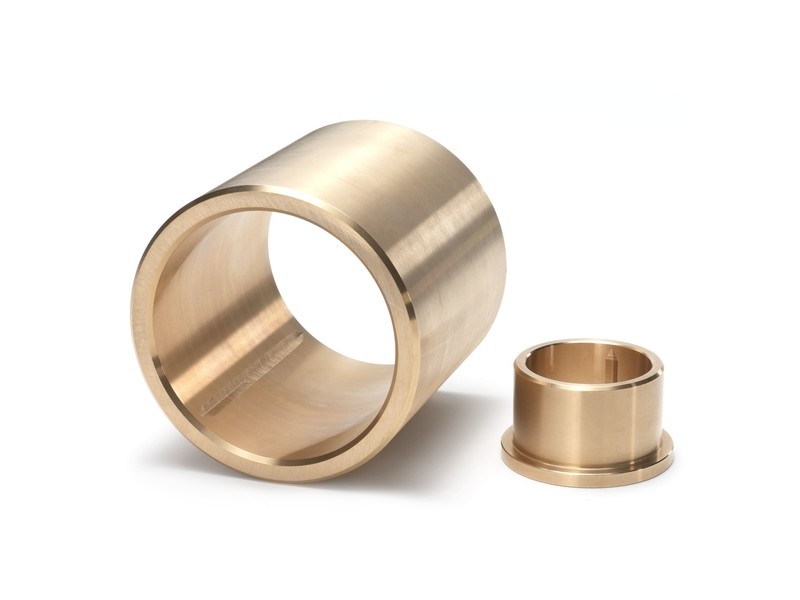

Bronze Sleeve Bushings



Technical data
Base material CuZn25A16Fe3Mn4 Maximum operating temperature °C 300
Extreme dynamic load N/mm² 100
Coefficient of friction u <0.16 Maximum sliding speed m/s Dry 0.4
Basic hardness HB 210~270 Oil 5
Alloy
Model / corresponding grade

International brand GB1776-87 ZCuZn25 ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 Steel+ ZCuSn6Zn6Pb3 HT250 GCr15
Al6Fe3Mn3
International ISO1338 GCuZn25 GCuSn6Zn6Pb3 GCuAl10Fe3 - Steel+ CuSn6Zn6Pb3 - B1
Al6Fe3Mn3 Fe3Ni5
Germany DIN G-CuZn25 GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 Steel+ CuSn6Zn6Pb3Ni - 100Cr6
Al5
Japan JIS HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2
United States ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100
British standard(BS) HTB2 LG2 AB1 PB4 LG2 - -
Material composition and performance table
Material code
Chemical composition CuZn25Al5Mn3Fe3 CuZn25Al5Mn3Fe3 CuAl9Fe4Ni4Mn2 CuSn5Pb5Zn5 CuSn12 HT250 Gcr15
Density(g/cm³) 8 8 8.5 8.9 9.05 7.3 7.8
Hardness (HB) >210 >250 >150 >70 >80 >190 HRC>58
Tensile strength (N/mm²) >750 >800 >800 >200 >260 >250 >1500
Elongation (%) >12 >8 >15 >10 >8 >5 >15
Linear expansion coefficient 1.9 1.9 1.9 1.8 1.8 1 1.1
Operating temperature(℃) -40~+300 -40~+150 -40~+400 -40~+400 -40~+400 -40~+400 -40~+400
Maximum dynamic load(N/mm²) 100 120 150 60 70 80 200
Maximum line speed(m/min) 15 15 20 10 10 8 5
Maximum PV value Lubricating 200 200 60 60 80 40 150
(N/mm²*m/min)
Permanent compression deformation <0.01 <0.005 <0.04 <0.05 <0.05 <0.015 <0.002
300N/mm²



Size
Customized
Material
CuZn25Al5Mn4Fe3. Customized
Color
Natural
Certification
ISO9001, TS16949
Density
8g/cm3
Hardness
>210HB
Working Temperature Limit
-40~200℃
Max. Dynamic Load
98N/mm²
Max Linear Velocity(Grease)
0.85m/s
Max PV value Grease
1.65N/mm2·m/s
Friction Coefficient
0.09~0.15
Tensile strength
>750N/mm²
Yield Strength
>340 N/mm2
Mating Axis
Hardness≥40, Roughness 0.4~1.0
Coefficient of heat conduction
38~55W/m·K
Linear Expansion Coefficient
2.2×10-5/℃
Application
machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission

Note:

Material
Standard
ASTM/ JIS/ ASME/ AISI/ EN/ BS
ID
20-1000mm
OD
25-1500mm
Sample
Available
Package
1pc/neutral bag or blister bag
Production time
Around 25 days
Load port
china
