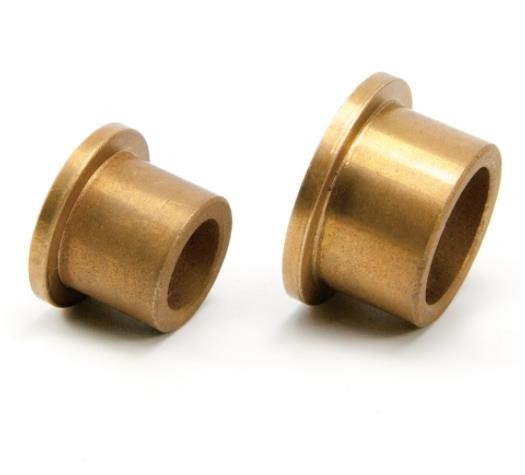

Powder Metallurgy Bushings & Sinter Metals Bushings Self - Lubrication
| Place of Origin | Bushing Manufacturer |
|---|---|
| Brand Name | REPLACEMENT PLAIN BEARINGS |
| Certification | ISO9001:2008 CuSn8, CuSn6.5, Brass |
| Model Number | LD Bronze Bearings made of CuSn8 with Grease Reservoirs |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | Export Cartons,Customizable |
| Delivery Time | 10~20 work days |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | STANDARD TOLERANCE BUSHINGS |
Product Details
| Material | Material Bronze 663; CuSn90-10/ Iron /Stainless Steel / Cast | Bushes Type | Sleeve,Flanged,Spherical |
|---|---|---|---|
| Place Of Origin | China | Application | VALVE BUSHINGS |
| Item | Oil Impregnated Bushings | Tolerance | F7r7Js13 |
| Size | Standard,Customized | Lubricating | Self-lubrication |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | wrapped bronze bushings,graphite sleeve bearings |
||
Product Description

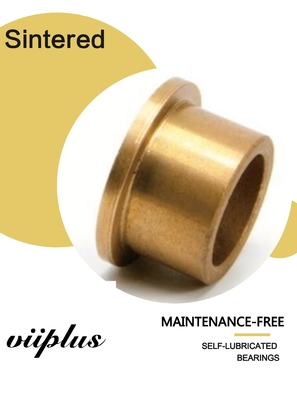

Sintered Bronze bushings | Self lubricated bearing
Description
Powder metallurgy has unique chemical composition and mechanical and physical properties, which cannot be obtained by traditional casting methods.Porous, semi-dense, or fully dense materials and products, such as oil-bearing bearings, can be made directly by powder metallurgy
Powder metallurgy is the process of making metal powder or metal powder (or mixture of metal powder and non-metal powder) as raw materials, forming and sintering, manufacturing metal materials, composite materials and various types of products.Powder metallurgy and ceramic production are similar, both belong to powder sintering technology, therefore, a series of new powder metallurgy technology can also be used for the preparation of ceramic materials.Due to the advantages of powder metallurgy technology, it has become the key to solve the problem of new materials, plays a pivotal role in the development of new materials.
Subject
- Water Bushings
Energy Bushings
Industries Bushings
Oil & Gas Bushings
Fire-Fighting Bushings
Product Groups
- Butterfly valves bushings
- Check valves bushings
- Control valves bushings
- Gate valves bushings
- Vent and bleed valves bushings
Copper sleeve, Self lubricated bearing, used in a variety of large, heavy machinery, machinery is an important component.
Copper sleeve, copper bearing, used in various light industry, large, heavy machinery, is an important component of machinery.The product has the traditional tin bronze bearing function, takes the electrolytic copper as the raw material to match with many kinds of trace metal elements, through the high temperature sintering, through the air pressure centrifugal casting processing becomes.High hardness, excellent wear resistance, not easy to die, good casting performance and cutting performance, good corrosion resistance in the atmosphere and fresh water.In the absence of lubricants and water-quality lubricants, good sliding and self-lubricating properties, easy cutting, poor casting performance, good corrosion resistance to dilute sulfuric acid.Structural parts for general use, simple castings for ships, instruments, etc., such as sleeve, bushing, bearing bush, sliders, etc.
VIIPLUS supply full series of Sleeve Sintered Sleeve in material Bronze 663; CuSn90-10,Cast Bronze BushingsStainless Steel Bushings.
-
BRONZE BUSHINGS 6-6-3
-
BRONZE BUSHINGS CuSn90-10
-
STAINLESS STEEL BUSHINGS 304
-
STAINLESS STEEL BUSHINGS 316
Technical Parameters
|
SAE 841 Powdered Metal Bronze, Sleeve Bearing |
|||||||||
|
Specifications SAE841 SLEEVE Bearing Oil Impregnated Bronze |
|||||||||
|
Material Powdered Metal / Oil Impregnated Bronze |
|||||||||
|
Material Standard SAE 841 |
|||||||||
|
Tolerances |
|||||||||
|
Inner Diameter Tolerance +.000 -.001 in |
|||||||||
|
Outside Diameter Tolerance+.000 -.001 in |
|||||||||
|
Overall Length Tolerance .005 in |
|||||||||
|
Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1% |
|||||||||
|
MPIF: CT-1000-K26 |
|||||||||
|
ASTM: B438 Grade 1, Type 2 Class A |
|||||||||
|
SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1 |
|||||||||
|
Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200 |
|||||||||
|
Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. |
|||||||||
|
After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. |
|||||||||
|
Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F. |
|||||||||
|
RoHS, REACH, DFARS compliant |
Advantages Of Powder Metallurgy Process
· Do not need or only very little machining
· High usage rate of material(more than 95%)
· Parts size consistency is good and stable. The precision can reach 0.01mm.
· The material composition can be adjusted according to the customers’requirement of the parts performance.
· Do the treatment on the surface of the parts according to customers’ requirement to improve the strength and hardness.
· Due to the die forming, we can customize the complex shape or special profiled parts which other machining can not do.
· Because suitable for mass production, the production efficiency is high and the cost is lower than machining.
Sintered Bronze Bushings oil impregnated Size Range
-
Sintered Bronze Bush Size Range:
-
O.D. 2mm - 175mm
-
Length Max: 75mm
-
-
Sintered Iron Bush Size Range:
-
O.D. 2mm-220mm
-
Length Max: 100mm
