High Strength Brass Straight Type C86300 (SAE 430B) Manganese Bronze Plugged Graphite Bushings Made To Order
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | VIIPLUS Sleeve & Bearing |
| Certification | FIBRO Standard |
| Model Number | C86300 BRONZE BUSHINGS |
| Minimum Order Quantity | Standard Size Bushing No Minimum Order Quantity |
| Price | Bushings High Quality Price Ratio B2B |
| Packaging Details | Export carton; Wooden case ; Wood pallet. |
| Delivery Time | 2~4 Weeks |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | C86300 (SAE 430B) Manganese Bronze +Graphite，Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 | Model Number | Cylinder Bearings,Cylinder Bearings With Flange,Washer,Sliding Plate |
|---|---|---|---|
| Sliding Bearings Feature | Self Lubrication Bearings | Self Lubrication Bearings | Graphite |
| Application | Valve Stems And Hydraulic Cylinder Parts,Excavator Bushes Crane Bushings Loader Cast Bronze Bushings, Bearings Injection Molding Machine | Type | FLANGE/SLEEVE/WASHER |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | graphite bronze bushing,bronze plain bearing |
||
Product Description
We offer customized high-strength brass straight type C86300 (SAE 430B) manganese bronze plugged graphite bushings that are precisely manufactured to meet your specific requirements. These bushings are made from a manganese bronze alloy that exhibits excellent mechanical properties, including high strength, good wear resistance, and corrosion resistance.
The plugged graphite component provides additional lubrication and wear reduction, extending the service life of the bushing. The straight design allows for easy installation and removal, while the brass material ensures dimensional stability and durability.
Wh you need bushings for heavy-duty machinery, automotive components, or other industrial applications, we can produce them to your exact specifications. Our manufacturing process is backed by strict quality control measures to ensure the highest standards of performance and reliability.
Contact us today to discuss your requirements and learn more about our custom-made high-strength brass straight type C86300 (SAE 430B) manganese bronze plugged graphite bushings.
Customized Graphite Plugged Bronze Bushings & Bearings | Order Today !

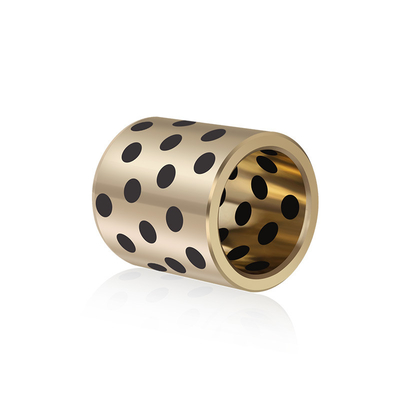

Choose your graphitr plugged bronze bushings material C86300
Graphite Plugged Bronze Bushings,Cast Bronze Oilless Parts Matrial:C86300,C93200,C95400.
High Strength Yellow Brass C86300 (SAE 430B) Manganese Bronze Material:CuZn25AI5Mn4Fe3 Plugged Graphite Bushings made to order from china request a qoute
Product Description
C86300 Manganese Bronze (SAE 430B) is a high strength alloy material used as bushings, bearings,valve bushes stems and hydraulic cylinder bushing parts.
Straight type Spherical Bush Unit Pillow Bronze Graphite Bushing Oilless Slide Bearings Manufacturer
C86300 (SAE 430B) Manganese Bronze Bushing, Cast Bronze Bushings, Manganese Bronze Sliding Bearings Products
VIIPLUS Developed high wear resistance, dust resistance, high strength self-lubricating bearing, not only solve the problem of lubrication and reduce the noise to extend the service life, especially in bad mines, field work equipment, such as excavator big arm bearing, chassis walking mechanism, hydraulic cylinder oil pump.
Ship bushing by air,DHL,FedEx,TNT,UPS...
Notice: The sliding bearings weights listed are the best estimates of the actual weights we will ship. They are a combination of the calculated theoretical weights and an average of actual weights. Our weights are conservative to the heavier side but there may be slight variations in weight from bushing to flange bushing or washer.
Cast Bronze Bearings Injection Molding Machine Bushings,Excavator Bushes Crane Bushings Loader arm bushing Oilless Metal Sliding Materials Standard Components for Sliding Bearings Bushes Flanged.
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||

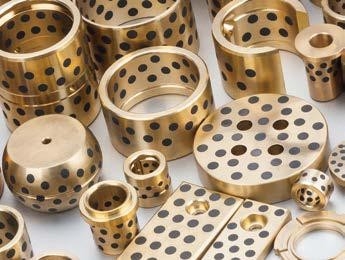

Solid Bronze Metallic Self-lubricating Bearings Cast Bronze Bearing with Graphite Plugs
Material:CuZn25AI5Mn4Fe3
Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled.
Sliding Bearings Applications
The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

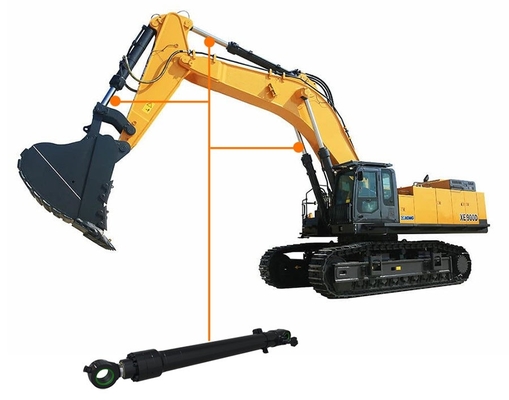

Engineering machinery:Especially equipment operating in harsh mines and fields;Such as excavator arm bearing sleeve, bulldozer copper sleeve, chassis walking mechanism, hydraulic cylinder oil pump.VIIPLUS developed shock-resistant, dust-resistant, high-strength self-lubricating bearing, which not only solves the problem of lubrication but also reduces the noise and extends the service life.
Industrial Machinery Application:VIIPLUS bearings have the advantages of extremely low maintenance frequency and little or no oil, plus the performance of reducing running noise, even in the case of no oil supply, its excellent wear resistance can make the equipment stable operation, thus providing an economical and effective solution for the continuous safe operation of industrial equipment.Nowadays, modern chemical industry is more and more demanding for high efficiency and high precision. Meanwhile, environmental protection and safety guarantee have become basic requirements.
EXCAVATOR BUSHES CRANE BUSHINGS LOADER CAST BRONZE BEARINGS INJECTION MOLDING MACHINE
Solid Lubricant Casting Aluminum Bronze Bearings Bushings
Characteristics
Various material specifications, standard and special shapes are also available
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃
Strusture
VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Technical Data
The Physical, Fabrication and Thermal Properties shown here represent reasonable approximations suitable for general engineering use. Due to commercial variations in compositions and to manufacturing limitations, they should not be used for specification purposes.
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
|
Product NO. |
Chemical Compositions |
||||||||
|
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
|
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
|
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
SHIPPING:
1.Delivery Time:Usually 15-30 days.Depends on your quantity.
2.Generally Free of standard size sample within 5 days.
