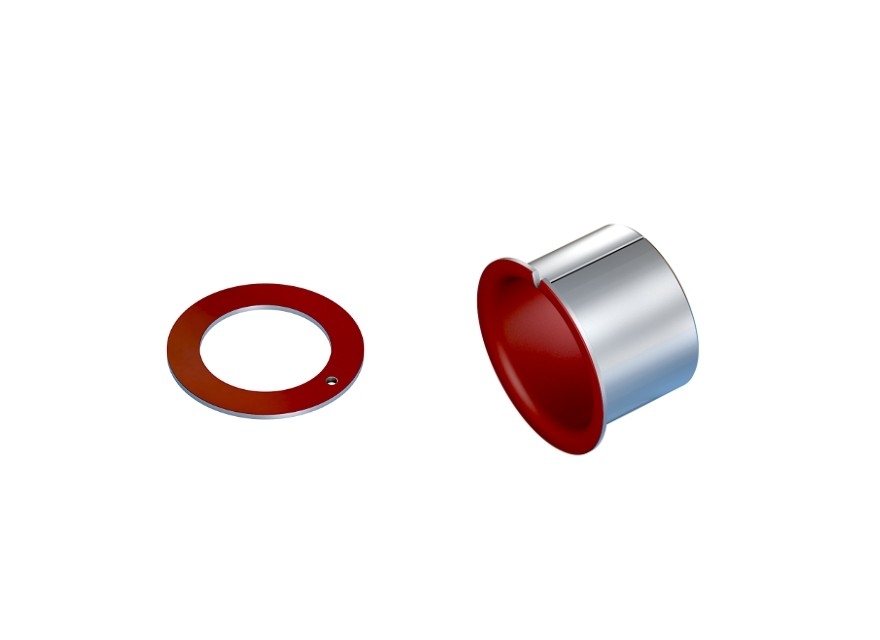

Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings

Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings
Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings

Large Image :  Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings

Product Details:
Place of Origin: Composite plain cylindrical bushings manufacturer
Brand Name: VIIPLUS Sleeve & Bearing
Certification: ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number: Metric Cylindrical DP4 Bush alternative
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: Negotiable
Packaging Details: Export carton; Wooden case ; Wood pallet.
Delivery Time: 2~4 Weeks
Payment Terms: T/T, L/C, Western Union,
Supply Ability: Special Customized Lubricating Bushings Manufacturing

Metric Cylindrical Metal Polymer Red PTFE DP4 Sleeve Bush Alternative Composite Bearings

Description
Size: Metric Cylindrical Bushing Std. & Non-std. Customized Sizes Meterial: Steel Or Bronze Backed, Bronze , PTFE
Application: Metallurgy Machine And Casting Machines, Consecutive Casting Machines, Cemetery Machines, Spiral Transporting Machines, Etc. Type: Wrapped Bushes, Flanged Bearing, Thrust Washer
Plating: Tin Or Copper Quality: OEM Quality
High Light:

oil impregnated brass sleeve bearing

,

flanged plain bearing

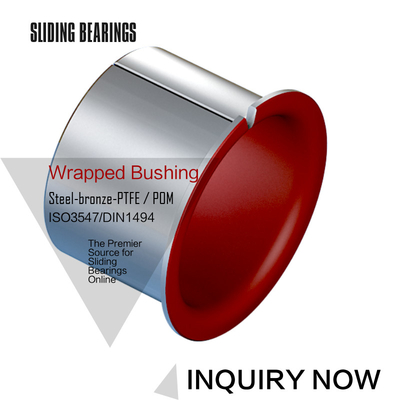

Wrapped composite dry sliding bearing steel / special PTFE, lead-free, Maintenance-free

Looking for a Steel split DP4 Bush alternative? GGB Standard, glacier standard size bushings alternative ,Get a quote from china cylindrical series in metric measurements.Sleeve Bushings I Plain Bearing Manufacturer.Metric Cylindrical Series I The DP4 Bushing Alternative.Want be a  Bearing/Bushes DISTRIBUTOR.What We Do Manufacturing China Factory Certifications Design Challenge Self-lubricating bearings Solutions.VIIPLUS SLIDING INCH SIZE BEARINGS provides SLEEVE BUSHING PETE/POM solutions.Metal-Polymer Composite Bushing made to order from china factory. Good performance over varying loads, speeds and temperatures in dry running or greased conditions. Suitable for linear, oscillating and rotating movements. Lead-free material compliant to RoHS specifications. Approved for pumps,piping, valves, fittings and more in gaseous and liquid oxygen, View bushing online,www.bronzegleitlager.com

SLIDING STEEL BUSHINGS PAP COLLAR BUSHES CATALOGUE COMPOSITE DRY BEARINGS RED PTFE

Metal-polymer plain bearings consist of a metal backing, usually steel or bronze, onto which is sintered a porous bronze layer that is then impregnated with PTFE and additives to obtain a running surface that offers anti-friction and wear resistant bearing properties. These bearings can operate dry or with external lubrication.

The superior performance of metal polymer plain bushings lies in their unique composite structure:

  1. Impregnated anti-friction overlay enriched with PTFE and fillers or extruded thermoplastic tape

  2. Porous sintered bronze interlayer for high wear resistance

  3. Steel or bronze backing for high mechanical strengthManufacturer Of Self Lubricating Bronze Bushings

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.

CYLINDRICAL BEARINGS

THRUST WASHER

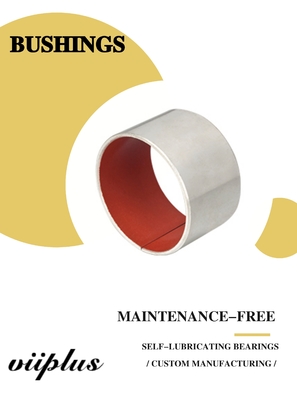

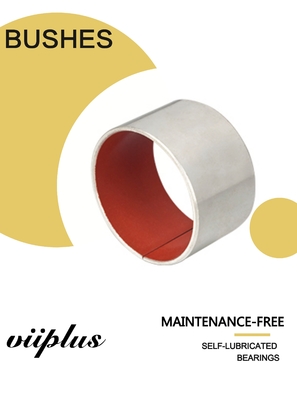

CYLINDRICAL BUSHES

FLANGED BEARINGS

SLIDING PLATES STRIPS

THRUST WASHERS

SLIDING PLATES

METAL-POLYMER LOW FRICTION PLAIN BEARINGS

COMPOSITE BEARING STRUCTURE :

PTFE-BASED BEARINGS AND THERMOPLASTIC BEARINGS

CHARACTERISTICS

low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Very good performance in lubricated applications
Good performance in greased applications
Suitable for linear, oscillating and rotating movements
Lead-free material compliant to RoHS specifications

BEARING PROPERTIES

GENERAL



Unit

Value

Maximum load, p

Static

Dynamic

N/mm2

N/mm2

250

140

Operating temperature

Min

Max

°C

°C

- 200

280

Coefficient of linear thermal expansion

Parallel to the surface

10-6/K

11

Normal to the surface

10-6/K

30



du bushing size chart



du bushing size chart
  Di (mm) Do (mm) Sfl (mm) Dfl (mm) B (mm) bearing shaft The largest diameter(mm) Minimum diameter (mm) The maximum clearance(mm) The minimum clearance(mm)
BB0304DU 3 4.5 0.75 7 4 H6 h6 3.048 3 0.054 0
BB0404DU 4 5.5 0.75 9 4 H6 h6 4.048 4 0.056 0
BB0505DU 5 7 0.925 10 5 H7 f7 5.055 4.99 0.077 0
BB0604DU 6 8 0.925 12 4 H7 f7 6.055 5.99 0.077 0
BB0608DU 6 8 0.925 12 8 H7 f7 6.055 5.99 0.077 0
BB0806DU 8 10 0.925 15 5.5 H7 f7 8.055 7.99 0.083 0.003
BB0808DU 8 10 0.925 15 7.5 H7 f7 8.055 7.99 0.083 0.003
BB0810DU 8 10 0.925 15 9.5 H7 f7 8.055 7.99 0.083 0.003
BB1007DU 10 12 0.925 18 7 H7 f7 10.058 9.99 0.086 0.003
BB1009DU 10 12 0.925 18 9 H7 f7 10.058 9.99 0.086 0.003
BB1012DU 10 12 0.925 18 12 H7 f7 10.058 9.99 0.086 0.003
BB1017DU 10 12 0.925 18 17 H7 f7 10.058 9.99 0.086 0.003
BB1207DU 12 14 0.925 20 7 H7 f7 12.058 11.99 0.092 0.006
BB1209DU 12 14 0.925 20 9 H7 f7 12.058 11.99 0.092 0.006
BB1212DU 12 14 0.925 20 12 H7 f7 12.058 11.99 0.092 0.006
BB1217DU 12 14 0.925 20 17 H7 f7 12.058 11.99 0.092 0.006
BB1412DU 14 16 0.925 22 12 H7 f7 14.058 13.99 0.092 0.006
BB1417DU 14 16 0.925 22 17 H7 f7 14.058 13.99 0.092 0.006
BB1509DU 15 17 0.925 23 9 H7 f7 15.058 14.99 0.092 0.006
BB1512DU 15 17 0.925 23 12 H7 f7 15.058 14.99 0.092 0.006
BB1517DU 15 17 0.925 23 17 H7 f7 15.058 14.99 0.092 0.006
BB1612DU 16 18 0.925 24 12 H7 f7 16.058 15.99 0.092 0.006
BB1617DU 16 18 0.925 24 17 H7 f7 16.058 15.99 0.092 0.006
BB1812DU 18 20 0.925 26 12 H7 f7 18.061 17.99 0.095 0.006
BB1817DU 18 20 0.925 26 17 H7 f7 18.061 17.99 0.095 0.006
BB1822DU 18 20 0.925 26 22 H7 f7 18.061 17.99 0.095 0.006
BB2012DU 20 23 1.45 30 11.5 H7 f7 20.071 19.99 0.112 0.01
BB2017DU 20 23 1.45 30 16.5 H7 f7 20.071 19.99 0.112 0.01
BB2022DU 20 23 1.45 30 21.5 H7 f7 20.071 19.99 0.112 0.01
BB2512DU 25 28 1.45 35 11.5 H7 f7 25.071 24.99 0.112 0.01
BB2517DU 25 28 1.45 35 16.5 H7 f7 25.071 24.99 0.112 0.01
BB2522DU 25 28 1.45 35 21.5 H7 f7 25.071 24.99 0.112 0.01
BB3016DU 30 34 1.95 42 16 H7 f7 30.085 29.99 0.126 0.01
BB3026DU 30 34 1.95 42 26 H7 f7 30.085 29.99 0.126 0.01
BB3516DU 35 39 1.95 47 16 H7 f7 35.085 34.99 0.135 0.015
BB3526DU 35 39 1.95 47 26 H7 f7 35.085 34.99 0.135 0.015
BB4016DU 40 44 1.95 53 16 H7 f7 40.085 39.99 0.135 0.015
BB4026DU 40 44 1.95 53 26 H7 f7 40.085 39.99 0.135 0.015
BB4516DU 45 50 2.45 58 16 H7 f7 45.105 44.99 0.155 0.015
BB4526DU 45 50 2.45 58 26 H7 f7 45.105 44.99 0.155 0.015

CUSTOM SIZE SLEEVE BUSHINGS



START YOUR PROJECT WITH AN APPLICATION ENGINEER
