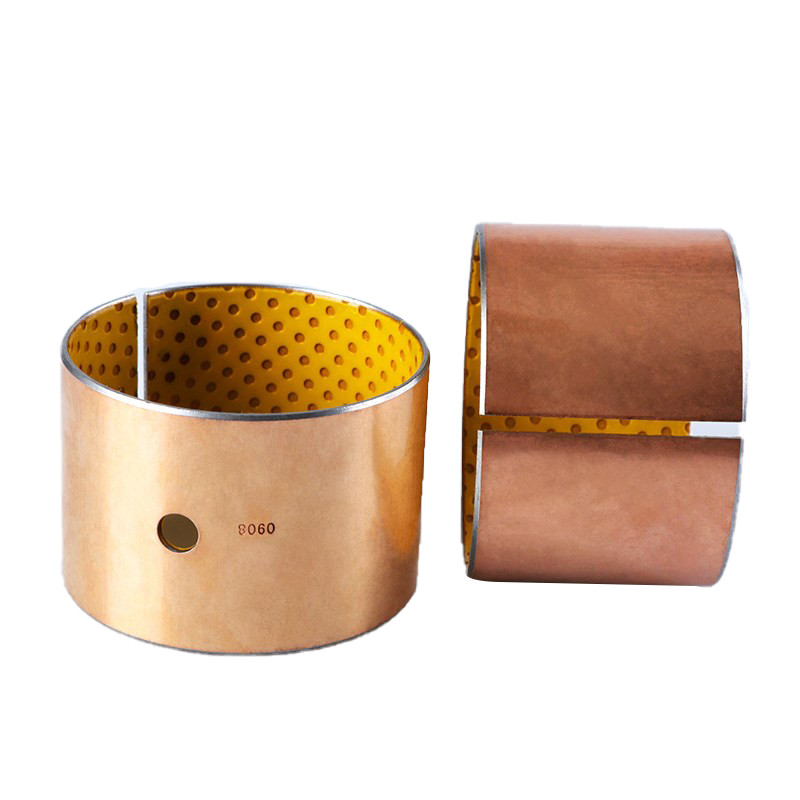

PAP P20 Series Polymer Plain Bearings Bronze Powder

Place of Origin CHINA
Brand Name viiplus Self-lubricating composite bearing
Certification RHOS
Model Number High performance pom oil-free self-lubricating bearings
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 works day
Payment Terms L/C, T/T, Western Union
Supply Ability L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL Steel + Bronze Powder + POM FEATURE No Oil, Self-lubricating
Style DX The Same Style Country Of Origin China
Type Sleeve Lubrication POM Self-lubricating,oil,grease
Finishing Copper-plating/tin-plating Size Customized
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

PAP Polymer Plain Bearings

,

Bronze Powder Polymer Plain Bearings

,

POM Polymer Plain Bearings

Leave a Message
Product Description

PAP P20 Series Bushes

PAP  P20 series bushes low-maintenance with lubrication pockets

Select high-quality PAP P20 series bushes products in best price from viiplus. POM coated bush based steel backing with POM inner layer, oilless bushing, DX bushing, and POM lined plain dry bush.

pap p20 bushes pom dx bushing

PAP0608-P20 6 8 8 * PAP2010-P20 20 23 10 4
PAP0610-P20 6 8 10 * PAP2012-P20 20 23 12 4
PAP0710-P20 7 9 10 * PAP2015-P20 20 23 15 4
PAP0808-P20 8 10 8 4 PAP2017-P20 20 23 17 4
PAP0810-P20 8 10 10 4 PAP2020-P20 20 23 20 4
PAP0812-P20 8 10 12 4 PAP2025-P20 20 23 25 4
PAP1008-P20 10 12 8 4 PAP2030-P20 20 23 30 4
PAP1010-P20 10 12 10 4 PAP2215-P20 22 25 15 6
PAP1012-P20 10 12 12 4 PAP2220-P20 22 25 20 6
PAP1015-P20 10 12 15 4 PAP2222-P20 22 25 22 6
PAP1020-P20 10 12 20 4 PAP2225-P20 22 25 25 6
PAP1210-P20 12 14 10 4 PAP2230-P20 22 25 30 6
PAP1212-P20 12 14 12 4 PAP2415-P20 24 27 15 6
PAP1215-P20 12 14 15 4 PAP2420-P20 24 27 20 6
PAP1220-P20 12 14 20 4 PAP2425-P20 24 27 25 6
PAP1225-P20 12 14 25 4 PAP2430-P20 24 27 30 6
PAP1310-P20 13 15 10 4 PAP2510-P20 25 28 10 6
PAP1414-P20 14 16 14 4 PAP2515-P20 25 28 15 6
PAP1415-P20 14 16 15 4 PAP2520-P20 25 28 20 6
PAP1420-P20 14 16 20 4 PAP2530-P20 25 28 30 6
PAP1422-P20 14 16 22 4 PAP2540-P20 25 28 40 6
PAP1425-P20 14 16 25 4 PAP2550-P20 25 28 50 6
PAP1432-P20 14 16 32 4 PAP2820-P20 28 32 20 6
PAP1510-P20 15 17 10 4 PAP2825-P20 28 32 25 6
PAP1512-P20 15 17 12 4 PAP2828-P20 28 32 28 6
PAP1515-P20 15 17 15 4 PAP2830-P20 28 32 30 6
PAP1520-P20 15 17 20 4 PAP3015-P20 30 34 15 6
PAP1525-P20 15 17 25 4 PAP3020-P20 30 34 20 6
PAP1610-P20 16 18 10 4 PAP3025-P20 30 34 25 6
PAP1612-P20 16 18 12 4 PAP3030-P20 30 34 30 6
PAP1615-P20 16 18 15 4 PAP3040-P20 30 34 40 6
PAP1616-P20 16 18 16 4 PAP3220-P20 32 36 20 6
PAP1620-P20 16 18 20 4 PAP3225-P20 32 36 25 6
PAP1625-P20 16 18 25 4 PAP3230-P20 32 36 30 6
PAP1815-P20 18 20 15 4 PAP3235-P20 32 36 35 6
PAP1818-P20 18 20 18 4 PAP3240-P20 32 36 40 6
PAP1820-P20 18 20 20 4 PAP3515-P20 35 39 15 6
PAP1825-P20 18 20 25 4 PAP3520-P20 35 39 20 6
PAP3525-P20 35 39 25 6 PAP6070-P20 60 65 70 8
PAP3530-P20 35 39 30 6 PAP6530-P20 65 70 30 8
PAP3535-P20 35 39 35 6 PAP6540-P20 65 70 40 8
PAP3540-P20 35 39 40 6 PAP6550-P20 65 70 50 8
PAP3550-P20 35 39 50 6 PAP6560-P20 65 70 60 8
PAP3635-P20 36 40 35 6 PAP6565-P20 65 70 65 8
PAP3720-P20 37 41 20 6 PAP6570-P20 65 70 70 8
PAP3730-P20 37 41 30 6 PAP7030-P20 70 75 30 8
PAP4020-P20 40 44 20 8 PAP7040-P20 70 75 40 8
PAP4025-P20 40 44 25 8 PAP7050-P20 70 75 50 8
PAP4030-P20 40 44 30 8 PAP7060-P20 70 75 60 8
PAP4040-P20 40 44 40 8 PAP7065-P20 70 75 65 8
PAP4050-P20 40 44 50 8 PAP7070-P20 70 75 70 8
PAP4520-P20 45 50 20 8 PAP7080-P20 70 75 80 8
PAP4525-P20 45 50 25 8 PAP7540-P20 75 80 40 9,5
PAP4530-P20 45 50 30 8 PAP7560-P20 75 80 60 9,5
PAP4535-P20 45 50 35 8 PAP7575-P20 75 80 75 9,5
PAP4540-P20 45 50 40 8 PAP7580-P20 75 80 80 9,5
PAP4545-P20 45 50 45 8 PAP8040-P20 80 85 40 9,5
PAP4550-P20 45 50 50 8 PAP8050-P20 80 85 50 9,5
PAP5020-P20 50 55 20 8 PAP8055-P20 80 85 55 9,5
PAP5025-P20 50 55 25 8 PAP8060-P20 80 85 60 9,5
PAP5030-P20 50 55 30 8 PAP8080-P20 80 85 80 9,5
PAP5040-P20 50 55 40 8 PAP80100-P20 80 85 100 9,5
PAP5050-P20 50 55 50 8 PAP8530-P20 85 90 30 9,5
PAP5055-P20 50 55 55 8 PAP8540-P20 85 90 40 9,5
PAP5060-P20 50 55 60 8 PAP8550-P20 85 90 50 9,5
PAP5520-P20 55 60 20 8 PAP8560-P20 85 90 60 9,5
PAP5525-P20 55 60 25 8 PAP8580-P20 85 90 80 9,5
PAP5530-P20 55 60 30 8 PAP8585-P20 85 90 85 9,5
PAP5540-P20 55 60 40 8 PAP85100-P20 85 90 100 9,5
PAP5550-P20 55 60 50 8 PAP9040-P20 90 95 40 9,5
PAP5555-P20 55 60 55 8 PAP9060-P20 90 95 60 9,5
PAP5560-P20 55 60 60 8 PAP9080-P20 90 95 80 9,5
PAP6030-P20 60 65 30 8 PAP9090-P20 90 95 90 9,5
PAP6040-P20 60 65 40 8 PAP90100-P20 90 95 100 9,5
PAP6050-P20 60 65 50 8 PAP9530-P20 95 100 30 9,5
PAP6060-P20 60 65 60 8 PAP9560-P20 95 100 60 9,5
PAP95100-P20 95 100 100 9,5 PAP13050-P20 130 135 50 9,5
PAP10030-P20 100 105 30 9,5 PAP13060-P20 130 135 60 9,5
PAP10040-P20 100 105 40 9,5 PAP13080-P20 130 135 80 9,5
PAP10050-P20 100 105 50 9,5 PAP130100-P20 130 135 100 9,5
PAP10060-P20 100 105 60 9,5 PAP130130-P20 130 135 130 9,5
PAP10080-P20 100 105 80 9,5 PAP13530-P20 135 140 30 9,5
PAP10090-P20 100 105 90 9,5 PAP13560-P20 135 140 60 9,5
PAP10095-P20 100 105 95 9,5 PAP13580-P20 135 140 80 9,5
PAP100100-P20 100 105 100 9,5 PAP14050-P20 140 145 50 9,5
PAP100115-P20 100 105 115 9,5 PAP14060-P20 140 145 60 9,5
PAP10550-P20 105 110 50 9,5 PAP14080-P20 140 145 80 9,5
PAP10560-P20 105 110 60 9,5 PAP140100-P20 140 145 100 9,5
PAP10580-P20 105 110 80 9,5 PAP140140-P20 140 145 140 9,5
PAP10595-P20 105 110 95 9,5 PAP15050-P20 150 155 50 9,5
PAP105105-P20 105 110 105 9,5 PAP15060-P20 150 155 60 9,5
PAP105110-P20 105 110 110 9,5 PAP15080-P20 150 155 80 9,5
PAP105115-P20 105 110 115 9,5 PAP150100-P20 150 155 100 9,5
PAP11030-P20 110 115 30 9,5 PAP150150-P20 150 155 150 9,5
PAP11050-P20 110 115 50 9,5 PAP16050-P20 160 165 50 11
PAP11060-P20 110 115 60 9,5 PAP16060-P20 160 165 60 11
PAP11080-P20 110 115 80 9,5 PAP16080-P20 160 165 80 11
PAP11095-P20 110 115 95 9,5 PAP160100-P20 160 165 100 11
PAP110110-P20 110 115 110 9,5 PAP160160-P20 160 165 160 11
PAP110115-P20 110 115 115 9,5 PAP17050-P20 170 175 50 11
PAP11550-P20 115 120 50 9,5 PAP17060-P20 170 175 60 11
PAP11570-P20 115 120 70 9,5 PAP17080-P20 170 175 80 11
PAP12040-P20 120 125 40 9,5 PAP170100-P20 170 175 100 11
PAP12060-P20 120 125 60 9,5 PAP170170-P20 170 175 170 11
PAP12080-P20 120 125 80 9,5 PAP18050-P20 180 185 50 11
PAP120100-P20 120 125 100 9,5 PAP18060-P20 180 185 60 11
PAP120110-P20 120 125 110 9,5 PAP18080-P20 180 185 80 11
PAP120120-P20 120 125 120 9,5 PAP180100-P20 180 185 100 11
PAP12550-P20 125 130 50 9,5 PAP180180-P20 180 185 180 11
PAP12560-P20 125 130 60 9,5 PAP19050-P20 190 195 50 11
PAP12580-P20 125 130 80 9,5 PAP19060-P20 190 195 60 11
PAP125100-P20 125 130 100 9,5 PAP19080-P20 190 195 80 11
PAP125110-P20 125 130 110 9,5 PAP190100-P20 190 195 100 11
PAP125125-P20 125 130 125 9,5 PAP190120-P20 190 195 120 11
PAP190190-P20 190 195 190 11 PAP250100-P20 250 255 100 12
PAP20050-P20 200 205 50 11 PAP250120-P20 250 255 120 12
PAP20060-P20 200 205 60 11 PAP250250-P20 250 255 250 12
PAP20080-P20 200 205 80 11 PAP26050-P20 260 265 50 12
PAP200100-P20 200 205 100 11 PAP26060-P20 260 265 60 12
PAP200120-P20 200 205 120 11 PAP26080-P20 260 265 80 12
PAP200200-P20 200 205 200 11 PAP260100-P20 260 265 100 12
PAP22050-P20 220 225 50 12 PAP260120-P20 260 265 120 12
PAP22060-P20 220 225 60 12 PAP260260-P20 260 265 260 12
PAP22080-P20 220 225 80 12 PAP28050-P20 280 285 50 12
PAP220100-P20 220 225 100 12 PAP28060-P20 280 285 60 12
PAP220120-P20 220 225 120 12 PAP28080-P20 280 285 80 12
PAP220220-P20 220 225 220 12 PAP280100-P20 280 285 100 12
PAP24050-P20 240 245 50 12 PAP280120-P20 280 285 120 12
PAP24060-P20 240 245 60 12 PAP280280-P20 280 285 280 12
PAP24080-P20 240 245 80 12 PAP30050-P20 300 305 50 12
PAP240100-P20 240 245 100 12 PAP30060-P20 300 305 60 12
PAP240120-P20 240 245 120 12 PAP30080-P20 300 305 80 12
PAP240240-P20 240 245 240 12 PAP300100-P20 300 305 100 12
PAP25050-P20 250 255 50 12 PAP300120-P20 300 305 120 12
PAP25060-P20 250 255 60 12 PAP300300-P20 300 305 300 12
PAP25080-P20 250 255 80 12

View DX style composite bushing and self-lubricating bearings from bronzegleitlager.com

All sizes are in stock & ready for reliable shipment.



Cylindrical Dx Pom Composite Self-Lubricating Bearing


The POM-based sleeve bearing, also called DX bushing, boundary lubricated bearing, oil-free bearing, dry bearing, DX bearing and POM coated dry sleeve. It has a similar material structure with dowels. The difference lies in the POM coated layer.
Yellow POM composite bushing is a standard item of our company. This type self-lubricating bearing has same material structure with other dx bushing.

1. POM 0.3~0.5mm.
2. Porous bronze 0.2~0.3mm.
3. Steel backing 0.4~2.2mm.
4. Copper plating 0.008mm.


SELF-LUBRICATING BEARING DX BUSH



  • PAP P20 Series Bushes BUSH BEARING - DX TYPE



Specifications for DX Split Bush Bearing - DX Type
Reference DX bush
Brand Viiplus
Inside Diameter 20mm
Outside Diameter 23mm
Width 15mm
Type Bearing
Weight (KG) 0.0001







RELATED POM SELF-LUBRICATING BEARING BUSHES

red pom composite bushing dx bushingblack pom composite bushing dx bushing blue pom composite bushing dx bushing



Yellow Pom composite self-lubricating Bearing Technical Date



Load capacity 70N/mm2
Friction value 0.05 to 0.25 µ
Temperature -40 to +130 [ °C ]
Max. Pv (oil condition) 22N/mm2 .m/s
Max. speed 2.5m/s



Metal-Polymer Plain Bearings Grease Lubricated Dx Bush



POM bush - Oil or grease-lubricated bearings - Metric Size



  • Marginally lubricated DX bushings for grease or oil lubricated applications
  • Standard parts contain grease notches on the sliding layer; flat sliding layer available upon request
  • Optimal performance under relatively high loads and low speeds
  • Suitable for linear, oscillating, and rotating movements
  • Wide range of parts available from stock



Structure & Composition



  • Metal-Polymer Composite Bushing Material
  • Steel Back + Porous Bronze Sinter +
    POM with Lubrication Indents



Microsection



  1. Sliding layer POM with or without lubricant indents for machining
  2. Porous Bronze Sinter
  3. Steel Back



OPERATING PERFORMANCE
Dry Poor
Oil-lubricated Good
Grease lubricated Very Good
Water lubricated Poor
Process fluid lubricated Poor



Self-lubricating bearing dx bush Properties



GENERAL   Unit Value
Maximum load, p

Static
Dynamic

N/mm2
N/mm2

140

140

Operating temperature

Min
Max

°C
°C

- 40

130

Coefficient of linear thermal expansion Parallel to the surface 10-6/K 11
Normal to the surface 10-6/K 29



GREASE LUBRICATED
Maximum sliding speed, U m/s 2.5
Maximum pU factor N/mm2 x m/s 2.8
Coefficient of friction   0.06 – 0.12




RECOMMENDATIONS
Shaft surface roughness, Ra   µm ≤ 0.4
Shaft surface hardness

Normal
For longer service life

HB
HB

> 200

> 350



Availability



Bearing forms available in standard dimensions

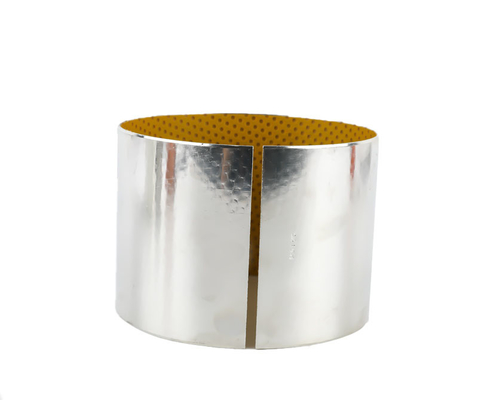

  • Standard cylindrical dx bushing
  • Dx thrust washers
  • Dx strips are available
  • Customized dx bushing

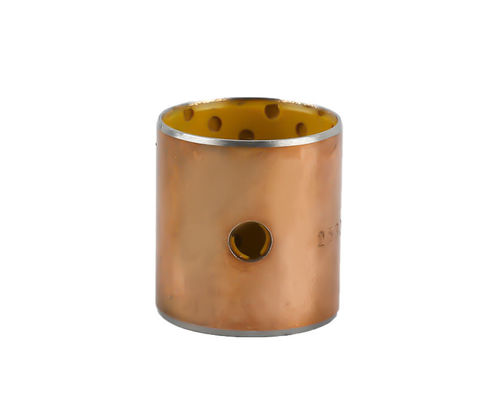

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs


PAP P20 Series Bushes Typical applications

  • Agricultural equipment
  • Off-highway, truck, and automotive
  • Handling and lifting equipment
  • Machine tool building industry
  • Hydraulics
  • Engineering and general applications
