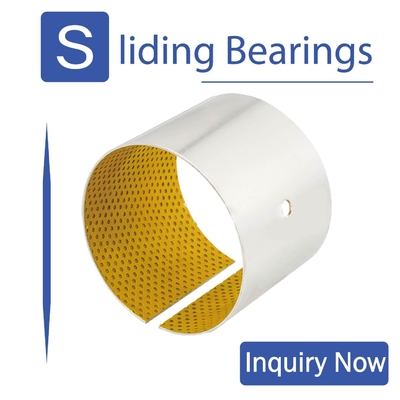

Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings

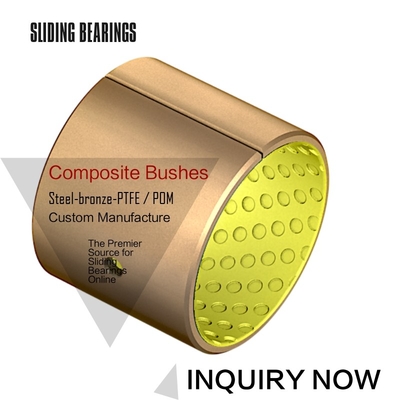

Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings
Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings
Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings

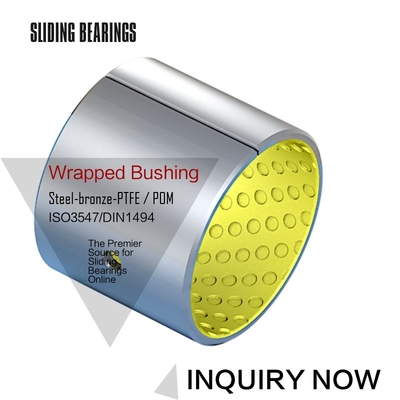

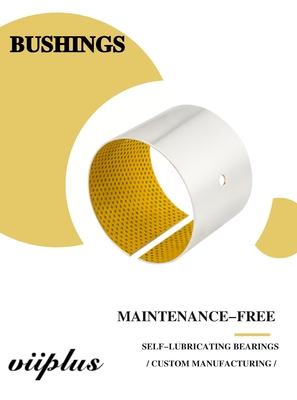

Large Image :  Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings

Product Details:
Place of Origin: Composite plain cylindrical bushings manufacturer
Brand Name: VIIPLUS
Certification: ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number: Metric Cylindrical Bushing I The DX Bushing Alternative,Multi-lubrication, POM coated friction bearing
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces (Min. Order)
Price: Negotiable
Packaging Details: STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time: 2~4 Weeks
Payment Terms: T/T PREPARD, T/T, Western Union, MoneyGram
Supply Ability: Special Customized Lubricating Bushings Manufacturing

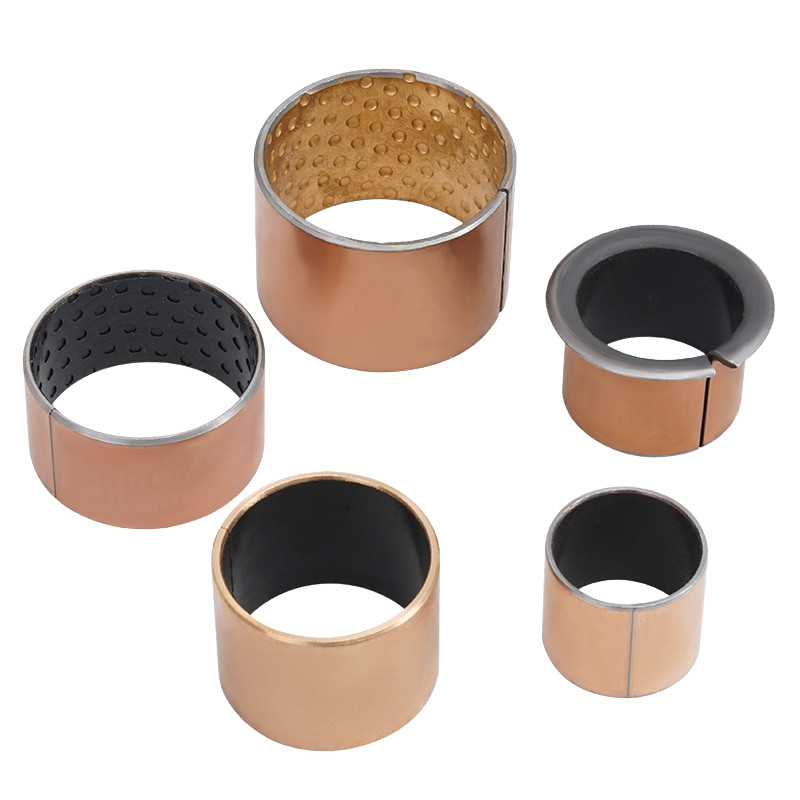

Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings

Description
Meterial: Metric Cylindrical Bushing I Steel Back + Porous Bronze Sinter + POM With Lubrication Indents Plating: Tin Or Copper
Type: Metal-Polymer Plain Bearings Grease Lubricated Lubricating: Metal-Polymer Composite Bushing Material
Standard Dimensions: Cylindrical Bushes Thrust Washers Sliding Plates Color: Yellow POM ,Black,Red,
Application: Attachment Lugs Of Pneumatic And Hydraulic Cylinders Conveyor-belt Systems, Textile Machinery, Automobiles ... Area Of Use: POM Bushes Are Suitable For Rotational And Oscillating Movements
High Light:

oil impregnated brass sleeve bearing

,

flanged plain bearing

PTFE POM coated bush based steel backing with POM inner layer, oilless bearing,DX bushing and POM lined plain dry bush. High quality bronze bushing from China, bearings can be widely used as components necessary in mechanical industries or for repair and maintenance of various machines.



DX Split Bush Bearing - Oil or grease lubricated bearings.

POM coated boundary lubricating bearing (DX bushing)

Bushing Finder. Part Finder. Bushing Form:Cylindrical Bushes, Flange Bushing



Thrust Washers, Sliding Plates, Flange Washer, Select Type: Metal-Polymer Plain Bearings,Solid Bronze, Bimetal Bushing, Solid Bushing Bronze With Lubricant Plugs Embedded, Composite Bushing, Wrapped Bushing Bronze CuSn8, Lubrication Depots, Search By Bushing Size. Select Size. Metric Or Imperial Size, Inner Diameter, Length
Base Material. Please Select Flange Outer Diameter,Flange Thickness.

You have access to the latest downloads here. Click on the Wrapped Composite Sliding Bearing.pdfcatalog symbol to display the file, and download the self-lubricating bushing bearings catalog file.



Bushings: Pre-Lubricated Inch Series,Inch Composite Plain Bushings

Steel-Sintered-Bronze-POM Composite Material low-maintenance.Steel with porous sintered tin bronze layer, which is coated with POM as sliding layer.Bronze and plastic/polymer bushings available upon request.

Looking for a DU bush, DX Bushing,DP4,PAP P10 P20 Bronze Bush alternative? Get a quotation online for cylindrical series in metric measurements.Need Help Finding the Right Self-lubricating Bronze Bushing Product?Our Plain Bearings Parts Experts Can Help. Call for immediate assistance.Bushing & Sliding Bearing Manufacturer | Metric Cylindrical Bushing I The DX Bushing Alternative.What We Do Manufacturing Self-lubricating Plant Certifications Design Challenge Industry Solutions.Steel/POM Bushing,metric & inch sizes.Wall,Thickness Shaft,Diameter Housing,ID Installed Bushing ID Clearance Order Online.Bush, Bushing, Metric Cylindrical Series Size in Metric.



lead free pom composite bushing

DX REPLACEMENT BUSHING PARTS SIZE CHART

Unit(metric size): mm
d D Shaft BoreH7 Wall
Thickness
h
Lubricating
f1 f2
Min. Max. 10 15 20 25 30 35 40 45 50 60
10 12 10-0.022 12+0.018 0.955 0.980 4 0.6 0.3 1010 1015 1020
12 14 12-0.027 14+0.018 1210 1215 1220
14 16 14-0.027 16+0.018   1415 1420
15 17 15-0.027 17+0.018   1515 1520 1525
16 18 16-0.027 18+0.018   1615 1620 1625
18 20 18-0.027 20+0.021   1815 1820 1825
20 23 20-0.033 23+0.021 1.445 1.475 0.6 0.4   2015 2020 2025 2030
22 25 22-0.033 25+0.021   2215   2225
25 28 25-0.033 28+0.021 6   2515 2520 2525 2530
28 32 28-0.033 32+0.025 1.935 1.970 1.2 0.4     2820   2830
30 34 30-0.033 34+0.025     3020 3025 3030 3035
35 39 35-0.039 39+0.025     3520   3530 3535
40 44 40-0.039 44+0.025 8     4020   4030 4035 4040   4050
45 50 45-0.039 50+0.025 2.415 2.460 1.8 0.6     4520   4530   4540 4545 4550
50 55 50-0.039 55+0.030         5030   5040   5050 5060
55 60 55-0.046 60+0.030         5530   5540   5550 5560
60 65 60-0.0463 65+0.030         6030   6040   6050 6060



Unit(METRIC SIZE POM BUSHING): mm
d D Shaft BoreH7 Wall
Thickness
h
Lubricating
f1 f2


L0

-0.40


Min. Max. 40 50 60 80 90 95 100 110 120
65 70 65-0.046 70+0.030 2.415 2.460 8 1.8 0.6 6540   6560
70 75 70-0.046 75+0.030 7040 7050   7080
75 80 75-0.046 80+0.03 7540   7560 7580
80 85 80-0.046 85+0.035 2.385 2.450 9.5 1.8 1.8 8040   8060 8080
85 90 85-0.054 90+0.035 8540   8560 8580
90 95 90-0.054 95+0.035 9040   9060 9080 9090
100 105 100-0.054 105+0.035   10050   10080   10095
105 110 105-0.054 110+0.035     10560 10580   10595   105110
110 115 110-0.054 115+0.035     11060 11080   11095   110110
120 125 120-0.054 125+0.040 1.8 0.6     12060 12080       120110
125 130 125-0.063 130+0.040     12560         125110
130 135 130-0.063 135+0.040   13050 13060 13080     130100
140 145 140-0.063 145+0.040   14050 14060 14080     140100
150 155 150-0.063 155+0.040   15050 15060 15080     150100
160 165 160-0.063 165+0.040 9.5   16050 16060 16080     160100
170 175 170-0.063 175+0.040   17050   17080     170100
180 185 180-0.063 175+0.040   18050 18060 18080     180100
190 195 190-0.072 195+0.046   19050 19060 19080     190100   190120
200 205 200-0.072 205+0.046   20050 20060 20080     200100   200120
220 225 220-0.072 225+0.046 9.5   22050 22060 22080     220100   220120
240 245 240-0.072 245+0.046   24050 24060 24080     240100   240120
250 255 250-0.072 255+0.052   25050 25060 25080     250100   250120
260 265 260-0.081 265+0.052   26050 26060 26080     260100   260120
280 285 280-0.081 285+0.052   28050 28060 28080     280100   280120
300 305 300-0.081 305+0.052   30050 30060 30080     300100   300120



The Plain Bearings Tolerance Size - To Provide Customers With Accurate Bushings Specification



VIIPLUS INTERNATIONAL Precision Relubricatable bushes type Sliding Bearing china supplier offers self-lubricating bearings services, custom packaging, kitting, and special shipping options. We are the solution provider to all of our customers. Sliding bearing selector bore inch metric size type straight bushing flanged bushing and thrust washers bore inside diameter and outside diameter choose bushing thin section type. Bronze and plastic/polymer bushings available upon request. Nominal Bearing Bore Recommended Installed Bearing ID* Bearing Length





Pom Composite bushing Characteristics

Pom Composite lubricated bushing can be used for grease or oil lubrication applications, or in an oil-free environment

The standard parts contain grooves in the sliding layer of the contact parts, which can store grease or friction debris.



A smooth sliding layer can be designed and provided upon request

The composite bearing sleeve has the best performance under relatively high load and low speed, and the highest relative life

Composite bearings are used in environments of linear, oscillating and rotational motion

All kinds of bearing parts are available from stock



Grease lubricated pad block Grease lubricated slider Grease lubricated bearing





A brief introduction to polyformaldehyde (POM) materials



1.with high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.8, with their own lubrication, good wear to hold;9. Excellent dime



Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C



Self-lubricating oil-free composite bearing structure composition



Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings 4 Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings 5





Wrapper Bronze Bearing characteristics





Performance indicators Date
Maximum load Static load 250N/mm²
Dynamic load 150N/mm²
Maximum linear velocity V Grease lubrication 2.5m/s
High PV value Grease lubrication 2.8N/mm²・m/s
Coefficient of friction Grease lubrication 0.05~0.25
The use of temperature
-40℃~+130℃
Coefficient of thermal conductivity 4W/m・K
Coefficient of thermal expansion 12×10-6/K



Areas Of Application:


The Pom Lubricating Bushes are suitable for rotary and oscillatory motions. Initial lubrication with grease is advisable, and a continuous lubricant feed substantially lengthens the service life of the slide bearing. for example,Fixing eyes for pneumatic and hydraulic cylinders Agricultural equipment



 bushing application - machinery bushing application bushing application



Wrapped Acetal Lined Bearings Plain Bearings, Self-Lubricating Bushings & Polymer Coatings Manufacturer



Assembly Shapes & Forms

Plain cylindrical bearings, thrust washers and sliding plates.POM STEEL BUSHINGS already prepared for assembly. The bushings are so designed that when press-fitting the bearing into the housing, the mating gap can be eliminated. However, the mating-point of the bearing should be positioned away from the load-zone.



Special Manufacturing Bushings:

Rod end bearings/spherical plain bearings/journal bearings On request, we can offer inch-sizes, standard size drawing,Lubrication Bearings, washers or sheets Strips.



Viiplus Pom Bushings

offers a broad range of sizes, forms and materials in monometallic and  bearings. Bimetal and metal bearings offer excellent corrosion resistance in industrial outdoor applications and in water, marine and offshore environments.



Metal-Polymer Plain Bearings Grease Lubricated

POM is a triple layer bearing consisting of copperplated steel frame, a middle layer of sintered bronze and a sliding surface of acetal plastic (POM).The sliding surface is provided with grease pockets which embeds the lubricant for gradual
release during operation. The slip layer also has a
good ability to embed dirt and small particles that could damage the shaft. POM can withstand relatively high loads and is suitable for rotary and oscillating movements and structures with frequent starts and stops.





Technical data

Performance indicators Date
Maximum load P Static load 250N/mm²
Dynamic load 150N/mm²
Maximum linear velocity V Grease lubrication 2.5m/s
High PV value Grease lubrication 2.8N/mm²・m/s
Coefficient of friction μ Grease lubrication 0.05~0.25
The use of temperature
-40℃~+130℃
Coefficient of thermal conductivity 4W/m・K
Coefficient of thermal expansion 12×10-6/K





Sleeve Acetal Plastic POM Plain Bearings Grease - Lubricated Composite Bushings 9



Metallographic image

Note: note: VSB-20 series products can also choose different matrix materials according to different working conditions, such as: bronze substrate, stainless steel substrate, and "lead-free" formula products.Hxob-20y is an environmentally friendly lead-free product with the colors of orange, orange and blue.


Description

VSB20 abroad (DX) boundary lubrication bearing with high quality low carbon steel or copper plate as substrate, the middle sintered porous spherical bronze powder, the friction surface rolling modified polyformaldehyde (POM and Pb), and through the high temperature solid combination as one of the three layers of plasticizing boundary lubrication bearing materials (also called prelubricated bearing material), the rolling and sliding bearing.

The material can provide better bearing capacity and wear resistance, friction surface with oil pits, in the presence of a small amount of lubrication medium, its performance is better than other sliding bearing materials.The product is suitable for working under normal temperature and medium (heavy) load, low speed occasions, to replace the traditional copper sleeve, which reduces the cost and extends the service life.Boundary lubricated bearings are divided into steel base and copper base.



Availability

Bearing forms available in standard dimensions
Cylindrical bushes
 Thrust washers
Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs



Characteristics

Suitable for use in fatting or lubricating conditions, high bearing capacity, good wear resistance;



Suitable for rotating, reciprocating and swinging and other forms of movement and frequent starting, intermittent movement or heavy load and other occasions which are not easy to form oil film lubrication;



High load, low speed lubrication conditions with stable low friction coefficient and excellent wear resistance;



Friction surface layer can be secondary processing, bearing into the seat hole after processing, can further improve the accuracy of fit;



Long working time under boundary lubrication conditions, such as in the process of regular grease maintenance, can extend the service life;



Bearings for thin-wall structure, light weight, occupies a small volume, suitable for compact design;

Good dimensional stability, high mechanical strength;



Strusture



1. POM thickness 0.30~0.50 mm. It provides high wearresistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.


Typical Applications

VIIPLUS sliding bearings are used in a wide range of applications in all industries.
Widely used in hydraulic and pneumatic industry, forging machine industry, plastic machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing bags, paper machinery, automobiles, railways Automobile locomotive, shipbuilding industry, plastic machine industry, metallurgical machinery, engineering machinery, etc.

Hydraulic machinery: hydraulic steel gate plane support slide, etc.Hydraulic turbine: guide vane (upper guide, middle guide, lower guide) shaft sleeve, wheel shaft sleeve, pin shaft sleeve (connecting rod pin, push and pull rod pin, relay piston pin), anti-wear ring plate (thrust ring), anti-wear block, control ring side tile.Hoisting and transport machinery: forklift lifting device, gantry crane and pulley block, brake, stacker resorter hinge, shore lifting support hinge seat, etc.Oil machinery: pumping unit reducer intermediate shaft and output shaft sleeve, etc.Valve industry: butterfly valve, globe valve, etc.



We offer extensive flexibility to our customers by offering not only standard bushings products but offering our customers a broad array of our manufacturing partners to supply unique items for their specific applications.



BUSHINGS: PRE-LUBRICATED INCH SERIES
