Contact Person : Tiffany

Multi-Layer Bearings Carbon - Based Polymer Plain Bearings Bushing Steel Backing Bronze POM

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , Plating Tin Or Copper,Lead Free
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality Material: Steel + Bronze Sinter + POM With Lubrication Indents Orange Color
Port Shanghai Application Gear Pumps,hydraulic Cylinder
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

flanged plain bearing

,

plain bearing

Leave a Message
Product Description

Multi-layer bearings, featuring a carbon-based polymer plain bearing construction, offer exceptional performance and durability across various industrial applications. The innovative design integrates bushings with a steel backing and bronze POM material, delivering a robust and reliable bearing solution.

The carbon-based polymer plain bearings provide excellent wear resistance and low friction, ensuring smooth and efficient operation. The bushings further enhance these properties, offering superior lubrication and reduced heat generation.

The steel backing provides a strong and stable support for the bearing, resisting deformation and ensuring precise alignment. The bronze POM material adds additional strength and durability, enhancing the overall performance of the bearing.

The multi-layer construction of these bearings allows for optimal performance in different operating conditions. Wh used in high-speed or high-load applications, these bearings maintain their integrity and reliability, ensuring long-term performance.

Overall, the multi-layer bearings with carbon-based polymer plain bearings, bushings, steel backing, and bronze POM material offer a comprehensive and dependable bearing solution for industrial applications, delivering exceptional performance and durability.



Material: Steel + bronze sinter + POM with lubrication indents orange color


Bushings Material: Steel + bronze sinter + POM (Polyoxymethylene) with lubrication indents

This description pertains to the composition of bushing materials. Bushings are often used in bearings or other mechanical components, where the choice of material is crucial for the component's performance and lifespan. Here's an explanation of the different parts mentioned in the description:

Steel: Steel is a commonly used mechanical material known for its strength and wear resistance. In bushing materials, steel may serve as the primary structural support and provide strength.

Bronze Sinter: Bronze is a copper-based alloy typically containing other metal elements like tin, lead, or zinc to enhance its strength and hardness. Sintering is a process where powdered metal or alloy is heated to near its melting point and then cooled to form a solid material. Bronze sinter combines the strength and wear resistance of bronze with the advantages of the sintering process, making it suitable for applications involving high loads and high-speed operations.

POM (Polyoxymethylene): POM is an engineering plastic known for its excellent mechanical properties, wear resistance, and chemical resistance. In bushing materials, POM may be used to provide lubrication, reduce friction, and extend the life of the component.

Lubrication Indents: Lubrication indents are small structures designed on the surface of the bushing to hold lubricants like grease or oil. These indents help form a lubrication film between the bushing and adjacent components, reducing friction and wear, and improving overall efficiency and lifespan.

In summary, this bushing material combines the strength and hardness of metals with the lubricating properties of engineering plastics, making it suitable for various applications requiring high-performance bearings or mechanical components.



Multi-layer bearings Polytetrafluoroethylene   Bushings



Multi-layer bearings are available in various combinations of sliding surface.

These are available both as maintenance-free and requiring lubrication.





Cylindrical Sleeve Bushes



  • Rather high load capacity.
  • Can be used where effective lubrication does not exist.
  • Low friction even without lubrication.





Developed on the base of VSB-10 gleitlager bushings, suitable for dry running, low coefficient of friction, lower wear , good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement, high chemical resistance, low absorption of water and swelling.



CONTACT US FOR SUPPORT.
We will help you find the right product.
OR GET A VISIT FROM A
Sales engineer
Polymer Plain Bearings



Strusture



Carbon Steel + Copper Powder + (RED)



Structure And Composition



· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· RED



Technical Data



Dynamic load limit

140N/mm²

Static Load max

250N/mm²

PV limit

1.8~3.6N/mm²*m/s

Speed limit

>2m/s

Temp.limit

-195°C~280°C

Friction coefficient

0.04~0.20



Microsection



Multi-Layer Bearings Carbon - Based Polymer Plain Bearings   Bushing Steel Backing Bronze POM 1

Sliding layer
+ lead-free


Porous Bronze Sinter
Steel Backing

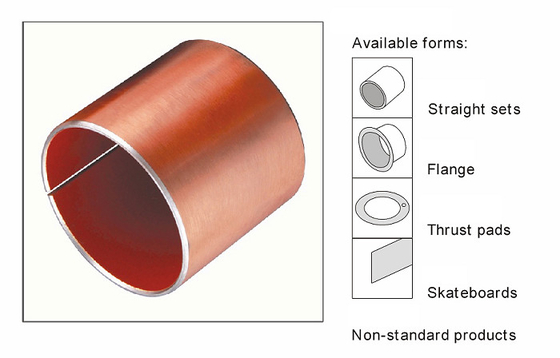

Bearing forms available in standard dimensions


· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates



Polymer Plain Bearings



Typical Application


Automotive suspension struts, shock absorbers guide bushing, hydraulic cylinder, gear pumps and motors and axial and radial piston pumps and motors.



VIIPLIS products are widely used in all industrial fields



Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
