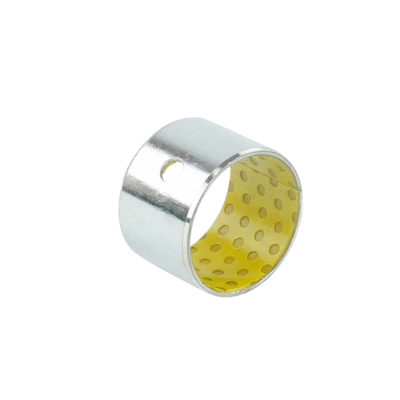

Cylindrical POM Composite POM Self Lubricating Bearing

  • Cylindrical POM Composite POM Self Lubricating Bearing
  • Cylindrical POM Composite POM Self Lubricating Bearing
  • Cylindrical POM Composite POM Self Lubricating Bearing
  • Cylindrical POM Composite POM Self Lubricating Bearing
  • Cylindrical POM Composite POM Self Lubricating Bearing
Place of Origin CHINA
Brand Name viiplus Self-lubricating composite bearing
Certification RHOS
Model Number High performance pom oil-free self-lubricating bearings
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 works day
Payment Terms L/C, T/T, Western Union
Supply Ability L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL Steel + Bronze Powder + POM FEATURE No Oil, Self-lubricating
Style POM The Same Style Country Of Origin China
Type Sleeve Lubrication POM Self-lubricating,oil,grease
Finishing Copper-plating/tin-plating Size Customized
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

POM Composite Self Lubricating Bearing

,

ROHS Cylindrical Self Lubricating Bearing

,

DX style composite bushing
Leave a Message
Product Description

Cylindrical POM Composite POM Self-Lubricating Bearing - The Professional Manufacturer & Supplier of Oil-Free Lubrication Bearings

We specialize in the manufacture and sale of cylindrical POM Composite POM self-lubricating bearings, a cutting-edge product designed for oil-free lubrication. These bearings are crafted from high-performance POM composite materials, ensuring exceptional wear resistance, low friction, and corrosion resistance.

Our bearings feature a POM design that enables efficient self-lubrication, significantly reducing the need for external lubrication and maintenance. This not only enhances the operational efficiency of the bearing but also extends its service life.

We offer a range of composite materials, including CM1 and CM2, to cater to different application requirements. Our cylindrical  Pom Composite Self-Lubricating Bearing mos2 bushing incorporates embedded lubricant MoS2, providing smooth and reliable operation without the need for lubrication.

As a leading copper bearing manufacturer, we also produce POM bush and polymer bushings that meet the highest quality standards. Our products are widely used in various industries and applications where oil-free lubrication is desired.

At viiplus, we are committed to providing our customers with high-quality POM Bushing products at competitive prices. Our POM coated bush, based on steel backing with a POM inner layer, offers excellent performance and durability. Wh you need oilless bushings, POM bushings, or POM lined plain dry bushings, we have the perfect solution for you.

Contact us today to learn more about our cylindrical POM Composite POM self-lubricating bearings and other oil-free lubrication bearing solutions. We look forward to serving you with our expertise and commitment to excellence.



dx bushing Copper Bearing Manufacturer DX bush
POM bushing size chart



METRIC BEARING POM BUSHES WITH OIL HOLES.pdf



View POM style composite bushing and self-lubricating bearings from bronzegleitlager.com

All sizes are in stock & ready for reliable shipment.



Cylindrical  Pom Composite Self-Lubricating Bearing


The POM-based sleeve bearing, also called POM bushing, boundary lubricated bearing, oil-free bearing, dry bearing, POM bearing and POM coated dry sleeve. It has a similar material structure with dowels. The difference lies in the POM coated layer.
Yellow POM composite bushing is a standard item of our company. This type self-lubricating bearing has same material structure with other POM bushing.

1. POM 0.3~0.5mm.
2. Porous bronze 0.2~0.3mm.
3. Steel backing 0.4~2.2mm.
4. Copper plating 0.008mm.


SELF-LUBRICATING BEARING DX BUSH



• Environmental protection composite bushing multi-layer material without lead

• Custom 14*12*15 Composite POM Oilless POM Steel Split Bearing Bush

• Composite Steel Backed Bronze Self Lubricating PTFE Bushing Bearing with



POM SPLIT BUSH BEARING - POM TYPE



Specifications for POM Split Bush Bearing - POM Type
Reference POM bush
Brand Viiplus
Inside Diameter 20mm
Outside Diameter 23mm
Width 15mm
Type Bearing
Weight (KG) 0.0001



POM marginally lubricated bushings Characteristics


· Good load-bearing capacity and wear resistance
· Suitable for linear, oscillating and rotating movements
· Optimal performance at relatively high loads and low speeds
· Lead-free sockets can meet environmental protection requirements

Yellow pom composite self-lubricating bearing is widely used in the machine where lead-free is unacceptable, such as textile machinery, self-acting parts, car chassis, forging machine, metallurgy and so on.


 dx bushing pom


RELATED POM SELF-LUBRICATING BEARING BUSHES

red pom composite bushing dx bushingblack pom composite bushing dx bushing blue pom composite bushing dx bushing



Yellow Pom composite self-lubricating Bearing Technical Date



Load capacity 70N/mm2
Friction value 0.05 to 0.25 µ
Temperature -40 to +130 [ °C ]
Max. Pv (oil condition) 22N/mm2 .m/s
Max. speed 2.5m/s



Metal-Polymer Plain Bearings Grease Lubricated POM Bush



POM bush - Oil or grease lubricated bearings - Metric Size



  • Marginally lubricated POM bushings for grease or oil lubricated applications
  • Standard parts contain grease notches on the sliding layer; flat sliding layer available upon request
  • Optimal performance under relatively high loads and low speeds
  • Suitable for linear, oscillating and rotating movements
  • Wide range of parts available from stock



Structure & Composition



  • Metal-Polymer Composite Bushing Material
  • Steel Back + Porous Bronze Sinter +
    POM with Lubrication Indents



Microsection



  1. Sliding layer POM with or without lubricant indents for machining
  2. Porous Bronze Sinter
  3. Steel Back



OPERATING PERFORMANCE
Dry Poor
Oil lubricated Good
Grease lubricated Very Good
Water lubricated Poor
Process fluid lubricated Poor



Self-lubricating bearing POM bush Properties



GENERAL   Unit Value
Maximum load, p

Static
Dynamic

N/mm2
N/mm2

140

140
Operating temperature

Min
Max

°C
°C

- 40

130
Coefficient of linear thermal expansion Parallel to the surface 10-6/K 11
Normal to the surface 10-6/K 29



GREASE LUBRICATED
Maximum sliding speed, U m/s 2.5
Maximum pU factor N/mm2 x m/s 2.8
Coefficient of friction   0.06 – 0.12




RECOMMENDATIONS
Shaft surface roughness, Ra   µm ≤ 0.4
Shaft surface hardness

Normal
For longer service life

HB
HB

> 200

> 350



Availability



Bearing forms available in standard dimensions


  • Standard cylindrical POM bushing
  • POM thrust washers
  • POM strips are availabe
  • Customzied POM bushing


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs


POM bushing Typical applications



  • Agricultural equipment
  • Off-highway, truck, and automotive
  • Handling and lifting equipment
  • Machine tool building industry
  • Hydraulics
  • Engineering and general applications


dx bushing application-excavator
