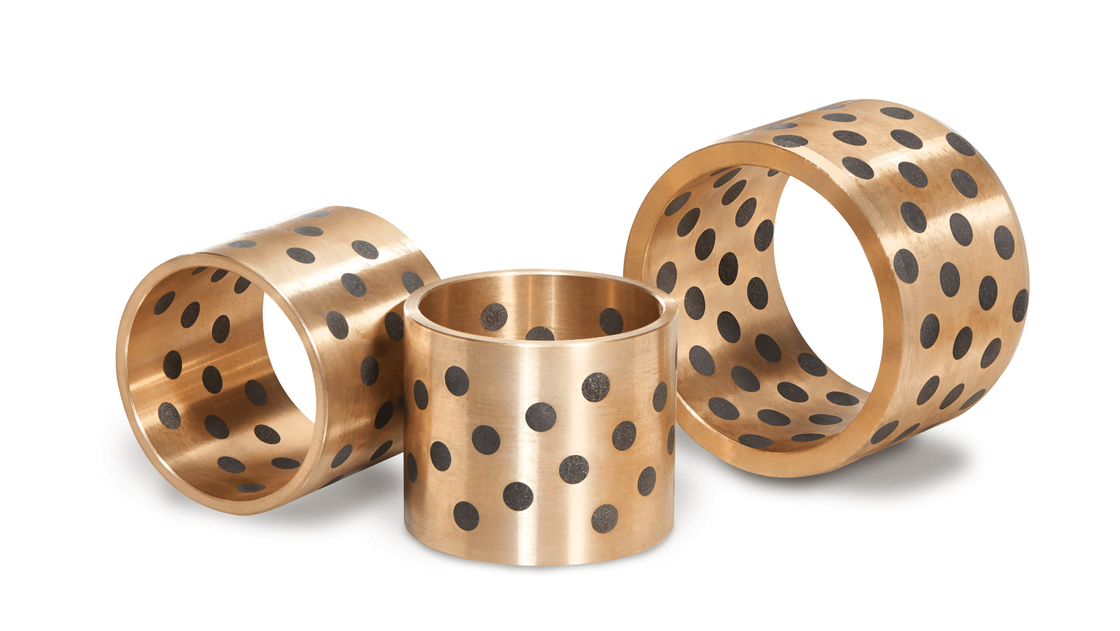

Metal Manganese Bronze Graphite Sleeve Bearings Gleitlager For Mineral Machines

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Export Cartons,Customizable
Delivery Time 10~20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bronze +Graphite,Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 Model Number Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Lubrication Graphite
Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Type FLANGE/SLEEVE/WASHER
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings

,

oil embedded sleeve bearing

Leave a Message
Product Description

Bronze Sleeve Bushing



We offer a broad range of bronze alloy materials beyond our cast bronze (C932 / SAE 660) Bushing and manganese bronze (C863 SAE430B) bearings. A few of the other bronze alloys offered include high leaded tin bronze bearing & Flange Bushing, aluminum bronze (C954) Bearing and Thrust Washer.



Metal Manganese bronze Sleeve bushings.It is now widely applied in successive casting machines, mineral machine, ships, turbogenerators, hydraulic turbines and injection molding machines etc.

This product is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide for self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed.


Typical application: automotive products line, water engineering, dam gate, plastic industries, successive casting machine, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines.



Material

CuZn25AI5Mn4Fe3



Structure Characteristics and Applications
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

Characteristics


with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available


VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

Strusture




VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.







Technical Data





Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm





Chemical Compositions

Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2

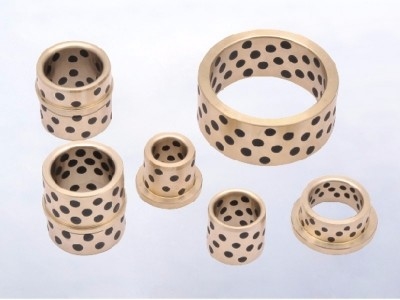

 graphite plugged bronze bushing






Availability

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs




Typical Applications






This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...



Products are widely used in continuous casting machines, mining machinery, ships, gas turbines and so on.
