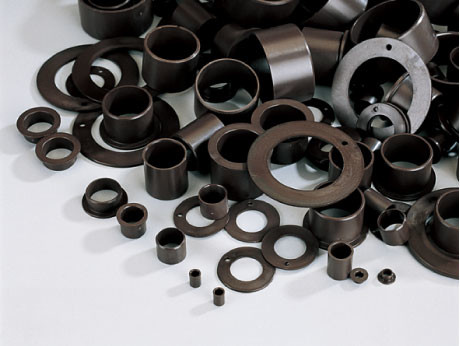

OEM EP IGUS Plastic Bearings Non - Metallic Sleeve Polymer Bearings
| Place of Origin | MADE IN CHINA |
|---|---|
| Brand Name | VIIPLUS PLAIN BEARINGS |
| Certification | CUSN8,CUSN6.5 Bronze |
| Model Number | PTFE PLAIN BEARINGS |
| Minimum Order Quantity | 1000 Piece/Pieces (Min. Order) |
| Price | $0.20 - $10.00 / Pieces |
| Packaging Details | Wooden pallets for standard export packing cartons |
| Delivery Time | 10~15 work days |
| Payment Terms | T/T PREPARD, T/T, L/C, D/A, D/P |
| Supply Ability | 2000000 Piece/Pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | EP Series Material Structural | Type | Sliding, Sleeve POLYMER BEARINGS |
|---|---|---|---|
| Quality | OEM | Customize | Std. Products |
| Size | Welcome Customized Sizes | Service | OEM Customized Services |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | plastic flanged sleeve bearings,igus plastic bushings |
||
Product Description
Plastic Compound Bushings Supplier | Self-lubricating Plastic Bushings
Learn more about self-lubricating plastic plain bearings from Viiplus, designed for maximum service life in extreme industrial conditions with very low cost.
EP series plastic bushings use high-performance engineering plastics as the base material. High-strength fibers and special solid lubricating greases are implanted inside them through polymer material modification technology to improve the comprehensive wear resistance; the high-strength fiber network structure strengthens The strength of the material and the combination of special solid lubricating grease make EP series plastic bushings have excellent self-lubricating performance and wear resistance. Whether it is the automotive industry with high durability requirements, high-speed applications, underwater applications, high temperature and anti-corrosion applications, or the food industry that requires compliance with FDA standards, Viiplus provides different solutions for global industries.
Plastic bushings vs. bronze bearings
Engineered plastic composite bushings have been proven to provide longer life than oil-impregnated sintered bronze bearings and can save users up to 40 percent in maintenance costs.
Plastic bushings have already replaced bronze in thousands of applications across a wide range of industries including agricultural machinery, lawn mowers, medical equipment, food processing equipment, fitness equipment, and pumps and valves.
Plastic plain bearings
Flanged Plastic Sleeve for our value application
ID=10mm
OD=12mm
Length= 11mm
Flange size : 18mm
Color= Dark grey
ID=10mm
OD=12mm
Length= 6mm
Flange size= 18mm
Color= Dark grey
ID=12mm
OD=14mm
Length= 11mm
Flange size= 20mm
Color= Dark grey
Shopping at viiplus self-lubricating bearings online bronzegleitlager.com Fast Delivery Small minimum order value
Direct CAD DownloadFree samples,Free Consultation
Cost down, service life up with plastics for moving applications High-performance motion plastics
Non-Metallic Self-lubricating Bearings plastics bearings POLYMER BEARINGS
VIIPLUS Bearing Technologies. Your recognised global partner for sliding bearing applications. Working together to create solutions for the most demanding bearing applications.
VIIPLUS RANGE OF Engineered Plastics Materials
VIIPLUS RANGE OF Engineered Plastics Materials
Solid Polymer Bearing & Engineered Plastic Bearings | VIIPLUS Bushings
Plastic Bearings
can be manufactured in many different types of plastic material to suit various applications, has a good combination of properties, including low moisture absorption, good dimensional stability, and low friction
Engineered plastics out of thermoplastic bearing material are processed by injection moulding. This production method enables us to produce unlimited dimensions in accordance to our standard, and also parts with special designs and features.
Plastic self-lubricating bearings
EP series of high-performance engineering plastic polymer bearings as the base material, through modification of polymer materials technology into high-strength fibers and specialty solid improvement in its internal grease integrated wear resistance; high strength fiber reinforced network structure strength of the material, the composite solid special grease allows EP series plastic bearings with excellent self-lubricating properties and wear resistance. Whether it is a high durability requirements the automotive industry.
Plastic Compound Bearings
Plastic bushings Features
VSB-70 EP series material is a thermal mould character plastic processed by crystal engineering plastic as basic material with proper intensifier and lubricant. The rigidity and high temperature engineer capability is greatly improved because of the use of intensifier, at the same time, the coefficient of thermal expansion, moulding shrinking rate and wriggle capability decreases, consequently, the size stability is improved, and EP series material range is enlarged and keeps the intrinsic anti-wear capability and anti-drug capability.
Plastic bushings Material property sheet
|
Common Capability |
Unit |
EPT |
EPG |
EPH |
EPX |
EPJ |
EPS |
|
Density |
g/cm³ |
1.46 |
1.46 |
1.65 |
|
1.49 |
1.24 |
|
Color |
|
Black gray |
Dark grey |
Grey |
Black |
Yellow |
Beige |
|
Max.water absorption,23℃/ 50% |
[% weight] |
0.2 |
0.7 |
0.1 |
|
0.3 |
2.02 |
|
Max.water absorption |
[% weight] |
＜1.2 |
＜4 |
＜0.3 |
＜0.5 |
＜1.3 |
＜0.1 |
|
Dynamic friction /steel |
μ |
0.05-0.15 |
0.08-0.18 |
0.07-0.20 |
0.09-0.27 |
0.06-0.18 |
0.05-0.15 |
|
Max.PV(dry) |
MPa•m/s |
0.4 |
0.5 |
1.37 |
1.32 |
0.34 |
0.4 |
|
Mechanical behavior |
|||||||
|
E-module |
MPa |
2,300 |
7,800 |
12,500 |
8,100 |
2,400 |
830 |
|
Tensile strength,20℃ |
MPa |
80 |
200 |
175 |
170 |
73 |
18 |
|
Compressive strength |
MPa |
65 |
80 |
90 |
150 |
35 |
10 |
|
Max.static pressure of the surface,20℃ |
MPa |
35 |
80 |
150 |
90 |
20 |
10 |
|
Shore D hardness |
|
70 |
112 |
87 |
85 |
74 |
73 |
|
Physical and thermal properties |
|||||||
|
Continuous work tempreature |
℃ |
+80 |
+130 |
+200 |
+250 |
+90 |
+260 |
|
short-time work tempreature |
℃ |
+120 |
+220 |
+240 |
+315 |
+120 |
+310 |
|
Minimum operating temperature |
℃ |
-40 |
-40 |
-40 |
-100 |
-50 |
-200 |
|
Thermal conductivity |
W/m•K |
0.2 |
0.25 |
0.60 |
0.60 |
0.25 |
0.24 |
|
Max.water absorption,23℃ |
K-1•10-5 |
7 |
9 |
4 |
5 |
10 |
12 |
|
Conductivity |
|||||||
|
Volume resisticity |
Ωcm |
＞1012 |
＞1013 |
＜104 |
＜105 |
＞1013 |
＞1015 |
|
Surface resisticity |
Ω |
＞1015 |
＞1011 |
＜105 |
＜103 |
＞1012 |
＞1015 |
Structure
Plastic bushings Technical data
|
Max. load |
Static |
N/mm2 |
|
Dynamic |
180N/mm2 |
|
|
Max. speed |
Dry |
0.5m/s |
|
Lubrication |
>1m/s |
|
|
Max. PV (Dry) |
Short-time |
1N/mm2*·m/s |
|
Continuous |
0.8N/mm2*·m/s |
|
|
Temp. |
-40℃~+80℃ |
|
|
Friction coefficient |
0.05~0.20 |
|
|
Thermal conductivity |
0.2W (m·k)-1 |
|
|
Coefficient of thermal expansion |
10-1*k-1 |
|
Plastic bushings Typical Applications
·Office Machinery
·Electronic Products
·Textile Machinery
·Fitness Machinery
·Agricultural Machinery
·Packaging Machinery
·Automotive Industry
MORE VIIPLUS PRODUCTS
EP Plastic self-lubricating bearings Classification
EPT Plastic bushings
Universal Bearings
It can meet most applications working temperature of 80 degrees below...
READ MORE >>
EPG Plastic bushings
High load-bearing
Applications ace high loads. As the perfect combination of fiber reinforced...
READ MORE >>
EPH Plastic bushings
Corrosion-resistant bearings
High temperature of 200 degrees and a low coefficient of ...
READ MORE >>
EPX Plastic bushings
High-temperature bearings
High temperature of 250 degrees of self-lubricating material...
READ MORE >>
EPJ Plastic bushings
High-speed bearings
Low coefficient of friction and high wear resistance perfect combination...
READ MORE >>
EPS Plastic bushings
Tetrafluoroethylene modified bearing
High-speed low-cost solution. Lower temperature of ...
READ MORE >
Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings
EP PALSTIC BUSHING Series Specification Table
Metric Cylindrical Bushes
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| model | d | tolerance | D | L |
| EP PLASTIC BUSHING-0304-03 | 3 | +0.014/+0.054 | 4.5 | 3 |
| EP PLASTIC BUSHING-0304-06 | 3 | +0.014/+0.054 | 4.5 | 6 |
| EP PLASTIC BUSHING-0305-05 | 3 | +0.014/+0.054 | 5.5 | 5 |
| EP PLASTIC BUSHING-0405-06 | 4 | +0.020/+0.068 | 5.5 | 6 |
| EP PLASTIC BUSHING-0406-06 | 4 | +0.020/+0.068 | 6 | 6 |
| EP PLASTIC BUSHING-0507-05 | 5 | +0.020/+0.068 | 7 | 5 |
| EP PLASTIC BUSHING-0507-08 | 5 | +0.020/+0.068 | 7 | 8 |
| EP PLASTIC BUSHING-0507-10 | 5 | +0.020/+0.068 | 7 | 10 |
| EP PLASTIC BUSHING-0507-18 | 5 | +0.020/+0.068 | 7 | 18 |
| EP PLASTIC BUSHING-0608-04 | 6 | +0.020/+0.068 | 8 | 4 |
| EP PLASTIC BUSHING-0608-06 | 6 | +0.020/+0.068 | 8 | 6 |
| EP PLASTIC BUSHING-0608-08 | 6 | +0.020/+0.068 | 8 | 8 |
| EP PLASTIC BUSHING-0608-10 | 6 | +0.020/+0.068 | 8 | 10 |
| EP PLASTIC BUSHING-0608-11 | 6 | +0.020/4-0.068 | 8 | 11 |
| EP PLASTIC BUSHING-0810-05 | 8 | +0.025/+0.083 | 10 | 5 |
| EP PLASTIC BUSHING-0810-06 | 8 | +0.025/4-0.083 | 10 | 6 |
| EP PLASTIC BUSHING-0810-08 | 8 | +0.025/+0.083 | 10 | 8 |
| EP PLASTIC BUSHING-0810-10 | 8 | +0.025/4-0.083 | 10 | 10 |
| EP PLASTIC BUSHING-0810-11 | 8 | +0.025/+0.083 | 10 | 11 |
| EP PLASTIC BUSHING-0810-12 | 8 | +0.025/+0.083 | 10 | 12 |
| EP PLASTIC BUSHING-0810-15 | 8 | +0.025/+0.083 | 10 | 15 |
| EP PLASTIC BUSHING-0811-10 | 8 | +0.025/+0.083 | 11 | 10 |
| EP PLASTIC BUSHING-0812-10 | 8 | +0.025/+0.083 | 12 | 10 |
| EP PLASTIC BUSHING-0911-06 | 9 | +0.025/4-0.083 | 11 | 6 |
| EP PLASTIC BUSHING-1012-04 | 10 | +0.025/+0.083 | 12 | 4 |
| EP PLASTIC BUSHING-1012-05 | 10 | +0.025/+0.083 | 12 | 5 |
| EP PLASTIC BUSHING-1012-06 | 10 | +0.025/+0.083 | 12 | 6 |
| EP PLASTIC BUSHING-1012-08 | 10 | +0.025/+0.083 | 12 | 8 |
| EP PLASTIC BUSHING-1012-10 | 10 | +0.025/+0.083 | 12 | 10 |
| EP PLASTIC BUSHING-1012-12 | 10 | +0.025/+0.083 | 12 | 12 |
| EP PLASTIC BUSHING-1012-15 | 10 | +0.025/+0.083 | 12 | 15 |
| EP PLASTIC BUSHING-1014-10 | 10 | +0.013/+0.071 | 14 | 10 |
| EP PLASTIC BUSHING-1014-16 | 10 | +0.025/+0.083 | 14 | 16 |
| EP PLASTIC BUSHING-1012-18 | 10 | +0.025/+0.083 | 12 | 18 |
| EP PLASTIC BUSHING-1012-20 | 10 | +0.025/+0.083 | 12 | 20 |
| EP PLASTIC BUSHING-1214-06 | 12 | +0.032/+0.102 | 14 | 6 |
| EP PLASTIC BUSHING-1214-08 | 12 | +0.032/+0.102 | 14 | 8 |
| EP PLASTIC BUSHING-1214-10 | 12 | +0.032/+0.102 | 14 | 10 |
| EP PLASTIC BUSHING-1214-12 | 12 | +0.032/+0.102 | 14 | 12 |
| EP PLASTIC BUSHING-1214-15 | 12 | +0.032/+0.102 | 14 | 15 |
| EP PLASTIC BUSHING-1214-20 | 12 | +0.032/+0.102 | 14 | 20 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| model | id | tolerance | D | L |
| EP PLASTIC BUSHING-1820-20 | 18 | +0.032/+0.102 | 20 | 20 |
| EP PLASTIC BUSHING-1820-25 | 18 | +0.032/+0.102 | 20 | 25 |
| EP PLASTIC BUSHING-2022-12 | 20 | +0.040/+0.124 | 22 | 12 |
| EP PLASTIC BUSHING-2022-15 | 20 | +0.040/+0.124 | 22 | 15 |
| EP PLASTIC BUSHING-2022-28 | 20 | +0.040/+0.124 | 22 | 28 |
| EP PLASTIC BUSHING-2023-10 | 20 | +0.040/+0.124 | 23 | 10 |
| EP PLASTIC BUSHING-2023-15 | 20 | +0.040/+0J24 | 23 | 15 |
| EP PLASTIC BUSHING-2023-20 | 20 | +0.040/+0.124 | 23 | 20 |
| EP PLASTIC BUSHING-2023-23 | 20 | +0.040/+0.124 | 23 | 23 |
| EP PLASTIC BUSHING-2023-25 | 20 | +0.040/+0.124 | 23 | 25 |
| EP PLASTIC BUSHING-2023-30 | 20 | +0.040/+0.124 | 23 | 30 |
| EP PLASTIC BUSHING-2025-15S | 20 | +0.020/+0.104 | 25 | 15 |
| EP PLASTIC BUSHING-2125-32 | 21 | +0.040/+0.124 | 25 | 32 |
| EP PLASTIC BUSHING-2225-15 | 22 | +0.040/+0.124 | 25 | 15 |
| EP PLASTIC BUSHING-2225-20 | 22 | +0.040/+0.124 | 25 | 20 |
| EP PLASTIC BUSHING-2225-25 | 22 | +0.040/+0.124 | 25 | 25 |
| EP PLASTIC BUSHING-2225-30 | 22 | +0.040/+0J24 | 25 | 30 |
| EP PLASTIC BUSHING-2528-10 | 25 | +0.040/+0.124 | 28 | 10 |
| EP PLASTIC BUSHING-2528-12 | 25 | +0.040/+0.124 | 28 | 12 |
| EP PLASTIC BUSHING-2528-15 | 25 | +0.040/+0.124 | 28 | 15 |
| EP PLASTIC BUSHING-2528-20 | 25 | +0.040/+0.124 | 28 | 20 |
| EP PLASTIC BUSHING-2528-25 | 25 | +0.040/+0.124 | 28 | 25 |
| EP PLASTIC BUSHING-2528-30 | 25 | +0.040/+0.124 | 28 | 30 |
| EP PLASTIC BUSHING-2529-25 | 25 | +0.040/+0.124 | 29 | 25 |
| EP PLASTIC BUSHING-2530-25S | 25 | +0.020/+0.104 | 30 | 25 |
| EP PLASTIC BUSHING-2832-20 | 28 | +0.040/+0.124 | 32 | 20 |
| EP PLASTIC BUSHING-2832-25 | 28 | +0.040/+0J24 | 32 | 25 |
| EP PLASTIC BUSHING-2832-30 | 28 | +0.040/+0.124 | 32 | 30 |
| EP PLASTIC BUSHING-3034-20 | 30 | +0.040/+0.124 | 34 | 20 |
| EP PLASTIC BUSHING-3034-25 | 30 | +0.040/+0.124 | 34 | 25 |
| EP PLASTIC BUSHING-3034-30 | 30 | +0.040/+0.124 | 34 | 30 |
| EP PLASTIC BUSHING-3034-40 | 32 | +0.040/+0.124 | 34 | 40 |
| EP PLASTIC BUSHING 3236-20 | 32 | +0.050/+0.150 | 36 | 20 |
| EP PLASTIC BUSHING-3236-23 | 32 | +0.050/+0.150 | 36 | 23 |
| EP PLASTIC BUSHING-3236-25 | 32 | +0.050/+0.150 | 36 | 25 |
| EP PLASTIC BUSHING-3236-30 | 32 | +0.050/+0.150 | 36 | 30 |
| EP PLASTIC BUSHING-3236-40 | 32 | +0.050/+0J50 | 36 | 40 |
| EP PLASTIC BUSHING-3539-15 | 35 | +0.050/+0.150 | 39 | 15 |
| EP PLASTIC BUSHING-3539-20 | 35 | +0.050/+0.150 | 39 | 20 |
| EP PLASTIC BUSHING-3539-25 | 35 | +0.050/+0.150 | 39 | 25 |
| EP PLASTIC BUSHING-3539-30 | 35 | +0.050/+0.150 | 39 | 30 |
SELF-LUBRICATING BEARING
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| EP PLASTIC BUSHING-1214-25 | 12 | +0.032/+0.102 | 14 | 25 |
| EP PLASTIC BUSHING-1215-20 | 12 | +0.032/+0.102 | 15 | 20 |
| EP PLASTIC BUSHING-1315-07 | 13 | +0.032/+0.102 | 15 | 7 |
| EP PLASTIC BUSHING-1315-10 | 13 | +0.032/+0.102 | 15 | 10 |
| EP PLASTIC BUSHING-1416-08 | 14 | +0.032/+0.102 | 16 | 8 |
| EP PLASTIC BUSHING-1416-10 | 14 | +0.032/+0.102 | 16 | 10 |
| EP PLASTIC BUSHING-1416-15 | 14 | +0.032/+0.102 | 16 | 15 |
| EP PLASTIC BUSHING-1416-20 | 14 | +0.032/+0.102 | 16 | 20 |
| EP PLASTIC BUSHING-1416-25 | 14 | +0.032/+0.102 | 16 | 25 |
| EP PLASTIC BUSHING-1517-10 | 15 | +0.032/+0.102 | 17 | 10 |
| EP PLASTIC BUSHING-1517-15 | 15 | +0.032/+0.102 | 17 | 15 |
| EP PLASTIC BUSHING-1517-17 | 15 | +0.032/+0.102 | 17 | 17 |
| EP PLASTIC BUSHING-1517-20 | 15 | +0.032/+0.102 | 17 | 20 |
| EP PLASTIC BUSHING-1517-25 | 15 | +0.032/+0.102 | 17 | 25 |
| EP PLASTIC BUSHING-1618-10 | 16 | +0.032/+0.102 | 18 | 10 |
| EP PLASTIC BUSHING-1618-12 | 16 | +0.032/+0.102 | 18 | 12 |
| EP PLASTIC BUSHING-1618-15 | 16 | +0.032/+0.102 | 18 | 15 |
| EP PLASTIC BUSHING-1618-20 | 16 | +0.032/+0.102 | 18 | 20 |
| EP PLASTIC BUSHING-1616-25 | 16 | +0.032/+0.102 | 18 | 25 |
| EP PLASTIC BUSHING-1620-16S | 16 | +0.016/+0.086 | 20 | 16 |
| EP PLASTIC BUSHING-1820-15 | 18 | +0.032/+0.102 | 20 | 15 |
| Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||
| EP PLASTIC BUSHING-3539-40 | 35 | +0.050/+0.150 | 39 | 40 |
| EP PLASTIC BUSHING-359-50 | 35 | +0.050/+0.150 | 39 | 50 |
| EP PLASTIC BUSHING-4044-20 | 40 | +0.050/+0.150 | 44 | 20 |
| EP PLASTIC BUSHING-4044-30 | 40 | +0.050/+0.150 | 44 | 30 |
| EP PLASTIC BUSHING-4044-40 | 40 | +0.050/+0.150 | 44 | 40 |
| EP PLASTIC BUSHING-4044-50 | 40 | +0.050/+0.150 | 44 | 50 |
| EP PLASTIC BUSHING-4550-30 | 45 | +0.050/+0.150 | 50 | 30 |
| EP PLASTIC BUSHING-4550-40 | 45 | +0.025/+0.125 | 50 | 40 |
| EP PLASTIC BUSHING-4550-50 | 45 | +0.050/+0.150 | 50 | 50 |
| EP PLASTIC BUSHING-5055-20 | 50 | +0.050/+0.150 | 55 | 20 |
| EP PLASTIC BUSHING-5055-30 | 50 | +0.050/+0.150 | 55 | 30 |
| EP PLASTIC BUSHING-5055-40 | 50 | +0.050/+0.150 | 55 | 40 |
| EP PLASTIC BUSHING-5055-50 | 50 | +0.050/+0.150 | 55 | 50 |
| EP PLASTIC BUSHING-8590-40 | 85 | +0.036/+0.176 | 90 | 40 |
•Tolerance drafter being pressed into housing H7(ISO3547-1)
Recommend fitting tolerance
Housing: H7
Shaft: H9
WE ARE A PROFESSIONAL
PLASTIC BUSHING MANUFACTURER & SUPPLIER
Welcome to contact us!
If you have any questions, please feel free to contact us,you are always welcome, thank you!
Recommended Products
