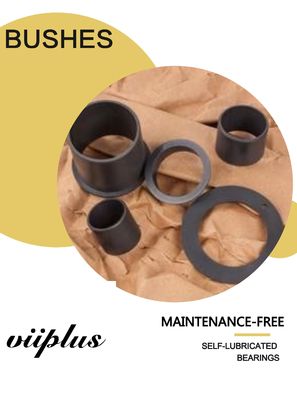

Plastic Flanged Bushings Wholesale, High Quality, Customized, Free maintenance
Place of Origin | MADE IN CHINA |
---|---|
Brand Name | VIIPLUS PLAIN BEARINGS |
Certification | CUSN8,CUSN6.5 Bronze |
Model Number | PTFE PLAIN BEARINGS |
Minimum Order Quantity | 1000 Piece/Pieces (Min. Order) |
Price | $0.20 - $10.00 / Pieces |
Packaging Details | Wooden pallets for standard export packing cartons |
Delivery Time | 10~15 work days |
Payment Terms | T/T PREPARD, T/T, L/C, D/A, D/P |
Supply Ability | 2000000 Piece/Pieces |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | EPB A Thermal Mould Character Plastic | Application | Packaging Machinery |
---|---|---|---|
Bushes | IGUS Replace | Size | Customized |
Service | OEM Customized Services | Feature | High Quality, Free Maintenance |
Product Name | Plastic Bushing | Type | Plain Bearing |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | plastic flanged sleeve bearings,igus flange bushing |
Plastic Plain Bearing, Polymer Plain Bearing, Plastic Bushing - Made In China
EP plastic bushings of high-performance engineering plastic polymer bearings as the base material, through modification of polymer materials technology into high-strength fibers and specialty solid improvement in its internal grease integrated wear resistance; high strength fiber reinforced network structure strength of the material, the composite solid special grease allows EP plastic bearings with excellent self-lubricating properties and wear resistance. Whether it is a high durability requirements the automotive industry.
Learn more about self-lubricating plastic plain bearings from Viiplus, designed for maximum service life in extreme industrial conditions with very low cost.
EP series plastic bushings use high-performance engineering plastics as the base material. High-strength fibers and special solid lubricating greases are implanted inside them through polymer material modification technology to improve the comprehensive wear resistance; the high-strength fiber network structure strengthens The strength of the material and the combination of special solid lubricating grease make EP series plastic bushings have excellent self-lubricating performance and wear resistance. Whether it is the automotive industry with high durability requirements, high-speed applications, underwater applications, high temperature and anti-corrosion applications, or the food industry that requires compliance with FDA standards, Viiplus provides different solutions for global industries.
Long-lasting, self-lubricating plastics, sleeve bearing with flange, mm
Maintenance-free plastic plain bearings
Plastic Bushings Feature
● The most common plastic bearing material. It is suitbale for the applications with working temperature not higher than 80℃. It is the prefereable material with good wear resistance and economic efficient for a new designation.
● Continuous working temperature: -40℃/+80℃;
● Very common; suitable for most of average and low load;
● Maintenance-free dry operation;
● Light wear against different shaft materials;
● Low friction.
Self-lubricating bushings, High-Quality Price Ratio B2B. Get Your Question Now! We Manufacture and Design Self-lubricating Bushings & Metal Polymer Bushing and so on.10+ years of experience, Advanced equipment, excellent product quality, and stable quality.
Nylon Bushing Wholesale, Bushing Suppliers Plastic bearings|Plastic plain bearings|Plastic bushings
Plastic Compound Bearings Plain Bearings Metric Cylindrical Bushes EPB Sliding Bearings Black Lubricating Bushes h9 H7 tolerances Dwg for IGUS Equv Bushes
Plastic Bushing Characteristics
VIIPLUS EPB bearings series material is a thermal mold character plastic processed by crystal engineering plastic as basic material with proper intensifier and lubricant. The rigidity and high-temperature engineer capability is greatly improved because of the use of intensifier, at the same time, the coefficient of thermal expansion, molding shrinking rate and wriggle capability decreases, consequently, the size stability is improved, and EPB series material range is enlarged and keeps the intrinsic anti-wear capability and anti-drug capability.
Plastic Bushing
Typical Applications
·Office Machinery
·Electronic Products
·Textile Machinery
·Fitness Machinery
·Agricultural Machinery
·Packaging Machinery
·Automotive Industry
Solid-lubricating and Maintenance-free Sliding Bearings
The plastic bearing has longe service vs Metal bearing lubricating oil is life easy to be failed
Engineers are dedicated to the performance improvement on the self- lubricating materials derive from the result that EP Series Materials are with excellent self- lubricating features and wear resistance Features. High- strength fibers used in the engineering plastics fantastically improve the material load (Graph). Special grease immersion in the plastic can decrease the friction coefficient of the material therefore to prolong the bearing service life. High-performance engineering plastics body material mainly serves as a wear-resistant vector. The reinforced fiber improves the load and impacts the resistant capacity of the bearing. Special grease decreases the friction coefficient for a better self-lubricating performance.
Plastic Bushing Material property sheet
Common Capability |
Unit |
EPT |
EPG |
EPH |
EPX |
EPJ |
EPS |
Density |
g/cm³ |
1.46 |
1.46 |
1.65 |
|
1.49 |
1.24 |
Color |
|
Black gray |
Dark grey |
Grey |
Black |
Yellow |
Beige |
Max.water absorption,23℃/ 50% |
[% weight] |
0.2 |
0.7 |
0.1 |
|
0.3 |
2.02 |
Max.water absorption |
[% weight] |
<1.2 |
<4 |
<0.3 |
<0.5 |
<1.3 |
<0.1 |
Dynamic friction /steel |
μ |
0.05-0.15 |
0.08-0.18 |
0.07-0.20 |
0.09-0.27 |
0.06-0.18 |
0.05-0.15 |
Max.PV(dry) |
MPa•m/s |
0.4 |
0.5 |
1.37 |
1.32 |
0.34 |
0.4 |
Mechanical behavior |
|||||||
E-module |
MPa |
2,300 |
7,800 |
12,500 |
8,100 |
2,400 |
830 |
Tensile strength,20℃ |
MPa |
80 |
200 |
175 |
170 |
73 |
18 |
Compressive strength |
MPa |
65 |
80 |
90 |
150 |
35 |
10 |
Max.static pressure of the surface,20℃ |
MPa |
35 |
80 |
150 |
90 |
20 |
10 |
Shore D hardness |
|
70 |
112 |
87 |
85 |
74 |
73 |
Physical and thermal properties |
|||||||
Continuous work temperature |
℃ |
+80 |
+130 |
+200 |
+250 |
+90 |
+260 |
short-time work temperature |
℃ |
+120 |
+220 |
+240 |
+315 |
+120 |
+310 |
Minimum operating temperature |
℃ |
-40 |
-40 |
-40 |
-100 |
-50 |
-200 |
Thermal conductivity |
W/m•K |
0.2 |
0.25 |
0.60 |
0.60 |
0.25 |
0.24 |
Max.water absorption,23℃ |
K-1•10-5 |
7 |
9 |
4 |
5 |
10 |
12 |
Conductivity |
|||||||
Volume resistivity |
Ωcm |
>1012 |
>1013 |
<104 |
<105 |
>1013 |
>1015 |
Surface resistivity |
Ω |
>1015 |
>1011 |
<105 |
<103 |
>1012 |
>1015 |
Metric Flange Bushes, Plastic Bushings Dimensions
Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||||
SIZE | id | tolerance | od | Flange od | L | Thickness |
EPF FLANGE PLASTIC BUSHING-030403 | 3 | +0.014/+0.054 | 4.5 | 7.5 | 3 | 0.75 |
EPF FLANGE PLASTIC BUSHING-0304-05 | 3 | +0.014/+0.054 | 4.5 | 7.5 | 5 | 0.75 |
EPF FLANGE PLASTIC BUSHING-0507-04 | 5 | +0.020/+0.068 | 7 | 11 | 4 | 1 |
EPF FLANGE PLASTIC BUSHING-0507-05 | 5 | +0.020/+0.068 | 7 | 11 | 5 | 1 |
EPF FLANGE PLASTIC BUSHING-0608-04 | 6 | +0.020/+0.068 | 8 | 12 | 4 | 1 |
EPF FLANGE PLASTIC BUSHING-0608-06 | 6 | +0.020/+0.068 | 8 | 12 | 6 | 1 |
EPF FLANGE PLASTIC BUSHING-0608-08 | 6 | +0.020/+0.068 | 8 | 12 | 8 | 1 |
EPF FLANGE PLASTIC BUSHING-0608-10 | 6 | +0.020/+0.068 | 8 | 12 | 10 | 1 |
EPF FLANGE PLASTIC BUSHING-08KW5 | 8 | +0.025/+0.083 | 10 | 15 | 5 | 1 |
EPF FLANGE PLASTIC BUSHING-0810-07 | 8 | +0.025/+0.083 | 10 | 15 | 7 | 1 |
EPF FLANGE PLASTIC BUSHING-0810-09 | 8 | +0.025/+0.083 | 10 | 15 | 9 | 1 |
EPF FLANGE PLASTIC BUSHING-0810-10 | 8 | +0.025/+0.083 | 10 | 15 | 10 | 1 |
EPF FLANGE PLASTIC BUSHING-081014-12 | 8 | +0.025/+0.083 | 10 | 14 | 12 | 1 |
EPF FLANGE PLASTIC BUSHING-0810-12 | 8 | +0.025/+0.083 | 10 | 15 | 12 | 1 |
EPF FLANGE PLASTIC BUSHING-0810-13 | 8 | +0.025/+0.083 | 10 | 18 | 13 | 1 |
EPF FLANGE PLASTIC BUSHING-081017-13 | 8 | +0.025/+0.083 | 10 | 17 | 15 | 1 |
EPF FLANGE PLASTIC BUSHING-081216-10 | 8 | +0.013/+0.071 | 12 | 16 | 10 | 2 |
EPF FLANGE PLASTIC BUSHING-1012-05 | 10 | +0.025/+0.083 | 12 | 18 | 5 | 1 |
EPF FLANGE PLASTIC BUSHING-1012-06 | 10 | +0.025/+0.083 | 12 | 18 | 6 | 1 |
EPF FLANGE PLASTIC BUSHING-1012-07 | 10 | +0.025/+0.083 | 12 | 18 | 7 | 1 |
EPF FLANGE PLASTIC BUSHING-1012-08 | 10 | +0.025/+0.083 | 12 | 18 | 8 | 1 |
EPF FLANGE PLASTIC BUSHING 1O12-O9 | 10 | +0.025/+0.083 | 12 | 18 | 9 | 1 |
Size and Specification table of straight sleeve series (for all sizes of different materials) | ||||||
SIZE | id | tolerance | od | Flange od | L | Thickness |
EPF FLANGE PLASTIC BUSHING-1517-17 | 15 | +0.032/+0.102 | 17 | 23 | 17 | 1 |
EPF FLANGE PLASTIC BUSHING-1517-20 | 15 | +0.032/+0.102 | 17 | 23 | 20 | 1 |
EPF FLANGE PLASTIC BUSHING-1518-12 | 15 | +0.032/+0.102 | 18 | 23 | 12 | 1 |
EPF FLANGE PLASTIC BUSHING-1517-25 | 15 | +0.032/+0.102 | 1 | 23 | 25 | 1 |
EPF FLANGE PLASTIC BUSHING-1618-12 | 16 | +0.032/+0.102 | 18 | 24 | 12 | 1 |
EPF FLANGE PLASTIC BUSHING-1618-17 | 16 | +0.032/+0.102 | 18 | 24 | 17 | 1 |
EPF FLANGE PLASTIC BUSHING-161822-22 | 16 | +0.016/+0.086 | 18 | 22 | 22 | 2 |
EPF FLANGE PLASTIC BUSHING-162024-16 | 16 | +0.016/+0.086 | 20 | 24 | 16 | 2 |
EPF FLANGE PLASTIC BUSHING-162024-22 | 16 | +0.016/+0.086 | 20 | 24 | 22 | 2 |
EPF FLANGE PLASTIC BUSHING-1820-12 | 18 | +0.032/+0.102 | 20 | 26 | 12 | 1 |
EPF FLANGE PLASTIC BUSHING-1820-17 | 18 | +0.032/+0.102 | 20 | 26 | 17 | 1 |
EPF FLANGE PLASTIC BUSHING-1820-20 | 18 | +0.032/+0.102 | 20 | 26 | 20 | 1 |
EPF FLANGE PLASTIC BUSHING-182024-22 | 18 | +0.016/+0.086 | 20 | 24 | 22 | 2 |
EPF FLANGE PLASTIC BUSHING-2022-15 | 20 | +0.040/+0.124 | 23 | 25 | 15 | 1 |
EPF FLANGE PLASTIC BUSHING-2023-11 | 20 | +0.040/+0.124 | 23 | 30 | 11 | 1.5 |
EPF FLANGE PLASTIC BUSHING-2023-11.5 | 20 | +0.040/+0.124 | 23 | 30 | 11.5 | 1.5 |
EPF FLANGE PLASTIC BUSHING-2023-16 | 20 | +0.040/+0.124 | 23 | 30 | 16 | 1.5 |
EPF FLANGE PLASTIC BUSHING-2023-16.5 | 20 | +0.040/+0.124 | 23 | 30 | 16.5 | 1.5 |
EPF FLANGE PLASTIC BUSHING-2023-21.5 | 20 | +0.040/+0.124 | 23 | 30 | 21.5 | 1.5 |
EPF FLANGE PLASTIC BUSHING-2023-25 | 20 | +0.040/+0.124 | 23 | 30 | 25 | 1.5 |
EPF FLANGE PLASTIC BUSHING-202330-15 | 20 | +0.040/+0.124 | 23 | 30 | 15 | 2 |
EPF FLANGE PLASTIC BUSHING-202330-22 | 20 | +0.040/+0.124 | 23 | 30 | 22 | 2 |
Recommend fitting tolerance
Housing: H7
Shaft: H9
