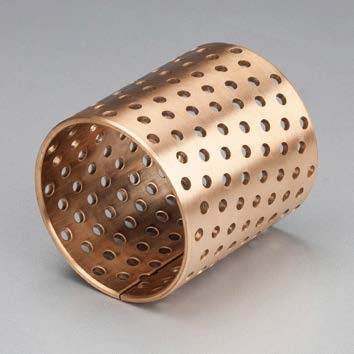

Wrapped Perforated Bronze Bushing | CuSn8 Material
|Place of Origin||Self Lubricating Bronze Bearings Manufacturers|
|Brand Name||Bronze Bearing Bushings|
|Certification||CuSn8 Standard Designation for Wrought Copper Alloys|
|Model Number||Bronze Plain Bearings with Grease Reservoirs,BUSHING TYPE FLANGED PLAIN SLEEVE|
|Minimum Order Quantity||NEGOTIABLE|
|Price||Competitively Priced vs 090, Provides Lubricating Bush|
|Packaging Details||WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS|
|Delivery Time||7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY|
|Payment Terms||TT IN ADVANCE WESTERN UNION|
|Supply Ability||Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings, Bronze Wrapped Bushing|
|BUSHING STRUCTURE AND COMPOSITION||Bronze Bearings And Bronze Sleeve Bushings Made Of CuSn8 With Lubrication Indents||BUSHINGS MICROSECTION||CuSn8 With Composition Sn 8 % P < 0.05 % Cu Rest|
|STRUCTURE AND COMPOSITION||Bronze Plain Bearings And Bronze Sleeve Bushings Made Of CuSn8 With Grease Reservoirs||Lubrication||Grease/Oil Lubricated Bronze Wrapped Bushing|
|Specification||Bronze Wrapped Bushings Std.size In Stock||TYPE||Bushing Met:MBZ, B09 Or MBZ B09,FB090,FB092 Bushing|
self lubricating bearing,
sintered self lubricating bushes,
CuSn8 Self Lubricating Plain Bearing
Bronze Bearings Made of CuSn8 with Lubrication Indents Plain Cylindrical Bearings Flanged Bearings Grease Reservoirs

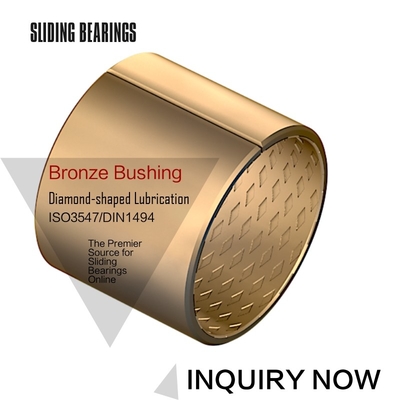

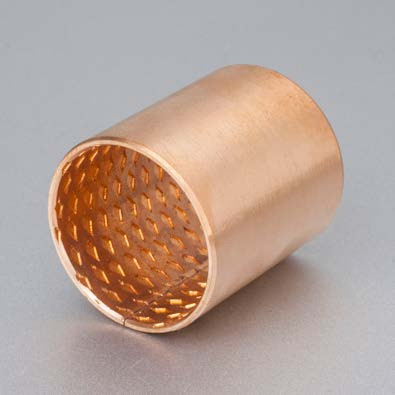

The bronze bushings are wrapped of a cold formable homogenous bronze (CuSn8), which will obtain exceptional material properties. The standard sizes are fitted with diamond-shaped lubrication indents on the bearing surface.
Bronze Bearings Features
Standard Wrought Copper Alloys bushings, Phosphor Bronze bushing, split type.
Premium Bronze Bushings, CuSn8 Bronze Gleitalger, Large Range Of Sizes, View Our Catalog Get Our Catalog & Find Information.
On Sizes, Prices & Availability! Click To See Over 200 Sizes Of Sleeved & Flanged Bearings!You have access to the latest downloads here. Click on the Wrapped Bronze Bushings.pdf catalog symbol to display the file, and download the self-lubricating bushing bearings catalog file.
Bronze Wrapped Bushing & Cylindrical Flange Bushes Made In China
bronze bushing stock
bronze bushings catalog
metric bronze bushings
Find a Bronze Lube Bushing, All solid bronze bearings can be prepared to meet your needs for ID, OD, length, shape, and size. Tin bronze bushings cusn8/cusn6 Manufacturer made-to-order from china Metallic Bushing Series.bronze bearings china sourcing:https://viiplus.com;Designed to handle high torque loads. Lubrication maintenance is required. Cylindrical, flanged, and thrust bushings forms are available. Find the 090 Cylindrical bearing Nominal Diameter Part Number ID OD Width.VIIPLUS Brass bushings are manufactured using an upgraded alloy when compared to OEM alloy bushings. The high-quality bushings increases wear properties while maintaining excellent metal lubricity. VIIPLUS tin bronze bushings are specifically designed to prevent galling and decrease wear.
Slide Bearings Customized Manufacturing Cusn8/Cusn6.5 /Bronze Plain Bearings With Grease Reservoirs
Bronze Wrapped bearings Shapes & forms Plain cylindrical bearings, flanged bearings, thrust washers, sliding plates.
Bearing material made of the solid bronze strip with indents for lubrication Maintenance-free bearing for general engineering applications:
Mining & Earthmoving Bearings Products
Custom & Oilfield Manufacturing Bronze Bearings
Optimum performance under relatively light loads and high speeds
Produced by powder metallurgy process and therefore suitable for complex shapes
Wide range of parts available from stock
Application: Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment, etc.
Bushings Plain Bearings and Sleeve Bearings

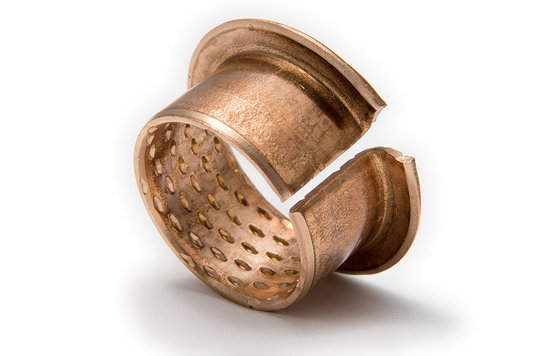

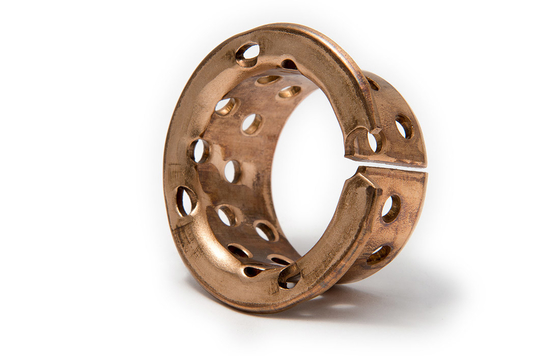

090 Wrapped Flange & Straight Bronze Bearing With Lubrication Indents
|Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance|
|Specific load capacity static||< 120 [N/mm2]||Temperature strain||- 40 [°C] to + 250 [°C]|
|Specific load capacity dynamic||< 40 [N/mm2]|
|Sliding speed||≤ 2.5 [m/s]||Max. PV-value||2.8 [N/mm² x m/s]|
|Friction value||0.05 [µ] to 0.12 [µ] depending on lubrication||The percentage of contact area on the ID||> 75 [%]|
|Support material||CuSn8P (DIN 17662)||alternative CuSn6P available|
|Housing Ø||H7||Shaft tolerance||f7 to h8|
|Bushing inner-Ø after mounting||H9|
|Steel, hardened or untempered|
|The surface roughness ≤ Ra 0.8|
|Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance.|
|RANGE OF APPLICATION|
|Agriculture machinery, truck cranes & construction machinery, suitable for impact loads|
|It is a low maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory. The diamond pockets are an excellent lubrication depot and keeping maintenance to a minimum.|
|Housing||Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment|
|Shaft||Chamfer 5 mm x 15°, for easy insertion of the shaft|
|We advise using a force-fitting mandrel for the installation of the bushing. It might be necessary to apply some grease on the outer surface of the bushing when press fitting it into the housing.|
|Gluing||Adhesive should not contact the sliding surface!|
CuSn8/CuSn6.5 090 CYLINDRICAL BUSHES FLANGE BUSHES
Bronze Bearing Factory, Bronze Bushing supplier, CuSn8 flange bronze bush.Bearing material made of the solid bronze strip with indents for lubrication
Good wear resistance, suitable for rough conditions
Optimum performance under relatively high loads and low speeds
1.Easy for fitting and lubricating
2.High load capacity
3.Inner Diameter machineable parts are available against order
4.High level thermal conductivity
5.Minimum overall dimensions
7. Initial pre-lubrication at assembly required...
Good performance in lubricated applications/Very Good performance in greased applications/Suitable for linear, oscillating and rotating movements/Bronze Wrapped Bearings offer good wear and low friction performance over a wide range of loads, speeds, and temperatures.
Bronze self-lubricating bearings used a kind of high-density bronze alloy of special compositions as the base, the surface of the alloy is rolled diamond type of the oil indents or half ball oil indents, this kind of bearing has higher density, load capacity, well-wearing performance, longer lifetime. It has been widely used in many fields, such as hoist machines, building machinery, machine tool industry, and mining machinery.
CuSn6 / CuSn8 Phosphor Tin Bronze Bushings Sliding Bearing
Phosphor bronze is characterized as a very pure alloy with extremely low content of impurities. Phosphor blends well with copper making the material hardly reacting on oxygen (oxidation).
Phosphor bronze is an alloy with high wear resistance and good mechanical properties. There are tubes, bars, and plates of different thicknesses available in phosphor tin bronze.
CuSn8 with Lubrication 090 Flange Bushes Bronze Bearings made of CuSn8/6.5 with Lubrication Indents high precision oil less bronze bearings.
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru-holes, plain or flanged bearings, and strip
Bronze Wrapped Bearing with Oil Pockets(090 CYLINDRICAL BUSHES)
Sliding Bearing 090 caused by chemicals and environments. During the operation, the grease & oil will be released from the Indentations, which allow for long-term lubrication. Compare with Machined bronze bearings; 090 can offer some advantages including thin wall, lower weight, cheaper cost, high load etc. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.

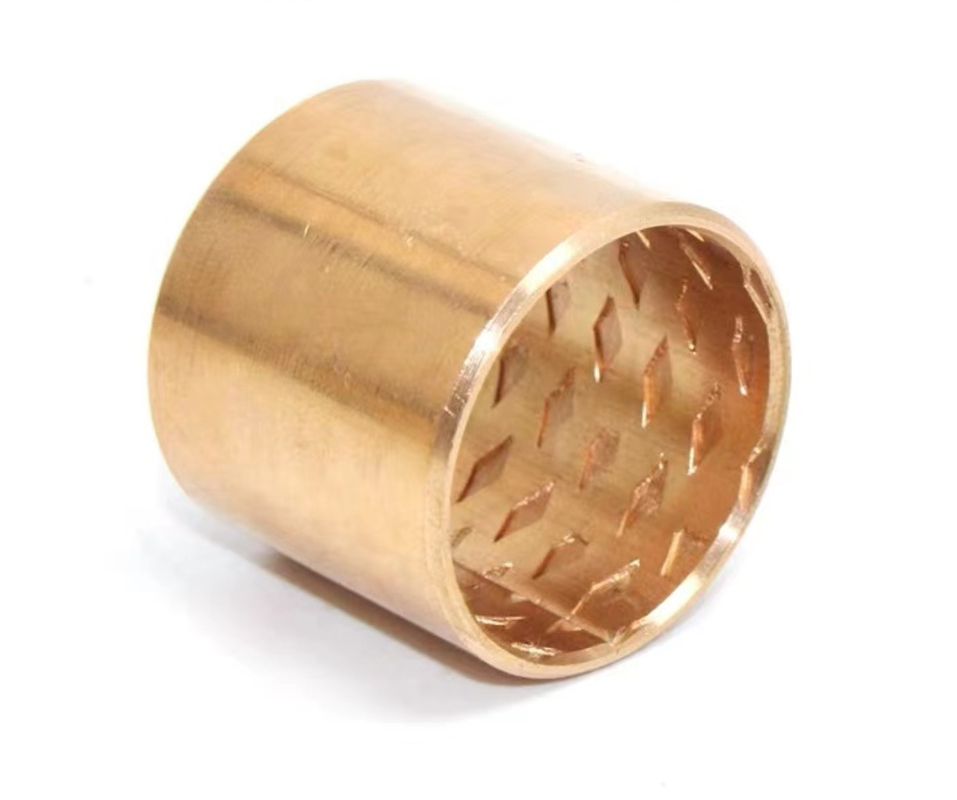

The bearings are wrapped from a cold-formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond-shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of the movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications. Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents. We provide a professional sliding bearing solution
|Maximum load||Static load||120N/mm²|
|Maximum linear velocity||2.5m/s|
|High PV value||2.8N/mm²・m/s|
|Coefficient of friction||0.08~0.25|
|The use of temperature||-100℃~+200℃|
|Coefficient of thermal conductivity||60W/m・K|
|Coefficient of thermal expansion||15×/K|
Matching Shaft Diameter
Bearing forms available in standard dimensions: Cylindrical bushes/Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs
This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machine tools, and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, thrust washers, spherical bearing, and soon.
Sliding Bearing Size
Start Your Project With An Application Engineer: Welcome to contact us! We provide a professional sliding bearing solution. The development of the VIIPLUS to study the new materials and new products: Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound, Plain Bearings, Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Thrust Plates, Industrial Bearings.
