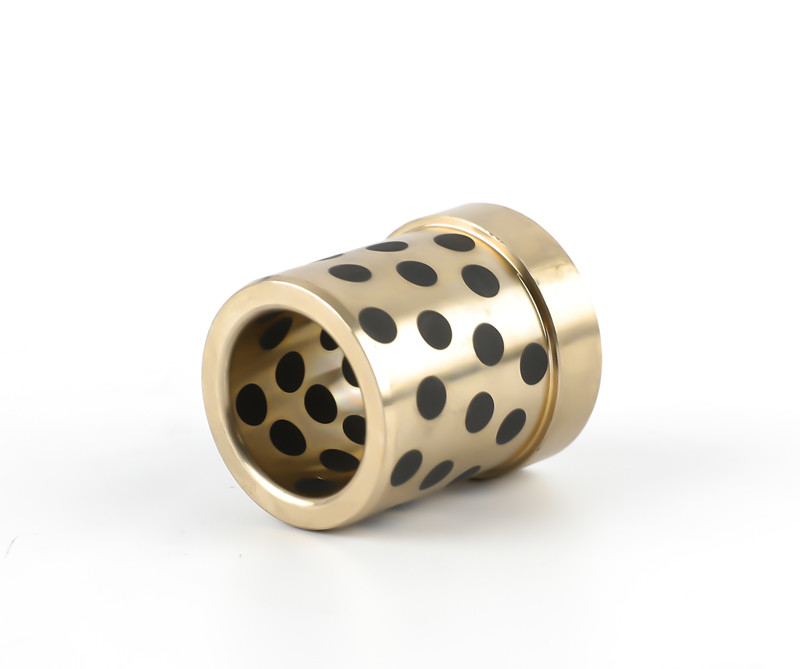

C863 Manganese Bronze Graphite Plugs Flange Bushing

Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO 9001
Model Number C863 Manganese with graphite plugs
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing
Product Details
Material C863 Manganese Bronze Feature Graphite Plugs Lubricating
Size Metric Size Bushing Type Straight Type, Or Flange Type
Poland Tuleję Samosmarowna Z Brązu Z Grafitem Standard C863 Manganese Bronze Bushing
High Light

Graphite Plugged Flange Bushing

,

C863 Manganese Bronze Flange Bushing

Leave a Message
Product Description

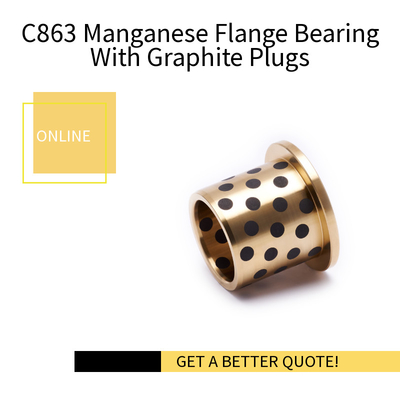

C863 Manganese With Graphite Plugs Flange Bushing

Graphite plugged bronze sleeve, DIN ISO 4379 BRONZE BUSHING WITH GRAPHITE

Graphite Bushings and Bearings

Graphite Bushings is Suited for Submerged and High-Temperature Applications. Reduced costs & downtime. Increased productivity. Services: Custom Design, Engineering Support, Short Lead Times.

Graphite Bronze Bushes, For Industrial, Size/Diameter
Get Latest Price



China Oilless Bushing Plate - self-lubricating bearing Sale
China self-lubricating bearing, Similar To Metal Bushing, Self-Lubricating Composite Sliding Material, Factory Price, Contact Us!



Our C863 Manganese Bronze Graphite Plugs Flange Bushing is the perfect solution for projects where lubrication cannot easily be provided or where conventional lubricants may carbonize. The design of oil feeding systems is time-consuming and expensive - The use of our oilless bearings can greatly reduce costs of maintenance and oil as it removes any need for such a system.

C863 Manganese Bronze Graphite Plugs Flange Bushing has been developed for high load, low-speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as a lubricant.

C863 Manganese Bronze Graphite Plugs Flange Bushing is graphite loaded and can withstand temperatures of up to 400°C (800F) as well as cryogenic temperatures down to -200°C (-400°F) depending on which material is selected.



Specifications:



Standard Chemical Composition (%) Mechanical Property Uses
KS JIS ASTM Cu Zn Al Fe Mn Sn Ni Pb Si TS(n/m²) E(%) HB
HBsC1 HBsC1 8A 55.0-60.0 R 0.5-1.5 0.1-1.5 0.1-1.5 1.0 max 1.0 max 0.4 max 0.1 max 413 min 20 min 90 Machinery part, Propellor, Hub
HBsC2 HBsC2 8B 55.0-60.0 R 0.5-2.0 0.1-3.5 0.1-3.5 1.0 max 1.0 max 0.4 max 0.1 max 490 min 18 min 100 Marine Parts, gear, Bush, Bearings
HBsC3 HBsC3 8C 60.0-65.0 R 3.0-7.5 2.0-5.0 2.5-5.0 0.5 max 0.5 max 0.2 max 0.1 max 637 min 15 min 165 Cylinder Parts, Worm Gear, Cap
HBsC4 HBsC4 SAE430B 60.0-65.0 R 3.0-7.5 2.0-5.0 2.5-5.0 0.2 max 0.5 max 0.2 max 0.1 max 755 min 12 min 200 Slipper Metal, High Strength valve, Screw Nut.

Customized Sizes Wear Resistant Self- lubricating Graphite Bronze Silent Block Bushings

Typical applications include, but are by no means limited to:



  • Kilns
  • Dryers
  • Injection molding machines
  • Dust collectors
  • Louvers
  • Hot conveyors



C863 Manganese Bronze Graphite Plugs Flange Bushing benefit from outstanding chemical and corrosion resistance. The lubricant used in these bearings is formed from abrasion-resistant materials (such as graphite, PTFE, etc) and has a stabilized molecular structure.

These oilless bearings are suitable for dry environments where contamination is a risk, wet applications where there are high humidity, and applications where the bearing is in an inaccessible location. Oilless bearings are lubricated for life!

Please feel free to get in touch with our technology to ascertain which would be the most suitable combination to suit your application.



Product Description



We manufacture and export a huge range of Graphite Filled Bronze Bushes, High Tensile Manganese Bronze from the quality material of bronze and automotive bearing supplier. These High Tensile Manganese Bronze are used in various industries.





Structure CuZn25Al6Mn4 Bronze with solid graphite lubricant inserts
(alternative specifications are available on request)
PV (N/mm² x m/s) 3.3 max
Static load (N/mm²) 100 max
Sliding speed (m/s) 0.3 max
Operating temperature (°C) Up to 300
(alternative specs up to 400)
Coefficient of thermal expansion 19 x 10-5/°C
Coefficient of friction 0.16
Hardness (HB) 210 min
Tensile strength (N/mm²) 750 min
Elongation (%) 12 min
Density (g/cm³) 8

C863 Manganese With Graphite Plugs Flange Bushing
