Ina Fag Bearing Bushing Equivalent Metric Inch Size
Place of Origin | oilless bushing |
---|---|
Brand Name | Plain Bushing |
Certification | ISO 9001 |
Model Number | Ina Fag Bearing Bushing |
Minimum Order Quantity | negotiable |
Price | Negotiable |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 7-15 work days |
Payment Terms | T/T |
Supply Ability | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | Ina Fag Bearing Bushing Equivalent | Size | Metric Size, Or Customize Size |
---|---|---|---|
Feature | Split Type Plain Buhes | Maintenance Free | Precision Bushing |
Item | Self-lubricating & Pre-lubricated Bearings | Bearing Bushing Factory Price | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | Oilless Bearing Manufacturer | Https://www.bronzelube.com/ |
Manufacturer | Bucha De Bronze Grafitado | High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery |
Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. | ||
High Light | Metric Ina Fag Bearing Bushing,Inch Size Ina Fag Bearing Bushing |
INA Fag bearing bushings are highly regarded in the industry for their precision, durability, and reliability. When it comes to finding equivalents in both metric and inch sizes, it's important to ensure accuracy and compatibility.
Metric sizes for INA Fag bearing bushings typically range from very small diameters to larger ones, depending on the specific application. These sizes are measured in millimeters and are designed to fit a wide range of metric-based machinery and equipment.
On the other hand, inch sizes are more commonly used in the United States and other countries that follow the imperial measurement system. INA Fag bearing bushings are also available in inch sizes, allowing for easy integration into existing systems that use this standard.
When searching for equivalents, it's crucial to consult manufacturer's specifications and catalogs to ensure compatibility and accuracy. Additionally, it's recommended to work with a trusted supplier or distributor who can provide guidance and expertise in selecting the right bearing bushing for your specific needs.
In summary, INA Fag bearing bushings are available in both metric and inch sizes, offering a wide range of options to meet the demands of various industrial applications. By working with a reliable supplier and referring to manufacturer's specifications, you can easily find the equivalent bearing bushing that fits your requirements.
Ina Fag Bearing Bushing Equivalent, Flanged Bearings, and Washers
We deliver worldwide thousands of bushing products
Self-lubricating & Prelubricated Bearings
Bronze bushings are available in standard part metric sizes. Please view our bushing bronze bushing catalog or visit our premier bronze supplier
Steel and steel/bronze plain bearings.
Steel and bronze plain bearings
The plain bearing and rod end designs that require maintenance using steel/steel and steel/bronze pairs are easy to maintain, cost-effective, and excellently suited to varying loads. The smooth bushings, washers and strips use a maintenance-free E50 metal-polymer composite. The sliding layer has lubrication pockets, which means that in most cases pre-lubrication is sufficient.
INA Plain Bearings Equivalent, Maintenance and Maintenance Free
Ptfe-Lead Overlay Plated Low Carbon Steel Backing Sintered Bronze Substrate
"DU bushes Equivalent" self-lubricating bearings are used where excessive friction is a concern. These self-lubricating bearings have a high load capacity and are capable of operating at -328 to 536 degrees F. They can be used with a rotational, oscillatory, and axial sliding motion. They withstand shock loads and can handle both radial and axial loads.

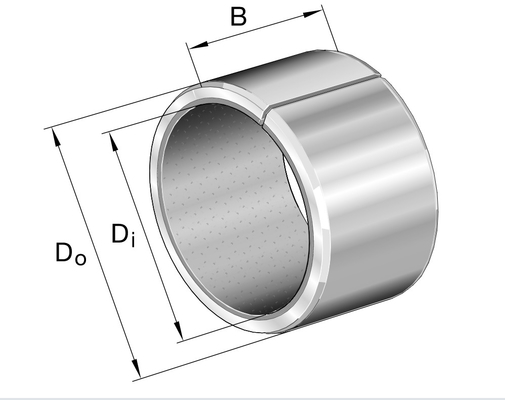

Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB1815-E40-Y | 18 | 20 | 15 | Plain Bushes |
EGB1820-E40-Z | 18 | 20 | 20 | Plain Bushes |
EGB1825-E40-B-Y | 18 | 20 | 25 | Plain Bushes |
EGB1825-E40-Z | 18 | 20 | 25 | Plain Bushes |
EGB2010-E40 | 20 | 23 | Plain Bushes | |
EGB2015-E40-B-Y | 20 | 23 | 15,00 | Plain Bushes |
EGB2015-E40-Z | 20 | 23 | 15,00 | Plain Bushes |
EGB2015-E50-Y | 20 | 23 | 15 | Plain Bushes |
EGB2020-E50-Y | Plain Bushes | |||
EGB2025-E50-Y | 20 | 23 | 25 | Plain Bushes |
EGB2030-E50-Y | 20 | 23 | 30 | Plain Bushes |
EGB220100-E40-Y | 220 | 225 | 100 | Plain Bushes |
EGB2215-E40-Z | 22 | 25 | 15 | Plain Bushes |
EGB2220-E50-Y | Plain Bushes | |||
EGB2225-E40-B-Y | 22 | 25 | 25,00 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB2225-E40-Y | 22 | 25 | 25 | Plain Bushes |
EGB2230-E40-Y | 22 | 25 | 30,00 | Plain Bushes |
EGB2420-E40-Y | 24 | 27 | 20 | Plain Bushes |
EGB2425-E40-Z | 24 | 27 | 25 | Plain Bushes |
EGB2430-E40-Z | 24 | 27 | 30 | Plain Bushes |
EGB2510-E40-Z | 25 | 28 | 10 | Plain Bushes |
EGB2515-E40-Z | 25 | 28 | 15 | Plain Bushes |
EGB2515-E50-Y | 25 | 28 | 15 | Plain Bushes |
EGB2520-E40-Y | 25 | 28 | 20 | Plain Bushes |
EGB2520-E50-Y | 25 | 28 | 20,00 | Plain Bushes |
EGB2525-E50-Y | 25 | 28 | 25 | Plain Bushes |
EGB2530-E40-B-Y | 25 | 28 | 30,00 | Plain Bushes |
EGB2530-E40 | 25 | 28 | Plain Bushes | |
EGB2530-E50-Y | 25 | 28 | 30,00 | Plain Bushes |
EGB2540-E40-Z | 25 | 28 | 40 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB2550-E40-Y | 25 | 28 | 50,00 | Plain Bushes |
EGB2820-E40-Z | 28 | 32 | 20,00 | Plain Bushes |
EGB2830-E40-Y | 28 | 32 | 30 | Plain Bushes |
EGB300100-E40-Y | 300 | 305 | 100,00 | Plain Bushes |
EGB3015-E40-Z | 30 | 34 | 15 | Plain Bushes |
EGB3020-E40-Z | 30 | 34 | 20 | Plain Bushes |
EGB3020-E50 | 30 | 34 | Plain Bushes | |
EGB3020-E50-Y | 30 | 34 | 20,00 | Plain Bushes |
EGB3025-E40-Z | 30 | 34 | 25 | Plain Bushes |
EGB3025-E50-Y | 30 | 34 | 25,00 | Plain Bushes |
EGB3030-E50-Y | 30 | 34 | 30 | Plain Bushes |
EGB3040-E40-Y | 30 | 34 | 40 | Plain Bushes |
EGB3040-E50-Y | 30 | 34 | 40 | Plain Bushes |
EGB3230-E40-Z | 32 | 36 | 30 | Plain Bushes |
EGB3230-E50-Y | 32 | 36 | 30 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB3240-E40-Y | 32 | 36 | 40 | Plain Bushes |
EGB3520-E40-B-Y | 35 | 39 | 20,00 | Plain Bushes |
EGB3520-E50-Y | 35 | 39 | 20,00 | Plain Bushes |
EGB3530-E40-B-Y | 35 | 39 | 30 | Plain Bushes |
EGB3530-E40-Z | 35 | 39 | 30,00 | Plain Bushes |
EGB3550-E50-Y | 35 | 39 | 50 | Plain Bushes |
EGB4030-E50-Y | 40 | 44 | 30,00 | Plain Bushes |
EGB4040-E40 | 40 | 44 | Plain Bushes | |
EGB4050-E40-Y | 40 | 44 | 50 | Plain Bushes |
EGB4540-E40-Y | 45 | 50 | 40 | Plain Bushes |
EGB4550-E40-B-Y | 45 | 50 | 50,00 | Plain Bushes |
EGB4550-E50-Y | 45 | 50 | 50,00 | Plain Bushes |
EGB5020-E40-Y | 50 | 55 | 20 | Plain Bushes |
EGB5025-E50 | 50 | 55 | Plain Bushes | |
EGB5030-E40-Y | 50 | 55 | 30 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB5040-E40-Y | 50 | 55 | 40,00 | Plain Bushes |
EGB5060-E40-B-Y | 50 | 55 | 60 | Plain Bushes |
EGB5060-E50-Y | 50 | 55 | 60 | Plain Bushes |
EGB5530-E40 | 55 | 60 | 30,00 | Plain Bushes |
EGB5540-E40-Y | 55 | 60 | 40 | Plain Bushes |
EGB6030-E40-Y | 60 | 65 | 30 | Plain Bushes |
EGB6030-E50-Y | 60 | 65 | 30,00 | Plain Bushes |
EGB6040-E50-Y | 60 | 65 | 40,00 | Plain Bushes |
EGB6060-E40-B-Y | 60 | 65 | 60,00 | Plain Bushes |
EGB6060-E40-Y | 60 | 65 | 60,00 | Plain Bushes |
EGB6060-E50-Y | 60 | 65 | 60,00 | Plain Bushes |
EGB6530-E40-Y | 65 | 70 | 30 | Plain Bushes |
EGB6540-E40-Y | 65 | 70 | 40 | Plain Bushes |
EGB6560-E40-Y | 65 | 70 | 60,00 | Plain Bushes |
EGB6570-E40-Y | 65 | 70 | 70,00 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB7050-E40-B-Y | 70 | 75 | 50,00 | Plain Bushes |
EGB7050-E40-Z | 70 | 75 | 50,00 | Plain Bushes |
EGB7050-E50-Y | 70 | 75 | 50,00 | Plain Bushes |
EGB7070-E40-B-Y | 70 | 75 | 70,00 | Plain Bushes |
EGB7070-E40 | 70 | 75 | Plain Bushes | |
EGB7070-E40-Z | 70 | 75 | 70 | Plain Bushes |
EGB7540-E50 | 75 | 80 | Plain Bushes | |
EGB7540-E50-Y | 75 | 80 | 40,00 | Plain Bushes |
EGB7550-E40-Z | 75 | 80 | 50,00 | Plain Bushes |
EGB7580-E50-Y | 75 | 80 | 80,00 | Plain Bushes |
EGB8040-E40-Z | 80 | 85 | 40 | Plain Bushes |
EGB8040-E50-Y | 80 | 85 | 40,00 | Plain Bushes |
EGB8060-E40-Y | 80 | 85 | 60,00 | Plain Bushes |
EGB8060-E50-Y | 80 | 85 | 60 | Plain Bushes |
EGB8080-E40-Y | 80 | 85 | 80 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGB8080-E50-Y | 80 | 85 | 80,00 | Plain Bushes |
EGB90100-E40-Y | 90 | 95 | 100 | Plain Bushes |
EGB9050-E40-Z | 90 | 95 | 50,00 | Plain Bushes |
EGB9060-E40-B-Y | 90 | 95 | 60,00 | Plain Bushes |
EGB9060-E40 | 90 | 95 | Plain Bushes | |
EGB9060-E50-Y | 90 | 95 | 60 | Plain Bushes |
EGB9560-E40-B-Y | 95 | 100 | 60,00 | Plain Bushes |
EGF06070-E40-Y | 6 | 8 | 7,00 | Plain Bushes |
EGF06080-E40-B-Y | 6 | 8 | 8,00 | Plain Bushes |
EGF06080-E40-Y | 6 | 8 | 8 | Plain Bushes |
EGF08055-E40-B-Y | 8 | 10 | 5,50 | Plain Bushes |
EGF08055-E40-Y | 8 | 10 | 5,5 | Plain Bushes |
EGF08075-E40-Y | 8 | 10 | 7,5 | Plain Bushes |
EGF08095-E40-B-Y | 8 | 10 | 9,50 | Plain Bushes |
EGF08095-E40-Y | 8 | 10 | 9,50 | Plain Bushes |
Part Number | Inner Diameter | Outer Diameter | Width | Category |
EGF10070-E40-B-Y | 10 | 12 | 7,00 | Plain Bushes |
EGF10070-E40-Y | 10 | 12 | 7,00 | Plain Bushes |
EGF10090-E40-Y | 10 | 12 | 9 | Plain Bushes |
EGF10120-E40-B-Y | 10 | 12 | 12,00 | Plain Bushes |
EGF10120-E40-Y | 10 | 12 | 12 | Plain Bushes |
EGF10170-E40-B-Y | 10 | 12 | 17 | Plain Bushes |
EGF10170-E40-Y | 10 | 12 | 17 | Plain Bushes |
EGF12070-E40-B-Y | 12 | 14 | 7,00 | Plain Bushes |
EGF12080-E40 | 12 | 14 | 8,00 | Plain Bushes |
EGF12090-E40-B-Y | 12 | 14 | 9 | Plain Bushes |
EGF12090-E40-Y | 12 | 14 | 9 | Plain Bushes |
EGF12120-E40-B-Y | 12 | 14 | 12 | Plain Bushes |
EGF12120-E40-Y | 12 | 14 | 12,00 | Plain Bushes |
EGF12170-E40-Y | 12 | 14 | 17 | Plain Bushes |
EGF14170-E40-Y | 14 | 16 | 17,00 | Plain Bushes |
Acetal Resin Liner Ptfe-Lead Overlay Plate Low Carbon Steel Backing Sintered Bronze Substrate
The "DX bushes Equivalent" pre-lubricated bearings also exhibit high load carrying capacity and extremely low friction during use. Recommended for applications involving intermittent operation or boundary lubrication, these bushings will operate for long periods of time with only a small amount of lubrication introduced on initial assembly. With a temperature range of -40 to 210 degrees F, "NX" bearings are particularly effective in situations where lubrication cannot be frequently supplied.
Ina Fag Bearing Bushing Equivalent Metric & Inch size
Self-lubricating & Pre-lubricated Bearings

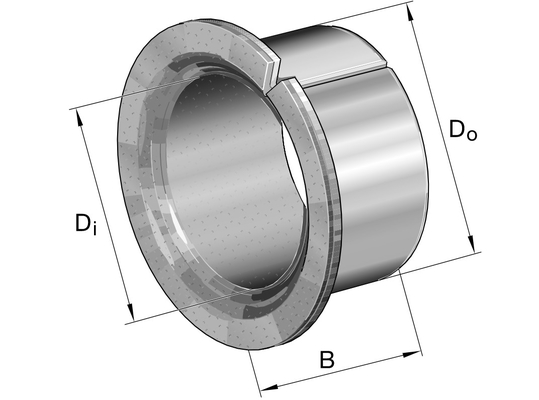

LENGTH FLANGE OD FLANGE THICKNESS SPLIT TYPE BUSHING
Part Number Ina Fag Bearing Bushing Equivalent metric Inch Size
Solid Lubricant Inlaid Bearings
Stainless Steel Bearings
Pre-lubricated Bearings
Ina Fag Bearing Bushing Equivalent metric Inch Size INCH
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings - Up to 2 Inch Bore.
Ina Fag Bearing Bushing Equivalent metric Inch Size Flanged Bearings
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings - Over 2 Inch Bore
Ina Fag Bearing Bushing Equivalent metric Inch Size Thrust Washers
Ina Fag Bearing Bushing Equivalent metric Inch Size METRIC
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings - Up to 45mm Bore
Ina Fag Bearing Bushing Equivalent metric Inch Size Flanged Bearings
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings - Over 45mm Bore
Ina Fag Bearing Bushing Equivalent metric Inch Size INCH
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings
Ina Fag Bearing Bushing Equivalent metric Inch Size Thrust Washers
Ina Fag Bearing Bushing Equivalent metric Inch Size METRIC
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings - Up to 110mm Bore
Ina Fag Bearing Bushing Equivalent metric Inch Size Bearings - Over 110mm Bore
Ina Fag Bearing Bushing Equivalent metric Inch Size Thrust Washers
