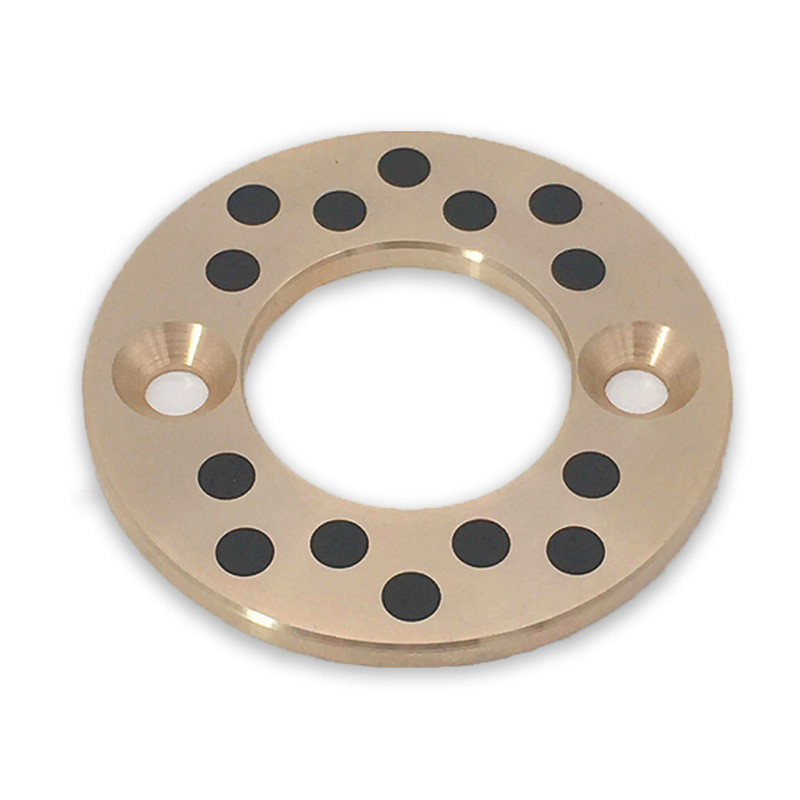

Thrust Bearing Washer JTW-10 ZCuZn25Al6Fe3Mn3

The Solid Lubricant Embedded JTW-10 Thrust Bearing Washer is a high-performance component designed to provide exceptional lubrication and wear resistance in thrust bearing applications. This washer is embedded with a solid lubricant, which ensures a constant and reliable lubrication during operation, eliminating the need for regular lubrication and significantly reducing maintenance requirements.

The JTW-10 material used in the thrust bearing washer is known for its excellent durability and mechanical properties, enabling it to handle high loads and stresses without compromising performance. The solid lubricant embedded within the material further enhances its wear resistance, ensuring a long service life and reliable performance even in harsh operating conditions.

The precision manufacturing of the Solid Lubricant Embedded JTW-10 Thrust Bearing Washer ensures a perfect fit and optimal performance. It is designed to provide a smooth and efficient thrust bearing surface, minimizing friction and heat generation. This results in improved efficiency and reduced operational costs.

Whether used in automotive applications, industrial machinery, or any other thrust bearing system, the Solid Lubricant Embedded JTW-10 Thrust Bearing Washer offers a reliable and cost-effective solution for enhancing the performance and durability of thrust bearings. Its unique solid lubricant embedding technology ensures consistent lubrication and wear resistance, making it a superior choice for thrust bearing applications that require high performance and reduced maintenance.

Gasket JTW thrust gasket copper base solid inlaid self lubricating gasket graphite inlaid bearing bush

JTW-10 ZCuZn25Al6Fe3Mn3 Solid Lubricant Embedded Thrust Bearing Washer
JTW Thrust Gasket Copper Base Solid Inlaid Self Lubricating Gasket Graphite Inlaid Bearing Bush
Graphite Thrust Bearing Washer with Continuous Lubrication
Bronze Thrust Washer with Graphite for Steam Locomotive Production Lines
Bronze Thrust Bearing Support High Temperature & Heavy-Duty Axial Load

Thrust Bearing Washer JTW-10, Solid lubricant embedded thrust bearing washer is a new type made from strong brass and homogeneously embedded with solid lubricant in its body. It breaks through the limit of general bearing whose lubrication depends on an oil film. So it is suitable for high temperature, heavy-duty, anti-corrosion, or where oil is hard to be introduced. It's performance doubles both on hardness and wear-friction.

Graphite Thrust Bearing Washer  is mechanically forced into the holes/grooves under extreme pressure. A film of lubricant is transferred to the shaft as it begins to turn. These bearings offer continuous lubrication over long periods without maintenance.

Material: ZCuZn25Al6Fe3Mn3

bronze thrust washer the size is based on bronze washer with graphite, which is Combined with the wear resistance of copper alloy and solid self-lubricating properties of the lubricant to use in the process of maintaining without refueling. Products are widely used in high-contained, intermittent or swing movement, such as steam locomotive production lines, turbine and reservoirs work / accident doors, plastic machinery. According to the conditions, can provide various types of copper alloy.

Bronze thrust bearing support the axial load on the shaft in order to protect the more valuable bottom parts. They are designed to prevent movement along the axis of the shaft. bronze thrust bearing can be grooved to provide additional lubrication distribution.

Structures

Material Features

Allows maintenance-free and long-life operation;
Suitable for high static and dynamic loads;
With low and smoothly coefficient of friction and without stick-slip effects;
Suitable for dirty, corrosion, impact load and edge loading;
The base material provided a good shock-absorbing capacity;
Can be used over a large temperature range;
Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
With low wear rate and long life service.

Applications

Service

Under technical dry running conditions, the bearing surface is designed with thick running-in film which enables the solid lubricant to be transferred to the counter material at the first contact.

JDB-JTW-10 10.2 30 3 20 M3 3.5 2 JDB-JTW-12 12.2 40 " 28 " " " JDB-JTW-13 13.2 " " " " " " JDB-JTW-14 14.2 " " " " " " JDB-JTW-15 15.2 50 " 35 " " " JDB-JTW-16 16.2 " " " " " " JDB-JTW-18 18.2 " " " " " " JDB-JTW-20 20.2 " 5 " M5 6 " JDB-JTW-25 25.2 55 " 40 " " " JDB-JTW-30 30.2 60 " 45 " " " JDB-JTW-35 35.2 70 " 50 M6 7 " JDB-JTW-40 40.2 80 7 60 " " " JDB-JTW-45 45.3 90 70 " " " JDB-JTW-50 50.3 100 8 75 " " 4 JDB-JTW-55 55.3 110 " 85 " " " JDB-JTW-60 60.3 120 " 90 M8 9 " JDB-JTW-65 65.3 125 " 95 " " " JDB-JTW-70 70.3 130 10 100 " " " JDB-JTW-75 75.3 140 " 110 " " " JDB-JTW-80 80.3 150 " 120 " " " JDB-JTW-90 90.5 170 " 140 M10 11 " JDB-JTW-100 100.5 190 " 160 " " " JDB-JTW-120 120.5 200 " 175 " " "
