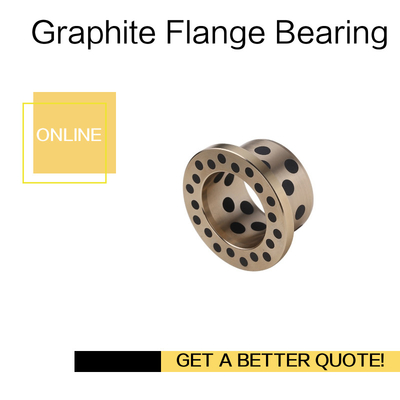

C86300 Manganese Bronze Flange Oilless Bushes Graphite Plugs
| Place of Origin | oilless bushing |
|---|---|
| Brand Name | ,MISUMI，DAIDO，SELF LUBE，,FIBRO STANDARD REPLACEMENT BEARING |
| Certification | DIN 1850/ISO 4379， UNITED STATES UNS STANDARD,C86300 |
| Model Number | solid bushing, bronze with lubricant plugs embedded Maintenance-free |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, PTFE Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Marerial | Bronze Graphite Bushing | Size | Inch Size Bushings |
|---|---|---|---|
| Standard Size | C86300,C86200 | Type | PLUGGED CAST BRONZE |
| Item | Oilless Bushing | Feature | Guide Bush With Collar |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
| High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
| Highlight | graphite impregnated bushings,graphite filled bronze bushes |
||
Product Description

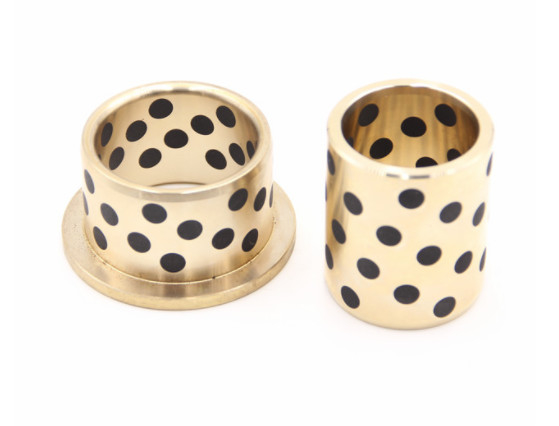

C86300 Manganese Bronze Flange Oilless Bushes with Graphite Plugs are mechanical components that are specifically designed to operate without the need for external lubrication. The C86300 manganese bronze material provides excellent strength, durability, and wear resistance, while the graphite plugs embedded within the bushing's inner lining act as a natural lubricant, reducing friction and ensuring smooth operation.
The flanged design of these bushings allows for easy installation and secure fitment within the application. The graphite plugs further enhance the bushings' performance by providing continuous lubrication and reducing the need for maintenance or replacement.
In applications where lubrication is not possible or desirable, C86300 Manganese Bronze Flange Oilless Bushes with Graphite Plugs offer a reliable and efficient solution. They are commonly used in industries such as steel production, mining, marine, and heavy machinery, where the bushings are subjected to high loads, high temperatures, and harsh environments.
When selecting C86300 Manganese Bronze Flange Oilless Bushes with Graphite Plugs, it is important to consider the specific requirements of your application, including the dimensions, load capacity, and operating conditions. It is also recommended to consult with a manufacturer or supplier to ensure that the bushings you select meet your needs and will perform optimally within your system.

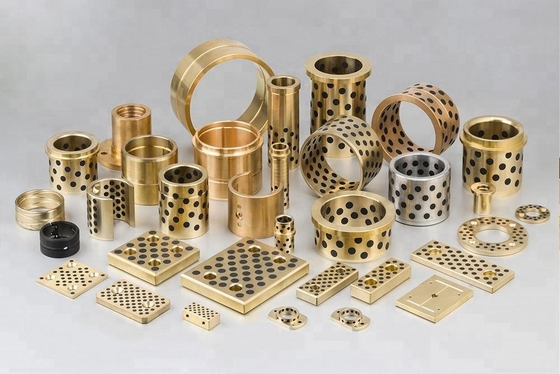

Self lubricant, die components, precision mold components, Oilless Bronze bushing.
Guide bush with collar, Bronze with solid lubricant
Material: Bronze with solid lubricant, oilless lubricating Note: Assembly guide lines / Dimensional requirements and tolerances at the end of chapter D. Attention: Bushes can only be used with axial motion!
Plug graphite bearings are primarily used in applications that need continuallubrication in hard to reach areas. Graphite is mechanically forced
into the holes/grooves under extreme pressure. A film of lubricant is transferred to the shaft as it begins to turn. These bearings offer continuous lubrication over long periods without maintenance.
Characteristics
● Have Incomparable performance under a high load, low speed operation. Also perform well without lubrication.
● Excellent wear resistance in such places where an oil film is difficult to be formed due to reciprocating, oscillating motions and frequently intermittent operations.
● Remarkable resistance to corrosion and resistance to chemical attack.
● Maintenance free and save operating cost.
NAAMS self-lubricating guide sleeve type
At present, NC machining has been realized, and the machining accuracy and production technology have been stabilized and improved
NAAMS self-lubricating guide sleeve bushings, the product accuracy is reliable, the dimension is stable, may reduce the mold guide assembly time, and the mold manufacture expense!
Washer SOBW
Bush Straight, Bronze Castings type SOB
Spherical Bush SOB
Spherical Bush Set Standard type, Strong type
Blank Material for Bushing S30
Slide Plate
Bronze, Thickness 20mm
Slide Plate
Bronze, Thickness 10mm
Slide Plate
Bronze, Thickness 5mm UWP
Slide Plate
Bronze, Thickness 10mm SOLP
Slide Plate
Bronze, Thickness 10mm SOML
Slide Plate
Bronze, Blank type FPLB
Slide Plate
Bronze, High-Pressure type Thickness 10mm TLP
Slide Plate
FC, Thickness 20mm SESF,SESFT
Slide Plate
Steel, Thickness 20mm FRP
Slide Plate
Steel, Thickness 10mm TSP
Slide Plate
Copper Powder Sintered, Thickness20mm
Slide Plate
Copper Powder Sintered, Thickness10mm
Slide Guide
Bronze L-Shaped type SGLDW
Slide Guide
Bronze T-Shaped type TGLWN
Slide Guide
Bronze L-Shaped type SGLXS
Slide Guide
Bronze L-Shaped Blank type SGLX
Slide Guide
Bronze L-Shaped type SOL
Product features
1. Suitable for mold manufacturing industry, widely used.
2. High-quality brass and graphite are selected to greatly enhance the durability of guide sleeve in guiding performance and have a beautiful metallic luster.
3. After fine-tuning, its toughness, smoothness, and positioning performance are excellent.
4. High dimensional accuracy, stable quality, and complete specifications.
Oiless bush type Bushes | General Machinery | Products | Oilless Replacement Parts
Learn more about self-lubricating plastic plain bearings from www.bronzegleitlager.com, designed for maximum service life in extreme industrial conditions at a very low cost.
C-86200/C-86300 self-lubricating sleeve bearing Machining Casting on centrifugal C86300 Manganese Bronze Cast bronze bearings with solid graphite lubrication
Copper Sleeve and Bearings
Faster
Better
Safer
Manganese Bronze with Graphite Plugs Inch Size C86300
Engineered for a Longer More Reliable Service Life
Material Grade: C-86200 or C-86300
Terms-
· Dimensional inspection report.
· Test certificate for mechanical properties (including hardness and density) of material.
Bronze can operate at high speeds under heavy loads, but require high shaft hardness and nonabrasive operating conditions. This alloy has excellent mechanical qualities and good corrosion resistance. This alloy is compromised of copper, manganese, aluminum and iron. This combination raises the tensile strength.
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||
Self-lubricating sleeve bearing for Hydro Mechanical Equipments
Radial gates, Vertical gates, Stop logs, Penstock steel Liners, Mechanical Hoists, Hydraulic Hoists, Instrumentations, Gantry Cranes, Overhead Cranes, Reservoir Management Services with applications in...
Ware Storage
Flood Control
Hydro Electric Power Generation
Irrigation
Casting Copper Alloy
Type:Lead Free Brass
self-lubricating sleeve bearing Oil-Less Type Bushings
|
Chemical Composition mass/% |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
|
Cu |
Sn |
Al |
Fe |
Mn |
Ni |
Pb |
Si |
P |
Zn |
|
60-66 |
0.2 |
5.0-7.5 |
2.0-4.0 |
2.5-5.0 |
1 |
0.2 |
_ |
_ |
_ |
|
Mechanical properties |
|||
|---|---|---|---|
|
Tensile strength Mpa(Min) |
Yield strength MPa(Min) |
Elongation % |
Brinell hardness(HB) |
|
758 |
427 |
14 |
225 |
Note:
1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference
|
C86300 |
Dimensions are in inches |
|
Manganese Bronze with Graphite Plugs |
(ID x OD x L) |
|
GRAPHITE BUSHINGS |
1/2 x 3/4 x 1/2 |
|
GRAPHITE BUSHINGS |
1/2 x 3/4 x 3/4 |
|
GRAPHITE BUSHINGS |
1/2 x 3/4 x 1/2 |
|
GRAPHITE BUSHINGS |
5/8 x 7/8 x 5/8 |
|
GRAPHITE BUSHINGS |
5/8 x 7/8 x 3/4 |
|
GRAPHITE BUSHINGS |
5/8 x 7/8 x 1 |
|
GRAPHITE BUSHINGS |
5/8 x 7/8 x 1-1/4 |
|
GRAPHITE BUSHINGS |
5/8 x 7/8 x 1-1/2 |
|
GRAPHITE BUSHINGS |
3/4 x 1-1/8 x 5/8 |
|
GRAPHITE BUSHINGS |
3/4 x 1-1/8 x 3/4 |
|
GRAPHITE BUSHINGS |
3/4 x 1-1/8 x 1 |
|
GRAPHITE BUSHINGS |
3/4 x 1-1/8 x 1-1/4 |
|
GRAPHITE BUSHINGS |
3/4 x 1-1/8 x 1-1/2 |
|
GRAPHITE BUSHINGS |
7/8 x 1-1/4 x 3/4 |
|
GRAPHITE BUSHINGS |
7/8 x 1-1/4 x 1 |
|
GRAPHITE BUSHINGS |
7/8 x 1-1/4 x 1-1/8 |
|
GRAPHITE BUSHINGS |
7/8 x 1-1/4 x 1-1/4 |
|
GRAPHITE BUSHINGS |
7/8 x 1-1/4 x 1-1/2 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 3/8 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 1/2 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 5/8 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 3/4 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 1 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 1-1/4 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 1-1/2 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 1-3/4 |
|
GRAPHITE BUSHINGS |
1 x 1-3/8 x 2 |
|
GRAPHITE BUSHINGS |
1 x 1-1/2 x 3/4 |
|
GRAPHITE BUSHINGS |
1 x 1-1/2 x 1 |
|
GRAPHITE BUSHINGS |
1 x 1-1/2 x 1-1/2 |
|
GRAPHITE BUSHINGS |
1 x 1-1/2 x 2 |
|
GRAPHITE BUSHINGS |
1-1/8 x 1-1/2 x 1 |
|
GRAPHITE BUSHINGS |
1-1/4 x 1-5/8 x 1 |
|
GRAPHITE BUSHINGS |
1-1/4 x 1-5/8 x 1-1/4 |
|
GRAPHITE BUSHINGS |
1-1/4 x 1-5/8 x 1-1/2 |
|
GRAPHITE BUSHINGS |
1-1/4 x 1-5/8 x 1-3/4 |
|
GRAPHITE BUSHINGS |
1-1/4 x 1-5/8 x 2 |
|
GRAPHITE BUSHINGS |
1-1/2 x 2 x 1-1/4 |
|
GRAPHITE BUSHINGS |
1-1/2 x 2 x 1-1/2 |
|
GRAPHITE BUSHINGS |
1-1/2 x 2 x 1-3/4 |
|
GRAPHITE BUSHINGS |
1-1/2 x 2 x 2 |
|
GRAPHITE BUSHINGS |
1-3/4 x 2-1/4 x 1-1/4 |
|
GRAPHITE BUSHINGS |
1-3/4 x 2-1/4 x 1-1/2 |
|
GRAPHITE BUSHINGS |
1-3/4 x 2-1/4 x 1-3/4 |
|
GRAPHITE BUSHINGS |
1-3/4 x 2-1/4 x 2 |
|
GRAPHITE BUSHINGS |
1-3/4 x 2-1/4 x 2-1/2 |
|
GRAPHITE BUSHINGS |
1-3/4 x 2-1/4 x 4 |
|
GRAPHITE BUSHINGS |
2 x 2-1/2 x 1-1/4 |
|
GRAPHITE BUSHINGS |
2 x 2-1/2 x 1-1/2 |
|
GRAPHITE BUSHINGS |
2 x 2-1/2 x 2 |
|
GRAPHITE BUSHINGS |
2 x 2-1/2 x 2-1/2 |
|
GRAPHITE BUSHINGS |
2 x 2-1/2 x 3 |
|
GRAPHITE BUSHINGS |
2-1/2 x 3 x 3 |
|
GRAPHITE BUSHINGS |
3 x 3-1/2 x 4 |
|
GRAPHITE BUSHINGS |
3 x 3-5/8 x 3 |
|
GRAPHITE BUSHINGS |
3-1/2 x 4-1/8 x 2 |
|
GRAPHITE BUSHINGS |
3-1/2 x 4-1/8 x 3 |
|
GRAPHITE BUSHINGS |
3-1/2 x 4-1/8 x 4 |
|
GRAPHITE BUSHINGS |
4 x 4-3/4 x 2 |
|
GRAPHITE BUSHINGS |
4 x 4-3/4 x 3 |
|
GRAPHITE BUSHINGS |
4 x 4-3/4 x 4 |
|
GRAPHITE BUSHINGS |
5 x 6 x 3 |
|
GRAPHITE BUSHINGS |
5 x 6 x 4 |
Graphited self-lubricating sleeve bearing should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.
Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.
- Inch Sleeves
- Metric Sleeves
- Metric Flanges
- Metric Washers
Solid self-lubricating sleeve bearing with graphite plug insert | Graphite copper sleeve bushings

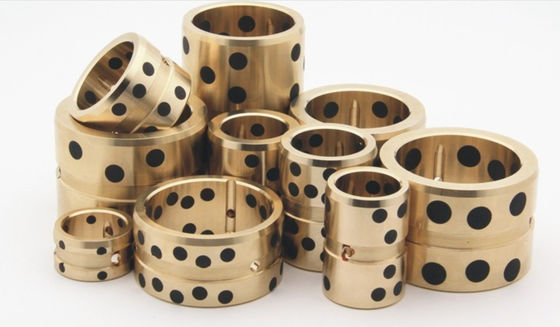

Graphite Plugged Bronze Bushings are all self-lubricating and maintenance-free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A self-lubricating sleeve bearing and its mating surface should always be separated by a film of lubricant. Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom-thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom-thick sheets are very slippery.
- Wear Plates
- Wear Strips
- Bushings
- Slide Assemblies
- Guide Components

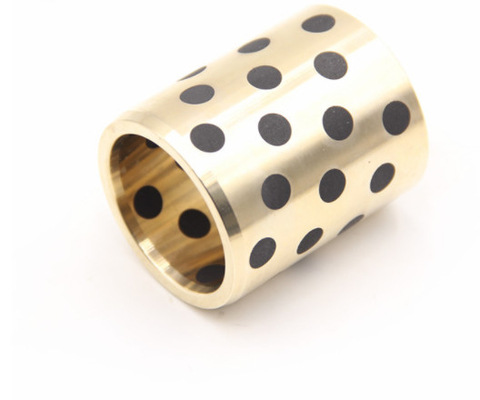

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite self-lubricating sleeve bearing
- Inch Sized Bushings
- Metric Sized Bushings
Technical Data
| Grade | 50# | 50S1 | 50S2 | 50S3 | 650S5 |
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | CuZn25AI5Mn4Fe3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| Hardness | ≥210 | ≥70 | ≥150 | ≥75 | ≥235 |
| Tensile strength | ≥750 | ≥250 | ≥500 | ≥270 | ≥800 |
| Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | ≥450 |
| Elongation | ≥12 | ≥13 | ≥10 | ≥5 | ≥8 |
| Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
| Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
| Max.dynamic load | 100 | 60 | 50 | 70 | 120 |
| Max.speed(Dry) | 15 | 10 | 20 | 10 | 15 |
| N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 80 | 200 |
| Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm |
< 0.005mm |
Applications
Self-Lubricating Sleeve Bearing For Construction Equipment, Boom Link Bushings For Power Shovels, Toggle Link & Guide Bushings For Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire, And Paper Mill Machinery And Many Other Industrial Applications.
Material
C86300 Manganese Bronze
C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat-treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.
self-lubricating sleeve bearing flanged bronze bushings for sale
|
C86300 Manganese Bronze Graphite Bushings |
|
|
ELEMENT |
CONTENT (%) |
|
Copper, Cu |
60.0-68.0 |
|
Lead, Pb |
≤0.2 |
|
Tin, Sn |
≤0.2 |
|
Zinc, Zn |
22~28 |
|
Iron, Fe |
2.0-4.0 |
|
Aluminum, Al |
5.0-7.50 |
|
Manganese, Mn |
2.5-5.0 |
|
|
|
|
C86200 Manganese Bronze Graphite Bushings |
|
|
ELEMENT |
CONTENT (%) |
|
Copper, Cu |
60.0-68.0 |
|
Lead, Pb |
≤0.2 |
|
Tin, Sn |
≤0.2 |
|
Zinc, Zn |
22~28 |
|
Iron, Fe |
2.0-4.0 |
|
Aluminum, Al |
3.0-4.90 |
|
Manganese, Mn |
2.5-5.0 |
Performance
Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds
The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating sleeve bearing feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
self-lubricating sleeve bearing with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2
| bushing | length | |||||||||||||
| size(mm) | ||||||||||||||
| ID | OD | 8 | 10 | 12 | 15 | 16 | 19 | 20 | 25 | 30 | 35 | |||
| ￠d | ￠D | JDB | JDB | JDB | JDB | JDB | JDB | JDB | JDB | JDB | JDB | |||
| 8 | 8 | 0.028 | 12 | 0.018 |
081208 101408 |
081210 101410 |
081212 101412 |
81215 | 101420 | |||||
| 10 | 0.013 | 0.007 | 101415 | |||||||||||
| 10 | 0.028 | 14 | 0.018 | |||||||||||
| 0.013 | 0.007 | |||||||||||||
| 12 | 12 | 0.034 | 18 | 0.018 | 121808 | 121810 | 121812 | 121815 | 121816 | 121819 | 121820 | 121825 | 121830 | |
| 0.016 | 0.007 | |||||||||||||
| 13 | 13 | 0.034 | 19 | 0.021 | 131910 | 131912 | 131915 | 131920 | ||||||
| 0.016 | 0.006 | |||||||||||||
| 14 | 14 | 0.034 | 20 | 0.021 | 142010 | 142012 | 142015 | 142020 | 142025 | 142030 | ||||
| 0.016 | 0.006 | |||||||||||||
| 15 | 15 | 0.034 | 21 | 0.021 | 152110 | 152112 | 152115 | 152116 | 152120 | 152125 | 152130 | |||
| 0.016 | 0.006 | |||||||||||||
| 16 | 16 | 0.034 | 22 | 0.021 | 162210 | 162212 | 162215 | 162216 | 162219 | 162220 | 162225 | 162230 | 162235 | |
| 0.016 | 0.006 | |||||||||||||
| 17 | 17 | 0.034 | 23 | 0.021 | 172315 | |||||||||
| 0.016 | 0.006 | |||||||||||||
| 18 | 18 | 0.034 | 24 | 0.021 | 182412 | 182415 | 182416 | 182420 | 182425 | 182430 | ||||
| 0.02 | 0.006 | |||||||||||||
| 19 | 19 | 0.041 | 26 | 0.021 | 192615 | 192620 | ||||||||
| 0.02 | 0.006 | |||||||||||||
| 20 | 20 | 0.041 | 28 | 0.021 | 202810 | 202812 | 202815 | 202816 | 202819 | 202820 | 202825 | 202830 | 202835 | |
| 0.02 | 0.006 | |||||||||||||
| 20 | 0.041 | 30 | 0.021 | 203016 | 203020 | 203025 | 203030 | 203035 | ||||||
| 0.02 | 0.006 | |||||||||||||
| 22 | 22 | 0.041 | 32 | 0.021 | 223212 | 223215 | 223220 | 223225 | ||||||
| 0.02 | 0.006 | |||||||||||||
| 25 | 0.041 | 33 | 0.025 | 253312 | 253315 | 253316 | 253320 | 253325 | 253330 | 253335 | ||||
| 25 | 0.02 | 0.009 | ||||||||||||
| 25 | 0.041 | 35 | 0.025 | 253512 | 253515 | 253516 | 253520 |
253525 |
253530 |
253535 |
||||
|
|
0.02 |
0.009 |
||||||||||||
|
28 |
28 |
0.041 |
38 |
0.025 |
|
|
|
|
|
|
283820 |
283825 |
283830 |
|
|
0.02 |
0.009 |
|||||||||||||
|
|
30 |
0.041 |
38 |
0.025 |
|
|
303812 |
303815 |
|
|
303820 |
303825 |
303830 |
303835 |
|
30 |
0.02 |
0.009 |
||||||||||||
|
|
30 |
0.041 |
40 |
0.025 |
|
|
304012 |
304015 |
|
|
304020 |
304025 |
304030 |
304035 |
|
|
0.02 |
0.009 |
||||||||||||
|
31.5 |
31.5 |
0.05 |
40 |
0.025 |
|
|
|
|
|
|
|
|
314030 |
|
|
0.025 |
0.009 |
|||||||||||||
|
32 |
32 |
0.05 |
42 |
0.025 |
|
|
|
|
|
|
324220 |
|
324230 |
|
|
0.025 |
0.009 |
|||||||||||||
|
|
35 |
0.05 |
44 |
0.025 |
|
|
|
|
|
|
354420 |
354425 |
354430 |
354435 |
|
35 |
0.025 |
0.009 |
||||||||||||
|
|
35 |
0.05 |
45 |
0.025 |
|
|
|
|
|
|
354520 |
354525 |
354530 |
354435 |
|
|
0.025 |
0.009 |
||||||||||||
|
38 |
38 |
0.05 |
48 |
0.025 |
|
|
|
|
|
|
|
|
|
|
|
0.025 |
0.009 |
|||||||||||||
|
40 |
40 |
0.05 |
50 |
0.025 |
|
|
|
405015 |
|
|
405020 |
405025 |
405030 |
405035 |
|
0.025 |
0.009 |
|||||||||||||
|
40 |
0.05 |
55 |
0.03 |
|
|
|
405515 |
|
|
|
|
405530 |
405535 |
|
|
0.025 |
0.011 |
|||||||||||||
|
45 |
45 |
0.05 |
55 |
0.03 |
|
|
|
|
|
|
|
|
455530 |
455535 |
|
0.025 |
0.011 |
|||||||||||||
|
45 |
0.05 |
56 |
0.03 |
|
|
|
|
|
|
|
|
455630 |
455635 |
|
|
0.025 |
0.011 |
|||||||||||||
|
45 |
0.05 |
60 |
0.03 |
|
|
|
|
|
|
|
|
456030 |
456035 |
|
|
0.025 |
0.011 |
|||||||||||||
|
50 |
50 |
0.05 |
60 |
0.03 |
|
|
|
|
|
|
|
|
506030 |
506035 |
|
0.025 |
0.011 |
|||||||||||||
|
50 |
0.05 |
62 |
0.03 |
|
|
|
|
|
|
506220 |
|
506230 |
506235 |
|
|
0.025 |
0.011 |
|||||||||||||
|
50 |
0.05 |
65 |
0.03 |
|
|
|
|
|
|
|
|
506530 |
|
|
|
0.025 |
0.011 |
|||||||||||||
|
55 |
55 |
0.06 |
70 |
0.03 |
|
|
|
|
|
|
|
|
557030 |
557035 |
|
0.03 |
0.011 |
|||||||||||||
|
|
60 |
0.06 |
74 |
0.03 |
|
|
|
|
|
|
|
|
607430 |
607435 |
|
60 |
0.03 |
0.011 |
||||||||||||
|
|
60 |
0.06 |
75 |
0.03 |
|
|
|
|
|
|
|
|
607530 |
607535 |
|
|
0.03 |
0.011 |
||||||||||||
|
63 |
63 |
0.06 |
75 |
0.03 |
|
|
|
|
|
|
|
|
|
|
|
0.03 |
0.011 |
|||||||||||||
|
65 |
65 |
0.06 |
80 |
0.03 |
|
|
|
|
|
|
|
|
|
658035 |
|
0.03 |
0.011 |
|||||||||||||
|
70 |
70 |
0.06 |
85 |
0.035 |
|
|
|
|
|
|
|
|
708530 |
708535 |
|
0.03 |
0.013 |
|||||||||||||
|
70 |
0.06 |
90 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
|
0.03 |
0.013 |
|||||||||||||
|
75 |
75 |
0.06 |
90 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
0.03 |
0.013 |
|||||||||||||
|
75 |
0.06 |
95 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
|
0.03 |
0.013 |
|||||||||||||
|
|
80 |
0.06 |
96 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
80 |
0.03 |
0.013 |
||||||||||||
|
|
80 |
0.06 |
100 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
|
0.03 |
0.013 |
||||||||||||
|
85 |
85 |
0.071 |
100 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
0.036 |
0.013 |
|||||||||||||
|
90 |
90 |
0.071 |
110 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
0.036 |
0.013 |
|||||||||||||
|
100 |
100 |
0.071 |
120 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
0.036 |
0.013 |
|||||||||||||
|
110 |
110 |
0.071 |
130 |
0.035 |
|
|
|
|
|
|
|
|
|
|
|
0.036 |
0.015 |
|||||||||||||
|
120 |
120 |
0.071 |
140 |
0.04 |
|
|
|
|
|
|
|
|
|
|
|
0.036 |
0.015 |
|||||||||||||
|
125 |
125 |
0.063 |
145 |
0.04 |
|
|
|
|
|
|
|
|
|
|
|
0.043 |
0.015 |
|||||||||||||
|
130 |
130 |
0.063 |
150 |
0.04 |
|
|
|
|
|
|
|
|
|
|
|
0.043 |
0.015 |
|||||||||||||
|
140 |
140 |
0.063 |
160 |
0.04 |
|
|
|
|
|
|
|
|
|
|
|
0.043 |
0.015 |
|||||||||||||
|
150 |
150 |
0.063 |
170 |
0.04 |
|
|
|
|
|
|
|
|
|
|
|
0.043 |
0.015 |
|||||||||||||
|
160 |
160 |
0.063 |
180 |
0.04 |
|
|
|
|
|
|
|
|
|
|
|
0.043 |
0.015 |
|||||||||||||
|
length |
|
|
id |
od |
|
|
||||||||
|
|
|
gasket |
|
|||||||||||
|
|
|
￠d |
￠D |
|
|
|||||||||
|
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
130 |
140 |
150 |
|
|
|
|
|
JDB |
JDB |
JDB |
JDB |
JDB |
JDB |
JDB |
JDB |
JDB |
JDB |
JDB |
|
|
(JDB) |
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
12 |
- |
|
|
|
|
|
|
|||||||||||
|
10 |
14 |
-1003 |
|
|||||||||||
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
12 |
18 |
-1203 |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
13 |
19 |
-1303 |
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
14 |
20 |
-1403 |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
15 |
21 |
-1503 |
|
|
|
||||||||||||||
|
162240 |
|
|
|
|
|
|
|
|
|
|
16 |
22 |
-1603 |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
17 |
23 |
-1803 |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
18 |
24 |
-2005 |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
19 |
26 |
-2005 |
|
|
|
||||||||||||||
|
202840 |
202850 |
|
|
|
|
|
|
|
|
|
20 |
28 |
-2005 |
|
|
|
||||||||||||||
|
203040 |
|
|
|
|
|
|
|
|
|
|
20 |
30 |
-2505* |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
22 |
32 |
-2505 |
|
|
|
||||||||||||||
|
253340 |
253350 |
253360 |
|
|
|
|
|
|
|
|
25 |
33 |
-2505 |
|
|
|
||||||||||||||
|
253540 |
253550 |
|
|
|
|
|
|
|
|
|
25 |
35 |
-3005* |
|
|
|
||||||||||||||
|
283840 |
|
|
|
|
|
|
|
|
|
|
28 |
38 |
-3005 |
|
|
|
||||||||||||||
|
303840 |
303850 |
303860 |
|
|
|
|
|
|
|
|
30 |
38 |
-3005 |
|
|
|
||||||||||||||
|
304040 |
304050 |
304060 |
|
|
|
|
|
|
|
|
30 |
40 |
-3505* |
|
|
|
||||||||||||||
|
314040 |
|
|
|
|
|
|
|
|
|
|
31.5 |
40 |
-3505 |
|
|
|
||||||||||||||
|
324240 |
|
|
|
|
|
|
|
|
|
|
32 |
42 |
-3505 |
|
|
|
||||||||||||||
|
354440 |
354450 |
354460 |
|
|
|
|
|
|
|
|
35 |
44 |
-3505 |
|
|
|
||||||||||||||
|
354440 |
354450 |
354460 |
|
|
|
|
|
|
|
|
35 |
45 |
-3505 |
|
|
|
||||||||||||||
|
384840 |
|
|
|
|
|
|
|
|
|
|
38 |
48 |
-4007* |
|
|
|
||||||||||||||
|
405040 |
405050 |
405060 |
405070 |
405080 |
|
|
|
|
|
|
40 |
50 |
-4007 |
|
|
|
||||||||||||||
|
405540 |
405550 |
405560 |
|
|
|
|
|
|
|
|
40 |
55 |
-4507 |
|
|
|
||||||||||||||
|
455540 |
455550 |
455560 |
|
|
|
|
|
|
|
|
45 |
55 |
-4507 |
|
|
|
||||||||||||||
|
455640 |
455650 |
455660 |
|
|
|
|
|
|
|
|
45 |
56 |
-4507 |
|
|
|
||||||||||||||
|
456040 |
456040 |
456050 |
456070 |
456080 |
|
|
|
|
|
|
45 |
60 |
-4507 |
|
|
|
||||||||||||||
|
506040 |
506040 |
506050 |
506070 |
506080 |
|
|
|
|
|
|
50 |
60 |
-5008 |
|
|
|
||||||||||||||
|
506240 |
506240 |
506250 |
506270 |
|
|
|
|
|
|
|
50 |
62 |
-5008 |
|
|
|
||||||||||||||
|
506540 |
506550 |
506560 |
506570 |
506580 |
|
5065100 |
5065120 |
|
|
|
50 |
65 |
-5008 |
|
|
|
||||||||||||||
|
557040 |
557050 |
557060 |
557070 |
|
|
|
|
|
|
|
55 |
70 |
-5508 |
|
|
|
||||||||||||||
|
607440 |
607450 |
607460 |
607470 |
607480 |
|
|
|
|
|
|
60 |
74 |
-6008 |
|
|
|
||||||||||||||
|
607540 |
607550 |
607560 |
607570 |
607580 |
|
6075100 |
6075120 |
|
|
|
60 |
75 |
-6008 |
|
|
|
||||||||||||||
|
|
|
637560 |
637570 |
637580 |
|
|
|
|
|
|
63 |
75 |
-6508* |
|
|
|
||||||||||||||
|
658040 |
658050 |
658060 |
658070 |
658080 |
|
|
|
|
|
|
65 |
80 |
-6508 |
|
|
|
||||||||||||||
|
708540 |
708550 |
708560 |
708570 |
708080 |
|
7085100 |
7085120 |
|
|
|
70 |
85 |
-7010 |
|
|
|
||||||||||||||
|
|
709050 |
709060 |
709070 |
709080 |
|
|
|
|
|
|
70 |
90 |
-7010 |
|
|
|
||||||||||||||
|
|
759050 |
759060 |
759070 |
759080 |
|
7590100 |
|
|
|
|
75 |
90 |
-7510 |
|
|
|
||||||||||||||
|
|
|
759060 |
759070 |
759580 |
|
7590100 |
|
|
|
|
75 |
95 |
-7510 |
|
|
|
||||||||||||||
|
809640 |
809650 |
809660 |
809670 |
809680 |
|
8096100 |
8096120 |
|
|
|
80 |
96 |
-8010 |
|
|
|
||||||||||||||
|
8011040 |
8011050 |
8011060 |
8011070 |
8011080 |
|
80110100 |
80110120 |
|
80110140 |
|
80 |
100 |
-8010 |
|
|
|
||||||||||||||
|
|
|
8511060 |
|
8511080 |
|
|
|
|
|
|
85 |
100 |
-9010* |
|
|
|
||||||||||||||
|
|
9011050 |
9011060 |
|
9011080 |
9011090 |
90110100 |
90100120 |
|
|
|
90 |
110 |
-9010 |
|
|
|
||||||||||||||
|
|
10012050 |
10012060 |
10012070 |
10012080 |
10012090 |
100120100 |
100120120 |
|
100120140 |
|
100 |
120 |
-10010 |
|
|
|
||||||||||||||
|
|
11013050 |
|
11013070 |
11013080 |
|
110130100 |
110130120 |
|
|
|
110 |
130 |
-12010* |
|
|
|
||||||||||||||
|
|
|
|
12014070 |
12014080 |
12014090 |
120140100 |
120140120 |
|
120140140 |
|
120 |
140 |
-12010 |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
125145100 |
125145120 |
|
|
|
125 |
145 |
- |
|
|
|
||||||||||||||
|
|
|
|
|
13015080 |
|
130150100 |
|
130145130 |
|
|
130 |
150 |
- |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
140160100 |
|
|
140160140 |
|
140 |
160 |
- |
|
|
|
||||||||||||||
|
|
|
|
|
15017080 |
|
150170100 |
|
|
|
150170150 |
150 |
170 |
- |
|
|
|
||||||||||||||
|
|
|
|
|
16718080 |
|
167180100 |
|
|
|
160180150 |
160 |
180 |
- |
|
|
|
||||||||||||||
Recommended Products
