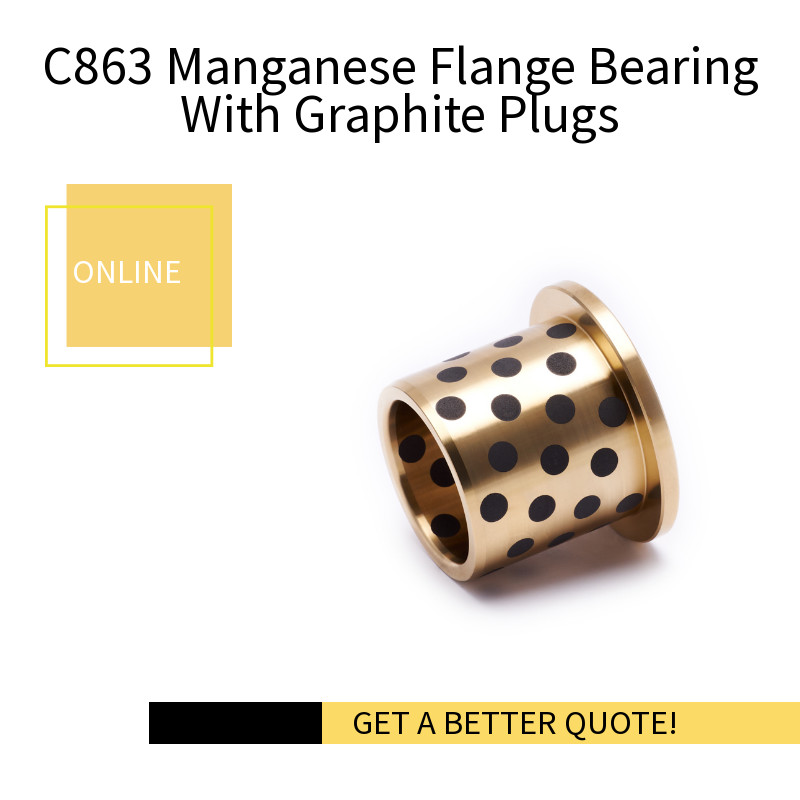

C863 Manganese Bronze Graphite Plugs Flange Bushing
| Place of Origin | oilless bushing |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | C863 Manganese with graphite plugs |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T |
| Supply Ability | plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | C863 Manganese Bronze | Feature | Graphite Plugs Lubricating |
|---|---|---|---|
| Size | Metric Size | Bushing Type | Straight Type, Or Flange Type |
| Poland | Tuleję Samosmarowna Z Brązu Z Grafitem | Standard | C863 Manganese Bronze Bushing |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Oilless Bearing Manufacturer | Https://www.bronzelube.com/ | Manufacturer | Bucha De Bronze Grafitado |
| High Light | Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery | Oilless Bushes | Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | Oilless Bush Supplier | Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries. |
| Highlight | Graphite Plugged Flange Bushing,C863 Manganese Bronze Flange Bushing |
||
Product Description
The C863 Manganese Bronze Graphite Plugs Flange Bushing is a specialized bushing designed for applications requiring high wear resistance and self-lubricating properties. This bushing is crafted from a manganese bronze alloy, which is enhanced by the addition of graphite plugs to provide exceptional performance.
The manganese bronze alloy base material offers superior mechanical strength and ductility, ensuring the bushing can withstand heavy loads and resist deformation over time. The graphite plugs embedded within the alloy provide a self-lubricating effect, reducing friction and wear during operation.
The flanged design of the bushing allows for easy installation and secure attachment to machinery components. The flange also provides additional support and stability, further enhancing the bushing's load-bearing capacity.
The C863 Manganese Bronze Graphite Plugs Flange Bushing is ideal for applications involving high-speed rotation, heavy loads, or frequent start-stops. The self-lubricating properties eliminate the need for regular lubrication maintenance, reducing downtime and improving overall system efficiency.
This bushing is also suitable for applications in harsh environments, such as those with high temperatures or corrosive chemicals. The manganese bronze alloy and graphite plugs are resistant to corrosion and wear, ensuring the bushing can maintain its performance over time.
In summary, the C863 Manganese Bronze Graphite Plugs Flange Bushing is a robust and reliable solution for applications requiring high wear resistance and self-lubricating properties. Its unique combination of material properties and design features enables it to maintain smooth and efficient operation under challenging operating conditions.

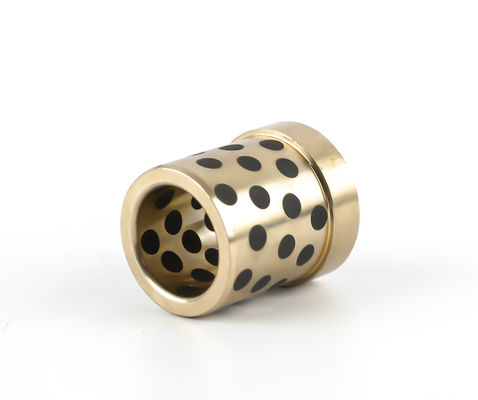

C863 Manganese With Graphite Plugs Flange Bushing
Graphite plugged bronze sleeve, DIN ISO 4379 BRONZE BUSHING WITH GRAPHITE
Graphite Bushings and Bearings
Graphite Bushings is Suited for Submerged and High-Temperature Applications. Reduced costs & downtime. Increased productivity. Services: Custom Design, Engineering Support, Short Lead Times.
Graphite Bronze Bushes, For Industrial, Size/Diameter
Get Latest Price
China Oilless Bushing Plate - self-lubricating bearing Sale
China self-lubricating bearing, Similar To Metal Bushing, Self-Lubricating Composite Sliding Material, Factory Price, Contact Us!
Our C863 Manganese Bronze Graphite Plugs Flange Bushing is the perfect solution for projects where lubrication cannot easily be provided or where conventional lubricants may carbonize. The design of oil feeding systems is time-consuming and expensive - The use of our oilless bearings can greatly reduce costs of maintenance and oil as it removes any need for such a system.
C863 Manganese Bronze Graphite Plugs Flange Bushing has been developed for high load, low-speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as a lubricant.
C863 Manganese Bronze Graphite Plugs Flange Bushing is graphite loaded and can withstand temperatures of up to 400°C (800F) as well as cryogenic temperatures down to -200°C (-400°F) depending on which material is selected.
Specifications:
| Standard | Chemical Composition (%) | Mechanical Property | Uses | ||||||||||||
| KS | JIS | ASTM | Cu | Zn | Al | Fe | Mn | Sn | Ni | Pb | Si | TS(n/m²) | E(%) | HB | |
| HBsC1 | HBsC1 | 8A | 55.0-60.0 | R | 0.5-1.5 | 0.1-1.5 | 0.1-1.5 | 1.0 max | 1.0 max | 0.4 max | 0.1 max | 413 min | 20 min | 90 | Machinery part, Propellor, Hub |
| HBsC2 | HBsC2 | 8B | 55.0-60.0 | R | 0.5-2.0 | 0.1-3.5 | 0.1-3.5 | 1.0 max | 1.0 max | 0.4 max | 0.1 max | 490 min | 18 min | 100 | Marine Parts, gear, Bush, Bearings |
| HBsC3 | HBsC3 | 8C | 60.0-65.0 | R | 3.0-7.5 | 2.0-5.0 | 2.5-5.0 | 0.5 max | 0.5 max | 0.2 max | 0.1 max | 637 min | 15 min | 165 | Cylinder Parts, Worm Gear, Cap |
| HBsC4 | HBsC4 | SAE430B | 60.0-65.0 | R | 3.0-7.5 | 2.0-5.0 | 2.5-5.0 | 0.2 max | 0.5 max | 0.2 max | 0.1 max | 755 min | 12 min | 200 | Slipper Metal, High Strength valve, Screw Nut. |
Typical applications include, but are by no means limited to:
- Kilns
- Dryers
- Injection molding machines
- Dust collectors
- Louvers
- Hot conveyors
C863 Manganese Bronze Graphite Plugs Flange Bushing benefit from outstanding chemical and corrosion resistance. The lubricant used in these bearings is formed from abrasion-resistant materials (such as graphite, , etc) and has a stabilized molecular structure.
These oilless bearings are suitable for dry environments where contamination is a risk, wet applications where there are high humidity, and applications where the bearing is in an inaccessible location. Oilless bearings are lubricated for life!
Please feel free to get in touch with our technology to ascertain which would be the most suitable combination to suit your application.
Product Description
We manufacture and export a huge range of Graphite Filled Bronze Bushes, High Tensile Manganese Bronze from the quality material of bronze and automotive bearing supplier. These High Tensile Manganese Bronze are used in various industries.
| Structure | CuZn25Al6Mn4 Bronze with solid graphite lubricant inserts (alternative specifications are available on request) |
|---|---|
| PV (N/mm² x m/s) | 3.3 max |
| Static load (N/mm²) | 100 max |
| Sliding speed (m/s) | 0.3 max |
| Operating temperature (°C) | Up to 300 (alternative specs up to 400) |
| Coefficient of thermal expansion | 19 x 10-5/°C |
| Coefficient of friction | 0.16 |
| Hardness (HB) | 210 min |
| Tensile strength (N/mm²) | 750 min |
| Elongation (%) | 12 min |
| Density (g/cm³) | 8 |
