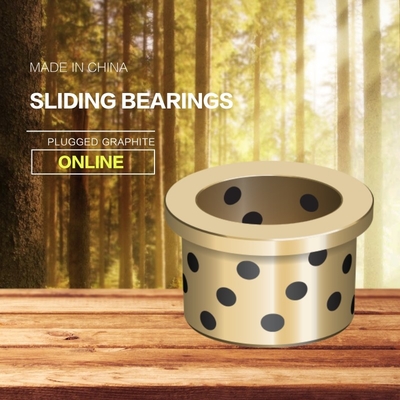

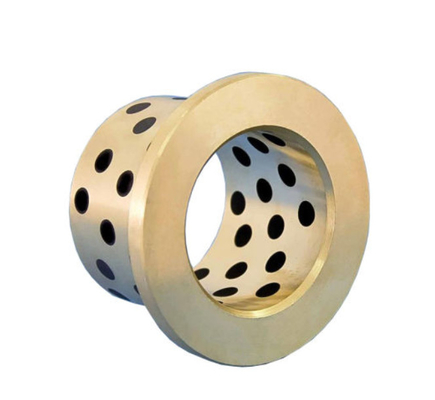

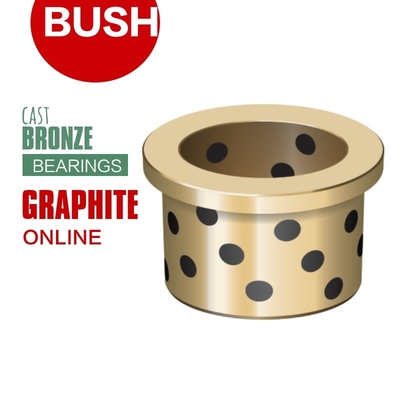

Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance

Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance
Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance

Large Image :  Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification: DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Brass High Strength Flange Embedded Graphite Plugged Bushings Mating Housing Shaft Tolerance

Description
Material: Brass CuZn25Al5Mn3Fe3 Model Number: Groove Patterns
Feature: Customized Lubrication: Without Graphite,self-lubricating
Application: Suite For General Machines And Under Atmosphere,Ship,hydraulic Turbine,gas Turbine Etc Type: Plain Cast Bronze Sleeve Bushings,grooved Cast Bronze Sleeve Bushings,flanged Cast Bronze Bushings Thrust Washer Cast Bronze Bearings , Oversized Bearings
OILLESS BUSHING Dimensional Tolerance: F7 M6 Manufacturer: China
High Light:

graphite impregnated bushings

,

graphite filled bronze bushes

Graphite Plugged Bushings



Inner diameter tolerance is F7 for Bronze Graphite OILLESS BUSH Outer diameter tolerance is m6 for Bronze Sliding Bushing Base material is CuZn25A15Mn4Fe3 All bush has solid graphite insert Leaser Marking possible on flat length surface Material Test Report and Final Inspection Report Available CNC Machined Bronze & Metal Products,Standard Size and Custom Bushings are available from stock made-to-order from china.Graphited bearings are primarily used in applications that need continual lubrication in hard to reach areas.Dimension Report for each part
Flange Tolerance Guide Bearing Mating Housing Shaft Special Solid Lubricant Embedded
Embedded Graphite Bronze Bushings Made-To-Order Choose your Bushing Inch Size,



Custom & Special Graphite Bronze Bushings


We provide sliding bearing for European, Japanese and American standard online.
Sliding Bronze bearings with or without flange are made of casted bronze material with special Graphite + additive embedded.The bronze bushings is aimed for high loads and the solid lubricant makes it possible to use plugged graphite bearings without additional lubrication. Sliding bearings show excellent performance without lubrication under conditions of low speeds and extreme high or low temperatures. The lubrication reservoirs are dispersed in a special way over the bearing surface, therefore the whole bearing surface is lubricated when the movement occurs.
Bronze Bushings Material Customized
Our main products are:Sliding bearings, self-lubricating bearings, solid lubrication bearings, self-lubricating bearings, sliding plate,trust washer,gasket, copper, brass sleeve bushings, and design ,Bushing material:phosphorus copper (QSn6.5 QSn10-1, 0.1), brass (H62, H65, H68 H70, H85, H90), tin bronze (QSn6-6-6, QSn5-5-5 CuSn10Pb1, CuSn8, CuSn4, CuSn12),Aluminum bronze (C60600, C64200, C60800, C61300, C61400, C61900, C62300, C62400, C63000, C63020, C63200, C65100, CuAL10Fe3, CuAL9Fe4Ni4, CuAL9Mn2, CuAL9Ni3Fe2, CuAL10Ni5Fe4), etc.
Sliding Bearings Precautions For Use:
1. Where possible, try to use standard design;
2. Please note that the surface of any foreign body assembly;
3. Sliding surface after use, because the solid lubricant film formation results in a surface with black or gray-black phenomenon, please do not scrub, as usual;
4. Before assembly, if the lubricating oil applied to the wear parts, can shorten the running-in period, in favor of mechanical operation, operation;
5. The assembly should be slowly pushed forbidden beat, so as not to damage bearings and cause deformation;
6. Design, should be used in different parts of the appropriate material, in order to improve the mechanical properties, extending bearing life;
7. In the high load, the reciprocating motion, it is recommended to use screws;
8. In fresh water, sea water, and at sea, the shaft, or recommend the use of stainless steel, chrome plated.

Groove Type :Single Loop Figure Eight Straight & Circular Double Loop Double Figure Eight Half Figure Eight Straight Circular
Note: In order to form a more perfect oil film between the bearing & shaft, we recommend a V-shaped groove whenever the design permits, as it allows full flow of the lubricant across the bearing surface.


Technical Parameters



Model

BRONZE BUSHINGS

BRONZE BUSHINGS

BRONZE BUSHINGS

BRONZE BUSHINGS

BRONZE BUSHINGS

Grade
China Brands
GB1776-87

ZCuZn25
AI6Fe3Mn3

ZCuSn6Zn6Pb3

ZCuAI10Fe3

ZCuSu10P1

Steel+ZCuSn6Zn6Pb3

HT250

GCr15

International
ISO1338

GCuZn25
AI6Fe3Mn3

GCuSn6Zn6Pb3

GCuAI10Fe3

CuSn12

Steel+CuSn6Zn6
Pb3Fe3Ni5

-

B1

Germany
DIN

G-CuZn25
AI5

GB-CuSn5
Zn5Pb5

GB-CuAI10Ni

GB-CuSn10

Steel+CuSn6Zn6Pb3Ni

-

100Cr6

Japanese
JIS

HBsC4

BC6

AIBC3

BC3

BC6

FC250

SUJ2

United States
ASTM/UNS

C86300

C83600

C95500

C90800

C83600

Class40

52100

British Standard

HTB2

LG2

AB1

PB4

LG2

-

-



Copper Alloy Bushings Materials


High-strength copper alloy as base material, according to the use conditions by a certain percentage of its working surface machined hole and fill one solid lubricant. High-strength copper alloy provides a high load carrying capacity and the solid lubricant can be formed lower friction. Under dry friction condition of our pre-designed layer of lubricating film in the bearing surface to ensure that in the shortest possible time will be transferred to the solid lubricant on the coupling member and form a valid solid lubricant film.



Sliding Bearing Characteristics


Custom Bushings Designs are taking on a huge need for today's self-lubricating bearing materials. Even in extreme extreme operating conditions and maximum load conditions are also required maintenance-free. With the continuous improvement of cost requirements, the reliability of equipment and plant operation requirements are also getting higher and higher. Metal self-lubricating bearings are designed for maintenance-free and self-lubricating conditions under long-term service conditions, thus making it possible to design reliable long-term self-lubricating systems. Metal self-lubricating bearing materials can be widely used in high-load low-speed conditions of rotation, swing and linear reciprocating motion, but also applies to traditional lubrication can not be achieved or prohibited to use the occasion, or in special conditions such as dust, Load or irradiation conditions need long-term and stable use.



Available Sliding Bearings Form:


Plain cast bronze sleeve bushings,grooved cast bronze sleeve bushings,flanged cast bronze bushings,thrust washer,cast bronze bearings , Oversized Bearings
Bushings Size:Our standard bearing line features over different deminsion & inch size bushings that are carried in stock.
Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease Application
VIIPLUS INTERNATIONAL according to different customer requirements, according to DIN, BS, EN (DIN/EN), SS, NS, UNS, SAE and China GB standard production of all kinds of bronze, brass bushing, plate and rod products.All products are made of electrolytic copper by centrifugal casting, continuous casting and extrusion sliding bearings.
Sliding Bearing Application
Suite for general machines and under atmosphere,Ship,hydraulic turbine,gas turbine etc.

graphite plugged bronze bushing

Unit:mm
  OD F H0-0.10 Bearing length and bearing specification.Length can be customized
ID 15 20 25 30 35 40 50 60 80 100
10 0.065 14 0.057 22 2 1015 1020
12 0.082 18 25 3 1215 1220 1225 1230
13 19 0.069 26 1315 1320 1325 1330
14 20 27 1415 1420 1425 1430
15 21 28 1515 1520 1525 1530
16 22 29 1615 1620 1625 1630 1635 1640
18 24 32 1815 1820 1825 1830 1835 1840
20 0.101 30 0.084 40 5 2015 2020 2025 2030 2035 2040
25 35 45 2515 2520 2525 2530 2535 2540
30 40 50   3020 3025 3030 3035 3040 3050
31.5 0.125 40 50   3120   3130 3135 3140
35 45 60   3520 3525 3530 3535 3540 3550
40 50 60   4020 4025 4030 4035 4040 4050
45 55 0.101 70       4530 4535 4540 4550 4560
50 60 75       5030 5035 5040 5050 5060
55 0.15 65 80           5540   5560
60 75 0.105 90 7.5           6040 6050 6060 6080
65 80 95               6560 6580
70 85 0.073 105             7050   7080
75 90 0.051 110               7560
80 100   120 10               8060 8080 80100
90 0.179 110 0.132 130               9060 9080
100 120 150                 10080 100100
120 140 0.151 170                 12080 120100
