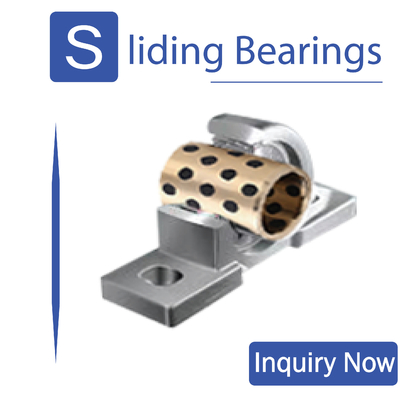

Bearing Pedestal Fitting Self - Lubricating Graphite Bearing
| Place of Origin | China |
|---|---|
| Brand Name | viiplus Graphite self-lubricating bearings |
| Certification | iso 9001 rosh |
| Model Number | Graphite self-lubricating bearings |
| Minimum Order Quantity | negotiable |
| Price | According to the price of the goods |
| Packaging Details | Export Carton Wood Pallet Wooden Case |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T, MoneyGram |
| Supply Ability | 1000000 Piece/Pieces One week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | RG7+Graphite | Features | Can Be Used In Bearing Base Fitting |
|---|---|---|---|
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Item | Bronze Grafitado | Graphite Plugged Bushings | Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | graphite sleeve bearings,graphite bronze bushing |
||
Product Description
The Bearing Pedestal Fitting equipped with a Self-Lubricating Graphite Bearing offers a unique and efficient solution for various industrial applications. This innovative combination provides a robust and long-lasting support system that requires minimal maintenance.
The graphite bearing, being self-lubricating, eliminates the need for regular lubrication, significantly reducing downtime and maintenance costs. The graphite material is also highly resistant to wear and corrosion, ensuring smooth and reliable operation even in harsh environments.
The Bearing Pedestal Fitting is designed to securely house and support the graphite bearing, ensuring its stability and alignment. This allows for optimal load distribution and minimizes stress on the bearing itself, further enhancing its durability.
The combination of the Bearing Pedestal Fitting and Self-Lubricating Graphite Bearing offers numerous benefits, including improved efficiency, reduced maintenance requirements, and increased equipment lifespan. It is suitable for a wide range of applications, from heavy machinery to precision equipment, where reliable and long-lasting bearing solutions are crucial.
In conclusion, the Bearing Pedestal Fitting equipped with a Self-Lubricating Graphite Bearing is an excellent choice for industrial applications that require reliable and low-maintenance bearing solutions.

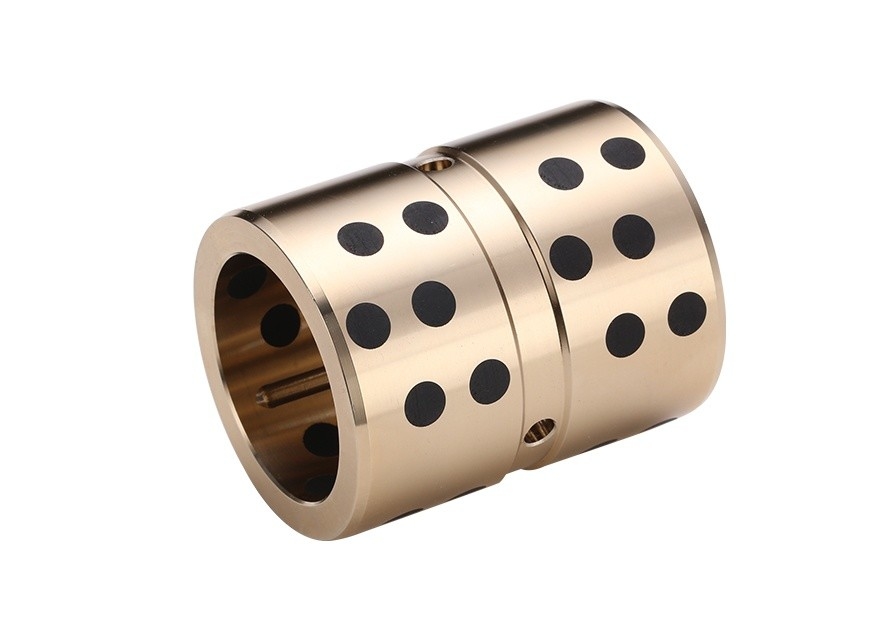

Pillow - Blocks graphite self-lubricating bearing introduction
The installation accessories Graphite self-lubricating bearing, high-performance maintenance-free bearing, graphite bearing sleeve has high wear resistance and corrosion resistance. Graphite particles generated in graphite work can lubricate the bearing well, but it is not suitable for the working environment with environmental requirements.
You can choose the bearing structure
Type:-Flanged
-Solid Bronze
-Welded Joint
-Split Joint
-Clench Lock
-Sintered / Powder Metal
-Graphite Impregnated
You can choose from graphite self-lubricating bearing materials there
| GCr15(GB/T18254-2016)=52100(ASTM/UNS)=100Cr6(DIN)Chemical composition quality/% | ||||
| C | Si | Mn | Mo | Cr |
| 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.10 | 1.40-1.65 |
| ZCuSn6Zn6Pb3(GB1776-87)=ZQSn6-6-3(GB 1176-74)=GB-CuSn5Zn5Pb5(DIN)=C83600(ASTM) Chemical composition quality/% | |||||||||
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 84.0-86.0 | 4.0-6.0 | ma'x 0.005 | max 0.3 | - | max 1 | max 4.0-6.0 | max 0.005 | max 0.05 | max 4.0-6.0 |
| CuZn25A16Fe3Mn3(GB/T 1176-1987)=G-CuZn25Al5(DIN)=C86300(ASTM) Chemical composition quality/% | |||||||||
| Chemical composition quality/% | |||||||||
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 60-66 | 0.2 | 5.0-7.5 | 2.0-4.0 | 2.5-5.0 | 1 | 0.2 | _ | _ | _ |
| VSB-JDB-1 | VSB-JDB-2 | VSB-JDB-3 | VSB-JDB-4 | VSB-JDB-5 | |||
|---|---|---|---|---|---|---|---|
| VSB-JDB-2 | VSB-JDB-22 | VSB-JDB-23 | |||||
| GB1776-87 | ZCuZn25 Al6Fe3Mn3 |
ZCuSn6Zn6Pb3 | ZCuAl10Fe3 | ZCuSu10P1 | Steel+ ZCuSn6Zn6Pb3 | HT250 | GCr15 |
| ISO1338 | GCuZn25 Al6Fe3Mn3 |
GCuSn6Zn6Pb3 | GCuAl10Fe3 | - | Steel+ CuSn6Zn6Pb3 Fe3Ni5 |
- | B1 |
| DIN | G-CuZn25 Al5 |
GB-CuSn5Zn5Pb5 | GB-CuAl10Ni | GB-CuSn10 | Steel+ CuSn6Zn6Pb3Ni | - | 100Cr6 |
| JIS | HBsC4 | BC6 | AIBC3 | BC3 | BC6 | FC250 | SUJ2 |
| ASTM/UNS | C86300 | C83600 | C95500 | C90500 | C83600 | Class40 | 52100 |
| (BS) | HTB2 | LG2 | AB1 | PB4 | LG2 | - | - |
You need to know more about the products you can choose
The following PDF is about the product information of CuZn25A16Fe3Mn3 (C86300) in our company. You can choose different product types or raw materials, or you can customize the size and arrangement of graphite. In general, our company produces products according to ISO 4379 standard.
Graphite self-lubricating bearing.pdf
| haft | housing | ID | OD | Wall thickness | Oil hole | L 0 -0.40 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| h8 | H7 | d | D | T | h- | 10 | 12 | 15 | 20 | 25 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 | 0 -0.022 |
12 | +0.018 0 |
10 | 12 | 0.980 0.955 |
4 | 1010 | 1012 | 1015 | 1020 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12 | 0 -0.027 |
14 | " | 12 | 14 | " | " | 1210 | 1212 | 1215 | 1220 | 1225 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 14 | " | 16 | " | 14 | 16 | " | " | 1415 | 1420 | 1425 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 15 | " | 17 | " | 15 | 17 | " | " | 1510 | 1512 | 1515 | 1525 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16 | " | 18 | " | 16 | 18 | " | " | 1615 | 1620 | 1625 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 18 | " | 20 | +0.021 0 |
18 | 20 | " | " | 1815 | 1820 | 1825 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 20 | 0 -0.033 |
23 | " | 20 | 23 | 1.475 1.445 |
" | 2015 | 2020 | 2025 | 2030 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22 | " | 25 | " | 22 | 25 | " | 6 | 2215 | 2220 | 2225 | 2230 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 24 | " | 27 | " | 24 | 27 | " | " | 2415 | 2420 | 2425 | 2430 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 25 | " | 28 | " | 25 | 28 | " | " | 2515 | 2520 | 2525 | 2530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 28 | " | 32 | +0.025 0 |
28 | 32 | 1.970 1.935 |
" | 2820 | 2825 | 2830 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30 | " | 34 | " | 30 | 34 | " | 3020 | 3030 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 32 | 0 -0.039 |
36 | " | 32 | 36 | " | " | 3220 | 3230 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 35 | " | 39 | " | 35 | 39 | " | " | 3520 | 3530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36 | " | 40 | " | 36 | 40 | " | " | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 37 | " | 41 | " | 37 | 41 | " | " | 3720 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40 | " | 44 | " | 40 | 44 | " | 8 | 4020 | 4030 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 45 | " | 50 | " | 45 | 50 | 2.460 2.415 |
" | 4520 | 4530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 50 | " | 55 | +0.030 0 |
50 | 55 | " | " | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 55 | 0 -0.046 |
60 | " | 55 | 60 | " | " | 5520 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 60 | " | 65 | " | 60 | 65 | " | " | |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
