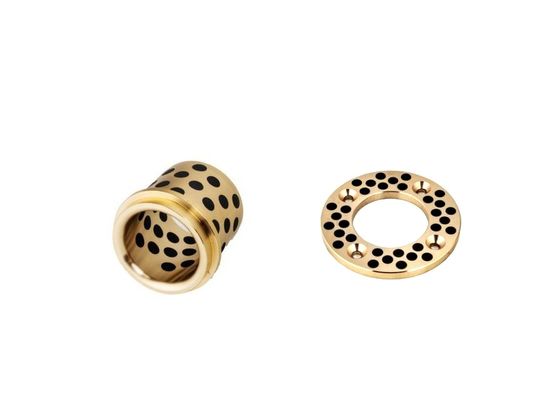

Standard Graphite Plugged Bushings Flange Size With Long Life Time
| Place of Origin | Manufactured in China |
|---|---|
| Brand Name | BRAND CHINA REPLACMENT 500 GUIDE BUSHINGS |
| Certification | SEA430B,C86300,DIN1709,FIBRO |
| Model Number | Bronze Graphite plug Bushings met the tolerances |
| Minimum Order Quantity | 300 Piece/Pieces (Min. Order) |
| Price | $0.10 - $3.00 / Pieces |
| Packaging Details | EXPORT CARTONS |
| Delivery Time | 2-4 weeks |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Bronze +Graphite，Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 | Model Number | Cylinder Bearings,Cylinder Bearings With Flange |
|---|---|---|---|
| Feature | Self Lubrication | Lubrication | Graphite |
| Application | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. | Type | FLANGE/SLEEVE/WASHER |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Item | Bronze Grafitado | Graphite Plugged Bushings | Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | graphite impregnated bronze bushings,graphite impregnated bushings |
||
Product Description
Graphite Plugged Bushings
Standard Graphite Plugged Bushing Flange Size,Graphite copper sleeve, steam mold guide sleeve, joint copper ball, copper guide plate,SIMILAR SOB,SOBF,SOBW,SOBB,SOST,SOSB
Application characteristics
Jdb-1 is a universal basic product, regardless of high pressure, low pressure, high temperature, low temperature, oil lubrication, oil free lubrication or water lubrication.They all apply.The matrix of the product is high-strength brass, which is twice as hard as the general copper cover.Wear resistance increased more than twice.Therefore, the continuous casting machine, rolling mill, conveyor in the metallurgical industry can be used.Also used for plastic injection molding machine locking mechanism, extrusion mechanism.Automatic switch of high voltage, lifting support of construction machinery, and arc door support of water conservancy project.Pulley and drive wheel parts.There are also paper dryer, automobile mold, ship anchor sliding parts and so on.
JDB 1 2 is mainly suitable for low load, high temperature and medium speed applications, such as fireplace door hinges, oven raceway, light industrial machinery, machine tool industry, etc.
The internal material of jdb-3 is the same as that of jdb-2. In addition to the function of jdb-2, it also reflects the functions of saving cost, improving compressive strength and welding and installation of end face and matrix. It is suitable for non-oil lubricating parts in construction machinery, metallurgical machinery and conveying machinery.
Jdb-4 is a typical material - saving product where mechanical properties are not required.It can be used as a substitute material for jdb-2.Can greatly reduce the cost, to meet the use of requirements, such as: mold guide sleeve, injection molding machine mold frame.
Jdb-5 is an enhanced product.It has very high compressive performance, especially suitable for supporting parts of the crane, such as excavator support, winch support, crane support, etc.But because the matrix is steel.So should not be used in water or acid, alkali occasion.
Alloy material
| code | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
|---|---|---|---|---|---|---|---|
GB1776-87 |
ZCuZn25 AI6Fe3Mn3 |
ZCuSn6Zn6Pb3 | ZCuAI10Fe3 | ZCuSu10P1 | ZCuSn6Zn6Pb3 | HT250 | GCr15 |
ISO1338 |
GCuZn25 AI6Fe3Mn3 |
GCuSn6Zn6Pb3 | GCuAI10Fe3 | - | CuSn6Zn6Pb3 Fe3Ni5 |
- | B1 |
DIN |
G-CuZn25 AI5 |
GB-CuSn5Zn5Pb5 | GB-CuAI10Ni | GB-CuSn10 | CuSn6Zn6Pb3 Ni |
- | 100Cr6 |
JIS |
HBsC4 | BC6 | AIBC3 | BC3 | BC6 | FC250 | SUJ2 |
ASTM/UNS |
C86300 | C83600 | C95500 | C90800 | C83600 | Class40 | 52100 |
BS |
HTB2 | LG2 | AB1 | PB4 | LG2 | - | - |
Material alloy chemical composition
| chemical element | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
|---|---|---|---|---|---|---|---|
| Cu ( % ) | Rest | Rest | Rest | - | - | ||
| Sn ( % ) | - | 6 | - | 10 | 6 | - | - |
| Zn ( % ) | 25 | 6 | - | - | 6 | - | - |
| Ni ( % ) | - | - | - | - | - | - | - |
| AI ( % ) | 6 | - | 10 | - | - | - | - |
| Fe ( % ) | 3 | - | 3 | - | - | Rest | Rest |
| Mn ( % ) | 3 | - | - | - | - | 0.905 - 1.3 | 0.20 - 0.40 |
| Cr ( % ) | - | - | - | - | - | - | 1.30 - 1.65 |
| C ( % ) | - | - | - | - | - | 2.5 - 4 | 0.95 - 1.05 |
| Si ( % ) | - | - | - | - | - | 1.0 - 1.3 | 0.15 -0.35 |
| Pb ( % ) | - | 3 | - | - | 3 | - | - |
Technical Parameters
| performance | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 |
|---|---|---|---|---|---|
| P ( N/mm2 ) | 100 | 60 | 70 | 60 | 250 |
| MAX V ( m/s ) | Dry0.4 oil5 | 2 | 2 | 0.5 | 0.1 |
| MAX PV( N/mm2·m/s ) | 3.8 | 0.5 | 0.6 | 0.8 | 2.5 |
| ρ( g/cm3 ) | 8.0 | 8.0 | 7.6 | 7.3 | 7.8 |
| ( N/mm2 ) | > 600 | > 250 | > 500 | > 250 | > 1500 |
| ( % ) | > 10 | > 4 | > 10 | - | - |
| ( HB ) | > 210 | > 80 | > 80 | > 160 | HRC> 55 |
| ( ℃ ) | 300 | 350 | 300 | 400 | 350 |
| ( μ ) | OIL: 0.03 | DRY: 0.16 | |||
solid lubricant bearing
AVAILABILITY
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plate
