Split Bushes Bronze Bushing By Size CuSn8 Material

Place of Origin made in china
Brand Name VIIPLUS
Certification ISO 9001
Model Number GLIDLAGER
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings
Product Details
Material Copper CUSN8 Bushing Specification Full Range Of Sizes
Type Split Bronze Bushing Item Wrapped Bronze Bearing
Application Forest Machine,farm Equipment Feature High Load
High Light

Split Bronze Bushing

,

Split Wrapped Bronze Bearings

,

Wrapped Bronze Bearings CuSn8 Material

Leave a Message
Product Description

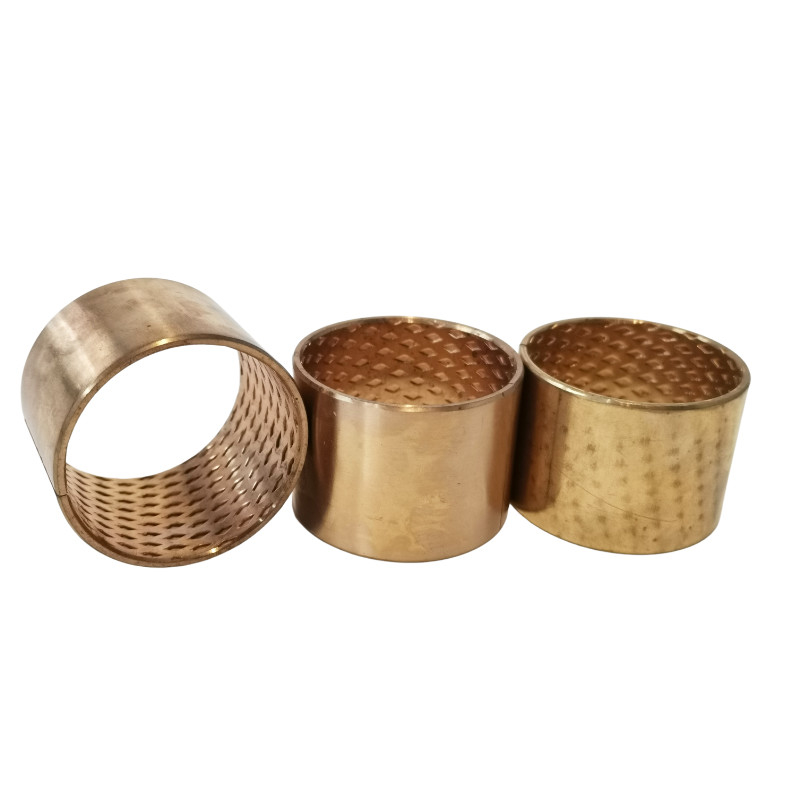

Split Bushes Bronze Bushing By Size, CuSn8 Material

Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance,Split Bushes Bronze Bushing By Size, CuSn8 Material, FB092 & FB090 Bronze Bearings

The basic features
Bronze perforated bearings are based on CusN6.5P0.1 or CUSN8P0.3 bronze, and uniform and orderly oil injection holes are designed. Grease is injected after assembly. Then configure the end face seal and use, the bearing has the advantages of large oil storage, convenient installation, small design machine, and can replace the use of copper sleeve, greatly reduce the cost
Main parameters TECHNICAL DATE
Maximum load
Static load
120N/mm2
hardness
HB 90-120
Dynamic load
40N/mm2

elongation
40%
Maximum linear velocity
2m/s

The use of temperature
- 100 ℃ ~ + 200 ℃
The largest PV
N/was 2.8 m/s

The coefficient of friction
0.08 ~ 0.25
Tensile strength
450N/mm2

Coefficient of thermal conductivity
60W(m.K)-1
The yield strength

250N/mm2

Linear expansion coefficient
15x10-6K
APPLICATION CHARACTER
1. The inner hole of the product is full of rhomboid oil holes and oil pits, which can store a large amount of oil during use and prolong the refueling interval;
2. Less oil lubrication, suitable for more difficult to add oil or water lubrication occasions;
3. Good wear resistance, small friction coefficient and long service life;
4. Can be used in the range of -100℃-200℃;
5. Good running performance, low noise, no pollution;
6. Thin wall structure, light weight, can reduce the mechanical volume;
7. The matrix has high density, no air shrinkage cavity and large bearing capacity;
Currently has been widely applied to various mechanical sliding parts, such as: automation machinery and equipment (scale, swing, slide, bending, cyclotron, turning parts) of the hydraulic cylinder guide bush, textile machinery, plastic molding machine, die-casting machine, rubber machinery, hydraulic truck, automobile, motorcycle industry, ports, water conservancy, construction, agricultural machinery, etc.





FB092 Metric cylindrical bushes
