Thin - Walled Split Bronze Bushings Oil Pocket Metric Size Plain Bearing
Place of Origin | Bronze Bushing Manufacturer |
---|---|
Brand Name | VIIPLUS |
Certification | ISO 9001 |
Model Number | FB092 BRONZE BUSHINGS |
Minimum Order Quantity | phosphor bronze bush,tin bronze bearings,brass bushes |
Price | China Factory Price, Precision Tolerance, |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 4 - 12 BUSINESS DAYS |
Payment Terms | T/T |
Supply Ability | Perforated Bronze Bearing,Plain Bronze Wrapped Bearings |
Material | Bronze | Size | Metric Size Plain Bearing |
---|---|---|---|
Type | Split Sleeve Buses | Feature | Thin - Walled Bearings |
Bronze Bearings Sale | Made Of CuSn8 With Lubrication Indents | Bearing Forms Made To Order | Cylindrical Bushes With Non-standard Dimensions |
Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze |
Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | wrapped bronze bushings,flanged bronze bushings |
Bronze Wrapped Bushings - Sliding Bronze Bushings
Bronze Bushes - Bearing Bronze Manufacturer from china, bronze bushes Bronze Sleeve. Ask Price. Bronze Sleeve. Metric Size, Get a Free Quote.
Wrapped bronze bushings with though holes FB092-4040brief introduction.pdf
Lubrication pockets are filled with solid lubricant.
155x150x60mm WB702 Bronz Bearing Bushing 125x120x50mm WB802 Harden Copper Sleeves 95x90x70mm FB092 Wrapped Bronze Bush
Phosphor Bronze Bushings. Phosphor Bronzes, Or Tin Bronze Bearings, Are Alloys Containing Copper, Tin And Phosphorous. The Phosphor Bronzes Contain Between 0.5 And 11% Tin And 0.01 To 0.35 % Phosphorous. The Addition Of Tin Increases The Corrosion Resistance And Strength Of The Alloy.

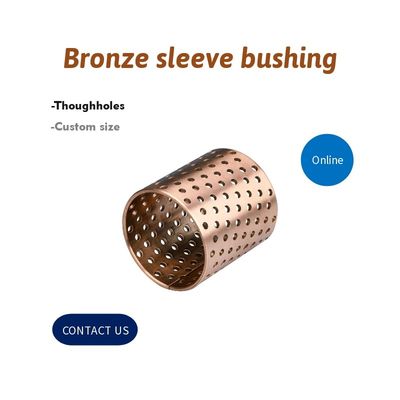

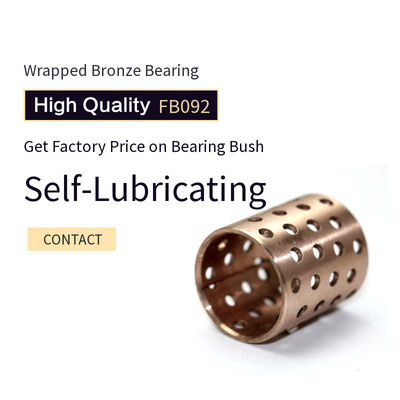

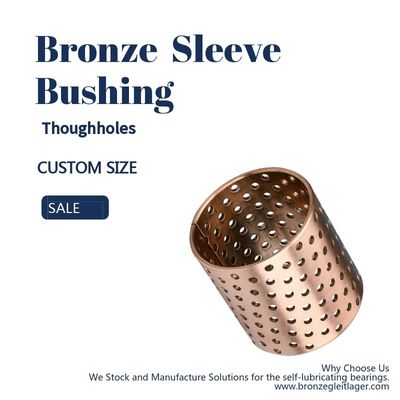

Bronze sleeve bushing, with tin bronze alloy CuSn8 as the material, the working surface is evenly arranged with lubrication through holes according to a certain angle and density. It is easy to form an oil film when starting, so as to reduce the starting friction coefficient.
Download bush bearing catalog, Bronze bushing straight F092 ID25 OD130 L00 .pdf as Ref..
Details
Material | Part Number | Inner Diameter | Outer Diameter | Length | Surface Style |
Wrapped Bronze Bearings | 092 | 125 | 130 | 100 | Holes |
Structure
CuSn8 bronze with either grease pockets or holes
Our precision bronze sleeve and flange bushings and special alloy material meet the high standards.Our Self-lubricating bronze bushings experience will lead to a cost-effective solution to application problems.
Thin wall sleeve bushings Metric and Inch Sizes alternative BRM-80(WB802,FB802,FB092) | Sliding Bearing lubrication oil hole in the sliding surface of wrapped bronze bushings
Good Anti-abrasion And Load Capacity Split Bronze Bushing Sleeve With Though holes
Chemical composition
Material | Cu | Sn | P | Pb | Zn |
CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
Feature
·Large amount of remaining oil
·High load capacity
·Easy fitting and lubrication
·Minimum overall dimensions
·Excellent wear resistance with lower friction
Bronze Bushing Design
VIIPLUS is dedicated to researching and manufacturing all types of bronze bushings and flange bushings and precision parts. We are approved by third parties regarding the quality certificate. So far, we have developed many desighs with oil holes and grooves for composite self-lubricating bushing, boundary lubricating bushing, bimetallic bushing, oil sintered bushing, graphite solid lubricating bushing, steel bushing, cast copper bushing, wrapped bronze, spherical bearings and filament bearings. Quality and performance meet or exceed international standards.We have complete in-house research and development, production, testing and marketing capabilities.
-
Technical Parameters
Product Type
|
FB092 BRONZE SLEEVE BUSHING
|
Application
|
hoisting, mining machinery,
forest machinery, agricultural machinery etc. |
Material
|
CuSn8P
|
Density
|
8.8g/cm3
|
Max Dynamic Load
|
120N/mm²
|
Max Linear Velocity(Grease)
|
2.5m/s
|
Max PV Value Grease
|
2.8N/mm²·m/s
|
Pressure Strength
|
>460N/mm²
|
Yield Strength N/mm2
|
>280N/mm2
|
Hardness:
|
90-150
|
Mating Axis
|
Hardness ≥50, Roughness 0.4-1.0
|
Working Temperature
|
-40~+150℃
|
Friction Coefficient
|
0.06~0.15
|
Linear Expansion Coefficient
|
18.5×10-6/K
|
coefficient of heat conduction
|
58W/m·K
|
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
|
The Data
Standard Dia. | O.D.Size | Housing Bore | I.D.Size | Matching Shaft Diameter |
---|---|---|---|---|
10~18 | +0.065 +0.030 |
+0.018 0 |
+0.046 0 |
- 0.016 - 0.043 |
18~30 | +0.075 +0.035 |
+0.021 0 |
+0.052 0 |
- 0.020 - 0.020 |
30~50 | +0.085 +0.045 |
+0.025 0 |
+0.062 0 |
- 0.025 - 0.064 |
50~80 | +0.100 +0.055 |
+0.030 0 |
+0.074 0 |
- 0.030 - 0.076 |
80~120 | +0.120 +0.070 |
+0.035 0 |
+0.087 0 |
- 0.036 - 0.090 |
120~180 | +0.170 +0.100 |
+0.400 0 |
+0.100 0 |
- 0.043 - 0.106 |
180~250 | +0.210 +0.130 |
+0.046 0 |
+0.115 0 |
- 0.050 - 0.122 |
250~315 | +0.260 +0.170 |
+0.052 0 |
+0.130 0 |
- 0.056 - 0.137 |
Tolerances
Shaft dia: e7 / f7
Housing: H7
Bronze Bushings Application
·Construction machinery
·Machine tool
·Agriculture machinery
·Transportation
·Others
092 Widely used in lifting equipment and construction machinery, automobile industry, tractors, trucks, agricultural machinery and mining equipment and other fields. The products that can be processed include axle sleeve, axle bush, flanged axle sleeve, thrust gasket and so on.
Copper-base rolling bearings are widely used in high-load and low-speed working conditions of hoisting equipment and construction machinery, automobile industry, tractors, trucks, agricultural machinery and mining equipment. The products that can be processed include axle sleeve, axle bush, flanged axle sleeve, thrust gasket and so on.
