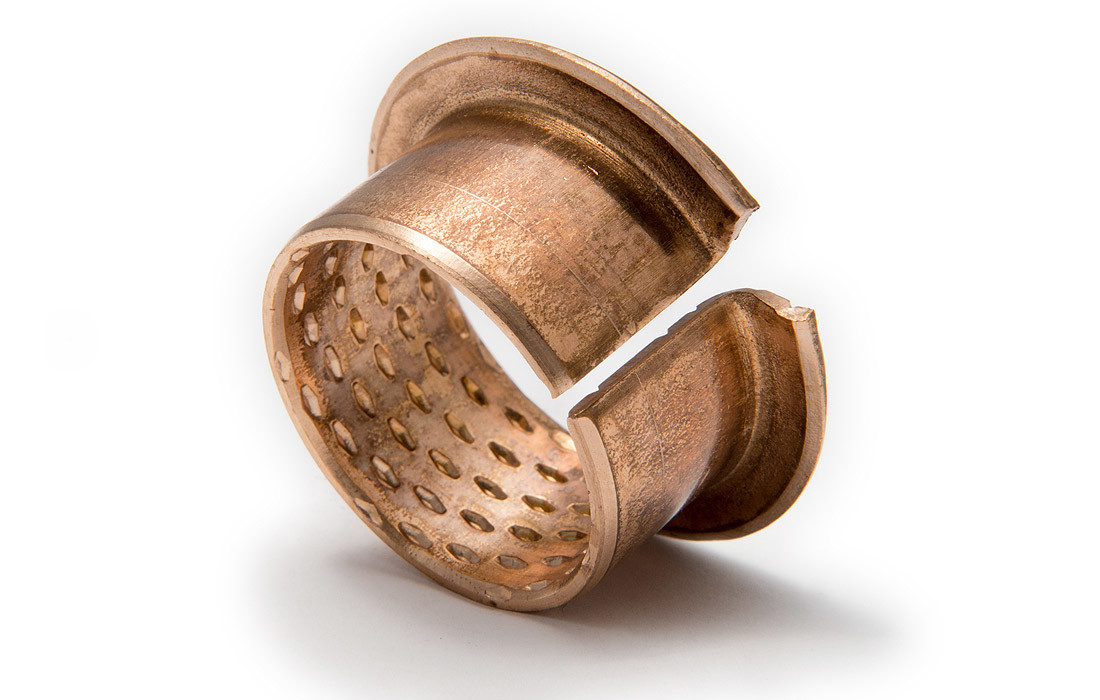

Wrapped Bronze Bearings Cusn8p Collar Diamond Lubrication Indents
| Place of Origin | OILLESS BUSHES |
|---|---|
| Brand Name | viiplus.com |
| Certification | OILLESS BEARINGS |
| Model Number | Low Friction Bushing standard split gap Bushes MET |
| Minimum Order Quantity | 500 Piece/Pieces (Min. Order) |
| Price | Oilless Bushes Factory Price |
| Packaging Details | STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE |
| Delivery Time | 2~4 Weeks |
| Payment Terms | T/T PREPARD, T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Meterial | Wrapped Bushing, Bronze CuSn8P,alternative CuSn6P Available | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
|---|---|---|---|
| Characteristic | Low-maintenance And Maintenance-free Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
| Bushings Size | Standard Size Available | BUSHINGS TOLERANCE | Housing ØH7Bushing Inner-Ø After MountingH9Shaft Tolerancef7 To H8 |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | oil impregnated bronze bearings,oil impregnated bearing |
||
Product Description
Wrapped Bronze Bearings, featuring a CuSn8P collar and diamond lubrication indents, are precision-engineered components designed to offer exceptional performance in high-load and high-speed applications. Constructed from high-quality bronze material, these bearings exhibit superior wear resistance, corrosion resistance, and mechanical strength.
The wrapped design of these bearings provides additional support and stability, ensuring a secure and stable fit within the housing. This design also enhances the bearings' ability to withstand deformation and damage, even under extreme conditions.
The CuSn8P collar, with its unique composition, offers superior strength and hardness, making it ideal for use in high-stress areas. This collar also contributes to the bearings' overall durability and reliability.
The diamond lubrication indents are a key feature of these bearings. These precision-formed indents act as reservoirs for lubrication oil or grease, ensuring a continuous and even supply of lubrication to the contact surfaces. This lubrication significantly reduces friction and wear, extending the bearings' lifespan and improving their performance.
The combination of the wrapped design, CuSn8P collar, and diamond lubrication indents results in bearings that are not only durable but also highly efficient. These bearings are an excellent choice for reducing friction, wear, and downtime in various industrial applications, including heavy machinery, motor vehicles, and other mechanical systems.

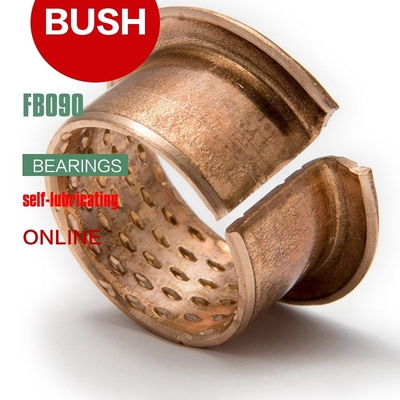

FB090 Wrapped Bronze Bearing CuSn8P with Diamond Oil Grooves
Bronze Wrapped Plain Bearings | Metric Wrapped Bronze Bearing
Wrapped bushes with grease pockets, Wrapped Bronze Bushes at Best Price.
Wrapped Bronze Bushes, Dry Bush, Dry Washer, Manufacturer
Wrapped / Homogeneous Bronze Bushes, Bushes, Wrapped bushes with grease pockets, CuSn 8 bronze material according to DIN 17662
Bronze bushing Flange F090 ID40 OD 44 L40F55.pdf
The wrapped bronze bearings are made entirely of CuSn8 phosphor bronze. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. The wrapped bronze bearings are produced from strips that are then packaged and calibrated.
These wrapped bronze bearings have been developed for low speed, high load applications, particularly suitable for oscillating movement and are perfect for the construction, mining quarry, agriculture, and automotive industries.
Our range of Viiplus bronze wrapped plain bearings is available with lubrication pockets, through holes and grooves. This range is only available in metric sizes.
Our internal processing service is able to produce non-standard sizes to meet the specific needs of customers.
Wrapped Bronze bearings wrapped during assembly should be lubricated with grease or oil. Good quality grease is essential because it will reduce friction and wear, forming a layer between the slide bearing and shaft. For heavily contaminated applications, we recommend sealing the bearing. This protects both the Wrapped Bronze Bearing and the grease.
Wrapped bronze bushes are ideal for applications involving rotation and oscillation. With low wear and excellent corrosion- and water-resistance.
Diamond oil holes CuSn6.5P0.1 or CuSn8P0.3 Bronze Bushings Material Split Gap made to order from china FB090 Tinapronssi 200100 Liukulaakeri
Bronze Pivot Bushes 800 series Plain Bushes Split Type with diamond indentation grease pockets
Standard Bushings - Inch Standard Bushings - Metric Made to Order / Custom Bushings
090 Wrapped Bronze Bearing is a standard item of our company. This type wrapped bronze bearing is made of specially formulated high-density bronze alloy.
The wrapped bronze bearing sleeve is made of CuSn6.5P0.1 or cusn8p0.3 bronze, which is an economical Wrapped Bronze Bearing with high bearing capacity and good wear resistance. The working surface of standard FB090 Wrapped Bronze Bearing products is covered with regular diamond oil holes, which can store oil and easily form an oil film
at the beginning of the movement, thus reducing the initial friction coefficient.
Bushings Tolerance
- Housing ØH7
- Bushing inner-Ø after mountingH9
- Shaft tolerancef7 to h8
Mating Material
surface roughness Ra = 0,4 μm
minimum hardness > 200 HB
FB090 Wrapped Bronze Bearing Features
090/092 copper rolling Wrapped Bronze Bearing is an economical rolling bearing with high bearing capacity and good wear resistance, which is made of CuSn8 or CuSn6.5P0.1 copper sheet as the base material and rolled. The rhomboid oil holes, which are regularly arranged on the surface of the rolling mill, can be coated with oil during installation and play the role of oil storage. This Wrapped Bronze Bearing product is widely used in agricultural machinery, construction machinery, mining machinery, and so on.
Material: CuSn8P0.3 (DIN ISO 4382-2:1991)
| material | Cu | Sn | P |
| CuSn8P0.3 | 91.3 | 8.5 | 0.3 |
Sliding elements are made of solid tin bronze (CuSn8) with diamond-shaped lubrication pockets that serve as a reservoir for lubrication.
Material: CuSn6.5
Wrapped Bronze Bearings are wrapped with cold-formed homogeneous bronze (CuSn6.5) with exceptional material properties.
Standard sizes are equipped with diamond lubrication grooves on the Wrapped Bronze Bearing surface.
These cavities serve as lubricant reservoirs to quickly form a lubricating film at the beginning of the movement and then reduce operating friction.
The material is suitable for use in construction and agricultural machinery.
090 Material Characteristics
| Max. Load Capacity | ||
| Static Load | N/mm2 | 120 |
| Dynamic Load | N/mm2 | 40 |
| Max. Speed | ||
| 090 | m/s | 2.0 |
| Max. PV Value | N/mm2 · m/s | 2.8 |
| Tensile Strength | N/mm2 · m/s | 450 |
| Yield Point | N/mm2 · m/s | 250 |
| Hardness | HB | 90-120 |
| Elongation | 40% | |
| Coefficient of Friction | μ | 0.08~0.25 |
| Operation Temperature Range | ℃ | -100~200 |
| Operation Temperature Range | W/(m · k) | 60 |
| Coefficient of Thermal Expansion | k-1 | 15×10-6 |
Physical and Mechanical Properties
| Value | Unit | |
| Density | 8.9g | cm3 |
| Operating Temperature | -80~+200 | C |
| Hardness | 90-120 | HB |
| Load capacity | 75 | N/mm2 |
| Maximum Speed | 2.5 | m/s |
Advantages
The main advantages of wrapped bronze bearings include:
·Long maintenance intervals
·Not affected by impurities
·Suitable for corrosive environments
·Suitable for shock loads and vibrations at low speeds
·Good heat dissipation
Application
Wrapped bronze bearings are particularly suitable for harsh operating conditions where frequent maintenance is not possible. Typical applications are:
·Agricultural vehicles
·Lifting equipment
·Offshore
·Excavators
Availability
A standard cylindrical bush is available.
Special designs are produced according to your needs.
Technical Data
| Standard Diameter | O.D.Size | Matching Seat Hole Housing Bore | I.D.Size | Matching Shaft Diameter |
| 10~18 | +0.065 +0.030 |
+0.018 0 |
+0.046 0 |
- 0.016 - 0.043 |
| 18~30 | +0.075 +0.035 |
+0.021 0 |
+0.052 0 |
- 0.020 - 0.020 |
| 30~50 | +0.085 +0.045 |
+0.025 0 |
+0.062 0 |
- 0.025 - 0.064 |
| 50~80 | +0.100 +0.055 |
+0.030 0 |
+0.074 0 |
- 0.030 - 0.076 |
| 80~120 | +0.120 +0.070 |
+0.035 0 |
+0.087 0 |
- 0.036 - 0.090 |
| 120~180 | +0.170 +0.100 |
+0.400 0 |
+0.100 0 |
- 0.043 - 0.106 |
| 180~250 | +0.210 +0.130 |
+0.046 0 |
+0.115 0 |
- 0.050 - 0.122 |
| 250~315 | +0.260 +0.170 |
+0.052 0 |
+0.130 0 |
- 0.056 - 0.137 |
FB090 Bronze Bushings Size Table
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VIIPLUS Provide all types of electronic samples for customers, Metal-Polymer Composite Bearings Catalog!
Bushings, Lubricated Bearings, Composite Bearings, Metal Bearings, Compressor Bearings, Metal-polymer, Filament Wound, Plain Bearings, Flange Bearings, Polymer Bearings, Flange Bushings, Pump Bearings, Flanged Bushes, Thrust Plates, Industrial Bearings
VIIPLUS Wrapped bronze bushes are widely used in all industrial fields
Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
