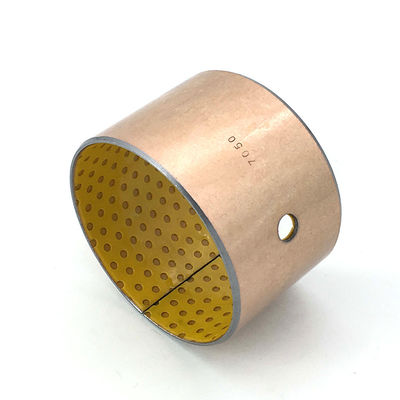

Friction Bearings made of Bronze Bushing are a reliable and robust choice for high-load applications, offering superior performance and durability. Bronze, known for its excellent wear resistance and corrosion resistance, is an ideal material for bearings that need to withstand heavy loads and frequent operation.

For those seeking a high-load alternative, CuSn6P is a highly suitable option. This alloy combines the strength and ductility of copper with the wear-resistant properties of tin and phosphorus. CuSn6P bearings exhibit excellent friction characteristics, making them ideal for demanding applications where smooth and efficient operation is crucial.

Bronze bushings, along with CuSn6P bearings, provide a reliable and long-lasting solution for friction bearing needs. They are easy to install and maintain, ensuring minimal downtime and maximum productivity.

Whether you're replacing worn-out bearings or upgrading your existing system, Bronze Bushing Friction Bearings and CuSn6P bearings are excellent choices for high-load applications. Their durability and performance make them a cost-effective long-term solution for your industrial needs.

Cojinetes De FriccióN Bronze Bushing & Bearing Types

A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain bearing is a shaft rotating in a hole.

COJINETE FRICTION Bushing Flange Bearing Plain Bushes Flange Bushes Metric Standard Flange Bushing(DIN1494), fabrica cojinetes de fricción en diversos diseños y de distintos ... Cada una de las combinaciones de material y diseño del cojinete de fricción tiene ...  Series, BRM80, Bronze Bearing With Flange & Holes Through, The bearing is intended for oil or grease lubrication. Available with or without flange. The cusn8 bronze sliding surface has rhomboid lubrication pockets. The bronze bushing sliding surface has holes going right through.


Bronze Bearing
Bronze sliding bearings in accordance with DIN17662 CuSn8.
The bearing is intended for oil or grease lubrication.
Available with or without flange.

The bronze sliding surface has rhomboid lubrication pockets.
The bronze sliding surface has holes going right through.

Properties
High load ability level
Compact dimensions
High chemical resistance in aggressive environments
High thermal conductivity
Wide working temperature range
Easy to fit and maintain
Technical instructions:
Maximum permissible surface pressure 150 N/mm2 (static)
Maximum permissible surface pressure 60 N/mm2 (dynamic)

Minimum working temperature -40°C
Maximum working temperature +150°C

Maximum sliding speed 2.5 m/s (grease-lubricated)

More technical specifications

We’re experts in bronze


The bronze bushes have through-holes on bushes, which have a greater capacity to collect the lubricant compared with the indentations. These indents serve as lubricant reservoirs to rapidly build up a lubrication film in the start movement and therewith reduce the start friction.


slide bronze plain bearings with or without flange are intended for radial and axial movements. The bearings are wrapped of a cold formable homogenous.

Bronze Bearing With Flange & Holes Through Plain Bushings WB802 Lubricating Holes Bronze Bushes After assembly, it is injected with lubricating oil and used with end face sealing. The bearing has the advantages of large oil storage, convenient installation, small design volume, and can replace the use of the copper sleeve, can greatly reduce the cost, the product has been applied to conveyor, elevator, hoist, leveling machine and another medium load, low-speed occasions.


WB802WF Series FB092 bronze bearing is thin wall bearing, which is made of bronze material and processed evenly and orderly oil filling holes. After assembly, lubricating oil is injected and end face seal is configured for use. The bearing has the advantages of large oil storage, convenient installation, small design volume, and can replace the use of copper bushing, can greatly reduce the cost.
Widely used in lifting machinery, construction machinery, car tractor chassis, machine tool industry, mining machinery, car drive shaft, car change gear box, generator, crane, metallurgical machinery and conveyor, lift, rolling field machine, leveling machine and other medium load, low speed occasions.

Material

• Support material CuSn8P (DIN 17662)
• alternative CuSn6P available

Plain Bearing Bushes

Flange Bearing Plain Bushes

FB090 bronze bearing is made of high density copper alloy strip with special formula. The surface can be rolled diamond or hemispherical oil holes and grooves as required by users. It has the advantages of high density, large bearing capacity, good wear resistance, long service life, etc., to replace the traditional casting copper sleeve, can reduce the mechanical volume, reduce the cost. Widely used in lifting machinery, construction machinery, car tractor chassis, machine tool industry, mining machinery, car drive shaft, car change gear box, generator, crane, metallurgical machinery and conveyor, lift, rolling field machine, leveling machine and other medium load, low speed occasions.

Technical Parameters

Tolerance Details

• Housing ØH7
• Bushing inner-Ø after mountingH9
• Shaft tolerancef7 to h8

Properties

• Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance. Lubrication holes for maximum grease storage and the lowest maintenance intervals.

The bearing is intended for oil or grease lubrication. Available with or without flange.

The BRM10’s sliding surface has rhomboid lubrication pockets. The BRM80’s sliding surface has holes going right through.
