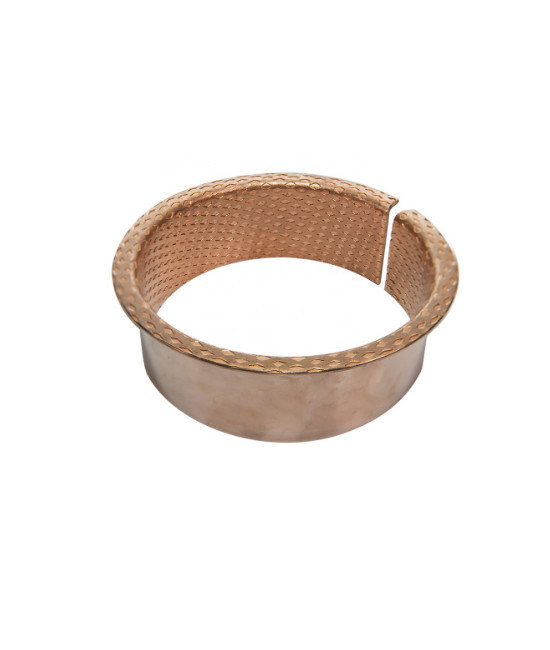

FB090 & FB092 Bronze Bushing PRM Bushing & PRMF Flanged
Metric Wrapped Bronze Plain bearing Supplier, Butt joint bushing design

CuSn8 Wrapped Sliding Bearings Bushing, Rolled Bronze Bushings with Indents, Rolled Bronze w Oil Perforations

FB090 bronze bearing, using a special formula of high-density copper alloy material as the base, the surface can be rolled according to user's requirements diamond or hemispherical oil boots, oil groove. It has the advantages of high density, high bearing pressure, good wear resistance and long service life. It can replace the traditional cast copper sleeve and reduce the mechanical volume

The FB090 and FB092 Copper Alloy Wrapped Bronze Bushings are designed for medium-sized loads, offering exceptional wear resistance and durability. These bushings are precision-manufactured using high-quality copper alloy and bronze materials, ensuring optimal performance in a wide range of industrial applications.

The copper alloy wrap provides excellent load-bearing capacity and reduces friction, resulting in smoother and more efficient operation. The bronze material, on the other hand, offers excellent corrosion resistance and maintains its mechanical properties even under extreme conditions.

The FB090 and FB092 bushings are suitable for use in various machinery and equipment, including pumps, motors, and gearboxes. Their medium-sized design allows for easy installation and integration into existing systems.

Moreover, these bushings are self-lubricating, reducing the need for regular lubrication and maintenance. This feature not only saves time and money but also extends the lifespan of the bushings and the overall equipment.

In summary, the FB090 and FB092 Copper Alloy Wrapped Bronze Bushings are reliable and durable components that are ideal for medium-sized loads in a variety of industrial applications. Their high-quality materials, precision manufacturing, and self-lubricating features ensure smooth and efficient operation under challenging conditions.

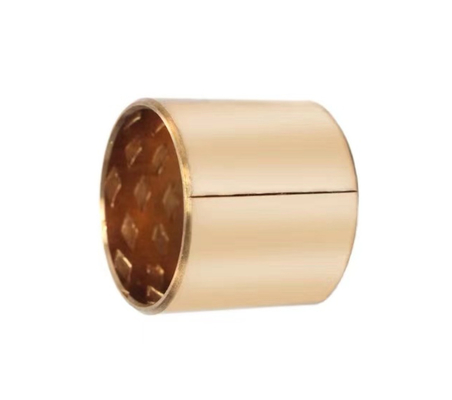

CuSn8 Wrapped sliding bearings Bronze rolled bearing

bronze rolled bearings use a specially formulated high-density copper alloy strip as the base to replace the traditional cast copper sleeve, which can reduce the mechanical volume and cost.

The perfect bearing for any purpose
This sector of the industry benefits from a vast range of DIN and standard Glycodur sliding bearings and of our wrapped bearings made of the single-metal material CuSn8. For special applications, these sliding bearings are often equipped with grooves. Also, customer-oriented segments made of special bronze are used.

CuSn8 Wrapped sliding bearings
From solid bronze materials

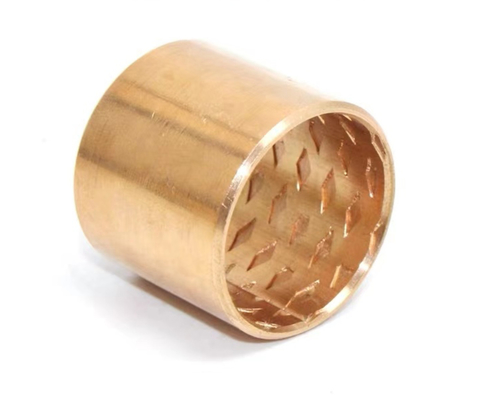

with diamond-shaped lubrication pockets or with perforations in accordance with ISO 3547/DIN 1494
Custom parts with seals or graphited available upon customer request

Wrapped Bronze Bushings, bundbuchse,

CuSn8 Wrapped sliding bearings 090 Technical data

Product description

wrapped cusn8 bronze rolled bearings use a specially formulated high-density copper alloy strip

as the base to replace the traditional cast copper sleeve,

which can reduce the mechanical volume and cost.

Designation dDB
mm mm mm
PRM 121415 12 14 15
PRM 151715 15 17 15
PRM 151725 15 17 25
PRM 161815 16 18 15
PRM 161820 16 18 20
PRM 161825 16 18 25
PRM 182115 18 21 15
PRM 182120 18 21 20
PRM 182125 18 21 25
PRM 202315 20 23 15
PRM 202320 20 23 20
PRM 202325 20 23 25
PRM 202330 20 23 30
PRM 252815 25 28 15
PRM 252820 25 28 20
PRM 252825 25 28 25
PRM 252830 25 28 30
PRM 303420 30 34 20
PRM 303430 30 34 30
PRM 303440 30 34 40
PRM 323620 32 36 20
PRM 323630 32 36 30
PRM 353920 35 39 20
PRM 353930 35 39 30
PRM 353940 35 39 40
PRM 353950 35 39 50
PRM 404420 40 44 20
PRM 404430 40 44 30
PRM 404440 40 44 40
PRM 404450 40 44 50
Designation dDB
mm mm mm
PRM 455030 45 50 30
PRM 455040 45 50 40
PRM 455050 45 50 50
PRM 455060 45 50 60
PRM 505530 50 55 30
PRM 505540 50 55 40
PRM 505550 50 55 50
PRM 505560 50 55 60
PRM 556040 55 60 40
PRM 556060 55 60 60
PRM 606530 60 65 30
PRM 606540 60 65 40
PRM 606550 60 65 50
PRM 606560 60 65 60
PRM 657040 65 70 40
PRM 657060 65 70 60
PRM 707540 70 75 40
PRM 707560 70 75 60
PRM 707580 70 75 80
PRM 758080 75 80 80
PRM 808540 80 85 40
PRM 808560 80 85 60
PRM 808580 80 85 80
PRM 859080 85 90 80
PRM 909550 90 95 50
PRM 909590 90 95 90
PRM 10010550 100 105 50
PRM 10010595 100 105 95
