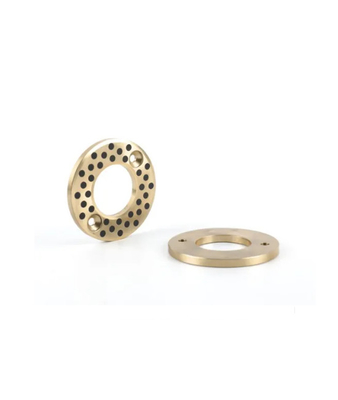

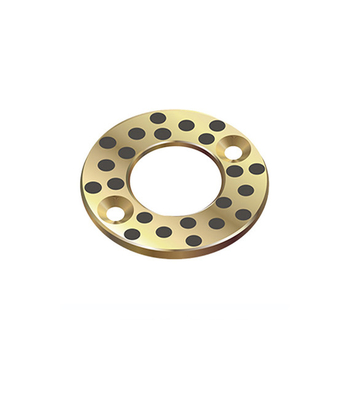

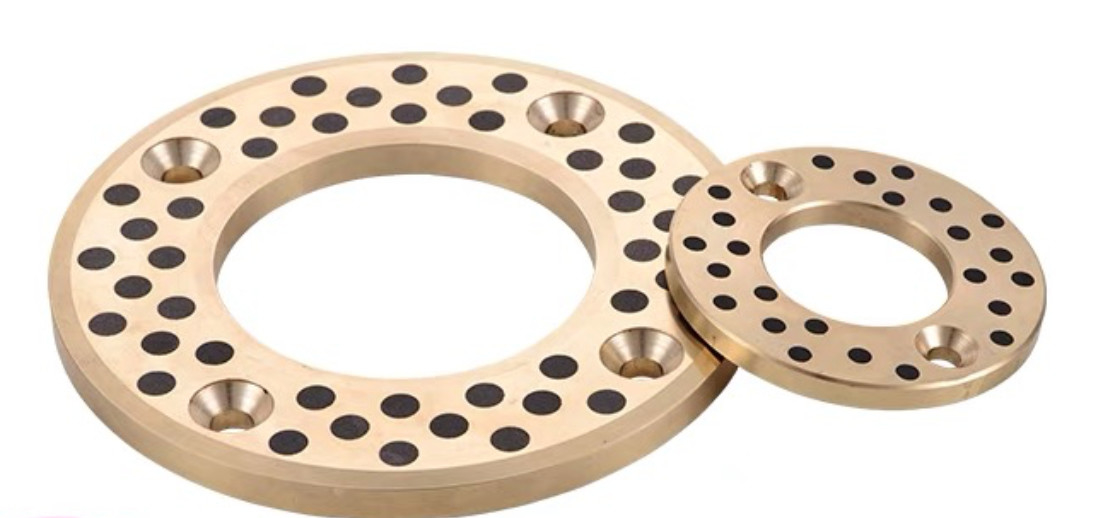

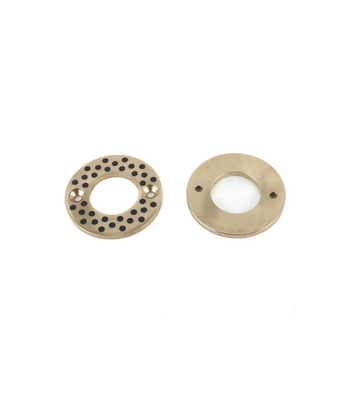

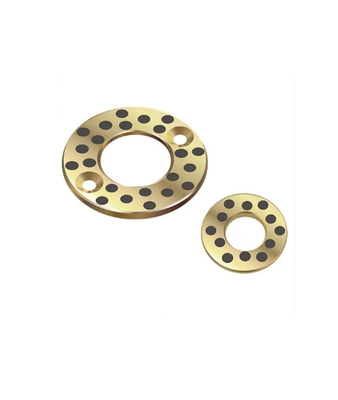

JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size

  • JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size
  • JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size
  • JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size
  • JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size
  • JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size
Place of Origin Graphite Bearings Manufacturers
Brand Name Viiplus
Certification DIN 1850/ISO 4379， UNITED STATES UNS STANDARD,C86300
Model Number solid bushing, bronze with lubricant plugs embedded Maintenance-free
Minimum Order Quantity NEGOTIABLE
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms TT IN ADVANCE
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feature Customized Lubrication Without Graphite,self-lubricating
Application Heavy Duty Equipment，Machinery Repair，Hydraulic，Power Transmission Type Oil-Lubricated Bearing
Solid Bronze Thrust Washer Brass With Graphite Filled Size Metric Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Graphite Filled Bronze Thrust Washer

,

Metric Size Bronze Thrust Washer

,

CuSn12 Bronze Thrust Washer
Leave a Message
Product Description

The JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer, available in metric sizes, is a highly efficient and durable component designed for thrust applications. Constructed from CuSn12 bronze alloy filled with graphite, this thrust washer offers exceptional wear resistance and self-lubricating properties.

The CuSn12 bronze alloy, a combination of copper and tin, provides strength and stability, while the graphite filler enhances lubrication and reduces friction. This combination allows the thrust washer to operate smoothly and efficiently, even under high loads and speeds.

The metric sizing of the JTW Oilless thrust washer ensures compatibility with a wide range of machinery and equipment, making it a versatile solution for various industrial applications. Whether you're upgrading existing equipment or installing new machinery, this thrust washer is an excellent choice for improving operational efficiency and reducing maintenance requirements.

With its robust construction and self-lubricating properties, the JTW Oilless CuSn12 Graphite Filled Bronze Thrust Washer Metric Size is a reliable and long-lasting component that will enhance the performance of your thrust applications. Contact us today to learn more about this innovative thrust washer and how it can benefit your industrial operations.



JTW Bronze Oilless Graphite Filled Thrust Washer

Your engineering partner from prototype to production, China Graphite Filled Thrust Washer, Find details about China Solid Bronze Thrust Washer, Solid Metal Bearing from Graphite Filled Thrust Washer, High-Temperature Dry-Running Thrust Bearings. Graphite - HTTP://WWW.BRONZEGLEITLAGER.COM

Cast thrust washer-bronze graphite Oilless Slide Bearing

bronze graphite thrust washer · Insensitive to dirty environment · Resistant to shock loads and vibrations at slow speeds ·

Solid Bronze Thrust Washer With Graphite Filled Brass Graphite Copper Washer



Among those professional self-lubricating thrust washer Viiplus manufacturers in China, welcome to buy customized and low price self-lubricating thrust washer get its free sample from our factory.







Material CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
Density 8 8.9 7.8 8.9
HB hardness >210 >70 >150 >95
Tensile strength N/mm2 >750 >200 >600 >260
Yield strength N/mm2 >450 >90 >260 >150
Elongation % >12 >15 >10 >8
Coefficient of
linear expansion		 1.9x10-5/°C 1.8x10-5/°C 1.6x10-5/°C 1.8x10-5/°C
Max. temp. -40~+300 -40~+400 -40~+400 -40~+400
Max. load N/mm2 100 60 50 70
Max. speed (Dry) m/min 15 10 20 10


Cast Bronze Bearing

Self-lubricating JTW Bronze Graphite Filled Thrust Washer

JDB graphite bronze bushing graphite bronze bush oilless graphite brass bushing thrust bearing



Graphite Plugged Bushings

Graphite Bronze Thrust Washer Standard material:

CuZn25A16Fe3Mn3 + Graphite



Graphite Bronze Thrust Washer Structure:

Bronze thrust washer with solid lubricant plug (graphite)



Graphite Bronze Thrust Washer Features:



  • May work without any oil for long period.

  • Extremely high load capacity,good anti-wear and lower friction

  • Particularly appropriate for low speed and high load

  • Suitable for reciprocating,oscillation or intermittent motion where oil film is hard to be formed.

  • Good chemical resistant and anti-corrosion characteristics.

  • Can be used in wide range of temperature from -40℃~+300℃



Graphite Bronze Thrust Washer Characteristics:



  • Have Incomparable performance under a high load, low speed operation. Also perform well without lubrication,
  •  Excellent wear resistance in such places where an oil film is difficult to be formed due to reciprocating, oscillating motions and frequently intermittent operations
  • Remarkable resistance to corrosion and resistance to chemical attack
  • Maintenance free and save operating cost.



JTW Graphite Lubricating Bronze Washer Technical data



Max. dynamic load:100N/mm2
Max. Temperature:300 [ °C ]
Base Hardness:HB210-270
Friction coefficient:<0.16
Highest sliding speed:dry 0.4m/s; oil 5m/s
Quality Standard:DIN 1494



Graphite Bronze Thrust Washer Availability:



  •  Cylindrical oiles bushing, flanged oilless bush, thrust washer and slide plate are standard fabrication.
  • Special designed solid metal bearing and material can be made according to your design.
  • Other material can be made based on your requirement.



Graphite Bronze Thrust Washer Typical Applications:



Self-lubricating JTW Bronze Graphite Filled Thrust Washer is widely applied in automobile assembling line, water turbine, gate dams, plastic injection machinery etc.

Depending on different working conditions, variety of types of different alloys are available from Viiplus.





Material
CuZn25Al5Mn4Fe3
Typical Application
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
Density g/cm3
8
Hardness HB
>210
Tensile Strength N/mm²
>750
Yeild strength N/mm²
>340
Elongation %
>12
Coefficient of linear expansion 10-5/℃
2.2
Heat-conducting Coefficient W(/m.k)
38~55
Flexibility Coefficient KN/mm²
100~140
Temp. Limits ℃
-40~+200
Max. Dynamic Load N/mm²
98
Max.speed m/s
Dry Lubrication 0.3; Oil Lubrication 1.0
Max.PV N/mm²*m/s
Dry Lubrication 1.65; Oil Lubrication 3.25
Friction
Dry Lubrication 0.12~0.16; Oil Lubrication 0.03~0.08





JTW Bronze Graphite Filled Thrust Washer Size Chart



Material Part Number Inner Diameter Outer Diameter Thickness
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 10 10.2 30 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 12 12.2 40 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 13 13.2 40 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 14 14.2 40 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 15 15.2 50 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 16 16.2 50 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 18 18.2 50 3
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 20 20.2 50 5
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 25 25.2 55 5
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 30 30.2 60 5
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 35 35.2 70 5
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 40 40.2 80 7
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 45 45.3 90 7
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 50 50.3 100 8
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 55 55.3 110 8
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 60 60.3 120 8
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 65 65.3 125 8
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 70 70.3 130 10
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 75 75.3 130 10
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 80 80.3 150 10
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 90 90.5 170 10
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 100 100.5 190 10
Oilless Bearing JTW Bronze Graphite Filled Thrust Washer 120 120.5 200 10
