High Load WB902 Wrapped Bronze Bushing CuSn8 Material With Lip
Place of Origin | made in china |
---|---|
Brand Name | VIIPLUS |
Certification | ISO 9001 |
Model Number | GLIDLAGER |
Minimum Order Quantity | negotiable |
Price | Negotiable |
Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
Delivery Time | 7-15 work days |
Payment Terms | T/T |
Supply Ability | Perforated Bronze Bearing,Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Copper CUSN8 Bushing | Specification | Full Range Of Sizes |
---|---|---|---|
Type | Split Bronze Bushing | Item | Wrapped Bronze Bearing |
Application | Forest Machine,farm Equipment | Feature | BRO-MET, FB090, BRM10, WB800 |
Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
Specialty | Бронзовые втулки | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | CuSn8 Material Wrapped Bronze Bearings,High Load Wrapped Bronze Bushing,High Load Wrapped Bronze Bearings |
Self-lubricating sliding bearings and metal polymer bearings
We offer reliable flat bushing and other high quality bronze bearing assemblies for various industries, including CuSn8 coated bronze bushing with lip edges.

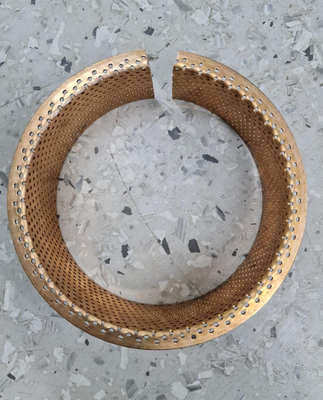

WB902 Encased bushing Specification: bronze CuSn8 material, with lip design.
This combination of self-lubricating sliding bearing and metal polymer bearing is widely used in various industrial fields due to its excellent wear resistance, corrosion resistance and high load capacity. CuSn8 bronze material has excellent mechanical properties and processing properties, can meet the needs of a variety of complex working environment. The design with lip edge not only enhances the tightness, but also improves the service life of the bearing.
We always adhere to the principle of quality first, through the strict quality control system to ensure that each product meets the highest standards. We know that reliable bearing components are crucial to the stable operation of the equipment, so we are committed to providing customers with the best quality products and services.
If you are interested in our products or have any questions, please feel free to contact us. We look forward to working with you to promote the development of the industrial field.
Wrapped bushing WB902 Bronze CuSn8P Bush Single Lip diameter Bushings and Bearings. Reduced costs & downtime. Increased productivity. Services: Custom Design, Engineering Support, Short Lead Times.
WB802 FB092 5050 CuSn8P Slide Bearing Bushing Split Wrapped Bronze Bush Sleeve Plain Bearing
Metal Machinery CuSn6.5P0. 1 Wrapped Metal Bearings
Wrapped bushing WB902, Bush diameter, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance Deliver bronze bushes solutions to clients in offshore – from servicing and support to quality parts and equipment bushing bearing part. Besides our class-leading facility, our people are our best resource. We continually invest in them, so you get groundbreaking results.
Special Flanged Bushings for Liquid Filling Machines

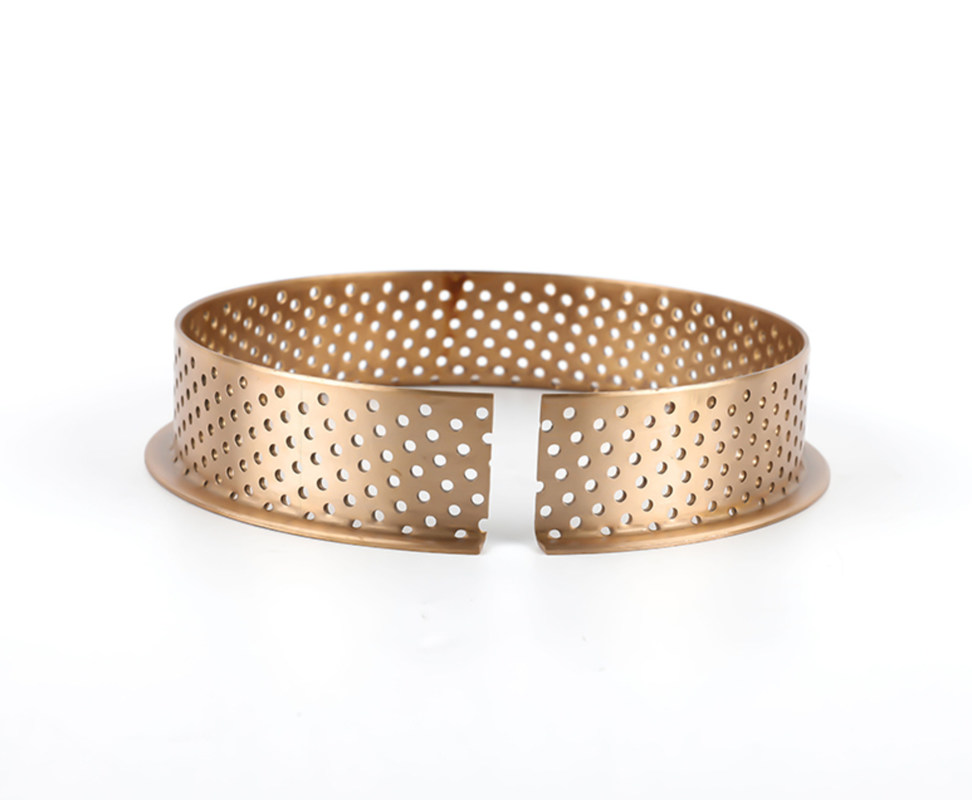

As you might guess from the name, flange bushings have a flange at one or both ends. This lip is what holds the bushing in place.
Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
4. Bronze
5. All kinds of brass, copper,bronze material
Industrial: Widely used in construction machinery, agricultural machinery, and so on.
Online shopping for Flanged Bronze Sleeve Bearings WITH lip - Bushings & Bushed Bearings from a great selection at Industrial & Scientific Store.
Shop for Flanged Sleeve Bearings
240335 50/55x40 WB902 Bushing 244065 45/50/60X30 WB902 Bush 224120 90/95/110x50 wf-wb802 Wrapped Bronze Bearing

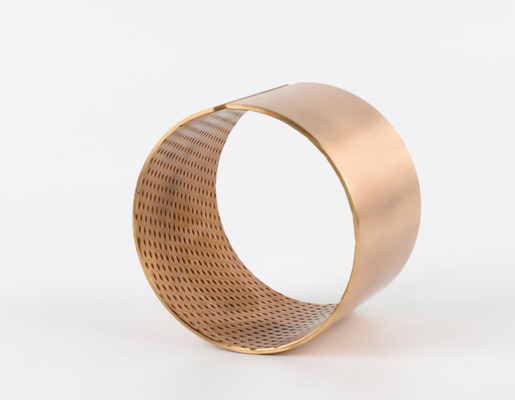

wrapped Bushing is a bronze material for the matrix, processing uniform and orderly injection hole, the rolling made of thin-walled bearings, lubricating grease after assembly, and then configure the end face seal and use. The bearing has a large amount of oil, easy installation, the advantages of small size design, and can replace the use of copper sets, can greatly reduce costs.
At present the product has been used in conveyors, lifts, roll field machines, school-level machines, such as medium and low-speed occasions.
Material
- Support material CuSn8P (DIN 17662)
- alternative CuSn6P available
Shaft Material
- Steel, hardened or untempered, surface roughness < Ra 0.8
Technical Parameters
Data | Code | FB-092 |
Material | CuSn8P(Qsn8-0.3) | |
Applications | Products are widely used in agricultural machinery, construction machinery, engineering machinery. | |
Density g/cm³ | 8.8 | |
Max Load Capacity N/mm² | 120 | |
Max Line Speed V | Grease Lubrication m/s | 2.5 |
PV Value Limit | Grease Lubrication N/mm²·m/s | 2.8 |
Tensile Strength N/mm² | >460 | |
Yield Strength N/mm² | >280 | |
Hardness HB | 90~150 | |
Friction Coefficient u | 0.06~0.15 | |
Mating Axis | Hardness HRC | ≥50 |
Roughness Ra | 0.4~1.0 | |
Working Temperature ℃ | -40~+150 | |
Thermal Conductivity W/mk | 58 | |
Coefficient Of Linear Xpansion | 18.5×10-6/K | |
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements. |
Tolerance Details
- Housing ØH7
- Bushing inner-Ø after mountingH9
- Shaft tolerancef7 to h8
Properties
-
Economic solution for bronze bearing application due to a thin wall thickness. High load capability and good stability with low abrasion. Suitable for rough working conditions, good corrosion resistance. Lubrication holes for maximum grease storage and the lowest maintenance intervals.
Structure Characteristics and Applications:

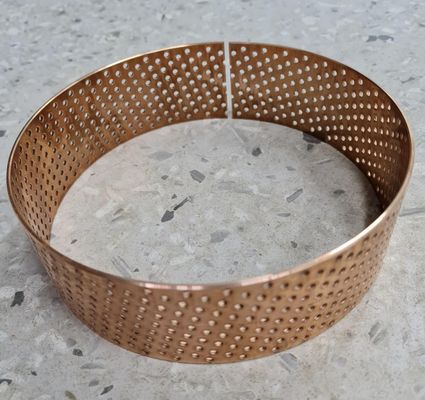

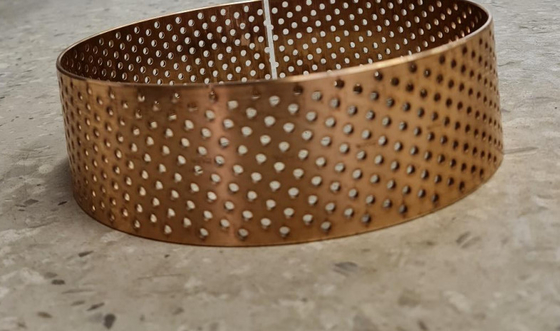

wrapped bronze bushing is made of tin-bronze CuSn8 that is of high density, its surface is punched with oil apertures by certain angle and density therefore its easier to form an oil film when the bushing works. It has good anti-fatigue and load, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.
Product Benefits:
1.Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2.Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3.Various holes and dents can be made on the friction surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4.Extremely high load sustainability, especially suitable for coarse abrasion surfaces.
Standard products available: straight bushings, thrust plates and pressure bearings.
Non-standard products available: sleeve bushings, thrust plates, flanged bushing, bearing bushings, slide plates and steel bushing combination.
Wrapped bearings standard sizes list for your reference
I.D.after fixed | O.D | f1 | f2 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
10 | +0.043 0 |
12 | +0.065 +0.030 |
0.5 | 0.3 | · | · | · | ||||||||||
12 | +0.043 0 |
14 | +0.065 +0.030 |
· | · | · | ||||||||||||
14 | +0.043 0 |
16 | +0.065 +0.030 |
· | · | · | · | |||||||||||
15 | +0.043 0 |
17 | +0.065 +0.030 |
· | · | · | · | |||||||||||
16 | +0.043 0 |
18 | +0.065 +0.030 |
· | · | · | · | |||||||||||
18 | +0.043 0 |
20 | +0.065 +0.030 |
· | · | · | · | |||||||||||
20 | +0.052 0 |
23 | +0.075 +0.035 |
0.8 | 0.4 | · | · | · | · | |||||||||
22 | +0.052 0 |
25 | +0.075 +0.035 |
· | · | · | · | |||||||||||
24 | +0.052 0 |
27 | +0.075 +0.035 |
· | · | · | · | |||||||||||
25 | +0.052 0 |
28 | +0.075 +0.035 |
· | · | · | · | |||||||||||
28 | +0.052 0 |
32 | +0.075 +0.035 |
· | · | · | · | |||||||||||
30 | +0.062 0 |
34 | +0.075 +0.035 |
1 | 0.6 | · | · | · | · | · | · | |||||||
32 | +0.062 0 |
36 | +0.065 +0.045 |
· | · | · | · | · | · | |||||||||
35 | +0.062 0 |
39 | +0.065 +0.045 |
· | · | · | · | · | · | |||||||||
40 | +0.062 0 |
44 | +0.065 +0.045 |
· | · | · | · | · | · | |||||||||
45 | +0.062 0 |
50 | +0.065 +0.045 |
1.2 | 0.8 | · | · | · | · | · | · | |||||||
50 | +0.062 0 |
55 | +0.065 +0.045 |
· | · | · | · | · | · | |||||||||
55 | +0.074 0 |
60 | +0.100 +0.055 |
· | · | · | · | · | · | |||||||||
60 | +0.074 0 |
65 | +0.100 +0.055 |
· | · | · | · | · | · | |||||||||
65 | +0.074 0 |
70 | +0.100 +0.055 |
· | · | · | · | · | · | |||||||||
70 | +0.074 0 |
75 | +0.100 +0.055 |
· | · | · | · | · | · | · | ||||||||
75 | +0.074 0 |
80 | +0.100 +0.055 |
· | · | · | · | · | · | · | ||||||||
80 | +0.074 0 |
85 | +0.100 +0.055 |
1.4 | 0.8 | · | · | · | · | · | · | · | ||||||
85 | +0.087 0 |
90 | +0.120 +0.070 |
· | · | · | · | · | · | · | · | · | ||||||
90 | +0.087 0 |
95 | +0.120 +0.070 |
· | · | · | · | · | · | · | · | · | ||||||
95 | +0.087 0 |
100 | +0.120 +0.070 |
· | · | · | · | · | · | |||||||||
100 | +0.087 0 |
105 | +0.120 +0.070 |
· | · | · | · | · | · | |||||||||
105 | +0.087 0 |
110 | +0.120 +0.070 |
· | · | · | · | · | · | |||||||||
110 | +0.087 0 |
115 | +0.120 +0.070 |
· | · | · | · | · | · | |||||||||
115 | +0.087 0 |
120 | +0.120 +0.070 |
· | · | · | · | · | · | |||||||||
120 | +0.087 0 |
125 | +0.120 +0.070 |
· | · | · | · | · | ||||||||||
125 | +0.087 0 |
130 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
130 | +0.100 0 |
135 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
135 | +0.100 0 |
140 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
140 | +0.100 0 |
145 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
145 | +0.100 0 |
150 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
150 | +0.100 0 |
155 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
155 | +0.100 0 |
160 | +0.170 +0.100 |
· | · | · | · | · | ||||||||||
160 | +0.100 0 |
165 | +0.170 +0.100 |
· | · | · | · | · |
