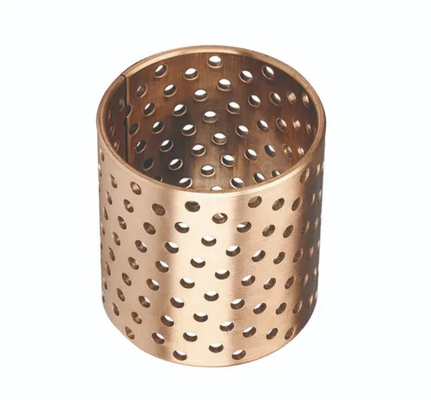

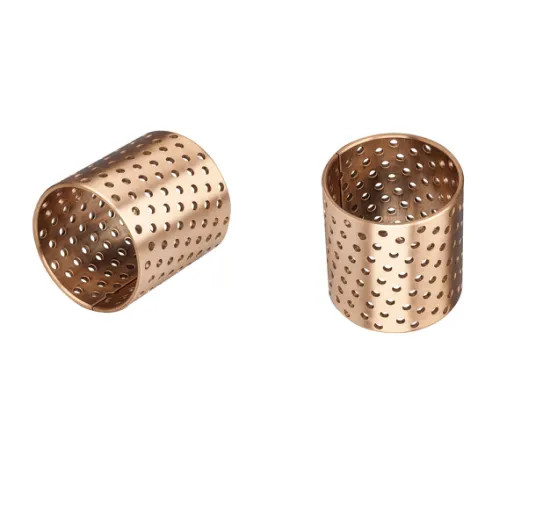

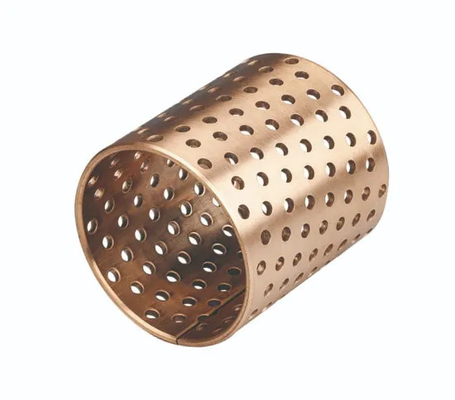

Homogeneous Bronze FB092 Wrapped Bearings Self Lubricating
| Place of Origin | Made in China |
|---|---|
| Brand Name | VIIPLUS |
| Certification | DIN 1494 / ISO 3547 |
| Model Number | Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547 |
| Minimum Order Quantity | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 3 - 15 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Material | CUSN8 | Feature | BRO-MET, FB090, BRM10, WB800 |
|---|---|---|---|
| Performance | High Load Capacity And Long Life | Type | Sleeve,Flange,Thrust Washer |
| Application | Agricultural Machinery, Brakes And Certain Construction Machinery. | Bushing Size | Special Dimensions And Imperial Sizes Are Available On Request |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Specialty | Бронзовые втулки | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | Self Lubricating Wrapped Bearings,Homogeneous Bronze Wrapped Bearings,CUSN8 Bushing Wrapped Bearings |
||
Product Description
The Homogeneous Bronze FB092 Wrapped Bearings are designed for self-lubricating operations, offering a seamless and efficient performance in various industrial applications. Constructed from high-quality, homogeneous bronze material, these bearings exhibit excellent uniformity in composition and mechanical properties, ensuring consistent and reliable performance over time.
The wrapped design of the bearings allows for effective lubrication, reducing friction and wear while enhancing operational smoothness. This self-lubricating feature significantly extends the bearings' lifespan and reduces the need for regular maintenance or lubrication, making them a cost-effective solution.
The FB092 Wrapped Bearings are suitable for use in a wide range of rotating machinery, including motors, pumps, and gearboxes. Their homogeneous bronze construction ensures high strength and durability, enabling them to handle heavy loads and demanding operating conditions.
Overall, the Homogeneous Bronze FB092 Wrapped Bearings are a reliable choice for industrial applications where self-lubricating, long-lasting, and high-performance bearings are required.
FB092 Wrapped Rolled Bronze Self-Lubricating Sliding Bearings
Find Complete Details about Professional Supply Cusn8 Bronze Bushings,

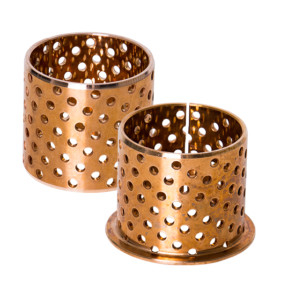

Our rolled bronze bearings are available with or without a flange and are designed for high loads.
These bearings require lubrication and are available with holes or internal lubrication pockets.
Rolled bronze bearings with or without flange that require lubrication.
Suitable for high loads.
WB802, WF-WB802 / WB802-T
- High load capacity
- Can be used in difficult circumstances
- Excellent lubrication properties due to lubrication holes
WB702, WF-WB702
- High load capacity
- Can be used in difficult circumstances.
- Excellent lubrication properties due to lubrication holes.
WB802-bearings with or without flange are intended for radial and axial movements.
WB802-T-bearings are intended for radial and axial movements in constructions where exceptional long lubrication intervals are wanted.
The bearings are wrapped of a cold formable homogenous bronze, which because of this will obtain exceptional material properties. The execution of the flange permits that the bearing also can carry axial loads. The standard sizes are fitted with holes, which are dispersed in a special way over the whole bearing-surface.
These holes serve as lubri-cant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. These holes even length-en significantly the lubrication intervals. The properties of the WB802-material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where high loads and relatively slow movements are occurring.
WB702 Cylindrical bearing, intended for radial and axial movements.
WB702-bearings with or without flange are intended for radial and axial movements. The bearings are manufactured of a cold formable homoge-nous bronze, which because of this will obtain exceptional material pro-perties. The execution of the flange permits that the bearing also can carry axial loads. The standard sizes are fitted with holes, which are dispersed in a special way over the whole bearing-surface.
These holes serve as lubricant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. The properties of the WB702-material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where medium or high loads and relatively slow movements are occurring.
WB802 bearings Technical data
| Material: | Homogeneous bronze (Cu 91,3%, Sn 8,5%, P 0,2%) |
| Yield point: (Rp0,2) | (Rp0,2) ca 300 N/mm2 |
| Tensile strenght: (Rm ) | (Rm) ca 450 N/mm2 |
| Hardness: | ca 125-150 HB |
| Friction: | 0,08–0,25 µ |
| Max speed: | 2,5 m/s |
| Temperature range: | -100 / +200 °C |
| Load | Speed |
| Ca: 280 N/mm2 | 0 m/s |
| 80 – 120 N/mm2 | 0,01 m/s |
| 30 – 40 N/mm2 | 2,0 m/s |
Tolerances: Bearings pressed into housing H7 get tolerance H9. Recommended tolerance for the shaft IT 7 or IT 8 with position of tolerance e or f
Lubrication: Additional lubrication ought to be done through the shafts or radial through the housings. All customary greases can be used e.g. greases with additives of graphite or molybdenum-disulphide. We recommend two specially tried-out greases for plain bearings, SK12 and S3.
Benefits:
- High load capacity.
- Can be used in difficult circumstances.
- Excellent lubrication properties due to lubrication holes.
- High level thermal conductivity..
- Wide range of stock hold standard dimensions..
- Extended lubrication intervals with 6-8 times compared with traditional slide bearings.
Special:
- Other positions of tolerance.
- In- or outside lubrication grooves
- Hardness 150-160 HB..
- With built-in seals.
- Drawing details.
Typical applications:
- Forest machines.
- Agricultural machines.
- Forklift trucks.
- Dumpers.
- Hydraulic cranes.
- Truck platform constructions
WB702 bearingsTechnical data
| Material: | Homogeneous bronze (Cu 91,3%, Sn 8,5%, P 0,2%) |
| Yield point: (Rp0,2) | ca 250 N/mm2 |
| Tensile strenght: (Rm ) | ca 450 N/mm2 |
| Hardness: | ca 110-150 HB |
| Friction: | 0,10–0,25 µ |
| Max speed: | 2,5 m/s |
| Temperature: | -100 / +200 °C |
| Load | Speed |
| Ca: 250 N/mm2 | 0 m/s |
| 80 – 120 N/mm2 | 0,01 m/s |
| 30 – 40 N/mm2 | 2,0 m/s |
Lubrication:
Additional lubrication should be introduced through the shaft openings or radially via the housing. All the normal lubricating greases can be used. Lubricating grease with graphite or molybdenum disulphide additives can also be suitable.
Tolerance:
Bearings pressed in to a H7 housing give a tolerance of H9. The recommended shaft tolerance is IT7 or IT8, tolerance position e or f.
Special Designs
- Only larger series.
- Drawing details
- Internal and external lubricating grooves
- Plain bearings and thrust washers
- Other tolerance positions
Examples of typical uses
- Forestry Machinery
- Agricultural Machinery
- Trucks
- Dumpers
- Truck Mounted Cranes
- Truck Platforms
Advantages
- Can tolerate high loads and blows
- Works well, even in dirty environments
- The lubrication depots, which perforate the bearing surface, give excellent lubricating characteristics
- Good thermal dissipation
- A broad range of dimensions is held in stock
- Extends the interval between lubrications by 6-8 times, compared to traditional slide bearings
FB092 Standard Bearing Size
Unit:mm
|
d
|
D
|
f1
|
f2
|
L 0
-0.40 |
||||||||||||
|
10
|
15
|
20
|
25
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
90
|
100
|
||||
|
10
|
12
|
0.5
|
0.3
|
FB092
1010 |
FB092
1015 |
FB092
1020 |
|
|
|
|
|
|
|
|
|
|
|
12
|
14
|
FB092
1210 |
FB092
1215 |
FB092
1220 |
|
|
|
|
|
|
|
|
|
|
||
|
14
|
16
|
FB092
1410 |
FB092
1415 |
FB092
1420 |
FB092
1425 |
|
|
|
|
|
|
|
|
|
||
|
15
|
17
|
FB092
1510 |
FB092
1515 |
FB092
1520 |
FB092
1525 |
|
|
|
|
|
|
|
|
|
||
|
16
|
18
|
FB092
1610 |
FB092
1615 |
FB092
1620 |
FB092
1625 |
|
|
|
|
|
|
|
|
|
||
|
18
|
20
|
FB092
1810 |
FB092
1815 |
FB092
1820 |
FB092
1825 |
|
|
|
|
|
|
|
|
|
||
|
20
|
23
|
0.8
|
0.4
|
FB092
2010 |
FB092
2015 |
FB092
2020 |
FB092
2025 |
|
|
|
|
|
|
|
|
|
|
22
|
25
|
FB092
2210 |
FB092
2215 |
FB092
2220 |
FB092
2225 |
FB092
2230 |
|
|
|
|
|
|
|
|
||
|
24
|
27
|
|
FB092
2415 |
FB092
2420 |
FB092
2425 |
FB092
2430 |
|
|
|
|
|
|
|
|
||
|
25
|
28
|
|
FB092
2515 |
FB092
2520 |
FB092
2525 |
FB092
2530 |
|
|
|
|
|
|
|
|
||
|
28
|
31
|
|
FB092
2815 |
FB092
2820 |
FB092
2825 |
FB092
2830 |
|
|
|
|
|
|
|
|
||
|
30
|
34
|
1.0
|
0.6
|
|
FB092
3015 |
FB092
3020 |
FB092
3025 |
FB092
3030 |
FB092
3035 |
FB092
3040 |
|
|
|
|
|
|
|
32
|
36
|
|
FB092
3215 |
FB092
3220 |
FB092
3225 |
FB092
3230 |
FB092
3235 |
FB092
3240 |
|
|
|
|
|
|
||
|
35
|
39
|
|
FB092
3515 |
FB092
3520 |
FB092
3025 |
FB092
3530 |
FB092
3535 |
FB092
3540 |
|
|
|
|
|
|
||
|
40
|
44
|
|
|
FB092
4020 |
FB092
4025 |
FB092
4030 |
FB092
4035 |
FB092
4040 |
FB092
4050 |
|
|
|
|
|
||
|
45
|
50
|
1.2
|
0.8
|
|
|
FB092
4520 |
FB092
4525 |
FB092
4530 |
FB092
4535 |
FB092
4540 |
FB092
4550 |
|
|
|
|
|
|
50
|
55
|
|
|
FB092
5020 |
FB092
5025 |
FB092
5030 |
FB092
5035 |
FB092
5040 |
FB092
5050 |
FB092
5060 |
|
|
|
|
||
|
55
|
60
|
|
|
FB092
5520 |
FB092
5525 |
FB092
5530 |
FB092
5535 |
FB092
5540 |
FB092
5550 |
FB092
5560 |
|
|
|
|
||
|
60
|
65
|
|
|
|
FB092
6025 |
FB092
6030 |
FB092
6035 |
FB092
6040 |
FB092
6050 |
FB092
6060 |
FB092
6070 |
|
|
|
||
|
65
|
70
|
|
|
|
|
FB092
6530 |
FB092
6535 |
FB092
6540 |
FB092
6550 |
FB092
6560 |
FB092
6570 |
|
|
|
||
|
70
|
75
|
|
|
|
|
FB092
7030 |
FB092
7035 |
FB092
7040 |
FB092
7050 |
FB092
7060 |
FB092
7070 |
FB092
7080 |
|
|
||
|
75
|
80
|
|
|
|
|
FB092
7530 |
FB092
7535 |
FB092
7540 |
FB092
7550 |
FB092
7560 |
FB092
7570 |
FB092
7580 |
|
|
||
|
80
|
85
|
1.4
|
0.8
|
|
|
|
|
FB092
8030 |
FB092
8035 |
FB092
8040 |
FB092
8050 |
FB092
8060 |
FB092
8070 |
FB092
8080 |
|
|
|
85
|
90
|
|
|
|
|
FB092
8530 |
FB092
8535 |
FB092
8540 |
FB092
8550 |
FB092
8560 |
FB092
8570 |
FB092
8580 |
FB092
8590 |
|
||
|
90
|
95
|
|
|
|
|
FB092
9030 |
FB092
9035 |
FB092
9040 |
FB092
9050 |
FB092
9060 |
FB092
9070 |
FB092
9080 |
FB092
9090 |
|
||
|
95
|
100
|
|
|
|
|
|
|
FB092
9540 |
FB092
9550 |
FB092
9560 |
FB092
9570 |
FB092
9580 |
FB092
9590 |
FB092
95100 |
||
|
100
|
105
|
|
|
|
|
|
|
|
FB092
10050 |
FB092
10060 |
FB092
10070 |
FB092
10080 |
FB092
10090 |
FB092
100100 |
||
|
105
|
110
|
|
|
|
|
|
|
|
FB092
10550 |
FB092
10560 |
FB092
10570 |
FB092
10580 |
FB092
10590 |
FB092
105100 |
||
|
110
|
115
|
|
|
|
|
|
|
|
FB092
11050 |
FB092
11060 |
FB092
11070 |
FB092
11080 |
FB092
11090 |
FB092
110100 |
||
|
d
|
D
|
f1
|
f2
|
L 0
-0.40 |
|||||||||
|
25
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
90
|
100
|
||||
|
115
|
120
|
1.4
|
0.8
|
|
|
|
|
FB092
11550 |
FB092
11560 |
FB092
11570 |
FB092
11580 |
FB092
11590 |
FB092
115110 |
|
120
|
125
|
|
|
|
|
|
FB092
12060 |
FB092
12070 |
FB092
12080 |
FB092
12090 |
FB092
120110 |
||
|
125
|
130
|
|
|
|
|
|
FB092
12560 |
FB092
12570 |
FB092
12580 |
FB092
12590 |
FB092
125110 |
||
|
130
|
135
|
|
|
|
|
|
FB092
13060 |
FB092
13070 |
FB092
13080 |
FB092
13090 |
FB092
130110 |
||
|
135
|
140
|
|
|
|
|
|
FB092
13560 |
FB092
13570 |
FB092
13580 |
FB092
13590 |
FB092
135110 |
||
|
140
|
145
|
|
|
|
|
|
FB092
14060 |
FB092
14070 |
FB092
14080 |
FB092
14090 |
FB092
140110 |
||
|
145
|
150
|
|
|
|
|
|
FB092
14560 |
FB092
14570 |
FB092
14580 |
FB092
14590 |
FB092
145110 |
||
|
150
|
155
|
|
|
|
|
|
FB092
15060 |
FB092
15070 |
FB092
15080 |
FB092
15090 |
FB092
150110 |
||
|
155
|
160
|
|
|
|
|
|
FB092
15560 |
FB092
15570 |
FB092
15580 |
FB092
15590 |
FB092
155110 |
||
|
160
|
165
|
|
|
|
|
|
FB092
16060 |
FB092
16070 |
FB092
16080 |
FB092
16090 |
FB092
160110 |
||
|
165
|
170
|
|
|
|
|
|
FB092
16560 |
FB092
16570 |
FB092
16580 |
FB092
16590 |
FB092
165110 |
||
|
170
|
175
|
|
|
|
|
|
FB092
17060 |
FB092
17070 |
FB092
17080 |
FB092
17090 |
FB092
170110 |
||
|
175
|
180
|
|
|
|
|
|
FB092
17560 |
FB092
17570 |
FB092
17580 |
FB092
17590 |
FB092
175110 |
||
|
180
|
185
|
|
|
|
|
|
FB092
18060 |
FB092
18070 |
FB092
18080 |
FB092
18090 |
FB092
180110 |
||
|
185
|
190
|
|
|
|
|
|
FB092
18560 |
FB092
18570 |
FB092
18580 |
FB092
18590 |
FB092
185110 |
||
|
190
|
195
|
|
|
|
|
|
FB092
19060 |
FB092
19070 |
FB092
19080 |
FB092
19090 |
FB092
190110 |
||
|
195
|
200
|
|
|
|
|
|
FB092
19560 |
FB092
19570 |
FB092
19580 |
FB092
19590 |
FB092
195110 |
||
|
200
|
205
|
|
|
|
|
|
FB092
20060 |
FB092
20070 |
FB092
20080 |
FB092
20090 |
FB092
200110 |
||
|
205
|
210
|
|
|
|
|
|
FB092
20560 |
FB092
20570 |
FB092
20580 |
FB092
20590 |
FB092
205110 |
||
|
215
|
220
|
|
|
|
|
|
FB092
21560 |
FB092
21570 |
FB092
21580 |
FB092
21590 |
FB092
215110 |
||
|
225
|
230
|
|
|
|
|
|
FB092
22560 |
FB092
22570 |
FB092
22580 |
FB092
22590 |
FB092
225110 |
||
|
230
|
235
|
|
|
|
|
|
FB092
23060 |
FB092
23070 |
FB092
23080 |
FB092
23090 |
FB092
230110 |
||
|
240
|
245
|
|
|
|
|
|
FB092
24060 |
FB092
24070 |
FB092
24080 |
FB092
24090 |
FB092
240110 |
||
|
250
|
255
|
|
|
|
|
|
FB092
25060 |
FB092
25070 |
FB092
25080 |
FB092
25090 |
FB092
250110 |
||
|
260
|
265
|
|
|
|
|
|
FB092
26060 |
FB092
26070 |
FB092
26080 |
FB092
26090 |
FB092
260110 |
||
|
270
|
275
|
|
|
|
|
|
FB092
27060 |
FB092
27070 |
FB092
27080 |
FB092
27090 |
FB092
270110 |
||
|
280
|
285
|
|
|
|
|
|
FB092
28060 |
FB092
28070 |
FB092
28080 |
FB092
28090 |
FB092
280110 |
||
|
290
|
295
|
|
|
|
|
|
FB092
29060 |
FB092
29070 |
FB092
29080 |
FB092
29090 |
FB092
290110 |
||
|
300
|
305
|
|
|
|
|
|
FB092
30060 |
FB092
30070 |
FB092
30080 |
FB092
30090 |
FB092
300110 |
||
WB802 SLIDING BEARINGS SIZE CHART
| Item no. | Description | d | D | L |
| 220060 | Sliding bearing 15/17X15 WB802 | 15 | 17 | 15 |
| 220065 | Sliding bearing 15/17X25 WB802 | 15 | 17 | 25 |
| 220070 | Sliding bearing 16/18X15 WB802 | 16 | 18 | 15 |
| 220075 | Sliding bearing 16/18X20 WB802 | 16 | 18 | 20 |
| 220080 | Sliding bearing 16/18X25 WB802 | 16 | 18 | 25 |
| 220085 | Sliding bearing 18/21X15 WB802 | 18 | 21 | 15 |
| 220090 | Sliding bearing 18/21X20 WB802 | 18 | 21 | 20 |
| 220095 | Sliding bearing 18/21X25 WB802 | 18 | 21 | 25 |
| 220100 | Sliding bearing 20/23X15 WB802 | 20 | 23 | 15 |
| 220105 | Sliding bearing 20/23X20 WB802 | 20 | 23 | 20 |
| 220110 | Sliding bearing 20/23X25 WB802 | 20 | 23 | 25 |
| 220115 | Sliding bearing 20/23X30 WB802 | 20 | 23 | 30 |
| 220120 | Sliding bearing 22/25X15 WB802 | 22 | 25 | 15 |
| 220125 | Sliding bearing 22/25X20 WB802 | 22 | 25 | 20 |
| 220130 | Sliding bearing 22/25X25 WB802 | 22 | 25 | 25 |
| 220135 | Sliding bearing 22/25X30 WB802 | 22 | 25 | 30 |
| 220137 | Sliding bearing 25/28X15 WB802 | 25 | 28 | 15 |
| 220140 | Sliding bearing 25/28X20 WB802 | 25 | 28 | 20 |
| 220145 | Sliding bearing 25/28X25 WB802 | 25 | 28 | 25 |
| 220150 | Sliding bearing 25/28X30 WB802 | 25 | 28 | 30 |
| 220160 | Sliding bearing 25/28X50 WB802 | 25 | 28 | 50 |
| 220165 | Sliding bearing 28/31X15 WB802 | 28 | 31 | 15 |
| 220170 | Sliding bearing 28/31X25 WB802 | 28 | 31 | 25 |
| 220175 | Sliding bearing 28/31X30 WB802 | 28 | 31 | 30 |
| 220180 | Sliding bearing 30/34X20 WB802 | 30 | 34 | 20 |
| 220183 | Sliding bearing 30/34X25 WB802 | 30 | 34 | 25 |
| 220190 | Sliding bearing 30/34X30 WB802 | 30 | 34 | 30 |
| 220195 | Sliding bearing 30/34X40 WB802 | 30 | 34 | 40 |
| 220200 | Sliding bearing 32/36X20 WB802 | 32 | 36 | 20 |
| 220205 | Sliding bearing 32/36X30 WB802 | 32 | 36 | 30 |
| 220210 | Sliding bearing 32/36X40 WB802 | 32 | 36 | 40 |
| 220220 | Sliding bearing 35/39X20 WB802 | 35 | 39 | 20 |
| 220235 | Sliding bearing 35/39X30 WB802 | 35 | 39 | 30 |
| 220240 | Sliding bearing 35/39X40 WB802 | 35 | 39 | 40 |
| 220245 | Sliding bearing 35/39X50 WB802 | 35 | 39 | 50 |
| 220260 | Sliding bearing 40/44X20 WB802 | 40 | 44 | 20 |
| 220262 | Sliding bearing 40/44X25 WB802 | 40 | 44 | 25 |
| 220265 | Sliding bearing 40/44X30 WB802 | 40 | 44 | 30 |
| 220275 | Sliding bearing 40/44X40 WB802 | 40 | 44 | 40 |
| 220285 | Sliding bearing 40/44X50 WB802 | 40 | 44 | 50 |
| 220295 | Sliding bearing 45/50X20 WB802 | 45 | 50 | 20 |
| 220300 | Sliding bearing 45/50X30 WB802 | 45 | 50 | 30 |
| 220302 | Sliding bearing 45/50X40 WB802 | 45 | 50 | 40 |
| 220310 | Sliding bearing 45/50X50 WB802 | 45 | 50 | 50 |
| 220315 | Sliding bearing 45/50X60 WB802 | 45 | 50 | 60 |
| 220320 | Sliding bearing 50/55X25 WB802 | 50 | 55 | 25 |
| 220325 | Sliding bearing 50/55X30 WB802 | 50 | 55 | 30 |
| 220335 | Sliding bearing 50/55X40 WB802 | 50 | 55 | 40 |
| 220337 | Sliding bearing 50/55X50 WB802 | 50 | 55 | 50 |
| 220340 | Sliding bearing 50/55X60 WB802 | 50 | 55 | 60 |
| 220345 | Sliding bearing 55/60X40 WB802 | 55 | 60 | 40 |
| 220350 | Sliding bearing 55/60X60 WB802 | 55 | 60 | 60 |
| 220358 | Sliding bearing 60/65X25 WB802 | 60 | 65 | 25 |
| 220360 | Sliding bearing 60/65X30 WB802 | 60 | 65 | 30 |
| 220364 | Sliding bearing 60/65X35 WB802 | 60 | 65 | 35 |
| 220365 | Sliding bearing 60/65X40 WB802 | 60 | 65 | 40 |
| 220375 | Sliding bearing 60/65X45 WB802 | 60 | 65 | 45 |
| 220377 | Sliding bearing 60/65X50 WB802 | 60 | 65 | 50 |
| 220380 | Sliding bearing 60/65X60 WB802 | 60 | 65 | 60 |
| 220390 | Sliding bearing 60/65X70 WB802 | 60 | 65 | 70 |
| 220405 | Sliding bearing 65/70X40 WB802 | 65 | 70 | 40 |
| 220410 | Sliding bearing 65/70X60 WB802 | 65 | 70 | 60 |
| 220420 | Sliding bearing 70/75X40 WB802 | 70 | 75 | 40 |
| 220425 | Sliding bearing 70/75X45 WB802 | 70 | 75 | 45 |
| 220427 | Sliding bearing 70/75X50 WB802 | 70 | 75 | 50 |
| 220430 | Sliding bearing 70/75X60 WB802 | 70 | 75 | 60 |
| 220435 | Sliding bearing 70/75X80 WB802 | 70 | 75 | 80 |
| 220445 | Sliding bearing 75/80X40 WB802 | 75 | 80 | 40 |
| 220450 | Sliding bearing 75/80X80 WB802 | 75 | 80 | 80 |
| 220454 | Sliding bearing 80/85X30 WB802 | 80 | 85 | 30 |
| 220455 | Sliding bearing 80/85X40 WB802 | 80 | 85 | 40 |
| 220460 | Sliding bearing 80/85X60 WB802 | 80 | 85 | 60 |
| 220465 | Sliding bearing 80/85X80 WB802 | 80 | 85 | 80 |
| 220475 | Sliding bearing 85/90X40 WB802 | 85 | 90 | 40 |
| 220480 | Sliding bearing 85/90X80 WB802 | 85 | 90 | 80 |
| 220495 | Sliding bearing 90/95X40 WB802 | 90 | 95 | 40 |
| 220497 | Sliding bearing 90/95X50 WB802 | 90 | 95 | 50 |
| 220500 | Sliding bearing 90/95X60 WB802 | 90 | 95 | 60 |
| 220508 | Sliding bearing 90/95X70 WB802 | 90 | 95 | 70 |
| 220505 | Sliding bearing 90/95X90 WB802 | 90 | 95 | 90 |
| 220514 | Sliding bearing 100/105X40 WB802 | 100 | 105 | 40 |
| 220515 | Sliding bearing 100/105X50 WB802 | 100 | 105 | 50 |
| 220520 | Sliding bearing 100/105X60 WB802 | 100 | 105 | 60 |
| 220522 | Sliding bearing 100/105X70 WB802 | 100 | 105 | 70 |
| 220525 | Sliding bearing 100/105X95 WB802 | 100 | 105 | 95 |
| 220535 | Sliding bearing 110/115X50 WB802 | 110 | 115 | 50 |
| 220540 | Sliding bearing 110/115X95 WB802 | 110 | 115 | 95 |
| 220542 | Sliding bearing 120/125X25 WB802 | 120 | 125 | 25 |
| 220550 | Sliding bearing 120/125X50 WB802 | 120 | 125 | 50 |
| 220555 | Sliding bearing 120/125X95 WB802 | 120 | 125 | 95 |
| 220565 | Sliding bearing 125/130X100 WB802 | 125 | 130 | 100 |
| 220570 | Sliding bearing 130/135X60 WB802 | 130 | 135 | 60 |
| 220575 | Sliding bearing 130/135X100 WB802 | 130 | 135 | 100 |
| 220578 | Sliding bearing 140/145X50 WB802 | 140 | 145 | 50 |
| 220580 | Sliding bearing 140/145X60 WB802 | 140 | 145 | 60 |
| 220585 | Sliding bearing 140/145X100 WB802 | 140 | 145 | 100 |
| 220603 | Sliding bearing 150/155X45 WB802 | 150 | 155 | 45 |
| 220605 | Sliding bearing 150/155X60 WB802 | 150 | 155 | 60 |
| 220610 | Sliding bearing 150/155X100 WB802 | 150 | 155 | 100 |
| 220615 | Sliding bearing 160/165X60 WB802 | 160 | 165 | 60 |
| 220620 | Sliding bearing 160/165X100 WB802 | 160 | 165 | 100 |
| 220635 | Sliding bearing 170/175X60 WB802 | 170 | 175 | 60 |
| 220640 | Sliding bearing 170/175X100 WB802 | 170 | 175 | 100 |
| 220641 | Sliding bearing 175/180X50 WB802 | 175 | 180 | 50 |
| 220643 | Sliding bearing 180/185X45 WB802 | 180 | 185 | 45 |
| 220645 | Sliding bearing 180/185X60 WB802 | 180 | 185 | 60 |
| 220655 | Sliding bearing 180/185X100 WB802 | 180 | 185 | 100 |
| 220657 | Sliding bearing 185/190X100 WB802 | 185 | 190 | 100 |
| 220660 | Sliding bearing 190/195X60 WB802 | 190 | 195 | 60 |
| 220665 | Sliding bearing 190/195X100 WB802 | 190 | 195 | 100 |
| 220670 | Sliding bearing 200/205X60 WB802 | 200 | 205 | 60 |
| 220675 | Sliding bearing 200/205X100 WB802 | 200 | 205 | 100 |
| 220694 | Sliding bearing 230/235X70 WB802 | 230 | 235 | 70 |
| 2207151 | Sliding bearing 250/255X100 WB802 | 250 | 255 | 100 |
| 220730 | Sliding bearing 300/305X90 WB802 | 300 | 305 | 90 |
WF-WB802 FLANGE SLIDING BEARINGS SIZE CHART
| Item no. | Description | d | D | D2 | L |
| 224010 | Sliding bearing 20/23/30X16 WF-WB802 | 20 | 23 | 30 | 16 |
| 224015 | Sliding bearing 20/23/30X20 WF-WB802 | 20 | 23 | 30 | 20 |
| 224018 | Sliding bearing 25/28/35X12,5 WF-WB802 | 25 | 28 | 35 | 12.5 |
| 224020 | Sliding bearing 25/28/35X16 WF-WB802 | 25 | 28 | 35 | 16 |
| 224025 | Sliding bearing 25/28/35X25 WF-WB802 | 25 | 28 | 35 | 25 |
| 224030 | Sliding bearing 30/34/45X20 WF-WB802 | 30 | 34 | 45 | 20 |
| 224035 | Sliding bearing 30/34/45X30 WF-WB802 | 30 | 34 | 45 | 30 |
| 224040 | Sliding bearing 35/39/50X20 WF-WB802 | 35 | 39 | 50 | 20 |
| 224045 | Sliding bearing 35/39/50X35 WF-WB802 | 35 | 39 | 50 | 35 |
| 224050 | Sliding bearing 40/44/55X25 WF-WB802 | 40 | 44 | 55 | 25 |
| 224055 | Sliding bearing 40/44/55X40 WF-WB802 | 40 | 44 | 55 | 40 |
| 224065 | Sliding bearing 45/50/60X30 WF-WB802 | 45 | 50 | 60 | 30 |
| 224067 | Sliding bearing 45/50/60X40 WF-WB802 | 45 | 50 | 60 | 40 |
| 224070 | Sliding bearing 45/50/60X45 WF-WB802 | 45 | 50 | 60 | 45 |
| 224075 | Sliding bearing 50/55/65X30 WF-WB802 | 50 | 55 | 65 | 30 |
| 224080 | Sliding bearing 50/55/65X50 WF-WB802 | 50 | 55 | 65 | 50 |
| 224081 | Sliding bearing 55/60/70X30 WF-WB802 | 55 | 60 | 70 | 30 |
| 224082 | Sliding bearing 55/60/70X50 WF-WB802 | 55 | 60 | 70 | 50 |
| 224083 | Sliding bearing 60/65/75X25 WF-WB802 | 60 | 65 | 75 | 25 |
| 224085 | Sliding bearing 60/65/75X35 WF-WB802 | 60 | 65 | 75 | 35 |
| 224090 | Sliding bearing 60/65/75X50 WF-WB802 | 60 | 65 | 75 | 50 |
| 224095 | Sliding bearing 60/65/75X60 WF-WB802 | 60 | 65 | 75 | 60 |
| 224097 | Sliding bearing 65/70/80X40 WF-WB802 | 65 | 70 | 80 | 40 |
| 224098 | Sliding bearing 65/70/80X60 WF-WB802 | 65 | 70 | 80 | 60 |
| 2240971 | Sliding bearing 65/70/85X40 WF-WB802 | 65 | 70 | 85 | 40 |
| 224100 | Sliding bearing 70/75/85X35 WF-WB802 | 70 | 75 | 85 | 35 |
| 224105 | Sliding bearing 70/75/85X70 WF-WB802 | 70 | 75 | 85 | 70 |
| 224107 | Sliding bearing 75/80/90X40 WF-WB802 | 75 | 80 | 90 | 40 |
| 224108 | Sliding bearing 75/80/90X70 WF-WB802 | 75 | 80 | 90 | 70 |
| 224110 | Sliding bearing 80/85/95X40 WF-WB802 | 80 | 85 | 95 | 40 |
| 224115 | Sliding bearing 80/85/95X80 WF-WB802 | 80 | 85 | 95 | 80 |
| 224120 | Sliding bearing 90/95/110X50 WF-WB802 | 90 | 95 | 110 | 50 |
| 224125 | Sliding bearing 90/95/110X90 WF-WB802 | 90 | 95 | 110 | 90 |
| 224135 | Sliding bearing 100/105/120X50 WF-WB802 | 100 | 105 | 120 | 50 |
| 224140 | Sliding bearing 100/105/120X90 WF-WB802 | 100 | 105 | 120 | 90 |
| 224150 | Sliding bearing 110/115/130X50 WF-WB802 | 110 | 115 | 130 | 50 |
| 224155 | Sliding bearing 110/115/130X90 WF-WB802 | 110 | 115 | 130 | 90 |
| 224160 | Sliding bearing 120/125/145X50 WF-WB802 | 120 | 125 | 145 | 50 |
| 224165 | Sliding bearing 120/125/145X90 WF-WB802 | 120 | 125 | 145 | 90 |
| 224170 | Sliding bearing 130/135/155X60 WF-WB802 | 130 | 135 | 155 | 60 |
| 224175 | Sliding bearing 130/135/155X90 WF-WB802 | 130 | 135 | 155 | 90 |
| 224180 | Sliding bearing 140/145/165X60 WF-WB802 | 140 | 145 | 165 | 60 |
| 224185 | Sliding bearing 140/145/165X90 WF-WB802 | 140 | 145 | 165 | 90 |
| 224190 | Sliding bearing 150/155/180X60 WF-WB802 | 150 | 155 | 180 | 60 |
| 224195 | Sliding bearing 150/155/180X90 WF-WB802 | 150 | 155 | 180 | 90 |
| 224200 | Sliding bearing 160/165/190X60 WF-WB802 | 160 | 165 | 190 | 60 |
| 224205 | Sliding bearing 160/165/190X90 WF-WB802 | 160 | 165 | 190 | 90 |
| 224210 | Sliding bearing 170/175/200X60 WF-WB802 | 170 | 175 | 200 | 60 |
| 224215 | Sliding bearing 170/175/200X90 WF-WB802 | 170 | 175 | 200 | 90 |
| 224220 | Sliding bearing 180/185/215X60 WF-WB802 | 180 | 185 | 215 | 60 |
| 224225 | Sliding bearing 180/185/215X90 WF-WB802 | 180 | 185 | 215 | 90 |
| 224240 | Sliding bearing 190/195/225X60 WF-WB802 | 190 | 195 | 225 | 60 |
| 224245 | Sliding bearing 190/195/225X90 WF-WB802 | 190 | 195 | 225 | 90 |
| 224255 | Sliding bearing 200/205/235X60 WF-WB802 | 200 | 205 | 235 | 60 |
| 224260 | Sliding bearing 200/205/235X90 WF-WB802 | 200 | 205 | 235 | 90 |
| 224277 | Sliding bearing 220/225/245X90 WF-WB802 | 220 | 225 | 245 | 90 |
| 224281 | Sliding bearing 230/235/265X90 WF-WB802 | 230 | 235 | 265 | 90 |
WB702 WRAPPED BRONZE BUSHINGS SIZE CHART
| Item no. | Description | d | D | L |
| 280060 | Wrapped bearings15/17X15 WB702 | 15 | 17 | 15 |
| 280065 | Wrapped bearings15/17X25 WB702 | 15 | 17 | 25 |
| 280070 | Wrapped bearings16/18X15 WB702 | 16 | 18 | 15 |
| 280075 | Wrapped bearings16/18X20 WB702 | 16 | 18 | 20 |
| 280080 | Wrapped bearings16/18X25 WB702 | 16 | 18 | 25 |
| 280085 | Wrapped bearings18/21X15 WB702 | 18 | 21 | 15 |
| 280090 | Wrapped bearings18/21X20 WB702 | 18 | 21 | 20 |
| 280095 | Wrapped bearings18/21X25 WB702 | 18 | 21 | 25 |
| 280100 | Wrapped bearings20/23X15 WB702 | 20 | 23 | 15 |
| 280105 | Wrapped bearings20/23X20 WB702 | 20 | 23 | 20 |
| 280110 | Wrapped bearings20/23X25 WB702 | 20 | 23 | 25 |
| 280115 | Wrapped bearings20/23X30 WB702 | 20 | 23 | 30 |
| 280120 | Wrapped bearings22/25X15 WB702 | 22 | 25 | 15 |
| 280125 | Wrapped bearings22/25X20 WB702 | 22 | 25 | 20 |
| 280130 | Wrapped bearings22/25X25 WB702 | 22 | 25 | 25 |
| 280135 | Wrapped bearings22/25X30 WB702 | 22 | 25 | 30 |
| 280137 | Wrapped bearings25/28X15 WB702 | 25 | 28 | 15 |
| 280140 | Wrapped bearings25/28X20 WB702 | 25 | 28 | 20 |
| 280145 | Wrapped bearings25/28X25 WB702 | 25 | 28 | 25 |
| 280150 | Wrapped bearings25/28X30 WB702 | 25 | 28 | 30 |
| 280160 | Wrapped bearings25/28X50 WB702 | 25 | 28 | 50 |
| 280165 | Wrapped bearings28/31X15 WB702 | 28 | 31 | 15 |
| 280170 | Wrapped bearings28/31X25 WB702 | 28 | 31 | 25 |
| 280175 | Wrapped bearings28/31X30 WB702 | 28 | 31 | 30 |
| 280177 | Wrapped bearings30/34X15 WB702 | 30 | 34 | 15 |
| 280180 | Wrapped bearings30/34X20 WB702 | 30 | 34 | 20 |
| 280183 | Wrapped bearings30/34X25 WB702 | 30 | 34 | 25 |
| 280190 | Wrapped bearings30/34X30 WB702 | 30 | 34 | 30 |
| 280195 | Wrapped bearings30/34X40 WB702 | 30 | 34 | 40 |
| 280200 | Wrapped bearings32/36X20 WB702 | 32 | 36 | 20 |
| 280205 | Wrapped bearings32/36X30 WB702 | 32 | 36 | 30 |
| 280210 | Wrapped bearings32/36X40 WB702 | 32 | 36 | 40 |
| 280220 | Wrapped bearings35/39X20 WB702 | 35 | 39 | 20 |
| 280235 | Wrapped bearings35/39X30 WB702 | 35 | 39 | 30 |
| 280240 | Wrapped bearings35/39X40 WB702 | 35 | 39 | 40 |
| 280245 | Wrapped bearings35/39X50 WB702 | 35 | 39 | 50 |
| 280260 | Wrapped bearings40/44X20 WB702 | 40 | 44 | 20 |
| 280262 | Wrapped bearings40/44X25 WB702 | 40 | 44 | 25 |
| 280265 | Wrapped bearings40/44X30 WB702 | 40 | 44 | 30 |
| 280275 | Wrapped bearings40/44X40 WB702 | 40 | 44 | 40 |
| 280285 | Wrapped bearings40/44X50 WB702 | 40 | 44 | 50 |
| 280295 | Wrapped bearings45/50X20 WB702 | 45 | 50 | 20 |
| 280300 | Wrapped bearings45/50X30 WB702 | 45 | 50 | 30 |
| 280302 | Wrapped bearings45/50X40 WB702 | 45 | 50 | 40 |
| 280310 | Wrapped bearings45/50X50 WB702 | 45 | 50 | 50 |
| 280315 | Wrapped bearings45/50X60 WB702 | 45 | 50 | 60 |
| 280325 | Wrapped bearings50/55X30 WB702 | 50 | 55 | 30 |
| 280335 | Wrapped bearings50/55X40 WB702 | 50 | 55 | 40 |
| 280337 | Wrapped bearings50/55X50 WB702 | 50 | 55 | 50 |
| 280340 | Wrapped bearings50/55X60 WB702 | 50 | 55 | 60 |
| 280345 | Wrapped bearings55/60X40 WB702 | 55 | 60 | 40 |
| 280347 | Wrapped bearings55/60X50 WB702 | 55 | 60 | 50 |
| 280350 | Wrapped bearings55/60X60 WB702 | 55 | 60 | 60 |
| 280358 | Wrapped bearings60/65X25 WB702 | 60 | 65 | 25 |
| 280360 | Wrapped bearings60/65X30 WB702 | 60 | 65 | 30 |
| 280364 | Wrapped bearings60/65X35 WB702 | 60 | 65 | 35 |
| 280365 | Wrapped bearings60/65X40 WB702 | 60 | 65 | 40 |
| 280377 | Wrapped bearings60/65X50 WB702 | 60 | 65 | 50 |
| 280380 | Wrapped bearings60/65X60 WB702 | 60 | 65 | 60 |
| 280405 | Wrapped bearings65/70X40 WB702 | 65 | 70 | 40 |
| 280410 | Wrapped bearings65/70X60 WB702 | 65 | 70 | 60 |
| 280420 | Wrapped bearings70/75X40 WB702 | 70 | 75 | 40 |
| 280427 | Wrapped bearings70/75X50 WB702 | 70 | 75 | 50 |
| 280430 | Wrapped bearings70/75X60 WB702 | 70 | 75 | 60 |
| 280435 | Wrapped bearings70/75X80 WB702 | 70 | 75 | 80 |
| 280445 | Wrapped bearings75/80X40 WB702 | 75 | 80 | 40 |
| 280450 | Wrapped bearings75/80X80 WB702 | 75 | 80 | 80 |
| 280455 | Wrapped bearings80/85X40 WB702 | 80 | 85 | 40 |
| 280458 | Wrapped bearings80/85X50 WB702 | 80 | 85 | 50 |
| 280460 | Wrapped bearings80/85X60 WB702 | 80 | 85 | 60 |
| 280465 | Wrapped bearings80/85X80 WB702 | 80 | 85 | 80 |
| 280475 | Wrapped bearings85/90X40 WB702 | 85 | 90 | 40 |
| 280480 | Wrapped bearings85/90X80 WB702 | 85 | 90 | 80 |
| 280495 | Wrapped bearings90/95X40 WB702 | 90 | 95 | 40 |
| 280500 | Wrapped bearings90/95X60 WB702 | 90 | 95 | 60 |
| 280505 | Wrapped bearings90/95X90 WB702 | 90 | 95 | 90 |
| 280514 | Wrapped bearings100/105X40 WB702 | 100 | 105 | 40 |
| 280515 | Wrapped bearings100/105X50 WB702 | 100 | 105 | 50 |
| 280520 | Wrapped bearings100/105X60 WB702 | 100 | 105 | 60 |
| 280522 | Wrapped bearings100/105X70 WB702 | 100 | 105 | 70 |
| 280525 | Wrapped bearings100/105X95 WB702 | 100 | 105 | 95 |
| 280535 | Wrapped bearings110/115X50 WB702 | 110 | 115 | 50 |
| 280540 | Wrapped bearings110/115X95 WB702 | 110 | 115 | 95 |
| 2805413 | Wrapped bearings110/115X100 WB702 | 110 | 115 | 100 |
| 280550 | Wrapped bearings120/125X50 WB702 | 120 | 125 | 50 |
| 280555 | Wrapped bearings120/125X95 WB702 | 120 | 125 | 95 |
| 280565 | Wrapped bearings125/130X100 WB702 | 125 | 130 | 100 |
| 280570 | Wrapped bearings130/135X60 WB702 | 130 | 135 | 60 |
| 280575 | Wrapped bearings130/135X100 WB702 | 130 | 135 | 100 |
| 280580 | Wrapped bearings140/145X60 WB702 | 140 | 145 | 60 |
| 280585 | Wrapped bearings140/145X100 WB702 | 140 | 145 | 100 |
| 280605 | Wrapped bearings150/155X60 WB702 | 150 | 155 | 60 |
| 280610 | Wrapped bearings150/155X100 WB702 | 150 | 155 | 100 |
| 280615 | Wrapped bearings160/165X60 WB702 | 160 | 165 | 60 |
| 280620 | Wrapped bearings160/165X100 WB702 | 160 | 165 | 100 |
| 280635 | Wrapped bearings170/175X60 WB702 | 170 | 175 | 60 |
| 280640 | Wrapped bearings170/175X100 WB702 | 170 | 175 | 100 |
| 280645 | Wrapped bearings180/185X60 WB702 | 180 | 185 | 60 |
| 280655 | Wrapped bearings180/185X100 WB702 | 180 | 185 | 100 |
| 280657 | Wrapped bearings185/190X100 WB702 | 185 | 190 | 100 |
| 280660 | Wrapped bearings190/195X60 WB702 | 190 | 195 | 60 |
| 280665 | Wrapped bearings190/195X100 WB702 | 190 | 195 | 100 |
| 280670 | Wrapped bearings200/205X60 WB702 | 200 | 205 | 60 |
| 280675 | Wrapped bearings200/205X100 WB702 | 200 | 205 | 100 |
| 2807151 | Wrapped bearings250/255X100 WB702 | 250 | 255 | 100 |
WB702 WRAPPED BRONZE BUSHINGS SIZE CHART
| Item no. | Description | d | D | D2 | L |
| 284010 | Wrapped bearings20/23/30X16 WF-WB702 | 20 | 23 | 30 | 16 |
| 284015 | Wrapped bearings20/23/30X20 WF-WB702 | 20 | 23 | 30 | 20 |
| 284025 | Wrapped bearings25/28/35X25 WF-WB702 | 25 | 28 | 35 | 25 |
| 284030 | Wrapped bearings30/34/45X20 WF-WB702 | 30 | 34 | 45 | 20 |
| 284035 | Wrapped bearings30/34/45X30 WF-WB702 | 30 | 34 | 45 | 30 |
| 284040 | Wrapped bearings35/39/50X20 WF-WB702 | 35 | 39 | 50 | 20 |
| 284045 | Wrapped bearings35/39/50X35 WF-WB702 | 35 | 39 | 50 | 35 |
| 284050 | Wrapped bearings40/44/55X25 WF-WB702 | 40 | 44 | 55 | 25 |
| 284055 | Wrapped bearings40/44/55X40 WF-WB702 | 40 | 44 | 55 | 40 |
| 284065 | Wrapped bearings45/50/60X30 WF-WB702 | 45 | 50 | 60 | 30 |
| 284070 | Wrapped bearings45/50/60X45 WF-WB702 | 45 | 50 | 60 | 45 |
| 284075 | Wrapped bearings50/55/65X30 WF-WB702 | 50 | 55 | 65 | 30 |
| 284080 | Wrapped bearings50/55/65X50 WF-WB702 | 50 | 55 | 65 | 50 |
| 284081 | Wrapped bearings55/60/70X30 WF-WB702 | 55 | 60 | 70 | 30 |
| 284082 | Wrapped bearings55/60/70X50 WF-WB702 | 55 | 60 | 70 | 50 |
| 284083 | Wrapped bearings60/65/75X25 WF-WB702 | 60 | 65 | 75 | 25 |
| 284085 | Wrapped bearings60/65/75X35 WF-WB702 | 60 | 65 | 75 | 35 |
| 284095 | Wrapped bearings60/65/75X60 WF-WB702 | 60 | 65 | 75 | 60 |
| 284098 | Wrapped bearings65/70/80X60 WF-WB702 | 65 | 70 | 80 | 60 |
| 284100 | Wrapped bearings70/75/85X35 WF-WB702 | 70 | 75 | 85 | 35 |
| 284105 | Wrapped bearings70/75/85X70 WF-WB702 | 70 | 75 | 85 | 70 |
| 284107 | Wrapped bearings75/80/90X40 WF-WB702 | 75 | 80 | 90 | 40 |
| 284108 | Wrapped bearings75/80/90X70 WF-WB702 | 75 | 80 | 90 | 70 |
| 284110 | Wrapped bearings80/85/95X40 WF-WB702 | 80 | 85 | 95 | 40 |
| 284115 | Wrapped bearings80/85/95X80 WF-WB702 | 80 | 85 | 95 | 80 |
| 284120 | Wrapped bearings90/95/110X50 WF-WB702 | 90 | 95 | 110 | 50 |
| 284125 | Wrapped bearings90/95/110X90 WF-WB702 | 90 | 95 | 110 | 90 |
| 284135 | Wrapped bearings100/105/120X50 WF-WB702 | 100 | 105 | 120 | 50 |
| 284140 | Wrapped bearings100/105/120X90 WF-WB702 | 100 | 105 | 120 | 90 |
| 284150 | Wrapped bearings110/115/130X50 WF-WB702 | 110 | 115 | 130 | 50 |
| 284155 | Wrapped bearings110/115/130X90 WF-WB702 | 110 | 115 | 130 | 90 |
| 284160 | Wrapped bearings120/125/145X50 WF-WB702 | 120 | 125 | 145 | 50 |
| 284165 | Wrapped bearings120/125/145X90 WF-WB702 | 120 | 125 | 145 | 90 |
| 284170 | Wrapped bearings130/135/155X60 WF-WB702 | 130 | 135 | 155 | 60 |
| 284175 | Wrapped bearings130/135/155X90 WF-WB702 | 130 | 135 | 155 | 90 |
| 284180 | Wrapped bearings140/145/165X60 WF-WB702 | 140 | 145 | 165 | 60 |
| 284185 | Wrapped bearings140/145/165X90 WF-WB702 | 140 | 145 | 165 | 90 |
| 284190 | Wrapped bearings150/155/180X60 WF-WB702 | 150 | 155 | 180 | 60 |
| 284195 | Wrapped bearings150/155/180X90 WF-WB702 | 150 | 155 | 180 | 90 |
| 284200 | Wrapped bearings160/165/190X60 WF-WB702 | 160 | 165 | 190 | 60 |
| 284205 | Wrapped bearings160/165/190X90 WF-WB702 | 160 | 165 | 190 | 90 |
| 284210 | Wrapped bearings170/175/200X60 WF-WB702 | 170 | 175 | 200 | 60 |
| 284215 | Wrapped bearings170/175/200X90 WF-WB702 | 170 | 175 | 200 | 90 |
| 284220 | Wrapped bearings180/185/215X60 WF-WB702 | 180 | 185 | 215 | 60 |
| 284225 | Wrapped bearings180/185/215X90 WF-WB702 | 180 | 185 | 215 | 90 |
| 284240 | Wrapped bearings190/195/225X60 WF-WB702 | 190 | 195 | 225 | 60 |
| 284245 | Wrapped bearings190/195/225X90 WF-WB702 | 190 | 195 | 225 | 90 |
| 284255 | Wrapped bearings200/205/235X60 WF-WB702 | 200 | 205 | 235 | 60 |
| 284260 | Wrapped bearings200/205/235X90 WF-WB702 | 200 | 205 | 235 | 90 |
WB802-T WRAPPED BRONZE BUSHINGS FB092 SIZE CHART
| Item no. | Description | d | D | L |
| 210180 | Oilless bearings30/34X20 WB802-T | 30 | 34 | 20 |
| 210190 | Oilless bearings30/34X30 WB802-T | 30 | 34 | 30 |
| 210195 | Oilless bearings30/34X40 WB802-T | 30 | 34 | 40 |
| 210200 | Oilless bearings32/36X20 WB802-T | 32 | 36 | 20 |
| 210205 | Oilless bearings32/36X30 WB802-T | 32 | 36 | 30 |
| 210210 | Oilless bearings32/36X40 WB802-T | 32 | 36 | 40 |
| 210220 | Oilless bearings35/39X20 WB802-T | 35 | 39 | 20 |
| 210235 | Oilless bearings35/39X30 WB802-T | 35 | 39 | 30 |
| 210240 | Oilless bearings35/39X40 WB802-T | 35 | 39 | 40 |
| 210245 | Oilless bearings35/39X50 WB802-T | 35 | 39 | 50 |
| 210260 | Oilless bearings40/44X20 WB802-T | 40 | 44 | 20 |
| 210265 | Oilless bearings40/44X30 WB802-T | 40 | 44 | 30 |
| 210275 | Oilless bearings40/44X40 WB802-T | 40 | 44 | 40 |
| 210285 | Oilless bearings40/44X50 WB802-T | 40 | 44 | 50 |
| 210300 | Oilless bearings45/50X30 WB802-T | 45 | 50 | 30 |
| 210302 | Oilless bearings45/50X40 WB802-T | 45 | 50 | 40 |
| 210310 | Oilless bearings45/50X50 WB802-T | 45 | 50 | 50 |
| 210315 | Oilless bearings45/50X60 WB802-T | 45 | 50 | 60 |
| 210325 | Oilless bearings50/55X30 WB802-T | 50 | 55 | 30 |
| 210335 | Oilless bearings50/55X40 WB802-T | 50 | 55 | 40 |
| 210337 | Oilless bearings50/55X50 WB802-T | 50 | 55 | 50 |
| 210340 | Oilless bearings50/55X60 WB802-T | 50 | 55 | 60 |
| 210345 | Oilless bearings55/60X40 WB802-T | 55 | 60 | 40 |
| 210350 | Oilless bearings55/60X60 WB802-T | 55 | 60 | 60 |
| 210360 | Oilless bearings60/65X30 WB802-T | 60 | 65 | 30 |
| 210365 | Oilless bearings60/65X40 WB802-T | 60 | 65 | 40 |
| 210380 | Oilless bearings60/65X60 WB802-T | 60 | 65 | 60 |
| 210390 | Oilless bearings60/65X70 WB802-T | 60 | 65 | 70 |
| 210405 | Oilless bearings65/70X40 WB802-T | 65 | 70 | 40 |
| 210410 | Oilless bearings65/70X60 WB802-T | 65 | 70 | 60 |
| 210420 | Oilless bearings70/75X40 WB802-T | 70 | 75 | 40 |
| 210430 | Oilless bearings70/75X60 WB802-T | 70 | 75 | 60 |
| 210435 | Oilless bearings70/75X80 WB802-T | 70 | 75 | 80 |
| 210445 | Oilless bearings75/80X40 WB802-T | 75 | 80 | 40 |
| 210450 | Oilless bearings75/80X80 WB802-T | 75 | 80 | 80 |
| 210455 | Oilless bearings80/85X40 WB802-T | 80 | 85 | 40 |
| 210460 | Oilless bearings80/85X60 WB802-T | 80 | 85 | 60 |
| 210465 | Oilless bearings80/85X80 WB802-T | 80 | 85 | 80 |
| 210475 | Oilless bearings85/90X40 WB802-T | 85 | 90 | 40 |
| 210480 | Oilless bearings85/90X80 WB802-T | 85 | 90 | 80 |
| 210495 | Oilless bearings90/95X40 WB802-T | 90 | 95 | 40 |
| 210497 | Oilless bearings90/95X50 WB802-T | 90 | 95 | 50 |
| 210500 | Oilless bearings90/95X60 WB802-T | 90 | 95 | 60 |
| 210505 | Oilless bearings90/95X90 WB802-T | 90 | 95 | 90 |
| 210510 | Oilless bearings100/105X26 WB802-T | 100 | 105 | 26 |
| 210515 | Oilless bearings100/105X50 WB802-T | 100 | 105 | 50 |
| 210525 | Oilless bearings100/105X95 WB802-T | 100 | 105 | 95 |
Recommended Products
