| Brand Name: | VIIPLUS |
| Model Number: | Bronze Bushings |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |

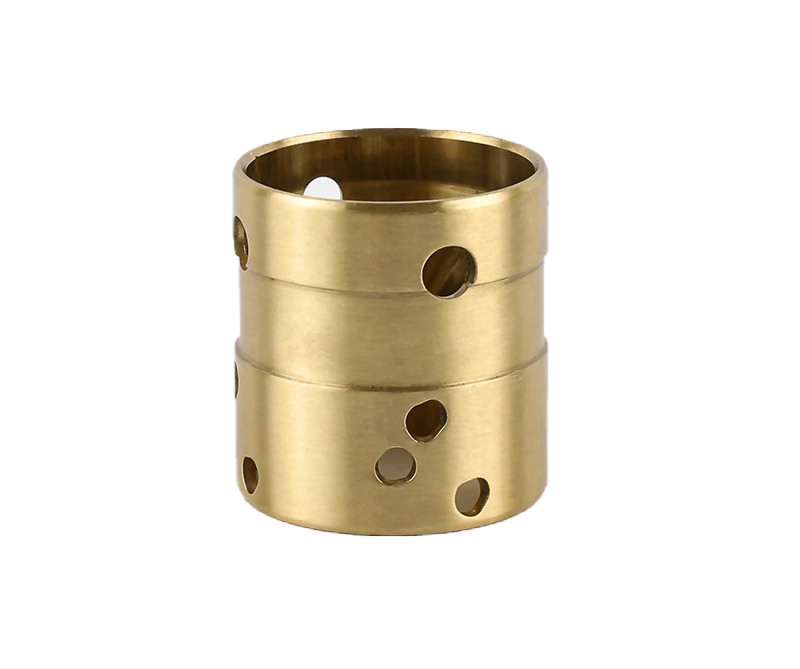

The Bronze Wrapped Bushing, with dimensions of 42mm x 38mm x 45mm, is a precision-engineered component that offers superior wear resistance and durability. Constructed from high-quality bronze alloy, this bushing is wrapped or formed around a central core or mandrel, providing a tight and secure fit for various applications.
The Bronze Wrapped Bushing is commonly used in rotating machinery such as pumps, motors, compressors, and other equipment. Its bronze construction ensures excellent corrosion resistance and strength, making it suitable for demanding industrial environments.
The precise dimensions of 42mm x 38mm x 45mm allow for easy installation and compatibility with specific equipment. The wrapped design ensures that the bushing remains securely in place during operation, minimizing the risk of movement or misalignment.
Overall, the Bronze Wrapped Bushing 423845mm is a reliable and durable bearing component that offers smooth rotation, low friction, and long-lasting performance. It is an essential part of maintaining the smooth and efficient operation of rotating machinery in various industrial applications.
Enterprise technology relying on Research Institute and colleges and universities and colleges and universities and colleges and universities, constantly develop brass wrapped bushings products adapted to different working conditions and various mechanical fields. The product performance has reached the level of foreign products of the same kind.
Material: CuZn31Si (H68)
H68 Sleeve for the car braking system, Split Sleeve, Bronze Bushing, Sleeve Bushing from Bushings Supplier, or... Application: construction machinery, machine tools, automobile brake system, etc. Material: CuZn31Si. Density: 8.4g/cm3.
| Performance Index | Data | |
| Material | CuZn31Si(H68) | |
| Density g/cm? | 8.4 | |
| Max Dynamic Load N/mm? | 90 | |
| Max Linear Velocity(Grease) m/s | 1.5 | |
| Max PV value Grease N/mm?·m/s | 1.65 | |
| Pressure strength N/mm? | >440 | |
| Yield Strength N/mm? | >230 | |
| Hardness | 80~120 | |
| Mating Axis | Hardness | ≥50 |
| Roughness | 0.4~1.0 | |
| Working Temperature ℃ | -40~150 | |
| Friction Coefficient | 0.06~0.15 | |
| coefficient of heat conduction W/m·K | 71 | |
| Linear expansion coefficient | 19.2×10-6/K | |
| Typical application | Application: hoisting, mining machinery, forest machinery, agricultural machinery etc. |
|
| We can also develop according to customers special request while out of this table | ||

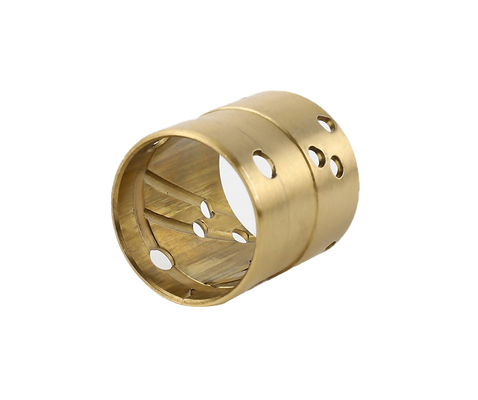

the Brass Wrapped Bushing bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.
Material: CuZn31Si
Hardness: HB90~150
Temperature limit: -100℃~200℃
Load capacity: 90N/mm2
Speed limit: 2m/s
High load capacity, good wear-resistance.
Good stability under load, particularly suitable for oscillating bearing.
Grease depots for long-term lubrication.
Standard cylindrical bushings are available.
Special designs are produced based on your design.
