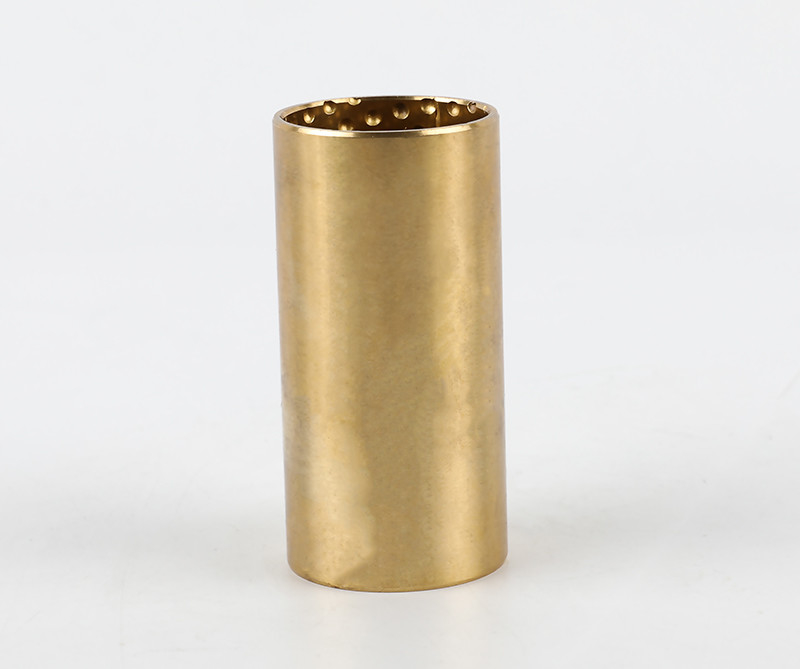

CuZn31Si Brass Wrapped Bushing 40*36*82mm
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Bronze Bushings |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | CuZn 31 Si Bronze Bushings | Type | Brass Wrapped Bushing |
|---|---|---|---|
| Brass Bushing | 40*36*82mm | Code | Metric Size |
| Feature | BRO-MET, FB090, BRM10, WB800 | Item | Buckles, Split Bushings |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Specialty | Бронзовые втулки | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | CuZn31Si Brass Wrapped Bushing,Metric Wrapped Bushing |
||
Product Description
The CuZn31Si Brass Wrapped Bushing, with dimensions of 40mm x 36mm x 82mm, is a precision-engineered component that offers superior wear resistance and durability. Constructed from high-quality CuZn31Si brass alloy, this bushing is wrapped or formed around a central core or mandrel, providing a secure and reliable fit for various applications.
The CuZn31Si Brass Wrapped Bushing is commonly used in rotating machinery such as pumps, motors, compressors, and other equipment. The CuZn31Si brass alloy, which contains approximately 31% zinc and a small amount of silicon, ensures excellent corrosion resistance, strength, and machinability.
The precise dimensions of 40mm x 36mm x 82mm allow for easy installation and compatibility with specific equipment. The wrapped design ensures that the bushing remains securely in place during operation, minimizing the risk of movement or misalignment.
Overall, the CuZn31Si Brass Wrapped Bushing 403682mm is a reliable and durable bearing component that offers smooth rotation, low friction, and long-lasting performance. It is an essential part of maintaining the smooth and efficient operation of rotating machinery in various industrial applications.
Brass Wrapped Bushing Manufacturer, Exporter, Cheap Price
091 bronze wrapped bushing with groove 40*36*82 metric size
40*36*82mm, the Chemical formula of the alloy is CuZn31Si. Silicon brass is characterized by high strength and corrosion resistance.
ISO 426-1 Grade CuZn31Si
Brass Wrapped Bushing, with material CuZn31Si. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. It can be produced by different bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition. The material structure, application fields, and technical parameter are as follows.
Product Description
| Data | Code | FB-091 |
| Material | CuZn31Si(H68) | |
| Applications | Products used in construction machinery, automotive brake system machine tool industry. | |
| Density g/cm³ | 8.4 | |
| Max Load Capacity N/mm² | 90 | |
| Max Line Speed V | Grease Lubrication m/s | 1.5 |
| PV Value Limit | Grease Lubrication N/mm²·m/s | 1.65 |
| Tensile Strength N/mm² | >440 | |
| Yield Strength N/mm² | >230 | |
| Hardness HB | 80~120 | |
| Friction Coefficient u | 0.06~0.15 | |
| Mating Axis | Hardness HRC | ≥50 |
| Roughness Ra | 0.4~1.0 | |
| Working Temperature ℃ | -40~+150 | |
| Thermal Conductivity W/mk | 71 | |
| Coefficient Of Linear Xpansion | 19.2×10-6/K | |
| In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements. | ||
Explanation: Brass Wrapped Bushing, with material CuZn31Si.
Chemical properties
the bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.
Material: CuZn31Si
Specification
|
working temperature
|
-40~+150℃
|
|
|
Coefficient of linear expansion
|
19.2×10-6/K
|
|
|
Friction coefficient
|
0.06~0.15μ
|
|
|
Mating Axis
|
Hardness
|
≥50
|
|
Roughness
|
0.4~1.0
|
|
| The use of parameters | |||||
| Parameters | 090 Bronze Wrapped Bushing | 091 Copper Wrapped BushingBronze Wrapped Bushing | 092 Bronze Wrapped Bushing | 094 Bronze Wrapped Bushing | 09G Bronze Wrapped Bushing |
|
|
|
|
|
|
| Density | |||||
| 8.9g/cm³ | 8.9g/cm³ | 8.4g/cm³ | 8.9g/cm³ | 8.9g/cm³ | 8.3g/cm³ |
| Pressure resistance strength | 470N/mm² | 440N/mm² | 470N/mm² | 470N/mm² | 470N/mm² |
| Coefficient of heat | 60W/m.k | 71W/m.k | 60W/m.k | 60W/m.k | 58W/m.k |
| Linear expansion coefficient | 18.5×10-6/K | 19.2×10-6/K | 18.5×10-6/K | 18.5×10-6/K | 18.5×10-6/K |
| Hardness | 90~120 HB | 80~110 HB | 90~120 HB | 90~120 HB | 90~120 HB |
| Elongation | 55% | 30% | 55% | 55% | 55% |
| Alloy material | CuSn8P | CuZn31Si | CuSn8P | CuSn8P | CuSn8P |
| Other material | CuSn6.5P | CuSn6.5P | CuSn6.5P | CuSn6.5P |
