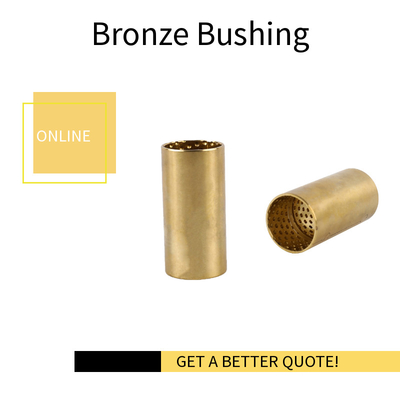

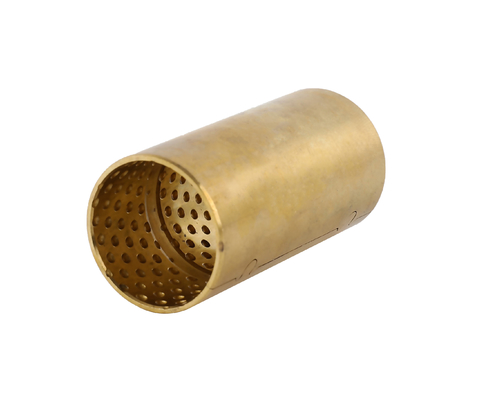

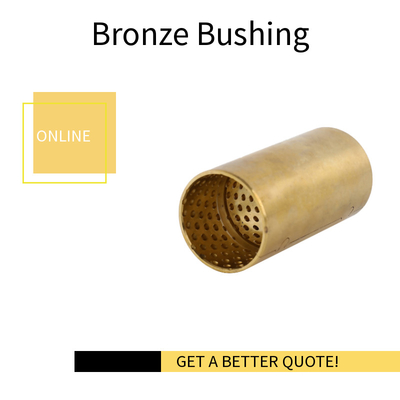

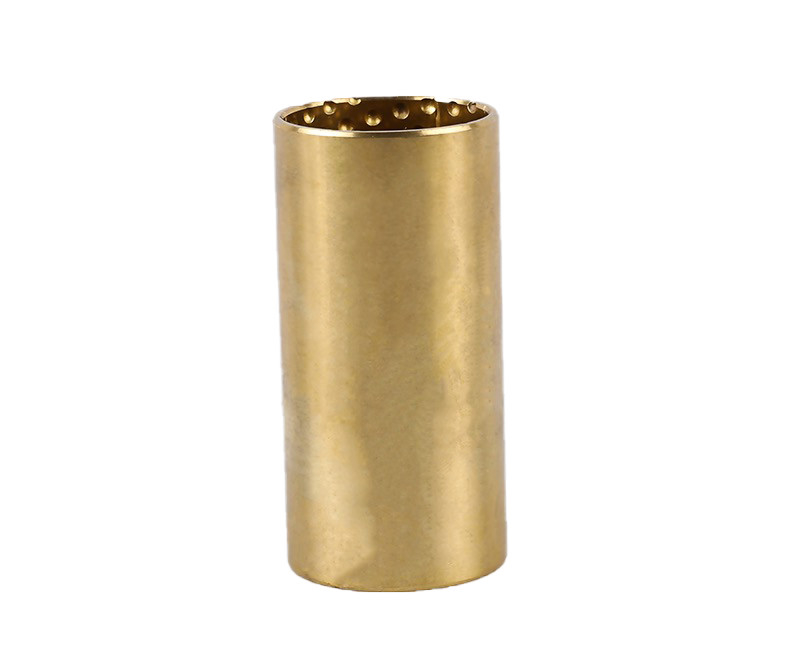

Brass Wrapped-Bushing 36*40*82mm
| Place of Origin | made in china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Bronze Bushings |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-25 work days |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | With Oil Socket And Oil Groove | Material | (h68 Bronze) Or (h62 Bronze Bushings) |
|---|---|---|---|
| Type | Brass Wrapped Bushing | Certification | ISO9001/TS16949 |
| Processing Method | Wrapped | Size | Customized |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . | Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | TS16949 Brass Wrapped Bushing,CuZn31Si Wrapped Bushing |
||
Product Description
The Brass Wrapped-Bushing, with dimensions of 36mm x 40mm x 82mm, is a precision-engineered component that offers exceptional wear resistance and durability. Constructed from high-quality brass alloy, this bushing is wrapped or formed around a central core or mandrel, providing a secure and reliable fit for various applications.
The Brass Wrapped-Bushing is commonly used in rotating machinery such as pumps, motors, compressors, and other equipment. Its brass construction ensures excellent corrosion resistance and strength, making it suitable for demanding industrial environments.
The precise dimensions of 36mm x 40mm x 82mm allow for easy installation and compatibility with specific equipment. The wrapped design ensures that the bushing remains securely in place during operation, minimizing the risk of movement or misalignment.
Overall, the Brass Wrapped-Bushing 364082mm is a reliable and durable bearing component that offers smooth rotation, low friction, and long-lasting performance. It is an essential part of maintaining the smooth and efficient operation of rotating machinery in various industrial applications.
Brass Wrapped Bushing Manufacturer, Exporter
36*40*82 (h68)
Gb brass H68: copper content 68%, also known as shell brass. Ductility, weldability, deep drawing, plating, corrosion resistance, suitable for all kinds of complex cold deep drawing parts, bushing, bronze bearings, etc.
36*40*82 (h62)
H62 brass belongs to the national standard, the implementation standard: baiGB/duT 5232-2001 brass chemical composition table. The copper content of 62%, also known as daily brass.
the bushing is made of copper alloy CuZn31Si that is of higher density with its surface punched with oil sockets or grooves, which depends on the customer's requirements. This type of bushing has better load capacity, anti-erosion, and anti-abrasion capacity.
Material: CuZn31Si
Hardness: HB90~150
Temperature limit: -100℃~200℃
Load capacity: 90N/mm2
Speed limit: 2m/s
Gunmetal, Phosphorus Bronze, Aluminium Bronze, Manganese Bronze.
Technical Data
| Performance Index | Data | |
| Material | CuZn31Si(H68) | |
| Density g/cm? | 8.4 | |
| Max Dynamic Load N/mm? | 90 | |
| Max Linear Velocity(Grease) m/s | 1.5 | |
| Max PV value Grease N/mm?·m/s | 1.65 | |
| Pressure strength N/mm? | >440 | |
| Yield Strength N/mm? | >230 | |
| Hardness | 80~120 | |
| Mating Axis | Hardness | ≥50 |
| Roughness | 0.4~1.0 | |
| Working Temperature ℃ | -40~150 | |
| Friction Coefficient | 0.06~0.15 | |
| coefficient of heat conduction W/m·K | 71 | |
| Linear expansion coefficient | 19.2×10-6/K | |
| Typical application | Application: hoisting, mining machinery, forest machinery, agricultural machinery etc. | |
| We can also develop according to customers special request while out of this table | ||
Wrapped Bronze Bearing
Other Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
3. CuZn31Si
4. Bronze(graphite inside)
5. All kinds of brass,copper, bronze material
Feature:
High load capacity and long life. in place of traditional bronze bush,its more cheap and more compact.
Application:
applied in conditions of heavier load but low running velocity,such as on agricultural,building and engineering machines.
widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
oilless bearings wrap copper bushing CuSn8P CuSn6.5P CuZn31Si hardware machinery FB bronze wrapped bearing
Brass Wrapped Bushing is made of specially formulated high-density bronze alloy.
| The use of parameters | |||||
| Parameters | 090 Bronze Wrapped Bushing | 091 Copper Wrapped BushingBronze Wrapped Bushing | 092 Bronze Wrapped Bushing | 094 Bronze Wrapped Bushing | 09G Bronze Wrapped Bushing |
| | | | | |
| Density | |||||
| 8.9g/cm³ | 8.9g/cm³ | 8.4g/cm³ | 8.9g/cm³ | 8.9g/cm³ | 8.3g/cm³ |
| Pressure resistance strength | 470N/mm² | 440N/mm² | 470N/mm² | 470N/mm² | 470N/mm² |
| Coefficient of heat | 60W/m.k | 71W/m.k | 60W/m.k | 60W/m.k | 58W/m.k |
| Linear expansion coefficient | 18.5×10-6/K | 19.2×10-6/K | 18.5×10-6/K | 18.5×10-6/K | 18.5×10-6/K |
| Hardness | 90~120 HB | 80~110 HB | 90~120 HB | 90~120 HB | 90~120 HB |
| Elongation | 55% | 30% | 55% | 55% | 55% |
| Alloy material | CuSn8P | CuZn31Si | CuSn8P | CuSn8P | CuSn8P |
| Other material | CuSn6.5P | CuSn6.5P | CuSn6.5P | CuSn6.5P |
