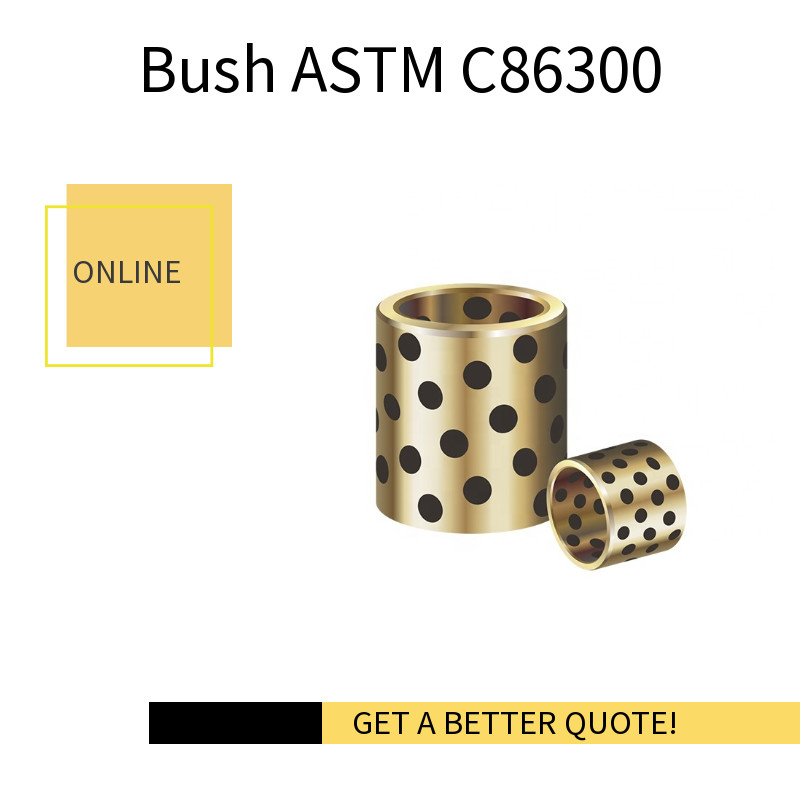

CuZn25AI5Mn4Fe3 Bush 62*50*50mm ASTM C86300
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ASTM C86300 |
| Model Number | Bronze Bushing |
| Minimum Order Quantity | Standard Size Bronze Bushing Small Minimum Order Quantity |
| Price | Oilless Bushings High Quality Price Ratio B2B |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-15 work days |
| Payment Terms | T/T IN ADVANCE |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Material | CuZn25AI5Mn4Fe3 | Bushing Application | Parts Repair And Fabrication Services (Heavy Equipments, Automotive, Shipping Industry, Machinery, Etc) |
|---|---|---|---|
| Size | 62*50*50 Mm | Material | Brass Bushings |
| Bushing Type | BUSH GRAPHITE IMPREGNATED | Bushing Feature | Bushings For Temperature -40℃ To 300 ℃ |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | ASTM C86300 Bronze Bushing,62*50*50mm Bronze Bushing,CuZn25AI5Mn4Fe3 Bronze Gleitlager |
||
Product Description
"CuZn25Al5Mn4Fe3 Bushing, Dimensions: 62mm x 50mm x 50mm, Material Specification: ASTM C86300"
Explanation:
"CuZn25Al5Mn4Fe3" refers to the chemical composition of the material, which is a brass alloy with specific percentages of copper, zinc, aluminum, manganese, and iron.
"Bushing" is the common name for a cylindrical metal part that is used as a bearing surface or to protect other parts from wear.
"Dimensions: 62mm x 50mm x 50mm" specifies the outer dimensions of the bushing.
"ASTM C86300" is the material specification or standard that defines the chemical, mechanical, and physical properties of the alloy.
CuZn25AI5Mn4Fe3 Bush 62*50*50mm ASTM C86300
Precision Bronze Cast Bearings Manufacturers
506250 | Metric Graphite Plugged Sleeve | 50 ID x 62 OD x 50 OAL
Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating
surface should always be seperated by a film of lubricant. With Graphite Plugged Bronze Bushings no form of supplementary lubrication is required.
Self-Lubricating Bushings for Guide Pins can save time and money in the design, construction and operation of injection molds.
Graphite dotted self-lubricating, CuZn25Al6Mn4Fe3 Solid Lubricant Inlaid Bearing, self-lubricating materials
Among those professional cuzn25al6mn4fe3 solid lubricant inlaid bronze bearing manufacturers in China, welcome to buy customized and low price cuzn25al6mn4fe3 solid lubricant inlaid bearing or get its free sample from our factory. CuZn25Al6Mn4Fe3 Solid lubricant inlaid bearing.
Quality CuZn25AI5Mn4Fe3 Shaft Bush Bronze Material Equivalent ASTM C86300 62*50*50 mm Diameter metric size bronze bearings Supplier, operating Temperature -40℃ to 300 ℃ Graphite plugs bronze sleeve made by the leading manufacturer. Order Today! Made in China. Standard and Custom Bronze Oilless Bushing, C86200, C86300, C93200, C95400 bronze bearing made to order from China.
Material: Cast Bronze and Solid Lubricant Plugs
Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds- max PV 46,000, P-Load 7,100, V-SFM-49
The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2 typical
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||
Chemical Composition- Copper (60-66%), Tin (0.2), Zinc (22-28%), Iron (2.0-4.0%) Aluminum (5.0-7.5%%), Manganese (2.5 -5.0%)
(%max., unless shown as range or min.)
NOTE: Information courtesy of Copper.org
|
|
Cu(1) |
Al |
Fe |
Pb |
Mn |
Ni(2) |
Sn |
Zn |
|---|---|---|---|---|---|---|---|---|
|
Min./Max. |
60.0-66.0 |
5.0-7.5 |
2.0-4.0 |
.20 |
2.5-5.0 |
1.0 |
.20 |
22.0-28.0 |
|
Nominal |
63.0 |
6.2 |
3.0 |
- |
3.7 |
- |
- |
25.0 |
(1) In determining Cu min., Cu may be calculated as Cu + Ni.
(2) Ni value includes Co.
Note: Cu + Sum of Named Elements, 99.0% min.
What We Can Offer Our Experience
Bushing Made While You Wait
Hydraulic Cylinder Repair Bushings
Hydraulic Cylinder Sliding Bearing Manufacture
Milling / Turning Service
Welding / Light Fabrication
On-Site Engineering
We are uniquely positioned in the Hydraulic Cylinder Repair Bushing Industry.
China Hydraulic Cylinder Replacement Bushing Services
Metallic self-lubricating bearings
The wear resistance metal back with the solid lubricants can continuously provide lubricating source during the bearing operation to achieve the self-lubricating feature. With the combination of heavy load and impact resistance of the metal and low friction factor of the non-metal, this material is good for the various working conditions.
Metallic self-lubricating bearings size:
OD62*ID50*LENGTH50
Main Metal Type
| Type | 650 | 650S5 | 650W1 | 650W3 | 650S1 | 650S2 | 650S3 | |
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | ||||
| Density | 7.8 | 8.9 | 7.8 | 8.9 | ||||
| HB Hardness | ≥210 | ≥250 | ≥210 | ≥230 | ≥70 | ≥150 | ≥75 | |
| Tensile Strength MPa | ≥750 | ≥800 | ≥755 | ≥755 | ≥250 | ≥500 | ≥270 | |
| Yield Strength MPa | ≥450 | ≥450 | ≥400 | ≥400 | ≥90 | ≥260 | ≥150 | |
| Elongation % | ≥12 | ≥8 | ≥12 | ≥12 | ≥13 | ≥10 | ≥5 | |
| Thermal Expansion Coefficient | 1.9x10*%/°C | 1.8x10*9/°C | 1.6x10^*/°C | 1.8x10*/°C | ||||
| Max. Operation Temp. | -40~+300°C | -40~+400°C | ||||||
| Max. load MPa | 50 | 75 | 75 | 100 | 50 | |||
| Max. speed m/s | Dry | 0.5 | 0.1 | 0.5 | 0.1 | 0.5 | ||
| Lubricated | 1 | 0.25 | 1 | 0.25 | 2.5 | |||
| Max. PV (N/mm2*m/s) | Dry | 1.65 | 1 | |||||
| Lubricated | 3.25 | 1.65 | ||||||
CuZn25AI5Mn4Fe3 Bush's Features
Self Lubricated when standard lubrication is impractical
Performs well under various loads, types and speed operations
Resists corrosive and hostile environments
Compatible with most viscous lubricants & Oil and Grease applications
Our standard line features over 1,000 sizes that are carried in stock.
Bearing forms available in standard dimensions
|
Cylindrical Bushes |
| Flanged Bushes | |
| Thrust Washers | |
| Sliding plate |
Micresection:
|
1 | Sliding layer with running in film |
| 2 | Solid lubricants inserts | |
| 3 | Bronze |
Typical Applications:
Link Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
The above data is recommended by viiplus. The designing data should be evaluated according to the particular application conditions.
CuZn25AI5Mn4Fe3 Bronze Bushing Size
linear graphite copper set bushing oil self-lubricating JDB ID 40mm OD 45mm 48mm 50mm
| graphite bronze bushing | 40x50x25 |
| graphite bronze bushing | 40x50x65 |
| graphite bronze bushing | 40x50x20 |
| graphite bronze bushing | 40x50x50 |
| graphite bronze bushing | 40x45x35 |
| graphite bronze bushing | 40x45x20 |
| graphite bronze bushing | 40x45x25 |
| graphite bronze bushing | 40x48x40 |
| graphite bronze bushing | 40x45x40 |
| graphite bronze bushing | 40x45x50 |
| graphite bronze bushing | 40x50x35 |
| graphite bronze bushing | 40x50x60 |
| graphite bronze bushing | 40x50x45 |
| graphite bronze bushing | 40x50x80 |
| graphite bronze bushing | 40x50x30 |
| graphite bronze bushing | 40x45x30 |
| graphite bronze bushing | 40x48x30 |
| graphite bronze bushing | 40x50x40 |
| graphite bronze bushing | 40x50x50 |
| graphite bronze bushing | 40x50x45 |
| graphite bronze bushing | 40x50x70 |
| graphite bronze bushing | 40x50x60 |
40 x 50 x 50 Length , 60length , 70 length ,100length , 150 length
50 x 62 x length 50mm, 60mm ,70,mm,100mm,150mm
50 x 65x length 50mm, 60mm ,70,mm,100mm,150mm
60 x 70x length 50mm, 60mm ,70,mm,100mm,150mm
65 x 80 x length 50mm, 60mm ,70,mm,100mm,150mm
65 x 75 x length 50mm, 60mm ,70,mm,100mm,150mm
70 x 80 x length 50mm, 60mm ,70,mm,100mm,150mm
70 x 85 x length 50mm, 60mm ,70,mm,100mm,150mm
80 x 90 x length 50mm, 60mm ,70,mm,100mm,150mm
80 x 95 x length 50mm, 60mm ,70,mm,100mm,150mm
90 x 100 x length 50mm, 60mm ,70,mm,100mm,150mm
90 x 105 x length 50mm, 60mm ,70,mm,100mm,150mm
100 x 110 x length 50mm, 60mm ,70,mm,100mm,150mm
100 x 115 x length 50mm, 60mm ,70,mm,100mm,150mm
Solid Lubricants
| Lubricant | Feature | Typical Applications |
| SL1 Graphite + Additives |
Good Chemical resistance and low friction coefficients. Operation temperature up to +400oC |
Suitable for general industry applications exposed to the atmosphere. |
| SL4 +MoS2+Additives |
Low friction coefficients and good water lubricating feature. Operation temperature up to +300oC |
Suitable for water lubrication condition. The applications include vessels, hydraulic turbines and steam turbines. |
