C95400 Aluminum Bronze Gleitlager C954 Bushing Material Continuous Centrifugal
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ASTM Asarcon SAE AMS Federal Military Other C95400 B505 B505M |
| Model Number | C95400 Alloy B505 Bushing |
| Minimum Order Quantity | Standard Size Bushing No Minimum Order Quantity |
| Price | Bushings High Quality Price Ratio B2B |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 7-20work days |
| Payment Terms | T/T, Western Union |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Bronze Gleitlager | Material | Aluminum Bronze, Aluminum Bronze + Graphite |
|---|---|---|---|
| Quality | High Quality | Supplier | China Supplier |
| Lubrication | High Purity Graphite, Addictive | Customized | Based On Customized Drawing Or Sample |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | Continuous Centrifugal Bronze Gleitlager,C95400 Aluminum Bronze Gleitlager,C954 Bushing Bronze Gleitlager |
||
Product Description
The C95400 aluminum bronze Gleitlager bushing material, produced through continuous centrifugal casting, offers a unique combination of strength, wear resistance, and corrosion resistance. This material is specifically designed for use in Gleitlager bushings, which are crucial components in various industrial applications.
The continuous centrifugal casting process ensures a dense and uniform microstructure, resulting in bushings with excellent mechanical properties. The aluminum bronze composition provides high strength and ductility, while also resisting wear and corrosion, making it suitable for demanding operating conditions.
The Gleitlager bushings made from C95400 aluminum bronze are known for their long service life and reliable performance. They are often used in high-speed rotating equipment, where their smooth surface and precision fit minimize friction and wear, reducing maintenance costs and downtime.
Wh you're upgrading existing machinery or installing new equipment, the C95400 aluminum bronze Gleitlager bushings are an excellent choice for enhancing operational efficiency and extending the lifespan of your industrial applications. Contact us today to learn more about this innovative material and how it can benefit your operations.

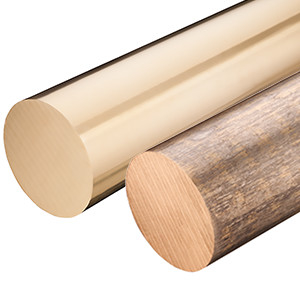

C95400 Aluminum Bronze, C954 Bushing Material Continuous & Centrifugal
We produce Aluminum Bronze alloy C95400 as a standard stock product. Aluminum in conjunction with iron and nickel in C954 acts as a strengthener.
C95400 Aluminum Bronze, also known by C954, is the most popular, all purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability and exceptional resistance to wear, fatigue and deformation under shock or overload.
Replacement bronze bearings parts.
Continuous: ASTM B505, SAE J462, J461
Centrifugal: ASME SB271, ASTM B271, SAE J...
Sand: ASME SB148, ASTM B66, B148, B763, ...
Precision: MILITARY MIL-C-11866
Selecting Your Bronze Bushing & Bearings Materials C95400 Aluminum Bronze
Exporter of Aluminium Bronze Bushes - Aluminum Bronze Parts
Aluminium Bronze Bushing Feature
• High strength
• Corrosion resistance compare to other bronze
• Low reactivity with sulfurous compounds
• High hardness
• High wear resistance
Chemical Composition
|
Cu% |
Fe% |
Ni%1 |
Al% |
Mn% |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chemical Composition according to ASTM B505
|
|||||||||||
|
83.00 |
3.00- |
|
10.00- |
|
|||||||
C95400 BUSHING SIZE OR ACCORDING COSTOMER DRAWINGS.
C95400 Aluminum Bronze Bushing
C95400 Aluminum Bronze / C954 Aluminum Bronze C95400 Aluminum Bronze is a tough, hard, aluminum bronze that resists wear, abrasion, and deformations under high compressive loads. When mating with dissimilar metals, C95400 Aluminum Bronze prolongs part life, cuts maintenance costs, friction, galling, and seizing are reduced.
SHAPES
C95400 Aluminum Bronze Bushing
Flat Strips
Flange Bushing
Thrust Washer

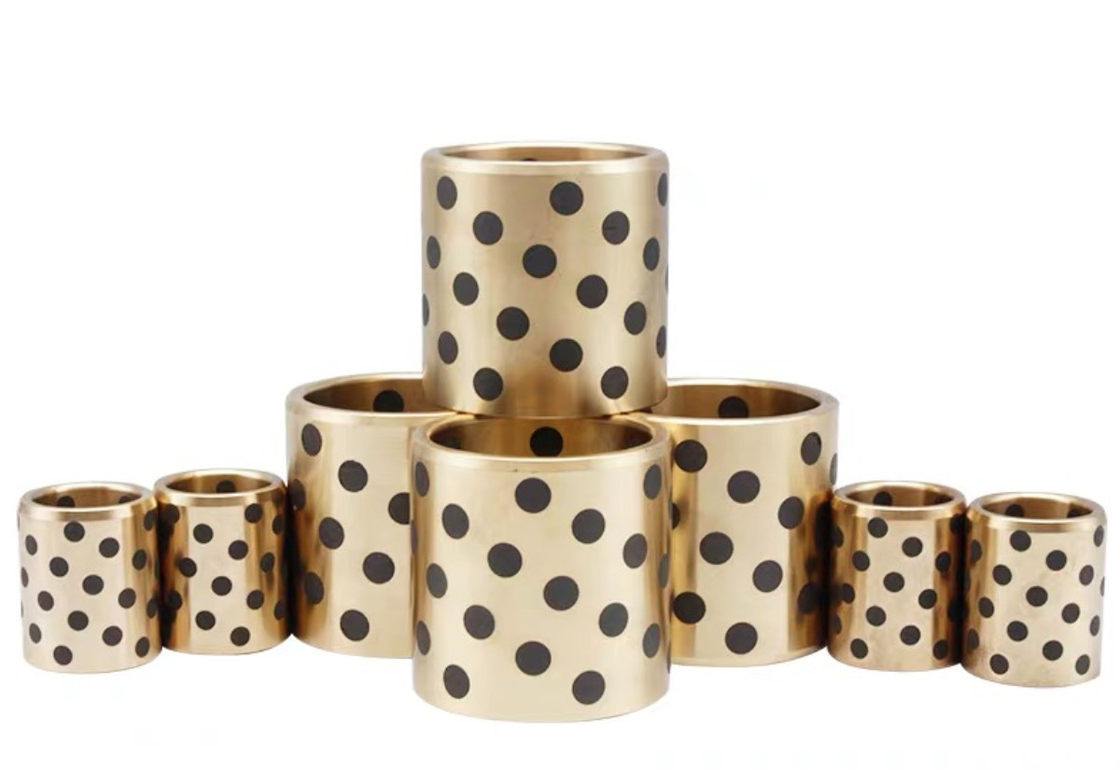

Bronze Gleitlager
- Control the quality and price: one- stop service from casting of raw material to finished products, control the quality and cost from all links strictly.
- Advanced testing equipments: Spectrometer imported from Germany - guarantee the components; Universal testing machine - test tensile strength, elongation and yield strength; Brinell hardness tester - test hardness.
- Customization: we can provide customized product services according to drawing and material requirements.
|
Material
|
Tin bronze (C83600/C93200/CuSn12/CuSn7Zn4Pb7);
Aluminum Bronze (C62900/C95400/C95500/CuAl10Fe5Ni5)
|
|
Standard
|
ASTM/ JIS/ ASME/ AISI/ EN/ BS
|
|
ID
|
20-1000mm
|
|
OD
|
25-1500mm
|
|
Sample
|
Available
|
|
Package
|
1pc/neutral bag or blister bag
|
|
Production time
|
Around 25 days
|
|
Load port
|
china
|
Application
C954 Aluminum Bronze C95400 Aluminum Bronze C954 Aluminum Bronze
- Sliding Bearings
- Wear plates
- Bushing
- Gibs and Ways
- Sleeve Bearings
- Valve Seats
- Guide Pin Bushings
